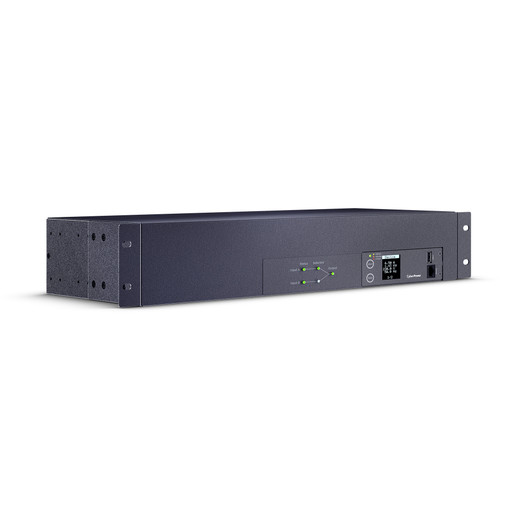

CyberPower PDU24007 Metered ATS PDU
Overview
The CyberPower PDU24007 is a 2U rackmount Metered Automatic Transfer Switch (ATS) PDU designed to provide redundant power to critical IT equipment. It automatically switches to a secondary power source if the primary source fails, ensuring continuous operation. This unit is ideal for server racks in data centers, network closets, or any environment where uptime is paramount. The PDU24007 features dual NEMA L6-30P input plugs, a multifunction LCD display for real-time power monitoring, and a total of 19 outlets, including 16 IEC C13 and 2 IEC C19 sockets.
Compatibility
This PDU is designed for standard 200-240 VAC power infrastructure. Its dual NEMA L6-30P inputs require compatible 30A, 200-240V circuits. The 16x IEC C13 and 2x IEC C19 outlets are standard connectors for servers, network switches, storage arrays, and other IT hardware. It is compatible with standard 19-inch rack enclosures.
Installation Notes
The PDU24007 requires professional installation due to its dual 30A input power requirements. Ensure that the two input circuits are sourced from separate utility feeds or UPS systems to achieve true redundancy. The unit has an operating temperature range of 32-113°F (0-45°C). Firmware is upgradeable via its serial port.
What's in the Box
- 1x CyberPower PDU24007 Metered ATS PDU
- 2x Power Cords (NEMA L6-30P to IEC C19)
- 1x Serial Cable (RJ45)
- 1x Set of Rack Mounting Brackets
- 1x Set of Cord Retention Brackets
