Vertiv RDU101 vs Vertiv RDU101: Specification Comparison
Both products are 1000VA / 1000W online double-conversion rack/tower UPS units from Vertiv's GXT5 line, operating at 120V input and sharing identical physical and electrical specifications. The sole structural difference is that the GXT5-1000LVRT2UXLTAAN carries a TAA (Trade Agreements Act) compliance designation, making it eligible for U.S. federal government procurement. This comparison helps buyers determine which SKU fits their purchasing context — commercial or government — given that the underlying hardware specifications are identical across both models.
In This Guide
- Are the power capacity and efficiency ratings the same between these two models?
- Do the physical dimensions, weight, and environmental tolerances differ between these two SKUs?
- Which model is required for U.S. federal or TAA-restricted procurement channels?
- Which should you choose: the RDU101 or the RDU101?
- Side-by-Side Specs
- FAQ
Are the power capacity and efficiency ratings the same between these two models?
Both the GXT5-1000LVRT2UXLN and the GXT5-1000LVRT2UXLTAAN are rated at 1000VA / 1000W, providing a unity power factor. Input voltage is typical 120V with an acceptance range of 60–150V on both models. Output voltage is user-configurable at 110, 115, 120, or 125VAC with ±3% regulation on both units.
Efficiency ratings are identical: up to 98% in Active ECO Mode and up to 95% in online double-conversion mode. Neither model offers a spec advantage in power handling or efficiency; buyers cannot differentiate on these axes.
Do the physical dimensions, weight, and environmental tolerances differ between these two SKUs?
Physical specifications are identical across both models. Weight is 37 lb (Product A lists 'lb'; Product B lists 'lbs' — a formatting difference only, not a spec delta). Dimensions are 3.4 in (H) × 16.9 in (W) × 15.7 in (D) for both.
Operating temperature range is +32 to +104 °F (0 to 40 °C) on both units. Form factor is identical: compact rack/tower convertible. No environmental or physical spec differentiates these two SKUs.
Which model is required for U.S. federal or TAA-restricted procurement channels?
The GXT5-1000LVRT2UXLTAAN carries a TAA designation in its product name ('TAAN' suffix), indicating compliance with the Trade Agreements Act. TAA compliance is a mandatory requirement for products sold on GSA schedules and many federal, state, and municipal government contracts.
The GXT5-1000LVRT2UXLN does not carry a TAA designation in its name or provided specifications. Both models share the same certifications listed in the specs: ENERGY STAR 2.0, WEEE, RoHS2, REACH, UL 1778 4th edition, and CSA 22.2 No. 107.1. TAA status is not listed as a certification in either spec sheet as provided — the TAA indicator appears only in the product name of the 'TAAN' SKU. Buyers procuring for government contracts should verify TAA compliance through the manufacturer's official documentation before purchase.
Which should you choose: the RDU101 or the RDU101?
Our take: The GXT5-1000LVRT2UXLTAAN (TAA SKU) is the required choice when procuring for U.S. federal, GSA-schedule, or TAA-restricted government contracts; the GXT5-1000LVRT2UXLN is the appropriate SKU for commercial deployments where TAA compliance is not a contracting requirement. On every measurable hardware specification — 1000VA / 1000W power rating, 60–150V input range, up to 98% ECO / 95% online efficiency, 37 lb weight, 3.4 × 16.9 × 15.7 in dimensions, and +32 to +104 °F operating range — the two models are identical. Interface options, output receptacles (5-15R × 6, four programmable), topology (online double-conversion), certifications, and management capabilities are also identical per the provided specs. The decision is entirely a procurement-channel question, not a technical one.
Side-by-Side Comparison
Spec-for-spec, from manufacturer data.
| Specification | Vertiv RDU101 | Vertiv RDU101 |
|---|---|---|
| Power Rating | 1000VA / 1000W | 1000VA / 1000W |
| Topology | Online double-conversion | Online double-conversion |
| Input Voltage (Typical) | 120V | 120V |
| Input Voltage Range | 60–150V | 60–150V |
| Output Voltage | 110/115/120/125VAC (configurable) ±3% | 110/115/120/125VAC (configurable) ±3% |
| Efficiency (ECO Mode) | Up to 98% | Up to 98% |
| Efficiency (Online Mode) | Up to 95% | Up to 95% |
| Input Connector | NEMA 5-15P | NEMA 5-15P |
| Output Receptacles | 5-15R × 6 (4 programmable, 2 non-programmable) | 5-15R × 6 (4 programmable, 2 non-programmable) |
| Weight | 37 lb | 37 lbs |
| Height | 3.4 in | 3.4 in |
| Width | 16.9 in | 16.9 in |
| Depth | 15.7 in | 15.7 in |
| Operating Temperature | +32 to +104 °F (0 to 40 °C) | +32 to +104 °F (0 to 40 °C) |
| TAA Compliance | Not designated in provided specs | Designated (TAAN suffix in product name) |
| Certifications | ENERGY STAR 2.0, WEEE, RoHS2, REACH, UL 1778 4th ed., CSA 22.2 No. 107.1 | ENERGY STAR 2.0, WEEE, RoHS2, REACH, UL 1778 4th ed., CSA 22.2 No. 107.1 |
Frequently Asked Questions
Which should you choose: the RDU101 or the RDU101?
The GXT5-1000LVRT2UXLTAAN (TAA SKU) is the required choice when procuring for U.S. federal, GSA-schedule, or TAA-restricted government contracts; the GXT5-1000LVRT2UXLN is the appropriate SKU for commercial deployments where TAA compliance is not a contracting requirement. On every measurable hardware specification — 1000VA / 1000W power rating, 60–150V input range, up to 98% ECO / 95% online efficiency, 37 lb weight, 3.4 × 16.9 × 15.7 in dimensions, and +32 to +104 °F operating range — the two models are identical. Interface options, output receptacles (5-15R × 6, four programmable), topology (online double-conversion), certifications, and management capabilities are also identical per the provided specs. The decision is entirely a procurement-channel question, not a technical one.
Is there any hardware difference between the GXT5-1000LVRT2UXLN and the GXT5-1000LVRT2UXLTAAN?
Based on the provided specifications, no hardware differences exist between the two models. Power rating, dimensions, weight, efficiency, input/output voltage, wiring, interface options, control panel, receptacles, topology, and certifications are identical. The only documented distinction is the TAA designation indicated in the TAAN model's name.
Do I need the TAA model for a government purchase?
If your contract requires TAA compliance — including GSA schedules or federal agency purchases — you should select the GXT5-1000LVRT2UXLTAAN ('TAAN' suffix). The GXT5-1000LVRT2UXLN does not carry a TAA designation in its provided specifications or name. Verify TAA status with Vertiv's official documentation before committing to a procurement.

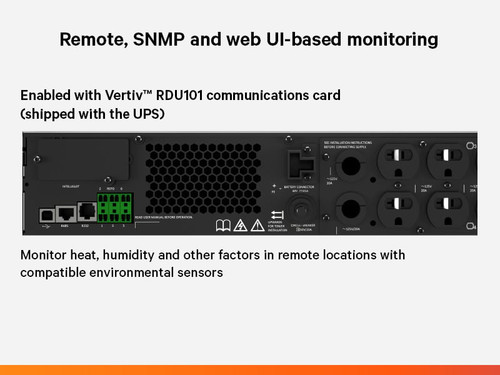

Can both models accept the optional Vertiv Liebert IntelliSlot RDU120 communications card for SNMP management?
Yes. Both models list the optional Vertiv Liebert IntelliSlot RDU120 communications card as the path to SNMP and web management. Both also include USB, RS485, RS232, terminal block, and external battery connector interfaces as standard. There is no difference in interface or protocol capability between the two SKUs per the provided specifications.
