APC by Schneider Electric BVK750M2 vs Vertiv GXT5-750LVRT2UXL: Specification Comparison
Both the APC BVK750M2 and Vertiv GXT5-750LVRT2UXL are 750VA small-UPS units designed for single-phase 120V environments, making them legitimate cross-shop candidates for installers protecting edge equipment, workstations, or compact rack infrastructure. The comparison is notably asymmetric: the BVK750M2 is a line-interactive tower with 410W output, while the GXT5-750LVRT2UXL is a true online double-conversion rack/tower convertible rated at 750W. Topology, output power, form factor, connectivity depth, and certifications differ substantially across the two units.
In This Guide
- Which UPS delivers cleaner, more reliable output power for sensitive equipment?
- How much usable power does each unit provide, and how many devices can it protect?
- Which unit better fits rack deployments and supports remote monitoring or integration?
- Which should you choose: the BVK750M2 or the GXT5-750LVRT2UXL?
- Side-by-Side Specs
- FAQ
Which UPS delivers cleaner, more reliable output power for sensitive equipment?
The BVK750M2 uses a line-interactive topology with sinusoidal output and Automatic Voltage Regulation (AVR) covering an input range of 108–150V. Under normal conditions it passes utility power through; it only switches to battery when voltage falls outside that window. Transfer time to battery is not specified in the provided data.
The GXT5-750LVRT2UXL uses true online double-conversion topology with zero transfer time — load is always powered from the inverter, never from raw utility power. Output is pure sine wave with voltage configurable at 110, 115, 120, or 125VAC ±3%. Input operating range is stated as 60–150V nominal at 120V. This architecture eliminates transfer-time risk entirely and provides tighter output regulation regardless of input quality.
For equipment that is sensitive to micro-interruptions, frequency excursions, or voltage transients — such as VoIP gateways, NVRs with spinning drives, or medical-grade devices — the double-conversion architecture of the GXT5-750LVRT2UXL is the stronger protection model. The BVK750M2's line-interactive design is adequate for general IT equipment tolerant of a brief transfer gap.
How much usable power does each unit provide, and how many devices can it protect?
The BVK750M2 is rated 750VA / 410W, yielding a power factor of approximately 0.55. It provides 4 NEMA 5-15R outlets. Surge energy rating is 350J. No outlet-level programmability or load segmentation is specified in the provided data.
The GXT5-750LVRT2UXL is rated 750VA / 750W with a power factor of 0.9–1.0. It provides 6 NEMA 5-15R outlets, of which 4 are described as programmable and 2 as non-programmable. No surge joule rating is stated in the provided specs.
The watt gap is substantial: the GXT5-750LVRT2UXL delivers 750W versus the BVK750M2's 410W — an 83% difference in usable real power at the same VA rating. Buyers loading servers, PoE switches, or NVRs that draw near their nameplate wattage will find the BVK750M2 undersized despite identical VA ratings. The GXT5-750LVRT2UXL also provides two additional outlets and programmable load segments, enabling staged shutdown or non-critical load shedding.
Which unit better fits rack deployments and supports remote monitoring or integration?
The BVK750M2 is a tower-only form factor. Connectivity is limited to USB. No dimensions, weight, or operating temperature range are provided in the spec data. Management is via USB-connected monitoring software. No display type is specified.

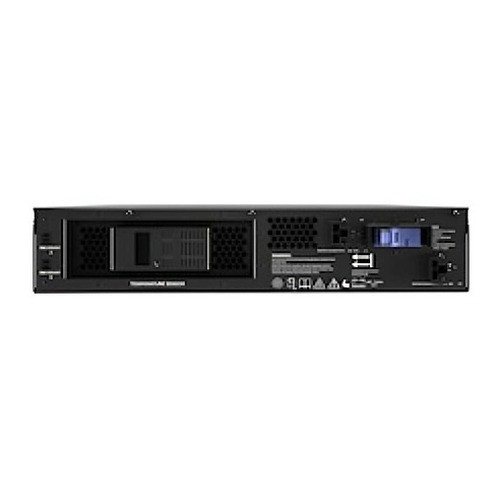

The GXT5-750LVRT2UXL is rack/tower convertible at 2U (430 × 400 × 85 mm, 37 lb). It includes a gravity-sensing color LCD display. Connectivity includes USB, RS232, RS485, and a dry-contact terminal block. An optional IntelliSlot SNMP/web card (RDU120) enables network-based management. The battery is hot-swappable internally, with support for external battery cabinet expansion. Operating temperature is rated 32–104°F (0–40°C). Certifications include ENERGY STAR 2.0, UL 1778 4th edition, CSA 22.2 No. 107.1, RoHS2, REACH, and WEEE.
For any rack-mount deployment or any site requiring remote monitoring, SNMP integration, or future battery runtime extension, the GXT5-750LVRT2UXL is the only applicable option of the two. The BVK750M2's tower-only chassis and USB-only connectivity limit it to desktop or closet scenarios with local management only. No equivalent certifications or form-factor data are present in the BVK750M2 spec set.
Which should you choose: the BVK750M2 or the GXT5-750LVRT2UXL?
Our take: The GXT5-750LVRT2UXL is the stronger choice when load criticality, rack deployment, or remote management are requirements. Three concrete spec deltas define the gap: (1) topology — true online double-conversion with zero transfer time versus line-interactive with an unspecified transfer gap; (2) real power output — 750W versus 410W, an 83% advantage at identical VA ratings; (3) connectivity — USB plus RS232, RS485, dry-contact, and optional SNMP versus USB only. The BVK750M2 is a viable, lower-complexity option for desktop or small-closet installations protecting equipment tolerant of brief transfer times, where tower form factor is acceptable and remote monitoring is not required. Buyers selecting a UPS for rack-mount camera servers, NVRs, or network infrastructure should specify the GXT5-750LVRT2UXL. Buyers protecting a single workstation or small edge device in a tower environment may find the BVK750M2 adequate.
Side-by-Side Comparison
Spec-for-spec, from manufacturer data.
| Specification | APC by Schneider Electric BVK750M2 | Vertiv GXT5-750LVRT2UXL |
|---|---|---|
| UPS Topology | Line-Interactive | True Online Double Conversion |
| Output Capacity (VA) | 750 VA | 750 VA |
| Output Power (W) | 410 W | 750 W |
| Power Factor | — | 0.9 – 1.0 |
| Transfer Time | — | Zero (continuous online) |
| Output Waveform | Sine | Pure Sine Wave |
| Input Voltage Range | 108 – 150 V | 60 – 150 V (120V nominal) |
| Output Voltage | 120 V | 110 / 115 / 120 / 125 VAC ±3% (configurable) |
| Output Frequency | 50 / 60 Hz | — |
| AC Outlets | 4 × NEMA 5-15R | 6 × NEMA 5-15R (4 programmable, 2 non-programmable) |
| Input Plug | NEMA 5-15P | NEMA 5-15P |
| Surge Energy Rating | 350 J | — |
| Form Factor | Tower | Rack/Tower Convertible, 2U |
| Dimensions (W×D×H) | — | 16.9 × 15.7 × 3.4 in (430 × 400 × 85 mm) |
| Weight | — | 37 lb (16.8 kg) |
| Display | — | Gravity-sensing color LCD |
| Connectivity | USB | USB, RS232, RS485, dry-contact terminal block, optional IntelliSlot SNMP |
| Hot-Swap Battery | — | Yes |
| External Battery Expansion | — | Yes |
| Operating Temperature | — | 32 – 104°F (0 – 40°C) |
| AVR | Yes | N/A (always-on inverter) |
| Certifications | — | ENERGY STAR 2.0, UL 1778, CSA 22.2 No. 107.1, RoHS2, REACH, WEEE |
Frequently Asked Questions
Which should you choose: the BVK750M2 or the GXT5-750LVRT2UXL?
The GXT5-750LVRT2UXL is the stronger choice when load criticality, rack deployment, or remote management are requirements. Three concrete spec deltas define the gap: (1) topology — true online double-conversion with zero transfer time versus line-interactive with an unspecified transfer gap; (2) real power output — 750W versus 410W, an 83% advantage at identical VA ratings; (3) connectivity — USB plus RS232, RS485, dry-contact, and optional SNMP versus USB only. The BVK750M2 is a viable, lower-complexity option for desktop or small-closet installations protecting equipment tolerant of brief transfer times, where tower form factor is acceptable and remote monitoring is not required. Buyers selecting a UPS for rack-mount camera servers, NVRs, or network infrastructure should specify the GXT5-750LVRT2UXL. Buyers protecting a single workstation or small edge device in a tower environment may find the BVK750M2 adequate.
Can either of these UPS units be mounted in a standard equipment rack?
Only the Vertiv GXT5-750LVRT2UXL supports rack mounting. It is a 2U rack/tower convertible unit measuring 430 × 400 × 85 mm. The APC BVK750M2 is specified as a tower form factor only; no rack-mount capability is listed in its provided specifications.
Is the BVK750M2 or GXT5-750LVRT2UXL better for protecting a server or NVR drawing close to 700W?
The GXT5-750LVRT2UXL is the only option rated for that load. Its output power is 750W. The BVK750M2 is rated at 410W output; a 700W load would exceed its capacity. Always size UPS output watts — not VA — against the connected load's actual power draw.
Which unit supports SNMP monitoring for integration with a building management or network operations system?
The Vertiv GXT5-750LVRT2UXL supports SNMP and web-based management via an optional IntelliSlot RDU120 card, plus RS232 and RS485 serial interfaces and a dry-contact terminal block. The APC BVK750M2 lists only a USB port for connectivity; no SNMP or network management capability is present in its provided specifications.
