APC by Schneider Electric BVK750M2 Line-Interactive Tower UPS 750VA/410W
Overview
The APC by Schneider Electric BVK750M2 is a 750VA/410W line-interactive tower UPS designed to protect sensitive commercial and security equipment from power events that damage hardware and corrupt data. With a true sine wave output, automatic voltage regulation across a 108–150V input window, and a built-in EPO port, the BVK750M2 is a practical fit for NVRs, surveillance workstations, network closets, and edge computing nodes where runtime and clean power matter equally. Explore the full UPS and power protection category for compatible options across capacities.
Key Features
- Line-Interactive Topology with True Sine Wave Output: Line-interactive designs correct minor voltage sags and swells without switching to battery, which extends battery life and avoids unnecessary wear cycles. The sine wave output — rather than a stepped approximation — is required by many active PFC power supplies found in modern NVRs and servers. Running an active PFC supply on a simulated sine wave UPS can trip overload faults; the BVK750M2 eliminates that risk.
- 750VA / 410W Capacity: At 410W of real power output, this unit handles modest server loads, a small NVR with a few drives, or a switch plus a couple of access points with headroom to spare. Size your load to no more than 80% of rated wattage (328W) for reliable runtime — factor drives, network gear, and any attached compute before committing to this tier.
- Automatic Voltage Regulation (AVR), 108–150V Input Window: AVR steps voltage up or down without touching the battery when incoming power drifts between 108V and 150V. In buildings with aging electrical infrastructure or frequent brownouts, this is the spec that keeps your NVR running during a voltage sag that would otherwise cause a hard reboot — and a potentially corrupt recording database.

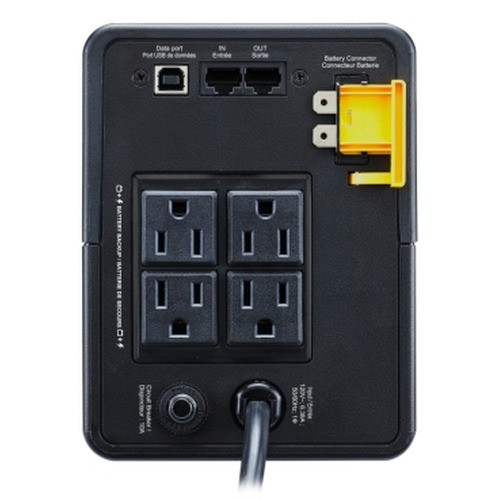

- 4x NEMA 5-15R Outlets: Four standard 15A receptacles provide enough positions for an NVR, a PoE switch, a workstation, and a spare — all protected. No proprietary outlet formats; standard North American plugs connect directly, no adapters needed.
- 350J Surge Energy Rating: Transient overvoltage events are absorbed by the surge suppression stage rated at 350 joules. This is secondary protection — your primary defense should be a whole-panel surge protector — but it handles line noise and moderate surges that reach the branch circuit.
- Emergency Power Off (EPO): The EPO port lets a facility safety system cut power to connected equipment instantly and remotely — a code requirement in some data center and UPS installations. Useful in server rooms where NEC or local fire codes mandate remote shutoff capability.
- USB Connectivity for UPS Management: The USB management port allows a connected server or NVR to receive power status signals and trigger graceful shutdown before the battery depletes. Pair this with APC PowerChute or compatible UPS daemon software on your NVR host for automated safe shutdown during extended outages.
- Auto-Restart and Auto Shut-Off: When utility power returns after an outage, the unit restores power to connected equipment automatically — no manual intervention at the rack. Auto shut-off protects the battery from deep discharge during prolonged outages, extending battery service life.
- NEMA 5-15P Input Plug, 50/60 Hz Output: Standard wall-plug input means no hardwiring or special circuit required in most North American commercial installations. Dual-frequency output (50/60 Hz) accommodates mixed equipment without adjustment.
Integration and Compatibility
The BVK750M2 is a strong pairing for network video recorders in the 4–16 channel range where total draw typically falls between 80W and 300W depending on drive count and channel load. It also works well behind PoE switches powering door controllers, intercoms, or IP cameras when those switches need protected power. For UPS management software, the USB port is compatible with APC PowerChute Personal Edition (Windows) and open-source NUT (Network UPS Tools) on Linux-based NVRs. See the power protection buying guide for load calculation guidance and how to match UPS topology to load type. If you're deploying in a rack environment, compare this unit to rack-mount UPS options in the rack UPS category — the tower form factor here is intended for floor or shelf placement, not tool-less rail mounting.
Frequently Asked Questions
Q: Does the BVK750M2 produce a true sine wave or a simulated/stepped sine wave?
A: The BVK750M2 produces a true sine wave output. This is important if any connected equipment uses an active PFC power supply, which is common in modern NVRs and servers — active PFC supplies can fault or behave unpredictably on stepped sine wave (simulated sine wave) UPS units.
Q: What is the input voltage operating range on the BVK750M2?
A: The unit accepts input voltages between 108V and 150V without switching to battery, thanks to its automatic voltage regulation (AVR) stage. Below 108V or above 150V, it will transfer to battery to protect connected equipment.
Q: How many outlets does the BVK750M2 have, and what type are they?
A: It has 4 outlets, all NEMA 5-15R (standard North American 15A receptacles). The input plug is a NEMA 5-15P, so no special outlet or hardwiring is required for typical commercial branch circuits.
Q: Can the BVK750M2 be managed remotely or integrated with shutdown software?
A: Yes. It includes a USB port that connects to a host computer or NVR to communicate power status and trigger graceful shutdown. It is compatible with APC PowerChute software and open-source NUT (Network UPS Tools) on Linux-based systems.
Q: What does the Emergency Power Off (EPO) port do?
A: The EPO port allows an external safety or building management system to cut power to all connected equipment instantly via a dry-contact signal. This is required by NEC and some local fire codes in server rooms and data centers where remote shutoff capability is mandated.
Q: What is the surge energy rating on the BVK750M2?
A: The surge energy rating is 350 joules. This provides protection against transient voltage spikes on the branch circuit. For facilities with significant surge exposure, a whole-panel surge protector upstream is still recommended as primary protection.
When I'm speccing power protection for a surveillance or access control closet, the first thing I check is whether the UPS can actually run the load's power supplies without faulting — and that's where the BVK750M2 earns its place. The true sine wave output is non-negotiable when you have an NVR or server with an active PFC supply on the protected circuit. I've seen integrators deploy simulated sine wave units to save cost, then spend hours troubleshooting NVR reboots that trace back to the UPS topology, not the NVR itself.
Technical Highlights:
- 108–150V AVR Window: A 42-volt correction range before the battery even engages means this unit stays on utility power through most brownout events — protecting battery cycles for genuine outages. Buildings with notoriously soft voltage on branch circuits will see immediate benefit.
- 350J Surge Rating + EPO Port: The combination of surge suppression and a hardwired EPO contact makes this unit code-friendly in environments where local AHJ or NEC requires remote shutoff — not just a nice-to-have if you're in a server room subject to fire suppression system tie-ins.
- USB Management Port: Graceful shutdown via USB means your NVR's recording database gets written cleanly before the battery depletes. On a 16-channel system writing H.265 to spinning drives, an unclean shutdown mid-write is a real data integrity risk — this port is how you prevent it.
Deployment Considerations:
- At 410W rated output, keep your connected load under 328W (80% rule) for safe continuous operation with runtime headroom. An NVR with four surveillance HDDs, a small PoE switch, and a workstation can approach that ceiling quickly — calculate actual wattage before assuming this tier fits.
- This is a tower form factor, not rack-mountable. If your deployment is in a standard 19-inch rack, you'll need a shelf or should evaluate the rack-mount UPS line instead — don't try to lay this unit on its side without confirming the manufacturer's orientation guidance.
The BVK750M2 is the right call for a small-to-mid surveillance or access control equipment closet where you have an NVR, a managed PoE switch, and a workstation on the same circuit — specifically in facilities with known voltage instability where AVR saves battery cycles and the sine wave output protects active PFC loads from fault conditions.
