Vertiv GXT5-5000HVRT5UXLN vs Panduit U05N11V: Specification Comparison
Both the Vertiv GXT5-5000HVRT5UXLN and the Panduit U05N11V SteadySine are 5 kVA double-conversion online UPS units targeting rack-mounted IT and data-center loads. The Vertiv ships as a flexible rack/tower unit at 5U with 208 V hardwired input and a 5,000 W output rating at unity power factor, while the Panduit occupies 3U with a 0.9 power-factor de-rating to 4,500 W. Buyers cross-shopping these will weigh power density, wiring approach, output receptacle configuration, efficiency, and management depth.
In This Guide
Which UPS delivers more usable power and how is output wired?
The Vertiv GXT5-5000HVRT5UXLN is rated 5,000 VA / 5,000 W, reflecting a unity (1.0) power factor. Output is delivered via 2 × L6-20R and 2 × L6-30R receptacles plus hardwired terminals, giving installers flexibility for both cord-connected and hardwired loads. Input is hardwired 208 VAC with a range of 176–288 VAC.
The Panduit U05N11V SteadySine is rated 5 kVA / 4,500 W at a 0.9 power factor. This 10% watt de-rating is a meaningful distinction for fully loaded deployments. The spec sheet does not disclose output receptacle types or input wiring details beyond the 3U rackmount form factor and external DC battery connectors. Output waveform is specified as pure sine wave with less than 3% THD.
For deployments requiring the full 5,000 W at the receptacle level, the Vertiv's unity power factor and explicit L6-20R/L6-30R outlet inventory give installers a concrete wiring plan. The Panduit's output connectivity details are not specified in the available data.
How do rack space, dimensions, and physical installation requirements compare?
The Vertiv GXT5-5000HVRT5UXLN occupies 5U (8.5 in H) and measures 16.9 in wide × 24.8 in deep, weighing 156.7 lb. Its flexible rack/tower form factor and gravity-sensing LCD panel ease orientation during installation. The hardwired in/out architecture requires a licensed electrician for both sides of the connection.

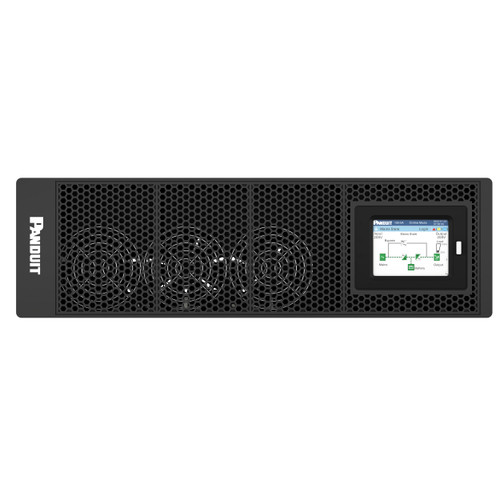

The Panduit U05N11V is a dedicated 3U rackmount at 10.3 in H × 17.3 in wide; depth and weight are not stated in the available specifications. The 3U footprint represents a meaningful 2U space saving per unit in high-density deployments. Front-to-rear airflow is specified, which aligns with standard hot-aisle/cold-aisle data-center layouts. Battery modules and fan assemblies are listed as field-serviceable.
The Panduit's 3U profile and hot-swappable battery modules offer a maintenance and density advantage in rack-constrained environments. The Vertiv's exact depth (24.8 in) and weight (156.7 lb) allow precise rail and floor-load planning; equivalent Panduit figures are absent from the provided specs.
Which unit offers deeper remote management and better efficiency ratings?
The Vertiv GXT5-5000HVRT5UXLN ships with a factory-installed Vertiv RDU101 SNMP/web card as standard equipment, delivering SNMP and web management out of the box. Additional interfaces include USB, RS-485, RS-232, a terminal block, and an external battery connector. Efficiency is rated up to 98% in Active ECO Mode and up to 95% in on-line double-conversion mode. Certifications include ENERGY STAR 2.0, UL 1778, c-UL, RoHS2, and REACH.
The Panduit U05N11V provides a network card slot (card not stated as factory-installed), USB, and serial management interfaces. No efficiency percentage is stated in the available specifications. Certifications listed are UL 1778 and cUL only; ENERGY STAR, RoHS, and REACH status are not stated for this model.
The Vertiv's factory-installed SNMP card eliminates an additional purchase and configuration step that Panduit buyers may face if network management is required. The Vertiv's 98% ECO-mode efficiency figure is a quantified operating-cost advantage; no comparable figure exists in the Panduit spec data to counter it.
Which should you choose: the GXT5-5000HVRT5UXLN or the U05N11V?
Our take: The GXT5-5000HVRT5UXLN is the stronger choice when maximum rated wattage, out-of-box SNMP management, and certified efficiency matter most. First, it delivers 5,000 W at unity power factor versus the U05N11V's 4,500 W at 0.9 PF—a 500 W gap that becomes critical on fully loaded circuits. Second, the Vertiv ships with a factory-installed RDU101 SNMP/web card; the Panduit offers only a network card slot with no factory-included card noted. Third, Vertiv's ENERGY STAR 2.0 certification and published 98% ECO-mode efficiency provide auditable operating-cost data; no efficiency figure is available for the Panduit. The U05N11V's 3U form factor and hot-swappable batteries are genuine advantages in rack-dense or maintenance-sensitive environments where the Vertiv's 5U footprint and 156.7 lb weight create constraints. Choose the Panduit if rack-unit density and tool-free battery service are the primary drivers; choose the Vertiv for 208 V hardwired infrastructure requiring maximum watt output and factory-ready network monitoring.
Side-by-Side Comparison
Spec-for-spec, from manufacturer data.
| Specification | Vertiv GXT5-5000HVRT5UXLN | Panduit U05N11V |
|---|---|---|
| Topology | Double-conversion on-line | Double-conversion on-line (VFI) |
| Power Rating (VA) | 5,000 VA | 5,000 VA |
| Power Rating (W) | 5,000 W (1.0 PF) | 4,500 W (0.9 PF) |
| Form Factor | 5U rack/tower (flexible) | 3U rackmount |
| Height | 8.5 in | 10.3 in (262 mm) |
| Width | 16.9 in | 17.3 in (440 mm) |
| Depth | 24.8 in | — |
| Weight | 156.7 lb | — |
| Input Voltage | 208 VAC typical; 176–288 VAC range | — |
| Output Receptacles | 2 × L6-20R, 2 × L6-30R + hardwired | — |
| Output Waveform / THD | — | Pure sine wave, <3% THD |
| Efficiency | Up to 98% ECO / up to 95% on-line | — |
| Management (standard) | SNMP/web (factory RDU101), USB, RS-485, RS-232 | Network card slot (not factory-installed per spec), USB, serial |
| Battery Serviceability | — | Hot-swappable modules |
| Operating Temperature | 32–104 °F (0–40 °C) | — |
| Certifications | ENERGY STAR 2.0, UL 1778, c-UL, RoHS2, REACH | UL 1778, cUL |
Frequently Asked Questions
Which should you choose: the GXT5-5000HVRT5UXLN or the U05N11V?
The GXT5-5000HVRT5UXLN is the stronger choice when maximum rated wattage, out-of-box SNMP management, and certified efficiency matter most. First, it delivers 5,000 W at unity power factor versus the U05N11V's 4,500 W at 0.9 PF—a 500 W gap that becomes critical on fully loaded circuits. Second, the Vertiv ships with a factory-installed RDU101 SNMP/web card; the Panduit offers only a network card slot with no factory-included card noted. Third, Vertiv's ENERGY STAR 2.0 certification and published 98% ECO-mode efficiency provide auditable operating-cost data; no efficiency figure is available for the Panduit. The U05N11V's 3U form factor and hot-swappable batteries are genuine advantages in rack-dense or maintenance-sensitive environments where the Vertiv's 5U footprint and 156.7 lb weight create constraints. Choose the Panduit if rack-unit density and tool-free battery service are the primary drivers; choose the Vertiv for 208 V hardwired infrastructure requiring maximum watt output and factory-ready network monitoring.
Is the GXT5-5000HVRT5UXLN or U05N11V better for a high-density data center with limited rack space?
The Panduit U05N11V occupies 3U versus the Vertiv's 5U, making it the more space-efficient option per the available specifications. However, the Panduit's depth and weight are not stated, so full rack-planning cannot rely solely on the height figure. If rack units are the binding constraint, the Panduit has a documented 2U advantage.
Do both UPS units support remote SNMP monitoring without buying extra cards?
No. The Vertiv GXT5-5000HVRT5UXLN includes a factory pre-installed Vertiv RDU101 SNMP/web card as standard. The Panduit U05N11V provides a network card slot but does not specify a factory-included card in the available specifications—buyers should confirm whether a separate network card purchase is required.
Which unit is easier to maintain in the field—can batteries be swapped without powering down?
The Panduit U05N11V specifies hot-swappable battery modules and lists battery modules and fan assemblies as serviceable components, indicating online battery replacement is supported. The Vertiv GXT5-5000HVRT5UXLN does not specify hot-swap battery capability in the provided specifications, so buyers requiring online battery replacement should verify this with Vertiv before purchasing.
