Panduit U05N11V SteadySine 5kVA 3U Rackmount UPS

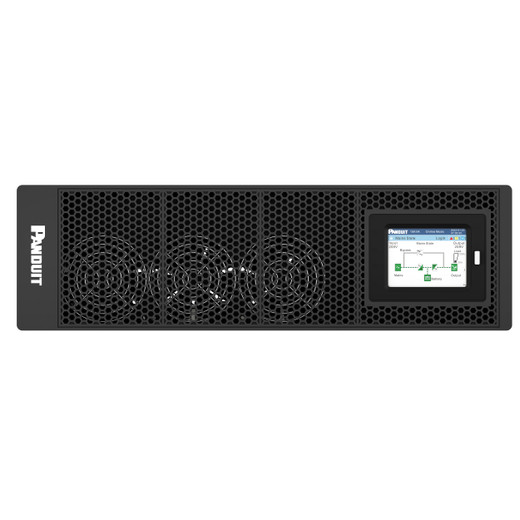

Panduit U05N11V SteadySine™ 5kVA Rackmount UPS

The Panduit U05N11V delivers double-conversion online power protection in a 3U rackmount chassis designed for data center, edge computing, and enterprise MTDC deployments. Part of the SteadySine™ family, this UPS isolates critical infrastructure from grid anomalies through continuous regeneration of clean AC power, eliminating transfer-time vulnerability during brownouts or frequency drift. The 17.3-inch width and 10.3-inch height fit standard 19-inch racks, leaving room for adjacent equipment in dense server or network environments. Integrators managing mixed surveillance NVR loads, PoE switch stacks, or blade server clusters gain predictable runtime extension through external battery cabinet scalability and hot-swap battery modules that service without downtime.

Key Features

• Double-conversion online topology with zero transfer time for continuous load protection
• 3U 19-inch rackmount form factor (17.3"W × 10.3"H) for efficient rack space utilization
• SteadySine™ pure sine wave output with <3% THD for sensitive server and network equipment
• Hot-swappable battery modules for maintenance without downstream equipment shutdown
• External battery cabinet connectivity for extended runtime scalability
• Wide input voltage window reduces nuisance battery cycling in unstable grid environments
• Network management card slot for SNMP/HTTP remote monitoring and shutdown scripting
• Output sequencing and load shedding for staged power restoration and runtime extension
• Front-panel LCD with real-time voltage, load percentage, runtime, and alarm diagnostics
• Replaceable fan modules and front-to-rear airflow for hot-aisle/cold-aisle alignment

The U05N11V employs double-conversion (VFI) architecture where incoming AC continuously charges the battery bank while an inverter synthesizes output power from DC. This topology guarantees zero milliseconds of transfer time during outages and provides complete isolation from input voltage sags, surges, harmonics, and frequency variations—critical for protecting NVR RAID arrays, managed PoE switches supplying IP cameras, and access control panels with volatile configuration memory. The SteadySine™ designation indicates output Total Harmonic Distortion (THD) below 3% at full load, meeting the stringent power quality requirements of server-grade power supplies with active power factor correction (PFC). Unlike line-interactive UPS designs that rely on automatic voltage regulation (AVR) and brief transfer delays, the U05N11V's inverter runs continuously, eliminating micro-interruptions that can reset network equipment or corrupt surveillance footage writes.

The hot-swappable battery modules slide out from the front panel, allowing replacement during scheduled maintenance windows without powering down downstream equipment. Battery health monitoring tracks individual module impedance and estimates remaining service life, triggering advance replacement alerts before capacity degradation impacts runtime. External battery cabinets daisy-chain via rear-mounted DC connectors, scaling runtime from the base configuration to 30+ minutes for orderly NAS shutdowns or sustained operation through utility maintenance windows. The wide input voltage range (typically 160–280VAC for this class) keeps the UPS on grid power during brownouts that would force lesser units to drain batteries, preserving cell cycle life in regions with unstable utility feeds. The network management card slot (card sold separately) accepts SNMP v3-capable modules that expose traps for integration with datacenter monitoring platforms like PRTG, Nagios, or SolarWinds. HTTP/HTTPS interfaces provide remote shutdown scripting for ESXi hosts or NAS arrays via PowerChute-compatible agents, ensuring graceful filesystem unmounts during extended outages. Environmental sensor ports accept temperature and humidity probes for rack-level monitoring, feeding data to the same management interface. USB and serial ports offer direct connections for smaller deployments using manufacturer-supplied software on a local workstation.

Data center integrators spec the U05N11V for top-of-rack (ToR) switch protection, where 5kVA capacity supports a 42U rack's networking gear—typically four 1U switches at 150–300W each, plus patch panels, KVM, and remote power distribution units (PDUs). The 3U height leaves 39U for equipment, delivering better space utilization than 5U or 6U competitive models from APC (SRT5KRMXLT) or Eaton (9PX5K). In surveillance applications, the unit backs a 32-channel NVR with eight 7200 RPM drives (400W), a 48-port PoE++ switch delivering 90W per port to PTZ cameras (total 720W if all ports active), and a network video management server (150W)—well within the 5kVA envelope assuming 0.9 power factor (4.5kW real power). Edge computing deployments in retail, industrial, or enterprise branch offices benefit from the U05N11V's ability to condition power for compute clusters where a single micro-outage can cascade across distributed databases or real-time analytics pipelines.

The output sequencing feature brings loads online in stages during power restoration, preventing inrush current spikes that trip upstream breakers when all equipment energizes simultaneously. Load shedding programmably disconnects non-critical outlets (printers, conference room displays) when runtime falls below a user-defined threshold, dedicating remaining capacity to core infrastructure. Installation teams appreciate the front-to-rear airflow pattern, which aligns with hot-aisle/cold-aisle datacenter layouts—cool air enters the front bezel, passes over power components and batteries, and exhausts from the rear vents into the hot aisle. The replaceable fan modules can be swapped in the field if bearing noise develops, avoiding depot RMA for a minor component failure. Rail kits (sold separately, typically Panduit-specific part number) attach to the chassis sides and mount to standard square-hole or threaded round-hole rack rails; verify rail kit compatibility with your cabinet brand (APC NetShelter, Chatsworth, Middle Atlantic) before ordering.

The U05N11V ships with UL 1778 certification for uninterruptible power supplies and cUL recognition for Canadian installations, satisfying electrical code requirements for commercial building inspections. Efficiency ratings above 90% in double-conversion mode reduce cooling loads in densely packed server rooms and lower operational costs over the unit's service life. Panduit's SteadySine™ branding differentiates this line with enhanced waveform purity and battery management telemetry compared to generic OEM units rebadged across multiple vendors—critical when supporting power-sensitive PLC controllers in industrial surveillance or medical imaging integrations where voltage anomalies trigger equipment lockouts. Integrators standardizing on Panduit's Physical Infrastructure Management (PIM) software can aggregate UPS telemetry with copper/fiber patch panel mapping and environmental sensors into a single pane of glass, streamlining datacenter audits and capacity planning. For projects requiring documented runtime calculations with specific server loads, Panduit's online UPS selector tool accepts equipment manifests and outputs battery cabinet configurations meeting target runtime—eliminating guesswork and providing stamped documentation for client acceptance testing.
