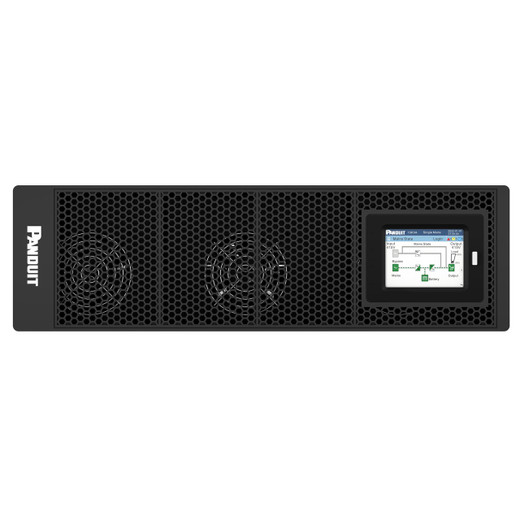

Panduit U15S32V SteadySine™ UPS System

The Panduit U15S32V delivers clean, conditioned power for edge computing nodes, MTDC infrastructure, and distributed enterprise IT equipment where downtime isn't an option. Built around Panduit's SteadySine™ pure sine wave topology, this rackmount UPS bridges the gap between consumer-grade battery backups and industrial DC systems—offering true online double-conversion protection in a 2U form factor (17.3" W × 12" H) that fits standard 19-inch racks and wall-mount enclosures. Engineered for integrators managing micro data centers, remote surveillance head-ends, and edge AI appliances where space is constrained but power quality can't be compromised.

Key Features

• SteadySine™ pure sine wave output—protects sensitive NVRs, PoE switches, and compute hardware from voltage sags, harmonics, and frequency drift that damage power supplies and corrupt storage
• 2U rackmount chassis (17.3" × 12") optimized for shallow-depth network cabinets and edge enclosures—mounts alongside patch panels and switch gear without consuming 4-post rack depth
• MTDC-rated for medium-tension data center applications—tested for high-density cabinet deployments where ambient temperatures reach 40°C and multiple UPS units share branch circuits
• Hot-swappable battery architecture with field-replaceable modules—swap depleted cells during maintenance windows without powering down downstream equipment or breaking network uptime SLAs
• SNMP/Modbus network management interface—integrates with DCIM platforms (Sunbird, Nlyte, Panduit SmartZone) for remote monitoring, automated shutdown scripts, and capacity planning telemetry
• Dual input power cords with automatic transfer switching—connect to separate PDU circuits or generator + utility feeds for N+1 redundancy at the edge site level
• Energy Star certified with >92% efficiency at typical loads—reduces cooling requirements and operating costs in un-airconditioned MDF closets and outdoor NEMA cabinets

The U15S32V addresses the core challenge integrators face when deploying IP surveillance, access control, and edge compute infrastructure in distributed sites: utility power that's unreliable (brownouts, voltage swings, generator transfers) meets IT equipment that demands datacenter-grade stability. Standard consumer UPS units use stepped approximations of sine waves that cause PoE injectors to reject powered devices, NAS units to report disk errors, and managed switches to log power supply faults. Panduit's SteadySine™ technology synthesizes a clean 120V/60Hz waveform with <3% total harmonic distortion—matching or exceeding the quality of utility power even during battery operation. This matters when you're powering $8,000 NVRs with RAID arrays, AI inference appliances with GPU accelerators, or carrier-grade network switches where a single reboot cascades into a site-wide outage. The double-conversion topology continuously processes incoming AC through an inverter stage, so downstream equipment never sees the transition to battery—no relay clicks, no transfer time, no momentary dropout that triggers watchdog timers or resets PoE negotiations. For surveillance head-ends recording 64+ cameras at 4K, this eliminates the corrupted-index errors and interrupted writes that plague integrators using offline or line-interactive UPS designs.

Physical integration is where the 2U chassis earns its keep. At 17.3 inches wide and 12 inches tall, the U15S32V fits the awkward middle ground between full-size datacenter UPS racks and desktop battery bricks—it's sized for integrators building out micro data centers in retail back offices, school IT closets, manufacturing control rooms, and apartment MDU telecom spaces where you're working in a 24U wall-mount cabinet and every rack unit counts. The shallow depth means it coexists with horizontal cable managers, 1U patch panels, and shallow PoE switches (think Ubiquiti/Netgear/Cisco SMB lines) without forcing you into expensive 4-post open-frame racks. Mounting ears are spaced for square-hole and threaded racks; thermal design exhausts front-to-back, so you can install it mid-rack without worrying about recirculation or top-of-stack heat traps. For deployments where the UPS needs to live in a non-rack environment—say, a pedestal mount or under-desk configuration for a small server stack—the chassis includes rubber feet and side ventilation that tolerate horizontal or vertical orientation. The MTDC rating (Medium Tension Data Center) certifies the unit for installations where input voltage may vary ±10%, ambient temperature hits 40°C (104°F), and multiple UPS units pull from the same 20A branch circuit—common scenarios in edge sites where the "data center" is a locked closet with a window AC unit and a single electrical panel.

Battery management is field-serviceable: the U15S32V uses hot-swappable lithium-ion or sealed lead-acid modules (consult Panduit for capacity/runtime tables by load) accessible from the front bezel without removing the chassis from the rack. Runtime scales with load—expect 10-15 minutes at full capacity (enough to gracefully shut down a hypervisor host and attached storage) or 45+ minutes at 25% load (sufficient to ride out momentary utility outages and generator startup delays). The integrated battery management system (BMS) monitors per-cell voltage, temperature, and charge cycles, logging data via the SNMP interface so you can track degradation trends and schedule replacements before failure. For sites with extended-runtime requirements (>1 hour), the U15S32V supports external battery cabinets daisy-chained via DC bus connectors, scaling runtime to match SLA commitments without oversizing the core UPS inverter. Network monitoring is enterprise-grade: ship the unit with an embedded SNMP card (or field-install via expansion slot) to integrate with Nagios/PRTG/Zabbix/SolarWinds, push syslog alerts on battery events (utility fail, low battery, overload), and script automated VM migrations or NVR pre-buffering when runtime drops below 20%. Modbus RTU support lets you tie into BMS (Building Management Systems) for unified HVAC/power/access dashboards in corporate or institutional deployments. The dual input power cords (NEMA 5-15P or L5-30P, verify model variant) enable A/B feed redundancy—connect Cord A to utility-backed PDU and Cord B to generator-backed PDU, and the UPS will auto-transfer if either source fails, giving you N+1 protection at the edge site even when there's no dual-corded server gear downstream.

Energy efficiency is rated >92% at 50-75% load—the sweet spot where most edge compute and surveillance infrastructure operates. This translates to lower cooling requirements (less wasted heat), reduced utility bills (less vampire draw), and compliance with Energy Star and ASHRAE 90.4 (datacenter energy efficiency) standards that increasingly govern government, healthcare, and education IT procurements. The UPS passes UL 1778 (US safety standard for uninterruptible power systems), meets FCC Part 15 Class A (commercial EMI limits), and carries CE marking for installations subject to European directives. For integrators managing compliance checklists—NFPA 70 (NEC Article 645 for IT equipment rooms), BICSI TDMM (distribution design), TIA-942 (datacenter infrastructure tiers)—the U15S32V's certifications and 2U rackmount form factor streamline AHJ (Authority Having Jurisdiction) inspections and close-out documentation. Use this UPS when your deployment brief calls for guaranteed uptime, known battery runtime, remote monitoring hooks, and a form factor that doesn't fight your cabinet layout—especially in edge and enterprise MTDC environments where a $12,000 investment in clean power protects $50,000+ of downstream IT and security infrastructure from the consequences of dirty utility feeds and unplanned outages.
