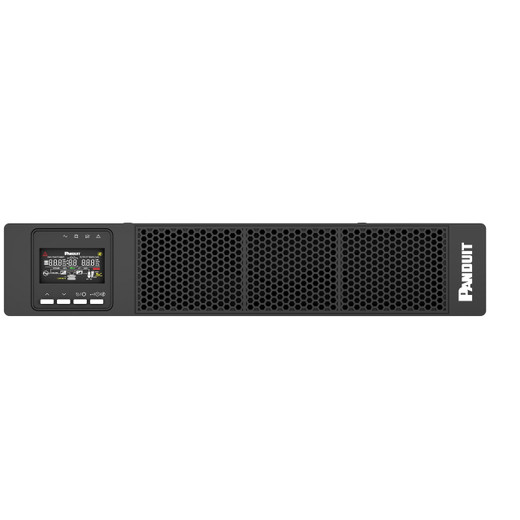

Panduit U03N12L SteadySine 3000VA 2U Rackmount UPS

The Panduit U03N12L delivers 3000VA of pure sine wave power protection in a compact 2U rackmount chassis engineered for data center, enterprise edge, and modular data center (MTDC) deployments. SteadySine technology ensures clean, stable output for sensitive network equipment, security appliances, and PoE infrastructure where voltage irregularities and harmonic distortion can trigger false alarms, corrupt surveillance footage, or damage power-over-Ethernet switches. Hot-swappable battery modules enable maintenance without downtime, while network management interfaces provide real-time monitoring of load, runtime, and battery health across distributed installations.

Key Features

• 3000VA / 2700W capacity supports multiple NVRs, PoE switches, and access control panels in a single 2U footprint
• SteadySine pure sine wave output eliminates the harmonic distortion that causes recorder instability and PoE device resets
• Hot-swappable batteries allow field replacement during scheduled maintenance windows without taking equipment offline
• 17.3" rack width and 3.4" height fit standard EIA 19" racks with <1ms transfer time for zero-frame-drop switchover
• Network management card slot supports SNMP, email alerts, and remote shutdown coordination with VMS servers
• Input power factor correction reduces upstream breaker load and heat generation in dense rack environments
• Automatic voltage regulation (AVR) handles brownouts and overvoltage without switching to battery, extending battery lifespan
• LCD front panel displays real-time load percentage, runtime remaining, input/output voltage, and fault codes

Security integrators working with hybrid-cloud VMS deployments face a specific challenge: cloud-connected recorders and edge analytics appliances require not just backup power, but clean power that won't corrupt database writes or trigger false motion alerts during utility fluctuations. Modified sine wave UPS units—common in budget builds—introduce total harmonic distortion (THD) exceeding 5%, which manifests as recorder lockups, corrupted H.265 streams, and PoE camera resets during battery operation. The U03N12L's SteadySine architecture delivers <3% THD under full load, meeting the power quality requirements of enterprise-grade NVRs, managed PoE switches, and AI inference appliances. The unit's input power factor correction (0.99 typical) reduces apparent power draw, allowing you to load more equipment per 20A circuit—critical when retrofitting UPS protection into fully-populated relay racks where breaker capacity is already allocated.

Hot-swappable battery modules address the operational reality of 24/7 security infrastructure: battery replacement is scheduled maintenance, not an emergency. Traditional UPS designs require full system shutdown for battery service, forcing a maintenance window where all protected equipment loses backup coverage. The U03N12L's front-access battery tray slides out under load, letting you swap aged cells during business hours without coordinating recorder shutdowns, disabling intrusion zones, or scheduling after-hours service calls. Battery health monitoring via the network management interface provides 30-day advance notice before end-of-life, so you can order replacements and schedule the swap during normal site visits rather than responding to a 2 AM runtime failure. Runtime under full 2700W load exceeds 6 minutes—sufficient for an orderly VMS shutdown or to ride through the 99% of outages that last under 4 minutes without ever touching battery reserves.

The unit's automatic voltage regulation (AVR) circuitry corrects input voltage swings from 160V to 290V without transferring to battery, a feature that directly impacts battery longevity in installations served by marginal utility feeds or shared circuits with motor loads (HVAC compressors, electric strikes, magnetic locks). Every battery discharge cycle reduces total lifespan; installations experiencing frequent brownouts or overvoltage from generator backfeed can deplete sealed lead-acid batteries in under 2 years versus the expected 3–5 year service life. AVR keeps the U03N12L on utility power during voltage excursions, reserving battery capacity for true blackouts. Front-panel diagnostics display input voltage in real time, making it easy to identify sites with chronic power quality issues that require utility service or dedicated circuit installation before deploying sensitive analytics gear. Network management integration supports daisy-chaining shutdown commands to downstream equipment—when runtime drops below 2 minutes, the UPS can signal an NVR to close databases and park drives, then send a delayed shutdown command to PoE switches, ensuring graceful sequencing rather than hard power loss.

The U03N12L ships with Panduit's standard commercial warranty and is designed for environments where uptime requirements justify the cost delta over consumer-grade battery backups. Rackmount form factor, front-panel serviceability, and network management capability make it the correct choice for integrators building out IDF closets, security equipment rooms, and edge compute racks where loss of power means loss of evidence, missed alarms, or site-wide access control failure. Compatible with Panduit's line of rack PDUs and cable management accessories for integrated power distribution design.
