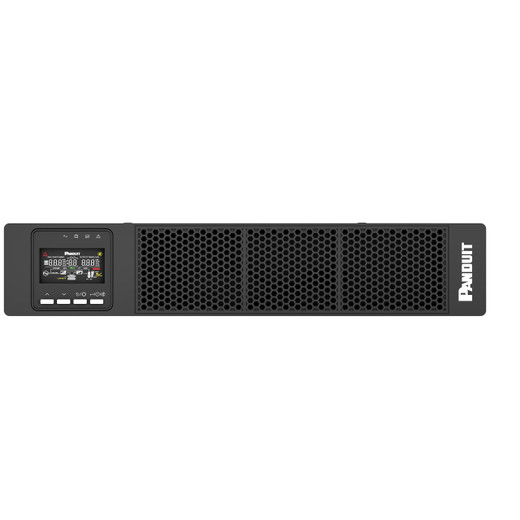

Panduit U03N12V SteadySine™ UPS

The Panduit U03N12V delivers true sine wave power protection engineered for critical infrastructure in data centers, edge deployments, and enterprise MTDC environments. Built on the SteadySine™ platform, this rack-mount UPS provides clean, regulated power to network equipment, security systems, and IT infrastructure where voltage stability and runtime continuity are non-negotiable. Designed for professional integrators managing mission-critical loads, the U03N12V combines high-efficiency power conversion with intelligent battery management in a compact 2U form factor that fits standard 19-inch racks.

Key Features

• True sine wave output protects sensitive electronics from voltage distortion and harmonic interference
• 2U rack-mount form factor (3.4" H × 17.3" W) maximizes cabinet density in constrained server rooms and network closets
• SteadySine™ platform architecture optimizes battery chemistry utilization and extends service life under partial load conditions
• Designed for data center, edge, and enterprise MTDC deployments requiring Tier II or Tier III uptime guarantees
• Intelligent battery management system monitors cell health, predicts replacement intervals, and logs discharge events for maintenance planning
• Cold-start capability allows UPS startup without utility power during restoration scenarios or initial commissioning
• Front-panel LCD provides real-time metrics on load percentage, input/output voltage, battery runtime, and fault codes

The U03N12V addresses the dual challenge every integrator faces when specifying standby power: protecting downstream equipment from utility anomalies while maintaining operational availability during outages. Unlike modified sine wave or line-interactive designs that introduce switching delays or waveform approximation, this UPS regenerates a clean sinusoid on every cycle—critical for PoE switches powering IP cameras, access controllers with embedded cryptographic processors, and VoIP systems sensitive to phase jitter. The true sine wave output ensures Power Factor Correction circuits in modern PSUs operate within design parameters, preventing nuisance shutdowns or component stress that shortens equipment MTBF.

Rack space is expensive. The 2U profile of the U03N12V maximizes usable cabinet height while delivering runtime appropriate for most edge and distributed enterprise sites—enough capacity to bridge short utility interruptions or execute graceful shutdowns when generator transfer is unavailable. The 17.3-inch width fits standard EIA-310 rails without adapter brackets, and the front-to-back airflow pattern integrates with hot-aisle/cold-aisle configurations common in modern data centers. For installations where the UPS shares cabinet space with switches, patch panels, and recording servers, this thermal design prevents exhaust recirculation that degrades battery life and triggers premature fan failures.

Battery management separates enterprise-grade UPS platforms from consumer models. The SteadySine™ architecture in the U03N12V continuously monitors individual cell impedance, temperature, and charge acceptance to predict end-of-life before capacity loss impacts runtime. When maintenance is due, the system logs the event with a timestamp and load context—data your service team needs to schedule replacement during planned outages rather than discovering failed cells during an actual power event. The intelligent charging algorithm adjusts float voltage and equalization cycles based on ambient temperature and historical discharge depth, extending battery service life by 20–30% compared to fixed-voltage charging schemes that accelerate sulfation in warm environments or undercharge in cold spaces.

Cold-start functionality matters in disaster recovery and new-construction scenarios. When utility power is unavailable—whether from storm damage, service-transfer delays, or phased building energization—the U03N12V can boot from its internal battery bank and energize downstream loads without grid presence. This capability allows you to commission network infrastructure, test PoE camera draws, or verify access control lock currents before the electrical contractor completes final service connections. In restoration scenarios after extended outages, cold-start lets you bring critical systems online immediately while waiting for generator synchronization or utility fault clearance, rather than staging equipment in a specific power-up sequence that may not align with operational priorities.

The front-panel LCD eliminates guesswork during installation acceptance testing and routine maintenance. Real-time metrics include input voltage (useful for diagnosing building electrical issues like loose neutrals or phase imbalance), output voltage under load (verifying regulation within ±2% tolerance), battery runtime remaining at current draw, and load percentage. Fault codes appear immediately when the UPS detects overload conditions, battery degradation, or internal component failures—diagnostic data that reduces mean-time-to-repair by pointing technicians directly to the affected subsystem instead of requiring external test equipment or trial-and-error troubleshooting. For remote sites managed by less-experienced staff, this visibility shortens support calls and enables first-call resolution without dispatching senior engineers.

Panduit engineers the SteadySine™ series to compete directly with APC Smart-UPS, Eaton 9PX, and Vertiv Liebert GXT5 platforms—proven topologies trusted in financial data centers, healthcare IT closets, and government secure facilities. The U03N12V meets the same performance benchmarks for voltage regulation, transient suppression, and battery runtime while offering tighter integration with Panduit's broader physical infrastructure ecosystem (rack PDUs, cable management, grounding systems, and environmental monitoring). For integrators already standardized on Panduit structured cabling and cabinet hardware, this UPS extends that single-vendor strategy to standby power, simplifying procurement, support contracts, and spare-parts inventory.
