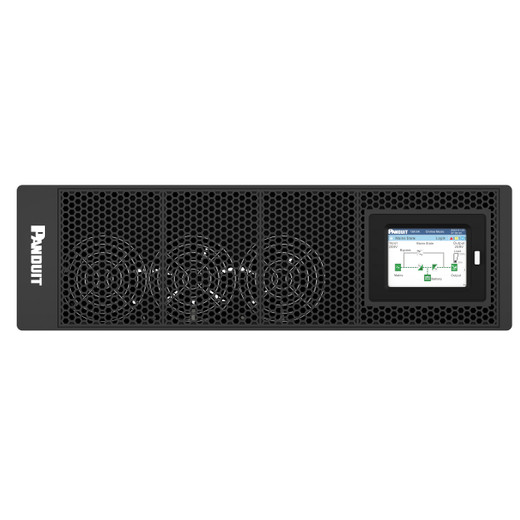

Panduit U06S11V SteadySine™ UPS

The Panduit U06S11V delivers true sine wave power protection engineered specifically for data center edge deployments, enterprise MTDC installations, and critical network infrastructure. This SteadySine™ UPS addresses the fundamental challenge facing security integrators and IT installers: keeping NVRs, access control servers, PoE switches, and network core equipment online through utility interruptions while maintaining clean, stable power that won't damage sensitive electronics. At 10.3 inches tall and 17.3 inches wide, the unit fits standard rack environments while providing the power conditioning and battery backup that marks the difference between a system that stays operational during brownouts and one that drops offline the moment grid voltage sags.

Key Features

• SteadySine™ pure sine wave output protects sensitive security and network equipment from power anomalies
• 10.3" H × 17.3" W form factor optimized for rack-mount data center and edge computing deployments
• Engineered for Data Center, Edge, and Enterprise MTDC applications where uptime is non-negotiable
• Panduit quality construction with integrated monitoring capabilities for proactive maintenance
• Designed to support mixed loads including PoE switches, NVRs, servers, and IP camera infrastructure

Deploying IP security infrastructure without proper power protection introduces single-point-of-failure risk that no amount of redundant networking or storage can overcome. When utility power drops or distorts, unprotected NVRs lose recording continuity, access control systems fail to log events, and PoE switches stop powering cameras at the exact moment they're most likely to capture critical footage. The U06S11V solves this by sitting between utility power and your critical loads, continuously conditioning incoming AC and instantly switching to battery backup when grid power falls outside acceptable parameters. The SteadySine™ designation indicates true sine wave output—not the modified square wave or stepped approximation found in budget UPS units—which matters critically when protecting equipment with active power factor correction, such as enterprise-grade switches, modern servers, and high-efficiency power supplies. Modified sine wave output can cause these loads to run hot, trigger overcurrent protection, or simply refuse to operate, whereas pure sine wave matches utility-grade power and eliminates compatibility concerns entirely.

The 17.3-inch width positions this UPS for rack-mount installations in standard 19-inch racks with minimal adapter hardware, while the 10.3-inch height (approximately 6U) reflects the battery capacity and power electronics required to support meaningful runtime under real-world security system loads. When spec'ing UPS capacity for surveillance and access control deployments, calculate total connected load including NVR peak draw (typically 150-400W depending on channel count and recording resolution), PoE switch load (budget 15.4W per 802.3af port or 30W per 802.3at port that's actually connected to a camera), network core equipment, and any video management servers or workstations that must remain operational during outages. Add 20-25% headroom to account for battery aging and future expansion, then verify the U06S11V's capacity meets or exceeds this figure with sufficient runtime—typically 10-15 minutes minimum to cover short interruptions and allow graceful shutdown of equipment during extended outages.

For edge computing and MTDC (Modular/Micro Data Center) deployments, the U06S11V provides the localized power protection that distributed architectures require. Edge installations often lack the dual-feed utility service and generator backup available at core data centers, making battery-based ride-through the only protection against brief interruptions that would otherwise take remote sites offline. When deploying the U06S11V in these environments, coordinate with upstream circuit protection—ensure branch circuit breakers are sized appropriately for the UPS's input current draw and that the UPS itself is fed from a dedicated circuit or clearly labeled breaker position. Verify that connected equipment includes network-accessible shutdown agents or monitoring integrations so that the UPS can signal low-battery conditions and trigger orderly shutdowns before battery depletion. The Panduit platform typically supports SNMP monitoring and dry-contact relay outputs for integration with building management systems, allowing facilities teams to track UPS status alongside HVAC, access control, and other infrastructure without deploying separate monitoring tools for power equipment.

Installation considerations for the U06S11V center on thermal management and maintenance access. UPS units generate heat both during normal operation (due to power conversion inefficiency) and especially during battery charging after a discharge event, so ensure adequate ventilation around the unit—avoid fully enclosed cabinets without active cooling, and maintain clearance per Panduit's specifications for intake and exhaust. Position the UPS low in the rack when possible to keep the center of gravity down and improve overall rack stability, but avoid the very bottom position if flooding risk exists in below-grade installations. Run dedicated circuits for UPS input rather than daisy-chaining from other equipment, and use appropriately rated output distribution—whether the U06S11V provides hardwired output terminals or standard receptacles, verify wire gauge and receptacle ratings match the expected load. For installations supporting 24/7 security operations, establish a battery replacement schedule (typically every 3-5 years depending on discharge frequency and ambient temperature) and budget accordingly—battery replacement is a consumable maintenance item, not a warranty failure, and neglecting it leaves you with a very expensive power strip when the next outage occurs.
