Vertiv GXT5-5000HVRT5UXLN 5kVA 208V Online Double-Conversion Rack/Tower UPS
Overview
The Vertiv GXT5-5000HVRT5UXLN is a 5,000 VA / 5,000 W online double-conversion UPS designed for 208V commercial environments where continuous power conditioning — not just battery backup — is the baseline requirement. If you're protecting a server room, IDF closet, edge compute stack, or high-density IP security infrastructure, this is the unit that holds the line without compromise: it regenerates a clean sine wave output continuously, meaning your connected equipment never sees raw utility power at all. The GXT5-5000HVRT5UXLN ships with a factory pre-installed Vertiv RDU101 SNMP/web card — a meaningful distinction from competitors who charge extra for network management or ship with a blank card slot.
The flexible rack/tower form factor at 5U fits either orientation without hardware modification — useful when a deployment transitions from a temporary tower setup during installation to a rack mount at final commissioning.
Key Features
- True Online Double-Conversion Topology: Unlike line-interactive UPS units that switch to battery only on a detected fault, the GXT5 regenerates output continuously. Connected loads — NVRs, servers, PoE switches, storage — never experience a transfer gap, voltage sag, or waveform distortion from the utility. For equipment with SMPS power supplies sensitive to input quality, this is the topology to specify.
- 5,000 VA / 5,000 W (Unity Power Factor): Full kVA-to-kW parity means you can load this unit to 5,000 W of actual draw without derating. Many competing 5kVA units carry a 0.9 power factor, limiting real wattage to 4,500 W. Here, nameplate capacity is usable capacity — important when sizing for a fully loaded rack.
- Up to 98% Efficiency in Active ECO Mode: ECO mode cuts operating costs on always-on infrastructure. At 95% on-line mode efficiency (the true online operating point), heat rejection and energy waste are kept low — a real factor in tightly enclosed IDF rooms where cooling is already stressed. Calculate the difference across a 3–5 year lifecycle and the delta is measurable in hundreds of dollars per unit.
- Wide Input Voltage Range (176–288VAC): The GXT5-5000HVRT5UXLN accepts input from 176 to 288VAC without switching to battery. In facilities with known voltage instability or long runs from the panel, this tolerance keeps the batteries in reserve for real outages rather than burning cycles on routine fluctuations.
- User-Configurable Output Voltage (200/208/220/230/240VAC): Output can be set to match the connected equipment's nominal — useful when mixing international hardware or integrating equipment rated for different voltages within the same rack.
- Factory Pre-Installed RDU101 SNMP/Web Card: Out of the box, the unit is network-manageable. The RDU101 enables SNMP traps, web dashboard, and remote shutdown orchestration — integrating into your NMS or DCIM platform without an add-on purchase. USB, RS485, RS232, and terminal block interfaces are also present for serial out-of-band management when the network is unavailable.

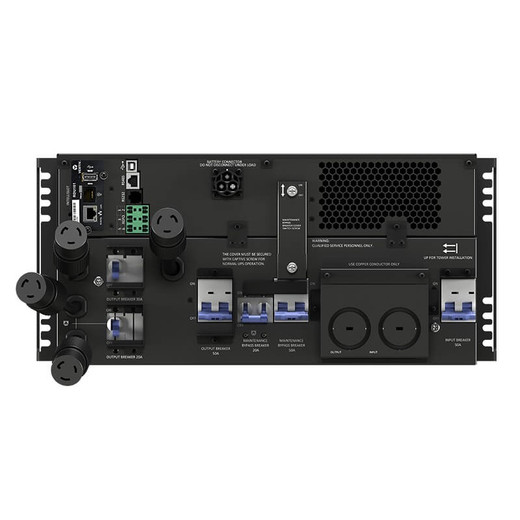

- Hardwired Input/Output + L6-20R and L6-30R Receptacles: The hardwired termination (both in and out) suits permanent infrastructure installs that require conduit connections. The two L6-20R and two L6-30R output receptacles handle high-draw 208V loads directly — rack PDUs, servers, high-wattage network appliances — without an additional distribution panel for moderate deployments.
- Full-Color Graphic LCD with Gravity-Sensing Orientation: The display auto-rotates based on physical orientation (rack vs. tower), so readings are always right-side-up regardless of install position. This is a practical feature during commissioning and for ongoing status checks without connecting to the web interface.
- ENERGY STAR 2.0 Certified, UL1778, c-UL Listed, RoHS2, REACH: ENERGY STAR certification matters for facilities with sustainability targets or utility rebate programs. UL1778 and c-UL listings satisfy AHJ requirements in both US and Canadian jurisdictions. RoHS2 and REACH compliance cover EU hazardous-substance requirements for multi-site deployments.
- Operating Range +32 to +104°F (0–40°C): Standard commercial temperature range — appropriate for conditioned data rooms and IDF closets. Not rated for unconditioned environments or outdoor enclosures; plan accordingly if the install location lacks climate control.
Integration and Compatibility
The GXT5-5000HVRT5UXLN integrates into standard UPS and power protection infrastructure via its factory SNMP card. SNMP support means the unit can feed alerts and status into most enterprise NMS platforms that accept standard MIB data. The RS232 and USB interfaces support direct connection to a host system running UPS management software for graceful shutdown coordination during sustained outages. The external battery connector accommodates external battery cabinet expansion, extending runtime beyond the internal battery capacity — confirm compatible Vertiv EBC models with your distributor before specifying extended runtime. The hardwired input is designed for connection to a dedicated 208V branch circuit; confirm panel capacity and breaker sizing before install. For organizations evaluating the broader Vertiv power protection line, the GXT5 sits in the mid-range of the GXT5 family, above the 1–3kVA models and below the 6–10kVA configurations suited for higher-density racks. Pair this unit with a managed PoE switch on a protected output to keep IP security infrastructure running cleanly during utility events. For larger deployments requiring per-outlet switching or more receptacles, a downstream 208V rack PDU on one of the hardwired outputs extends distribution without adding another UPS tier. Consult a power protection buying guide to match kVA sizing to your actual connected load before finalizing the specification.
Frequently Asked Questions
Q: What is the topology of the GXT5-5000HVRT5UXLN — is it true online double-conversion?
A: Yes. The GXT5-5000HVRT5UXLN uses an online double-conversion topology, meaning it continuously regenerates a clean sine wave output from the rectifier and inverter. Connected equipment never draws directly from utility power, eliminating exposure to sags, surges, and waveform distortion.
Q: Does the GXT5-5000HVRT5UXLN include a network management card, or is that a separate purchase?
A: The RDU101 SNMP/web card is factory pre-installed. It enables SNMP traps, a web management interface, and serial out-of-band management via RS232. No separate card purchase is required.
Q: What output receptacles are available on the GXT5-5000HVRT5UXLN?
A: The unit provides 2 x L6-20R and 2 x L6-30R receptacles for 208V loads, plus hardwired output connections. Input is also hardwired, requiring conduit termination to a dedicated 208V branch circuit.
Q: Can the GXT5-5000HVRT5UXLN be installed in both rack and tower orientations?
A: Yes. The unit supports a flexible rack/tower form factor at 5U. The full-color LCD includes gravity-sensing orientation so the display auto-rotates to remain readable regardless of install position.
Q: What is the input voltage tolerance of the GXT5-5000HVRT5UXLN?
A: The unit accepts input from 176 to 288VAC without switching to battery. The nominal input is 208VAC. This wide tolerance keeps the unit on utility power through common voltage fluctuations, preserving battery capacity for actual outages.
Q: What certifications does the GXT5-5000HVRT5UXLN carry?
A: The unit is ENERGY STAR 2.0 certified, UL1778 listed, c-UL listed (Canada), RoHS2 compliant, and REACH compliant. These listings satisfy AHJ requirements in US and Canadian jurisdictions and support EU environmental compliance for multi-region deployments.
The spec that stands out on the GXT5-5000HVRT5UXLN is the unity power factor: 5,000 VA and 5,000 W are the same number, which means when you size this unit for a 4,800 W rack load, you're actually protected — not discovering at 4,501 W that a 0.9 PF unit has already crossed its real watt ceiling. I've seen integrators order a competitor's 5kVA unit and find themselves at 90% load before the rack is half-populated because they sized on VA, not watts.
Technical Highlights:
- Unity Power Factor (5,000 VA = 5,000 W): No derating required — the full nameplate capacity is available as real wattage, simplifying load calculations for racks with mixed SMPS equipment.
- 98% ECO / 95% On-Line Efficiency: At 95% on-line mode, this unit dissipates roughly 250 W as heat at full load — manageable in a conditioned IDF without additional cooling. ECO mode at 98% drops that further, which matters on always-on infrastructure running 8,760 hours a year.
- Factory RDU101 SNMP Card: Ships ready for integration into a BMS or NMS on day one. SNMP traps for battery health, load percentage, and input voltage events flow directly to your monitoring stack without an additional card or license.
Deployment Considerations:
- Hardwired input and output mean this is a permanent infrastructure install — budget for licensed electrical work to terminate the 208V branch circuit properly. This is not a plug-in swap from a smaller UPS.
- At 156.7 lb, two-person installation is mandatory and rack rail weight ratings must be verified before mounting. The 5U chassis at 24.8 inches deep also requires a full-depth rack — short-depth wall-mount enclosures won't work here.
This unit is the right specification for a dedicated 208V server or NVR rack in a commercial security operations center or mid-size enterprise IDF where continuous power conditioning, network manageability from day one, and accurate load sizing are non-negotiable. It is not the right choice for a 120V environment or for deployments where a licensed electrician cannot terminate hardwired connections.
