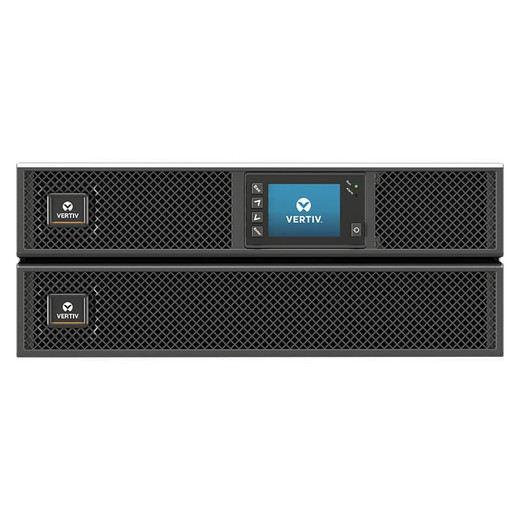

Vertiv GXT5-10KHVRT5UXLN 10kVA Online Double-Conversion Rack/Tower UPS
Overview
The Vertiv GXT5-10KHVRT5UXLN is a 10,000 VA / 10,000 W online double-conversion UPS designed for mid-to-large server rooms, network closets, and edge data center deployments where power quality and runtime reliability are non-negotiable. Unlike line-interactive topologies that only regulate voltage swings, the GXT5 continuously regenerates a clean sine wave output — meaning your connected equipment never touches raw utility power, regardless of what's happening upstream. At 10kVA with a unity power factor (10kW usable), there's no derating math to do: every VA is a watt you can load.
The flexible 5U rack/tower form factor accommodates both vertical floor deployments and horizontal rack integration without additional hardware, which simplifies logistics when your install environment isn't finalized at order time. Internal dimensions measure 8.5 in H × 16.9 in W × 24.8 in D, so verify your rack bay or floor footprint before specifying.
Key Features
- 10,000 VA / 10,000 W at Unity Power Factor: A 1:1 VA-to-watt ratio means you can load this unit to its full nameplate without headroom penalties. Most legacy UPS designs derate to 80% usable watts — this one doesn't, which matters when you're sizing for dense compute or GPU workloads running at 9–10kW sustained.
- Online Double-Conversion Topology: Utility power is continuously converted to DC and back to AC, isolating every connected load from input harmonics, frequency drift, and sags. There's no transfer time on input failure — the inverter is already running. For any environment with medical-grade servers, trading systems, or process-control PLCs, this topology eliminates the transfer-gap risk that line-interactive units carry.
- Up to 98% Efficiency in Active ECO Mode: In ECO mode the unit operates at up to 98% efficiency — roughly 200W less heat dissipated compared to a typical 90% online UPS at full load. That reduces both HVAC overhead and annual operating cost in a 24/7 deployment. On-line double-conversion mode holds at up to 95%, which is the baseline when you can't tolerate any bypass risk.
- Input Range 176–288VAC at 208V Nominal: The wide input window accommodates generator start-up voltage sag and browndowns without switching to battery, which extends battery life and prevents nuisance alarms during facility power events common in data center and warehouse environments.
- Configurable Output Voltage (200/208/220/230/240 VAC): Field-selectable output voltage means a single SKU can serve both 208V North American rack PDUs and 230V international equipment — useful in mixed-voltage labs, edge nodes, or international sites standardizing on one UPS part number.
- Factory-Installed Liebert IntelliSlot RDU120 SNMP/Webcard: Most competing units ship SNMP as an optional add-on. Here it's pre-installed — you get network management, SNMP traps, and a built-in web interface out of the box. No additional card to purchase, no guessing which slot version is compatible. Pair this with UPS management software or your existing NMS the day it arrives.
- Multi-Protocol Interface Suite: USB, RS485, RS232, terminal block, and an external battery connector come standard alongside SNMP. The RS485 port supports daisy-chained environmental monitoring; the external battery connector enables runtime extension with compatible external battery cabinets — critical for deployments that need 30+ minutes of backup rather than the typical 5–10 from internal batteries.
- Full-Color Gravity-Sensing LCD Panel: The display auto-rotates based on whether the unit is rack-mounted horizontally or standing vertically — a small detail that eliminates the common nuisance of reading an upside-down status screen through a rack door. Real-time load, battery state, input/output voltage, and fault codes are visible without a laptop or NMS connection.
- Hardwired Input/Output Plus Receptacles: Hardwired in/out handles the primary feeder connection for high-current infrastructure loads, while the 2× L6-20R and 2× L6-30R receptacle outputs serve peripheral or secondary equipment — a mix that suits server room deployments where your main PDU is hardwired but you need a few direct-connected outlets for KVM switches, management gear, or console servers.
- ENERGY STAR 2.0 / UL1778 / c-UL / RoHS2 / REACH Certified: ENERGY STAR 2.0 certification is increasingly a procurement requirement for government and enterprise buyers. UL1778 and c-UL listing satisfies North American AHJ requirements without additional testing. RoHS2 and REACH compliance supports sustainability reporting for EU-connected supply chains.
- Operating Temperature +32 to +104°F (0 to 40°C): The 40°C upper ceiling covers most conditioned data center and server room environments. Edge deployments in non-climate-controlled spaces (industrial, utility, remote) should verify ambient conditions — this is not a hardened or wide-temp unit.
Integration & Compatibility
The pre-installed Liebert IntelliSlot RDU120 card supports SNMP v1/v2c/v3 and a built-in web GUI, which integrates with most enterprise NMS platforms (SolarWinds, PRTG, Nagios, and similar) via standard MIBs. The RS232 and USB interfaces support graceful shutdown integration with server OS agents. Review Vertiv's UPS accessories and management software lineup for compatible external battery cabinets and monitoring software if your runtime requirement exceeds internal battery capacity.
The hardwired input is spec'd at 208VAC nominal with a 176–288VAC range, which aligns with standard 208V single-phase or 208V leg-to-leg feeds in three-phase North American data center infrastructure. If your facility delivers 240V single-phase, the input range covers that too. For broader power distribution planning, verify upstream breaker sizing to the 10kVA load requirement before installation.
Frequently Asked Questions
Q: What is the topology of the GXT5-10KHVRT5UXLN and why does it matter?
A: The GXT5-10KHVRT5UXLN uses an online double-conversion topology. This means utility power is continuously rectified to DC and re-inverted to AC — your connected loads are always running off the inverter, never directly on raw utility power. There is zero transfer time on input failure, which eliminates the brief transfer gap found in line-interactive designs. This topology is the right choice for servers, networking gear, or any equipment sensitive to power quality issues.
Q: Does the GXT5-10KHVRT5UXLN include a network management card?
A: Yes. The Vertiv Liebert IntelliSlot RDU120 SNMP/Webcard is factory pre-installed. You get full SNMP and web-based management out of the box with no additional card purchase required. It also supports USB, RS485, RS232, and terminal block interfaces.
Q: What certifications does the GXT5-10KHVRT5UXLN carry?
A: The unit is ENERGY STAR 2.0 certified, UL1778 listed, c-UL listed, and compliant with RoHS2 and REACH. These cover North American safety listing requirements and common sustainability procurement criteria.
Q: Can the GXT5-10KHVRT5UXLN be used in both rack and tower orientations?
A: Yes. The GXT5-10KHVRT5UXLN ships with a flexible rack/tower form factor. The full-color LCD panel includes gravity sensing and auto-rotates its display to match the installation orientation, so the screen is readable whether the unit is horizontally rack-mounted or standing vertically.
Q: What output receptacles does the GXT5-10KHVRT5UXLN provide?
A: The unit provides 2× L6-20R and 2× L6-30R output receptacles in addition to hardwired input and output connections. The hardwired connections handle primary high-current infrastructure feeds, while the receptacles serve secondary equipment such as console servers, KVM switches, or peripheral networking gear.
Q: What is the operating temperature range for the GXT5-10KHVRT5UXLN?
A: The operating temperature range is +32 to +104°F (0 to 40°C). This suits standard conditioned data center and server room environments. Non-climate-controlled or high-ambient edge locations should be verified against this ceiling before deployment.
The GXT5-10KHVRT5UXLN is one of the cleaner specs I've seen at the 10kVA tier — particularly the factory-included RDU120 SNMP card, which removes a procurement step that catches a lot of buyers off guard when they realize competing units ship without it. At 10kW usable (unity PF), you're not doing any derating math: what you provision is what you get, which simplifies capacity planning on dense server rows considerably.
Technical Highlights:
- 98% ECO Mode Efficiency: At 10kW continuous load, the difference between 90% and 98% efficiency is roughly 890W of heat you're not generating — that's meaningful HVAC savings in a 24/7 deployment and compounds quickly over a 5-year equipment life.
- 176–288VAC Input Window: This wide input range absorbs generator start-up sag and browndown conditions without dropping to battery. In facilities that run periodic generator tests or experience regular utility sags, this spec directly extends battery life and reduces nuisance events.
- Configurable Output Voltage (200–240 VAC): Field-selectable output is useful in mixed-voltage environments or edge nodes that need to serve both 208V and 230V equipment without stocking two UPS SKUs.
Deployment Considerations:
- At 166.4 lbs, this is a two-person lift minimum. Factor in loading equipment and rack rail capacity — most 5U rails are rated for this weight, but verify your specific rail kit and floor load rating before racking.
- ECO mode delivers the 98% efficiency headline, but it does use a bypass path that introduces a brief transfer on input anomalies. For loads with zero-transfer requirements (some medical or financial systems), stay in full online double-conversion mode and budget for the 95% efficiency baseline instead.
This unit is well-suited for mid-size server rooms, colocation cage buildouts, and edge data center nodes at the 10kW tier where SNMP management, ENERGY STAR procurement compliance, and hardwired input/output are all on the checklist from day one.
