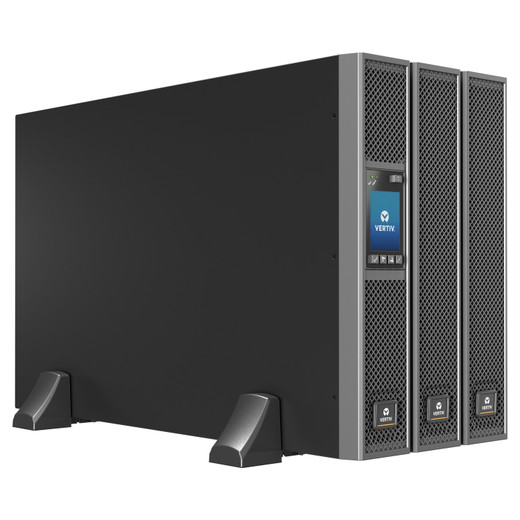

Vertiv GXT5-10KMVRT6UXLN 10KVA Online Double-Conversion Rack/Tower UPS
Overview
The Vertiv GXT5-10KMVRT6UXLN is a 10,000 VA / 10,000 W online double-conversion UPS designed for data rooms, server closets, and network edge deployments where continuous power conditioning — not just battery backup — is the requirement. At 10KVA with unity power factor, every VA maps directly to a watt of load capacity, so there's no derating math to do when you're sizing circuits for a full server rack or network equipment room. The flexible rack/tower form factor means you can deploy it standing in a server room today and rack it in a 6U enclosure later without buying new hardware.
Unlike line-interactive or standby designs that only engage on power events, the GXT5-10KMVRT6UXLN runs all connected equipment through a fully regenerated sine wave output at all times. That means voltage sags, swells, frequency drift, and waveform distortion are filtered out continuously — not just when a threshold is crossed. For sensitive switching gear, storage arrays, or VoIP infrastructure, that's the difference between a product that handles brownouts and one that actually protects against the day-to-day power quality problems that shorten equipment lifespan.
Explore the full Vertiv power protection catalog or browse our power and UPS category for related solutions.
Key Features
- 10,000 VA / 10,000 W at Unity Power Factor: Full kW of usable capacity with no power factor derating — size your load to 10,000 W and you won't run into headroom surprises at commissioning time.
- Online Double-Conversion Topology: All load current passes through the inverter 100% of the time, delivering a clean, regulated 208/120VAC output regardless of input quality. Transfer time to battery is effectively zero — there's no switching gap that could cause a server PSU to hiccup.
- 98% Efficiency in Active ECO Mode: When input power quality is acceptable, ECO mode routes load through a high-efficiency bypass path, cutting UPS losses significantly. At 95% on-line efficiency in double-conversion mode, the GXT5 is among the more efficient 10KVA units in its class — meaningful when the UPS runs 24/7 and your energy costs are real.
- 208/120VAC User-Configurable Output: Output voltage can be set to 208V or 120V depending on what your load equipment needs, with a hardwired input/output configuration. Optional PODs (Power Output Distribution modules) provide circuit-level distribution flexibility without a separate PDU in the rack.
- Input Range 176–280VAC (typical 208VAC): A wide input window means the GXT5 stays on utility power through significant voltage sags before switching to battery — extending battery runtime for the events that actually matter and reducing unnecessary battery cycling.
- Factory Pre-Installed Liebert IntelliSlot RDU120 SNMP/Webcard: SNMP and web-based management are live out of the box — no additional card purchase, no slot hunting. Integrates directly into your NMS or DCIM platform on first boot. USB, RS485, RS232, and terminal block interfaces are also present for serial management and building automation integration.
- Full-Color Graphic LCD with Gravity-Sensing Orientation: The display reads correctly whether the unit is racked horizontally or standing vertically — a practical detail that matters when you're commissioning in a cramped server room. Status, load percentage, battery runtime, and alarms are all surfaced on the panel without needing to SSH in.
- ENERGY STAR 2.0 Certified, UL1778, c-UL Listed: ENERGY STAR certification is relevant for facilities with sustainability reporting requirements or utility rebate programs. UL1778 and c-UL listings satisfy electrical inspectors and insurance requirements in the US and Canada without additional documentation work.
- Operating Range +32 to +104°F (0 to 40°C): Covers standard data room and network closet temperature ranges. Not rated for outdoor or unconditioned environments — plan for climate control if deploying in a warehouse or utility space.
- RoHS2 and REACH Compliant: Required for EU-bound deployments and increasingly demanded by enterprise procurement for domestic compliance documentation as well.
Integration and Compatibility
The GXT5-10KMVRT6UXLN ships with the Liebert IntelliSlot RDU120 card factory-installed, enabling SNMP v1/v2/v3 and HTTP/HTTPS web management on day one. This card integrates with network management systems and DCIM platforms that support standard UPS MIBs — no proprietary agent software required on most NMS platforms. The serial RS485 and RS232 ports support out-of-band management and building automation system integration where IP connectivity isn't available or appropriate. The external battery connector allows additional battery cabinet expansion to extend runtime beyond what the internal batteries provide — relevant for deployments requiring 30+ minutes of runtime at full load. For rack-mounted installations, pair with a compatible rack enclosure or cabinet sized for the 6U form factor. POD options provide branch-circuit distribution at the UPS output, eliminating the need for a separate in-rack PDU in many configurations. For guidance on right-sizing UPS capacity and runtime for your deployment, refer to our UPS sizing and selection guide.
Frequently Asked Questions
Q: What is the topology of the GXT5-10KMVRT6UXLN — is it line-interactive or true online?
A: The GXT5-10KMVRT6UXLN is an online double-conversion UPS. All connected load runs through the inverter continuously, providing zero transfer time to battery and full isolation from input power quality issues at all times.
Q: Does the GXT5-10KMVRT6UXLN include a network management card, or is that a separate purchase?
A: The Liebert IntelliSlot RDU120 SNMP/Webcard is factory pre-installed. SNMP and web management are enabled out of the box — no additional card or slot required.
Q: What output voltages does the GXT5-10KMVRT6UXLN support?
A: Output voltage is user-configurable between 208VAC and 120VAC. The input and output connections are hardwired; optional POD modules can provide distributed output branch circuits.
Q: What efficiency does the GXT5-10KMVRT6UXLN achieve?
A: Up to 98% efficiency in Active ECO Mode when input power quality allows bypass routing. In standard online double-conversion mode, efficiency is up to 95%.
Q: Is the GXT5-10KMVRT6UXLN ENERGY STAR certified?
A: Yes — the GXT5-10KMVRT6UXLN carries ENERGY STAR 2.0 certification, along with UL1778 and c-UL listings for US and Canadian installations.

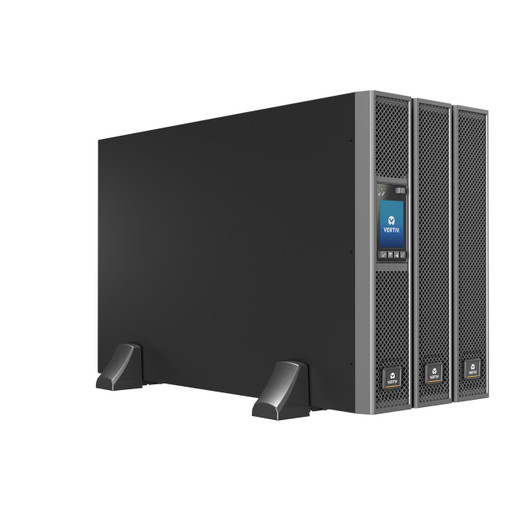

Q: Can the GXT5-10KMVRT6UXLN be used in both rack and tower orientations?
A: Yes. The flexible rack/tower form factor supports both orientations. The full-color LCD includes gravity-sensing orientation so the display reads correctly in either installation position.
The spec that stands out most to me on the GXT5-10KMVRT6UXLN is the unity power factor — 10,000 VA equals 10,000 W of real load capacity. A lot of 10KVA units in this class derate to 8,000 or 9,000 W, which catches integrators off guard at load commissioning. With this unit, what you buy is what you can actually use.
Technical Highlights:
- Online Double-Conversion Topology: Zero-transfer-time isolation means server PSUs never see the input waveform — brownouts, surges, and frequency deviation are all absorbed before they reach the load. This matters most in facilities with generator-backed power where frequency can wander during transfer.
- 98% ECO / 95% Online Efficiency: At 10KW continuous load, the difference between 90% and 95% efficiency is 555W of heat dissipated in the UPS room. Over a year of 24/7 operation, that's roughly 4,860 kWh — real money and real cooling load in a dense server room.
- Factory RDU120 SNMP Card: Having SNMP live on first boot removes a common commissioning gap where a UPS is installed but never actually integrated into monitoring. The included card supports SNMP v1/v2/v3 plus HTTP/HTTPS — works with any NMS that supports standard UPS MIBs.
Deployment Considerations:
- The hardwired input/output configuration requires a licensed electrician for installation — this isn't a plug-in unit. Factor conduit and panel work into your project timeline, especially in tenant spaces where electrical permits take time.
- Operating temperature tops out at 104°F (40°C). In a sealed server closet or poorly ventilated IDF room, ambient can push past that during summer — verify your cooling capacity before installation or you'll see thermal derating on the UPS before you see it on your servers.
This unit is well-matched to a mid-density server room or network operations center running 208V distribution — particularly where the facility has generator backup and needs a UPS that handles the rough power quality during generator transfer without blinking. The factory SNMP card makes it a practical choice for any site where the UPS needs to be part of the monitoring stack from day one.
