HID 20NWS-01-000000 vs HID 20NKS-01-002CBR: Specification Comparison
Both units are HID Signo 20 series wall-mounted access control readers operating at 13.56 MHz, targeting enterprise physical-access deployments. The 20NWS-01-000000 is the White/Silver variant while the 20NKS-01-002CBR is the Black/Silver variant. This comparison evaluates credential breadth, communication protocol specifics, physical and environmental ratings, and security architecture — the three axes most relevant when selecting a contactless smart-card reader for a controlled-access installation.
In This Guide
- Which reader supports a broader or more compatible credential set for my deployment?
- How do the two readers compare on physical build, environmental ratings, and installation requirements?
- What security architecture and panel integration options does each reader offer?
- Which should you choose: the 20NWS-01-000000 or the 20NKS-01-002CBR?
- Side-by-Side Specs
- FAQ
Which reader supports a broader or more compatible credential set for my deployment?
The 20NWS-01-000000 explicitly lists DESFire, iCLASS, MIFARE, SEOS, NFC at 13.56 MHz, and 125 kHz Proximity as supported credential types, and its specs call out native Apple ECP support enabling iPhone and Apple Watch access without additional mobile hardware. Its communication outputs are dual: OSDP and Wiegand 32-bit MSB, making it backward-compatible with legacy Wiegand panels while also supporting modern OSDP controllers.

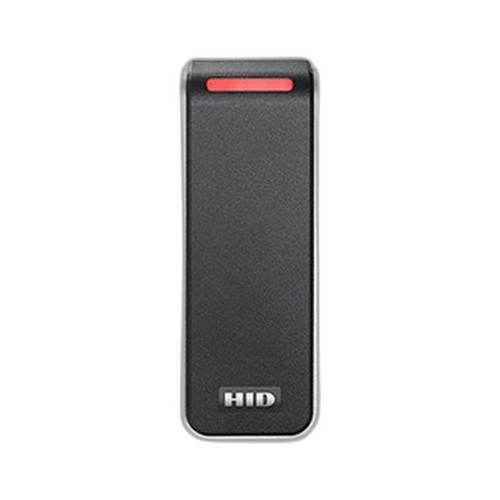

The 20NKS-01-002CBR lists NFC, SEOS, iCLASS, MIFARE, DESFire, HID 125 kHz Proximity, and magnetic stripe as supported formats. Magnetic stripe support is a format cited in the 20NKS specs but absent from the 20NWS spec set, giving the Black/Silver unit an edge in mixed-credential environments where legacy mag-stripe cards remain in circulation. Mobile credential support is not explicitly enumerated in the 20NKS spec data provided.
Buyers replacing a Wiegand panel should note that the 20NWS-01-000000 carries an explicit Wiegand 32-bit MSB output, whereas the 20NKS-01-002CBR specs list only OSDP V2 as its communication protocol with no Wiegand output stated.
How do the two readers compare on physical build, environmental ratings, and installation requirements?
The 20NWS-01-000000 carries an IK09 impact rating per its spec sheet, indicating resistance to 10-joule mechanical impacts — relevant for high-traffic or semi-exposed installations. It is rated for operation from -20°C to +60°C, a wide thermal envelope covering most indoor and sheltered outdoor applications. Power is sourced via PoE+ (802.3at), eliminating a separate power run when a PoE+ switch or injector is present. Dimensions are listed as 90 mm × 132 mm × 36 mm.
The 20NKS-01-002CBR does not list an IK impact rating, operating temperature range, power input method, or physical dimensions in the provided specification data. Buyers requiring documented environmental or impact certification should request the datasheet at /content/product-datasheets/20NKS-01-002CBR.pdf for confirmation before specifying the Black/Silver unit in outdoor or high-abuse locations.
Both units share the same wall-mount form factor and the same silver trim baseplate aesthetic in their respective color configurations. Mounting type is stated as wall mount for both.
What security architecture and panel integration options does each reader offer?
The 20NWS-01-000000 describes its security as a 'certified secure element hardware' hosting cryptographic keys, and its OSDP output supports encrypted channel communication with modern access panels. The reader's dual-protocol output (OSDP + Wiegand) gives integrators maximum panel compatibility without a protocol converter.
The 20NKS-01-002CBR specifies OSDP V2 explicitly — a meaningful precision, as OSDP V2 is the version that mandates the Secure Channel Protocol (SCP) for encrypted reader-to-panel communication. Its security spec reads 'cryptographic keys stored on certified secure element hardware,' matching the architecture of the 20NWS. It also references ICE (Integrated Credential Environment) as its security standard, a term absent from the 20NWS spec data.
Neither unit lists a specific OSDP version for the White/Silver model; the 20NWS specs state 'OSDP' without a version qualifier. Integrators deploying OSDP V2 SCP-mandatory controllers should confirm the 20NWS-01-000000's OSDP version via HID's datasheet before finalizing the bill of materials.
Which should you choose: the 20NWS-01-000000 or the 20NKS-01-002CBR?
Our take: The 20NWS-01-000000 is the stronger choice when the installation demands documented environmental resilience, PoE+ power delivery, Wiegand panel backward-compatibility, and confirmed mobile credential support including Apple ECP. Its IK09 impact rating and -20°C to +60°C operating range are concrete, spec-documented figures absent from the 20NKS-01-002CBR data set. Conversely, the 20NKS-01-002CBR is preferable when the panel ecosystem is OSDP V2-native, mag-stripe legacy cards must be accepted alongside smart credentials, and an all-black aesthetic is required for the installation. The 20NKS explicitly names OSDP V2 (vs. the unversioned 'OSDP' on the 20NWS) and adds magnetic stripe to the credential list. Both share a 2-year warranty and certified secure element hardware. Platform qualifier: for purely OSDP V2 deployments with a mixed card population including mag-stripe, specify the 20NKS; for hybrid Wiegand/OSDP sites or where environmental ratings must be documented, specify the 20NWS.
Side-by-Side Comparison
Spec-for-spec, from manufacturer data.
| Specification | HID 20NWS-01-000000 | HID 20NKS-01-002CBR |
|---|---|---|
| SKU | 20NWS-01-000000 | 20NKS-01-002CBR |
| Series / Type | Signo 20 White Silver SEOS Reader | Signo 20 Black Silver SEOS Reader |
| Color | White with silver trim baseplate | Black with silver trim baseplate |
| Communication Protocol | OSDP; Wiegand 32-bit MSB | OSDP V2 |
| Credential Formats | DESFire, iCLASS, MIFARE, SEOS, NFC/13.56 MHz, 125 kHz Prox | DESFire, iCLASS, MIFARE, SEOS, NFC/13.56 MHz, 125 kHz Prox, Magnetic Stripe |
| Mobile Credential Support | Yes (including Apple ECP) | — |
| Security Hardware | Certified secure element hardware | Cryptographic keys on certified secure element hardware |
| Security Standard | — | ICE (Integrated Credential Environment) |
| Power Input | PoE+ (802.3at) | — |
| Impact Rating | IK09 | — |
| Operating Temperature | -20°C to +60°C | — |
| Dimensions | 90 mm × 132 mm × 36 mm | — |
| Mount Type | Wall | Wall |
| Connectivity | Wired | Wired |
| Warranty | 2 years | 2 years |
| UPC | 662950752134 | — |
Frequently Asked Questions
Which should you choose: the 20NWS-01-000000 or the 20NKS-01-002CBR?
The 20NWS-01-000000 is the stronger choice when the installation demands documented environmental resilience, PoE+ power delivery, Wiegand panel backward-compatibility, and confirmed mobile credential support including Apple ECP. Its IK09 impact rating and -20°C to +60°C operating range are concrete, spec-documented figures absent from the 20NKS-01-002CBR data set. Conversely, the 20NKS-01-002CBR is preferable when the panel ecosystem is OSDP V2-native, mag-stripe legacy cards must be accepted alongside smart credentials, and an all-black aesthetic is required for the installation. The 20NKS explicitly names OSDP V2 (vs. the unversioned 'OSDP' on the 20NWS) and adds magnetic stripe to the credential list. Both share a 2-year warranty and certified secure element hardware. Platform qualifier: for purely OSDP V2 deployments with a mixed card population including mag-stripe, specify the 20NKS; for hybrid Wiegand/OSDP sites or where environmental ratings must be documented, specify the 20NWS.
Can either reader work with my existing Wiegand access panel?
Based on the provided specs, only the 20NWS-01-000000 (White/Silver) lists a Wiegand 32-bit MSB output, making it directly compatible with legacy Wiegand panels without a protocol converter. The 20NKS-01-002CBR specs state only OSDP V2 as the communication protocol; no Wiegand output is documented for that model.
Which reader supports mobile credentials like iPhone or Apple Watch?
The 20NWS-01-000000 specs explicitly cite mobile credential support and note native Apple ECP, enabling iPhone and Apple Watch access. The 20NKS-01-002CBR specs do not enumerate mobile credential support in the provided data; buyers should consult the HID datasheet at /content/product-datasheets/20NKS-01-002CBR.pdf for confirmation.
Is either reader rated for outdoor or high-abuse mounting locations?
The 20NWS-01-000000 carries a documented IK09 impact rating and an operating temperature range of -20°C to +60°C. The 20NKS-01-002CBR does not list an impact rating or operating temperature range in the provided specifications, so its suitability for outdoor or high-abuse locations cannot be confirmed from the available data.
