HID 900NWPNEK00483 vs HID 20NWS-01-000000: Specification Comparison
Both the HID 900NWPNEK00483 (iCLASS SE R10) and the HID 20NWS-01-000000 (Signo 20) are wired, wall-mounted smart card readers designed for access control deployments. Each supports multi-technology 13.56 MHz contactless credentials and outputs both OSDP and Wiegand signals, making them genuine cross-shop candidates for installers evaluating HID's reader portfolio. The comparison centers on credential breadth, communication and power architecture, and physical/environmental resilience—the three axes that most influence reader selection in enterprise and government access control projects.
In This Guide
- Which reader supports a broader or more future-proof credential set?
- How do the two readers differ in communication output and power options?
- Which reader is better suited for demanding physical or environmental conditions?
- Which should you choose: the 900NWPNEK00483 or the 20NWS-01-000000?
- Side-by-Side Specs
- FAQ
Which reader supports a broader or more future-proof credential set?

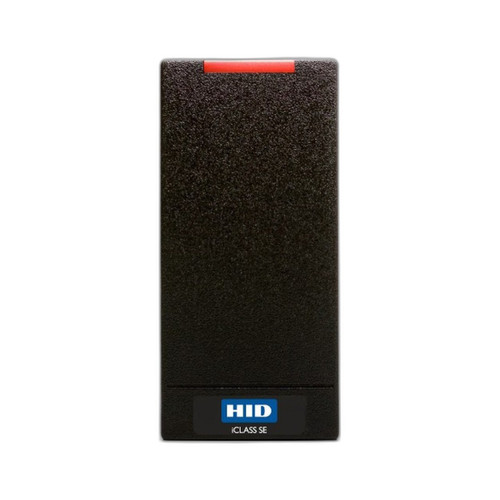

The 900NWPNEK00483 reads iCLASS SE, DESFire, MIFARE, SEOS, NFC, and 125 kHz proximity cards in a single aperture, covering both legacy 125 kHz prox formats and modern 13.56 MHz contactless technologies. Its 56-bit CSN output in MSB format ensures compatibility with panels expecting standard card-number formats.
The 20NWS-01-000000 (Signo 20) reads DESFire, iCLASS, MIFARE, SEOS, and NFC at 13.56 MHz and additionally supports mobile credentials including native Apple ECP, enabling iPhone and Apple Watch tap-to-access without supplemental mobile hardware. The Signo 20 does not list 125 kHz proximity support in its provided specifications.
For sites still running 125 kHz prox cards alongside modern credentials, the 900NWPNEK00483's explicitly stated prox support is a meaningful advantage. For sites committed to a mobile-first or card-only 13.56 MHz credential strategy—particularly Apple device ecosystems—the Signo 20's native Apple ECP and certified secure element hardware offer a stronger forward path.
How do the two readers differ in communication output and power options?
Both readers output RS-485 OSDP and Wiegand, supporting mixed-panel environments. The 900NWPNEK00483 specifies RS-485 half-duplex with simultaneous Wiegand output, which the manufacturer notes eliminates the need for gateway hardware in mixed deployments. Its Wiegand output uses open-collector signaling with tamper detection capability. Encryption processing is explicitly disabled (IPM OFF) on this model.
The 20NWS-01-000000 outputs Wiegand 32-bit MSB and OSDP, and adds PoE+ (802.3at) as a power option—allowing a single CAT cable to carry both data and power. This can simplify conduit and power-supply planning in new installations. The Signo 20 also specifies a certified secure element for hardware-level encryption, whereas the 900NWPNEK00483 explicitly has no internal encryption processing.
The PoE+ capability of the Signo 20 is a practical installation advantage in locations where running a separate power feed is costly or constrained. The 900NWPNEK00483's power source is not specified in the provided data. Installers should verify panel and infrastructure compatibility before selecting either reader on communication grounds alone.
Which reader is better suited for demanding physical or environmental conditions?
The 20NWS-01-000000 carries an IK09 impact resistance rating, indicating it can withstand significant mechanical impact—relevant for high-traffic lobbies, parking structures, or any location with vandalism risk. It also specifies an operating temperature range of -20°C to +60°C, making it suitable for outdoor vestibules or unconditioned spaces. An IP54 compliance note appears in the provided data (though attributed to a different product context), so installers should confirm IP rating directly from HID's official Signo 20 datasheet.
The 900NWPNEK00483 does not list an impact rating, IP rating, or operating temperature range in the provided specifications. No environmental or ingress-protection data is available to assess its suitability for harsh or outdoor-adjacent installations.
Both units are available in black or white with silver trim baseplate. Neither keypad configuration is definitively confirmed for either model from the provided data—the keypad field lists multiple contradictory values for both products and should be verified against HID's current datasheets before specifying.
Which should you choose: the 900NWPNEK00483 or the 20NWS-01-000000?
Our take: The 20NWS-01-000000 Signo 20 is the stronger choice when the deployment demands mobile credential support, a hardened physical form factor, or simplified single-cable installation. It uniquely specifies native Apple ECP for iPhone and Apple Watch access, PoE+ (802.3at) power over a single CAT cable, an IK09 impact rating, and a certified secure element for hardware encryption—none of which appear in the 900NWPNEK00483's provided specifications. The 900NWPNEK00483 iCLASS SE R10, by contrast, is better suited to mixed-technology sites still running 125 kHz proximity cards alongside modern 13.56 MHz credentials, as it explicitly lists 125 kHz prox support that the Signo 20 does not. Both share a 2-year warranty and dual OSDP/Wiegand output. Specify the R10 for legacy-prox transition projects; specify the Signo 20 for new builds targeting mobile access, harsh environments, or Apple device ecosystems.
Side-by-Side Comparison
Spec-for-spec, from manufacturer data.
| Specification | HID 900NWPNEK00483 | HID 20NWS-01-000000 |
|---|---|---|
| Product Line | iCLASS SE R10 | Signo 20 |
| SKU | 900NWPNEK00483 | 20NWS-01-000000 |
| Product Type | Smart Card Reader | Access Control Reader |
| Communication Output | RS-485 OSDP + Wiegand (half-duplex) | OSDP + Wiegand 32-bit MSB |
| 125 kHz Proximity Support | Yes | — |
| 13.56 MHz Contactless Support | Yes | Yes |
| Mobile Credential Support | — | Yes |
| Apple ECP (iPhone/Apple Watch) | — | Yes (native) |
| Encryption | None (IPM OFF) | Certified secure element hardware |
| PoE Power | — | PoE+ (802.3at) |
| Impact Rating | — | IK09 |
| Operating Temperature | — | -20°C to +60°C |
| Wiegand Output Format | Open-collector, 56-bit CSN MSB | 32-bit MSB |
| Tamper Detection | Yes (capable) | — |
| Color / Finish | Black or white with silver trim baseplate | White with silver trim |
| Warranty | 2-year | 2-year |
Frequently Asked Questions
Which should you choose: the 900NWPNEK00483 or the 20NWS-01-000000?
The 20NWS-01-000000 Signo 20 is the stronger choice when the deployment demands mobile credential support, a hardened physical form factor, or simplified single-cable installation. It uniquely specifies native Apple ECP for iPhone and Apple Watch access, PoE+ (802.3at) power over a single CAT cable, an IK09 impact rating, and a certified secure element for hardware encryption—none of which appear in the 900NWPNEK00483's provided specifications. The 900NWPNEK00483 iCLASS SE R10, by contrast, is better suited to mixed-technology sites still running 125 kHz proximity cards alongside modern 13.56 MHz credentials, as it explicitly lists 125 kHz prox support that the Signo 20 does not. Both share a 2-year warranty and dual OSDP/Wiegand output. Specify the R10 for legacy-prox transition projects; specify the Signo 20 for new builds targeting mobile access, harsh environments, or Apple device ecosystems.
Is the 900NWPNEK00483 or the 20NWS-01-000000 better for a site still using 125 kHz proximity cards?
Based on the provided specifications, the 900NWPNEK00483 iCLASS SE R10 explicitly lists 125 kHz proximity card support alongside 13.56 MHz credentials. The 20NWS-01-000000 Signo 20 does not list 125 kHz prox in its provided specifications. If retaining existing prox cards during a credential migration is a requirement, the 900NWPNEK00483 is the safer choice pending confirmation from HID's official datasheets.
Can the 20NWS-01-000000 Signo 20 be powered over Ethernet, and does the 900NWPNEK00483 support that?
The 20NWS-01-000000 specifies PoE+ (802.3at) as a power option, allowing it to draw power and communicate over a single CAT cable. The 900NWPNEK00483's power options are not stated in the provided specifications, so PoE support cannot be confirmed or denied for that model. Verify directly with HID or your distributor before designing power infrastructure.
Which reader supports mobile credentials like iPhone or Apple Watch tap-to-access?
The 20NWS-01-000000 Signo 20 specifies mobile credential support and native Apple ECP, which enables iPhone and Apple Watch access without additional mobile reader hardware. The 900NWPNEK00483 iCLASS SE R10 does not list mobile credential or Apple ECP support in its provided specifications. For deployments targeting a mobile-first or BYOD access strategy, the Signo 20 is the specified option.
