HID 20KNKS-01-002CBR vs HID 920NHRTEK0001T: Specification Comparison
Both the HID 20KNKS-01-002CBR (Signo 20K) and the HID 920NHRTEK0001T (R40 iCLASS SE FIPS) are wired, wall-mount access control credential readers from HID Global, designed for electronic access control panel integration. The comparison centers on protocol architecture, credential breadth, and compliance posture — specifically OSDP v2 encrypted communication with magnetic stripe/NFC support versus RS-485/Wiegand output with a wide multi-technology smart card stack and FIPS 75-bit federal compliance.
In This Guide
- Which communication protocol and output format does each reader use — and how does that affect panel compatibility?
- What credential technologies does each reader support, and how does that affect migration flexibility and interoperability?
- What encryption and compliance certifications apply to each reader — and which deployments require them?
- Which should you choose: the 20KNKS-01-002CBR or the 920NHRTEK0001T?
- Side-by-Side Specs
- FAQ
Which communication protocol and output format does each reader use — and how does that affect panel compatibility?
The 20KNKS-01-002CBR communicates exclusively via OSDP v2 with an encrypted session, delivering bidirectional, supervised communication over a single wired connection. Its output format is a 13-character ASCII string with no parity. OSDP v2 is supported natively by modern access controllers from HID and a growing set of third-party PACS vendors, but it requires a controller that explicitly supports OSDP v2 — older Wiegand-only panels are not compatible.
The 920NHRTEK0001T uses RS-485 full-duplex (485FDX) as its primary bus, with Wiegand output also available. This dual-output capability means it can integrate with a broad range of legacy and current-generation PACS controllers without firmware or hardware upgrades. Output format is open collector with optional tamper detection. OSDP is listed as a communication option in the credential-type field data, though the primary-specified protocol is 485FDX/Wiegand. Buyers should confirm OSDP support with HID documentation for this SKU before specifying it as an OSDP device.
For installations on legacy Wiegand infrastructure, the 920NHRTEK0001T's 485FDX/Wiegand output provides a direct upgrade path without controller replacement. For new OSDP v2 deployments requiring encrypted, supervised lines, the 20KNKS-01-002CBR is the purpose-built choice.
What credential technologies does each reader support, and how does that affect migration flexibility and interoperability?

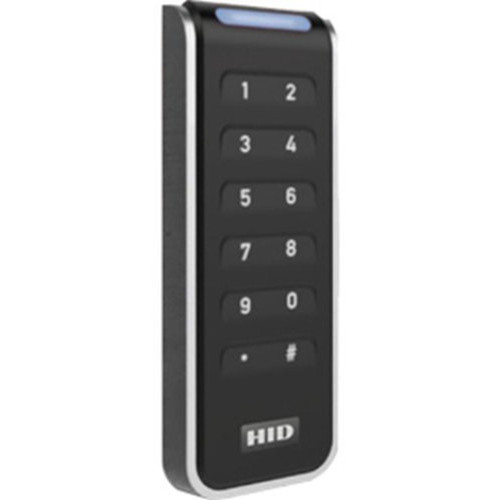

The 20KNKS-01-002CBR supports magnetic stripe and NFC (13.56 MHz contactless). This positions it as a reader bridging legacy mag-stripe deployments and modern contactless mobile/card credentials. It does not list support for iCLASS SE, DESFire, MIFARE, HID Prox (125 kHz), or SEOS based on the provided specifications.
The 920NHRTEK0001T supports a substantially broader credential stack: iCLASS SE, DESFire, MIFARE, HID Prox (125 kHz), SEOS, NFC/13.56 MHz, and 125 kHz proximity — all in a single reader hardware unit. It is designated R40-H PIVCLASS-compliant, meaning it is validated to read government-issued PIV and PIV-I smart cards. This breadth eliminates the need for parallel reader hardware when a site uses mixed credential populations.
For environments carrying multiple credential types simultaneously — government PIV, legacy HID Prox, iCLASS SE, and contactless NFC — the 920NHRTEK0001T eliminates hardware swaps. The 20KNKS-01-002CBR is the narrower technology fit, suited to sites standardizing on mag-stripe-plus-NFC without a requirement for the broader smart card stack.
What encryption and compliance certifications apply to each reader — and which deployments require them?
The 20KNKS-01-002CBR's security posture is defined by OSDP v2 encrypted sessions — an industry-standard protocol providing AES-128 communication between reader and controller. No additional federal compliance certifications (FIPS, PIVCLASS) are stated in the provided specifications.
The 920NHRTEK0001T is specified with FIPS 75-bit encryption and explicit PIVCLASS compliance, meeting federal government access control requirements including those tied to HSPD-12 / OMB M-11-11 mandates. This makes it a validated option for federal facilities, defense installations, and any regulated site where FIPS-validated cryptographic modules are contractually or legally required.
PIVCLASS/FIPS compliance is a hard requirement for U.S. federal contracts and many state government installations; the 920NHRTEK0001T satisfies it per spec. The 20KNKS-01-002CBR's OSDP v2 encryption is appropriate for commercial enterprise security hardening but does not carry stated FIPS or PIVCLASS certification based on the provided data.
Which should you choose: the 20KNKS-01-002CBR or the 920NHRTEK0001T?
Our take: The 920NHRTEK0001T is the stronger choice when the deployment requires FIPS 75-bit compliance, PIVCLASS certification for federal PIV card reading, or a single reader that handles iCLASS SE, DESFire, MIFARE, HID Prox, SEOS, and NFC without hardware changes. Concretely: the 920NHRTEK0001T supports seven distinct credential technologies versus two (magnetic stripe and NFC) on the 20KNKS-01-002CBR; it carries stated FIPS 75-bit and PIVCLASS compliance where the 20KNKS-01-002CBR lists none; and its 485FDX/Wiegand output integrates with legacy panel infrastructure the OSDP-only 20KNKS-01-002CBR cannot reach. The 20KNKS-01-002CBR is the appropriate selection for new OSDP v2 encrypted deployments on modern controllers where the credential requirement is limited to mag-stripe and NFC and no federal compliance mandate applies. Both carry a 2-year warranty.
Side-by-Side Comparison
Spec-for-spec, from manufacturer data.
| Specification | HID 20KNKS-01-002CBR | HID 920NHRTEK0001T |
|---|---|---|
| Product Line | Signo 20K | R40 iCLASS SE FIPS |
| SKU | 20KNKS-01-002CBR | 920NHRTEK0001T |
| Device Class | Multi-technology credential reader | Smart Card Reader Terminal |
| Primary Communication | OSDP v2 | RS-485 Full-Duplex (485FDX) |
| Secondary Output | — | Wiegand |
| Encryption | OSDP v2 encrypted session | FIPS 75-bit |
| Federal Compliance | — | PIVCLASS, FIPS 75-bit |
| Magnetic Stripe | Yes | — |
| NFC / 13.56 MHz | Yes | Yes |
| iCLASS SE | — | Yes |
| DESFire | — | Yes |
| MIFARE | — | Yes |
| HID Prox / 125 kHz | — | Yes |
| SEOS | — | Yes |
| Output Format | 13-character ASCII, no parity | Open collector, optional tamper detection |
| Warranty | 2 years | 2 years |
Frequently Asked Questions
Which should you choose: the 20KNKS-01-002CBR or the 920NHRTEK0001T?
The 920NHRTEK0001T is the stronger choice when the deployment requires FIPS 75-bit compliance, PIVCLASS certification for federal PIV card reading, or a single reader that handles iCLASS SE, DESFire, MIFARE, HID Prox, SEOS, and NFC without hardware changes. Concretely: the 920NHRTEK0001T supports seven distinct credential technologies versus two (magnetic stripe and NFC) on the 20KNKS-01-002CBR; it carries stated FIPS 75-bit and PIVCLASS compliance where the 20KNKS-01-002CBR lists none; and its 485FDX/Wiegand output integrates with legacy panel infrastructure the OSDP-only 20KNKS-01-002CBR cannot reach. The 20KNKS-01-002CBR is the appropriate selection for new OSDP v2 encrypted deployments on modern controllers where the credential requirement is limited to mag-stripe and NFC and no federal compliance mandate applies. Both carry a 2-year warranty.
Can either reader be used on a federal government project requiring PIV card support?
Based on the provided specifications, only the 920NHRTEK0001T carries stated FIPS 75-bit encryption and PIVCLASS compliance, which are the certifications typically required for U.S. federal PIV and PIV-I card reading mandates. The 20KNKS-01-002CBR lists OSDP v2 encryption but no FIPS or PIVCLASS certification in its specifications.
Will either reader work with my existing Wiegand access control panel?
The 920NHRTEK0001T specifies Wiegand output as an available interface alongside RS-485 full-duplex, making it compatible with standard Wiegand-input panels. The 20KNKS-01-002CBR communicates via OSDP v2 only per its specifications; if your panel does not support OSDP v2, the 20KNKS-01-002CBR would not be compatible without a controller upgrade or OSDP-to-Wiegand converter.
Which reader is the better fit for a site currently using HID iCLASS SE cards that wants to add mobile NFC credentials later?
The 920NHRTEK0001T supports both iCLASS SE and NFC/13.56 MHz per its specifications, so it can read both credential types on the same hardware without replacement. The 20KNKS-01-002CBR supports NFC but does not list iCLASS SE support in the provided specifications, meaning it would not read the existing iCLASS SE card population.
