IP Camera Accessories | Mounts, Enclosures, Lenses, IR & Power

Deployment Considerations

Environmental protection and weather resistance
Mounting stability and load support
Power and voltage compatibility
Cable management and termination quality
Compliance with local safety standards

Sub categories

Showing Results for Accessories

Compare

Add to Cart The item has been added
Hanwha

SKU: SBD-140PMB

Hanwha SBD-140PMB White Pole Mount Base

SUS304 stainless steel pole mount base for outdoor Hanwha cameras
- SUS304 stainless steel with white powder coat resists salt spray and corrosion
- Compact 121 x 70 mm footprint minimizes visual impact on pole installations
- TR20 Torx screw interface compatible with QNV, QND, QNF, QNE, LND, ANE series
In stock · Ships same business day

$70.00 $46.99 Save $23.01

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hanwha

SKU: SBD-140PMW

Hanwha SBD-140PMW Pole Mount Base White

Aluminum pole mount base for outdoor IP cameras, white finish
- Aluminum core with plastic cap resists corrosion in coastal/harsh environments
- Compact ø147.1mm footprint minimizes wind load and visual impact on poles
- Dual TR20/TR30 screw threads fit Hanwha cameras and steel mounting straps
In stock · Ships same business day

$49.00 $32.99 Save $16.01

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hanwha

SKU: SBD-180PMW

Hanwha SBD-180PMW Pole Mount Base White

Aluminum pole mount base for Hanwha Wisenet X/P cameras, outdoor-rated
- Aluminum core with weather-resistant plastic cap resists corrosion in coastal/humid environments
- Lightweight 370g design reduces structural load on existing pole installations
- Compact ø187.1 mm footprint with M25 conduit hole fits standard pole configurations
In stock · Ships same business day

$70.00 $46.99 Save $23.01

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hanwha

SKU: SBL-100D

Hanwha SBL-100D Dome Ceiling Housing

Dome ceiling housing for Hanwha IP cameras with discrete white plastic design
- Ceiling mount positions camera overhead for broad room coverage and reduced tampering risk
- Dome form factor conceals camera body and lens to blend into ceiling infrastructure
- Compatible with XNB-6001, PNM-9000QB cameras and SLA-T2480/T4680 lens modules
In stock · Ships same business day

$39.00 $26.99 Save $12.01

Add to Cart
The item has been added
Compare

Out of stock
Hanwha

SKU: SBL-101C

Hanwha SBL-101C Remote Head Camera Corner Mount

White polycarbonate corner mount for Hanwha SLA and XNB cameras
- Fits discreetly in corners while securing remote camera heads in place
- Compatible with SLA-T4680, SLA-T2480, PNM9000QB, XNB-6001 and variants
- Durable polycarbonate construction rated -10°C to +45°C operating range
Special Order · Ships in 2-3 weeks

$39.99

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hanwha

SKU: SBO-140BW

Hanwha SBO-140BW Backbox for Bullet Camera

Aluminum weatherproof backbox for Hanwha bullet cameras, IP66/IK10
- IP66 rating blocks rain jets and dust; IK10 resists 20-joule impacts
- Aluminum construction weighs 980g for one-person installation
- Compact ø147.5 × 73.3mm form factor hides cable runs at camera head
In stock · Ships same business day

$49.00 $32.99 Save $16.01

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hanwha

SKU: SBO-140WW

Hanwha SBO-140WW Aluminum Back Box Camera Enclosure

IP66 aluminum back box for Hanwha outdoor camera mounting
- IP66-rated enclosure shields against dust and high-pressure water jets
- Lightweight aluminum (870g) reduces wall and pole installation load
- TR20 mount compatibility across 8 Hanwha camera models
In stock · Ships same business day

$76.00 $50.99 Save $25.01

Add to Cart
The item has been added
Compare

Out of stock
Hanwha

SKU: SBO-147BA

Hanwha SBO-147BA Conduit Hole Adapter

Aluminum conduit adapter for Hanwha X, Q, P, and Wisenet cameras
- Aluminum alloy construction with white finish for indoor/outdoor durability
- Integrates with standard conduit systems for organized cable protection
- Compact 35 × 123 × 35 mm form factor, lightweight at 0.21 kg
Special Order · Ships in 2-3 weeks

$20.99

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hanwha

SKU: SBP-004PBW

Hanwha SBP-004PBW Mounting Converter 4 to 4.75 Inch

4" to 4.75" PCD mounting converter for wall and ceiling install
- Converts 4-inch hole spacing to 4.75-inch standard without re-drilling
- Anodized aluminum (white) resists corrosion in outdoor and humid settings
- M8 threaded inserts work with standard fasteners across installations
In stock · Ships same business day

$170.99

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hanwha

SKU: SBP-004WMW

Hanwha SBP-004WMW Wall Mount for Rugged PTZ Cameras

Wall mount for rugged PTZ cameras, 15 kg load capacity, reversible angles
- Aluminum construction with white finish resists corrosion in outdoor deployments
- Reversible design allows upright, canted, and inverted positioning for flexible sightlines
- IP66 and IK10 rated for harsh environments with encrypted firmware and secure boot
In stock · Ships same business day

$420.99

Add to Cart
The item has been added
Compare

Out of stock
Hanwha

SKU: SBP-050NBW

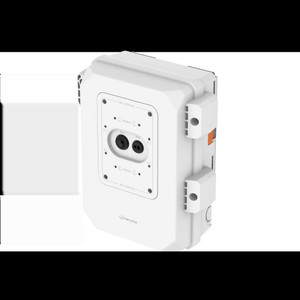

Hanwha SBP-050NBW Installation Cabinet

IP66/IK10 compact cabinet for outdoor Hanwha camera installations
- Polycarbonate and aluminum housing rated IP66 dust-tight and IK10 vandal-resistant
- Compact ø240 × 290mm form factor with 5kg load capacity and four M25 conduit holes
- Compatible with 40+ Hanwha camera models; operates -40°C to +65°C in harsh conditions
Special Order · Ships in 2-3 weeks

$330.00 $221.99 Save $108.01

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hanwha

SKU: SBP-050PMW

Hanwha SBP-050PMW Pole Mount Bracket

Aluminum pole and wall bracket for mid-range cameras up to 15 kg
- 15 kg load capacity handles most IP cameras and compact PTZ units
- Aluminum with white powder coat resists corrosion in outdoor deployments
- Single bracket mounts on both poles and walls—no separate hardware needed
In stock · Ships same business day

$75.99

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hanwha

SKU: SBP-060S

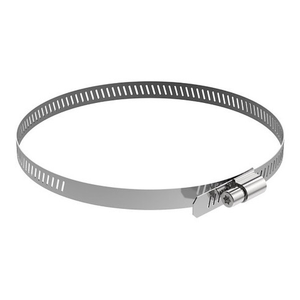

Hanwha SBP-060S Stainless Steel Mount Strap

Marine-grade stainless steel pole mount for coastal & corrosive environments
- SUS316L stainless steel resists salt spray and humidity without rusting
- Fits poles 80–160mm diameter; 600mm strap length secures dual cameras
- Two straps per package for redundant fastening or multi-camera setup
In stock · Ships same business day

$30.00 $20.99 Save $9.01

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hanwha

SKU: SBP-099HMW

Hanwha SBP-099HMW White Mounting Cap

White aluminum mounting cap for QND/QNF cameras, PF 1 1/2" thread
- RAL9003 powder-coat finish resists corrosion in covered outdoor environments
- Hand-tight PF 1 1/2" mount requires no tools for field installation or removal
- Ø107 × 47mm compact size fits six Hanwha surveillance camera models
In stock · Ships same business day

$34.00 $22.99 Save $11.01

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hanwha

SKU: SBP-099TMW

Hanwha SBP-099TMW Tilted Wall Mount White

20° tilted wall mount for Hanwha fisheye cameras, white polycarbonate
- 20-degree fixed tilt redirects fisheye coverage downward without gimbal adjustment
- Compact Ø99mm footprint in UV-resistant white polycarbonate for indoor/covered outdoor
- Direct fit for QNF-8010 and QNF-9010 fisheye cameras, 100g lightweight design
In stock · Ships same business day

$49.99

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hanwha

SKU: SBP-115PA

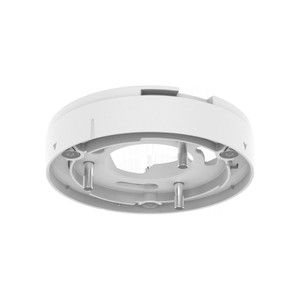

Hanwha SBP-115PA Wall and Pole Mount Adapter Pack of 3

Shaft adapters (pack of 3) for Hanwha PTZ wall and pole mounts
- TR30 Torx fastening prevents cross-threading and load stripping
- Polycarbonate and aluminum construction resists UV and corrosion
- 242g per unit—three adapters add minimal weight to brackets
In stock · Ships same business day

$150.99

Add to Cart
The item has been added

What to Look For When Buying

The six decisions that matter most before you spec.

Match Bracket to Camera + Surface

A dome camera mounted on a textured wall needs a wall-mount adapter with a gasket; mounted on a pole it needs a pole-mount arm; mounted on an eave it may need a pendant. Third-party brackets exist but brand-specific brackets include proper camera cable routing and weather gasketing. Buying a $40 generic bracket to save on a $80 Axis bracket usually costs more in installation time.

Enclosure NEMA Rating

NEMA 3R = light rain; NEMA 4 = splash + driving rain; NEMA 4X = above + corrosion resistance (coastal, industrial); NEMA 6 = temporary submersion. For weather-exposed camera enclosures, NEMA 4X is the commercial standard. For mission-critical outdoor gear, pair NEMA 4X enclosure + IP67 camera + IK10 vandal rating.

C/CS-Mount Lens Selection

Box cameras use interchangeable C-mount (17.526mm flange) or CS-mount (12.5mm flange). Lens focal length + sensor size determines field of view: a 4mm lens on a 1/3" sensor gives ~60° horizontal FOV. Our DORI guide covers lens selection by scene distance. F-stop matters for low-light; P-iris for auto-exposure.

IR Illuminator Wavelength

850nm IR is more efficient but produces a faint visible red glow (deterrent or accidental giveaway, depending on use case). 940nm is truly covert but requires ~2x the power for the same effective range, and many cameras have lower sensitivity at 940nm. Match illuminator wavelength to camera IR-cut filter spec, or image washout results.

Power Supply Sizing & Distance

12VDC cameras at 100ft from a power supply drop significant voltage over 18-gauge wire — a camera rated for 12V may see 10.5V at the camera end under load, triggering brownout resets. For long runs, use a higher-voltage power supply (24VAC or 48VDC) and step down at the camera. UL-listed surveillance power supplies (Altronix) publish voltage-drop tables.

Cable Jacket Rating

Indoor Cat6 is rated CM (communications); plenum-rated CMP is required for above-drop-ceiling runs per NFPA 70. Outdoor/direct-burial Ethernet is a different product (CMX, direct-burial gel-filled). Mixing jacket ratings causes code violations and fire inspector rejections. Always spec by run environment, not lowest-cost SKU.

Technology Stack

The specs and acronyms that actually affect outdoor performance.

NEMA vs IP Rating Systems

NEMA is the US enclosure standard (NEMA 1-13); IP is the international standard (IP00-IP68). Rough crosswalk: NEMA 4 ≈ IP66, NEMA 4X ≈ IP66 + corrosion, NEMA 6 ≈ IP67. Some spec sheets list both; when only one is given, the crosswalk is approximate. For coastal, industrial, and food-processing environments, specify NEMA 4X or IP66 + stainless steel.

C-Mount vs CS-Mount Lenses

C-mount: 17.526mm flange focal distance. CS-mount: 12.5mm flange. CS cameras accept both lens types (C lenses need a 5mm adapter ring); C cameras accept only C lenses. Most modern box cameras are CS-mount for lens flexibility. Lens thread is 1-inch × 32 TPI on both.

F-Stop / Iris

F-stop = focal length ÷ aperture diameter. Lower F-stop (wider aperture) means more light, better low-light performance, shallower depth of field. F1.4 is very low-light capable; F1.8 is common commercial spec. P-iris (precise iris) lenses auto-adjust aperture based on scene lighting — reduces over-exposure during day, improves low-light at night.

850nm vs 940nm IR

IR illuminators at 850nm are more energy-efficient and the sensitivity of most camera IR-cut filters peaks here — but 850nm produces a faint visible red glow from the LEDs. 940nm is invisible to human eye but requires ~2x the power or shorter effective range. Many covert-deployment cameras are re-tuned for 940nm sensitivity.

UL-Listed Power Supplies

Underwriters Laboratories listed power supplies meet safety standards for overcurrent, overvoltage, and enclosure isolation. UL 294 specifies additional requirements for access control; UL 603 for security burglary; UL 1310 for Class 2 power. Insurance and code requirements increasingly specify UL-listed supplies — particularly in commercial and institutional installations.

Plenum vs Riser vs PVC Cable

Plenum-rated (CMP) cable uses low-smoke FEP jacket for use above suspended ceilings where smoke spreads through return-air plenums. Riser (CMR) is for vertical shaft runs between floors. PVC (CM) is for open office runs only. Using CM in plenum spaces violates NFPA 70 — costly inspector rejection if caught.

Typical Deployment Scenarios

New Construction Retrofit

Cat6A plenum cable pulled to camera locations with proper service loops, 2-gang electrical boxes at each dome location with weatherproof backbox, Cat6A patch panel at the IDF, UL-listed power supplies for any 12V/24V camera, labeled and tested before cameras are mounted.

Coastal / Corrosive Environment

NEMA 4X stainless-steel enclosures for outdoor cameras, 316-grade stainless brackets, silicone dielectric grease on every connector, hot-dipped galvanized or powder-coated steel poles. Budget 15-25% more on accessories vs. standard outdoor — and plan for 3-5 year inspection cycles rather than 10.

Box-Camera LPR Application

Box camera with 50-150mm telephoto lens, dedicated 850nm IR illuminator at same height as camera, pole-mount bracket with junction box, UL power supply for camera + illuminator. LPR-specific enclosures with anti-reflective glass to avoid nighttime IR bloom. Typical deployment: dedicated lane camera, not general-purpose surveillance.

Parking Garage Retrofit

Existing analog coax cable replaced via NVT Phybridge or similar PoE-over-coax, vandal-resistant dome enclosures at ground level, low-profile bullet cameras on ceiling, LED-plus-IR-compatible illuminators to handle harsh fluorescent lighting. Enclosures rated for vehicle-exhaust environment.

Frequently Asked Questions

Do I need the OEM bracket for my camera, or will a generic bracket work?

For most commercial installations, specify the OEM bracket. Brand-specific brackets include proper cable routing, gasketed weather seals, and mounting-hole patterns matched to the camera — which matters more than the cost savings of a generic bracket. Generic brackets are acceptable for indoor standard-dome cameras on flat surfaces; for outdoor, vandal-rated, or pendant applications, use OEM.

What NEMA rating do I need for outdoor camera enclosures?

NEMA 4 for most weather-exposed deployments (driving rain, snow). NEMA 4X for coastal, industrial, or food-processing environments (adds corrosion resistance — typically stainless steel or fiberglass construction). NEMA 6 for temporary submersion or flood-prone areas. The IP-rating equivalent is IP66 for NEMA 4, IP66 + corrosion for NEMA 4X, IP67 for NEMA 6.

How do I choose the right lens focal length for a box camera?

Work backward from the scene. Identify the farthest point you need identification-grade coverage, use our DORI guide to calculate required pixels-per-foot at that distance, and match lens focal length + sensor size to deliver that PPF. A 4mm lens on a 1/3" sensor covers ~60° horizontal FOV; a 12mm lens on the same sensor covers ~20°. Wide FOV = shorter identification distance.

What's the difference between 850nm and 940nm IR illuminators?

850nm is more energy-efficient — you get more effective range per watt — but produces a faint visible red glow from the LEDs. 940nm is truly invisible to the human eye but requires about 2x the power for equivalent range, and many cameras have lower sensor sensitivity at 940nm. For deterrent visibility or cost-efficient long-range, 850nm; for covert applications, 940nm.

Can I power an IP camera with a generic 12V wall-wart?

Not for a commercial deployment. Generic wall-warts are unregulated, not UL-listed for security applications, and typically don't include surge protection. Use a UL-listed surveillance power supply (Altronix AL series, UL 294 or UL 603) with battery backup where required. PoE is preferred when possible — single cable, centralized power management, UPS-backed.

What cable jacket rating do I need for in-ceiling runs?

Plenum-rated (CMP) cable is required for any run through a return-air plenum space above suspended ceilings (most commercial buildings). Riser (CMR) for vertical shafts between floors. PVC (CM) for open office spaces only. Using non-plenum cable in a plenum space is a fire-code violation under NFPA 70 and will be rejected by inspectors. Budget plenum cable for any building where you're not 100% sure of the return-air path.

Accessories

Deployment Considerations

Sub categories

Showing Results for Accessories

Hanwha SBD-140PMB White Pole Mount Base

Hanwha SBD-140PMW Pole Mount Base White

Hanwha SBD-180PMW Pole Mount Base White

Hanwha SBL-100D Dome Ceiling Housing

Hanwha SBL-101C Remote Head Camera Corner Mount

Hanwha SBO-140BW Backbox for Bullet Camera

Hanwha SBO-140WW Aluminum Back Box Camera Enclosure

Hanwha SBO-147BA Conduit Hole Adapter

Hanwha SBP-004PBW Mounting Converter 4 to 4.75 Inch

Hanwha SBP-004WMW Wall Mount for Rugged PTZ Cameras

Hanwha SBP-050NBW Installation Cabinet

Hanwha SBP-050PMW Pole Mount Bracket

Hanwha SBP-060S Stainless Steel Mount Strap

Hanwha SBP-099HMW White Mounting Cap

Hanwha SBP-099TMW Tilted Wall Mount White

Hanwha SBP-115PA Wall and Pole Mount Adapter Pack of 3

Browse by Product Family

What to Look For When Buying

Technology Stack

Typical Deployment Scenarios

Top Brands for Outdoor Deployments

Frequently Asked Questions

Related Categories

Engineering Reading
