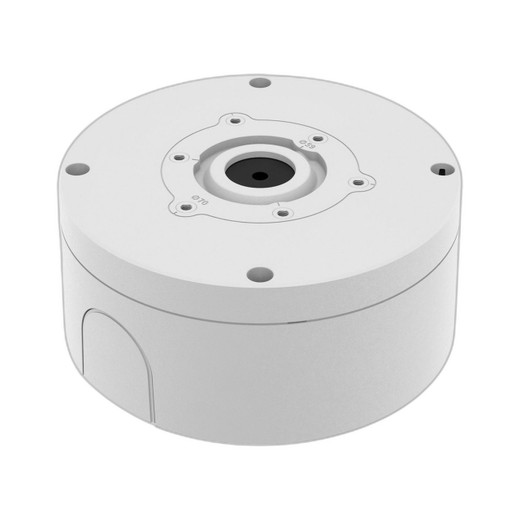

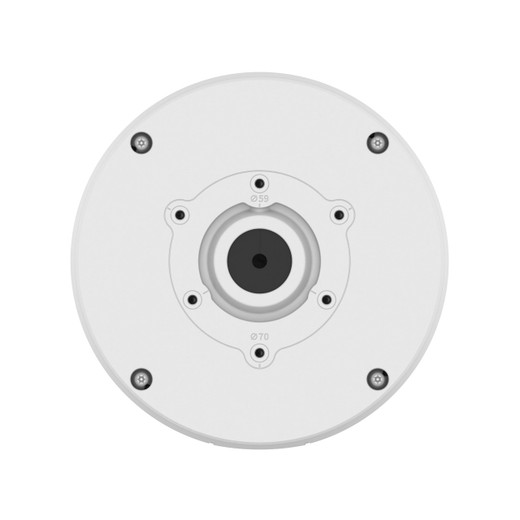

Hanwha SBO-140WW Aluminum Back Box Camera Enclosure
The SBO-140WW is a professional-grade back box enclosure designed to mount and protect compatible Hanwha surveillance cameras in outdoor and semi-outdoor environments. Constructed from aluminum with an IP66 environmental rating, this white back box addresses three core installation challenges: environmental sealing, cable management, and structural stability on wall-mounted and overhead applications.
Key Features
- Aluminum Construction: Resists rust and corrosion in coastal, industrial, and high-humidity environments — essential for long-term reliability where steel would degrade within months of exposure to salt air or chemical vapors.
- IP66 Rating: Provides complete protection against dust ingress and high-pressure water jets. Rain and spray won't compromise electrical connections or internal wiring — but note: IP66 stops short of full submersion (that requires IP67 or higher), so avoid installations where the box might be underwater.
- Lightweight Aluminum Design (870g / 1.92 lb): Reduces installation labor and structural load on walls, poles, and ceiling mounts — a meaningful factor when deploying dozens of cameras across a facility and calculating cumulative bracket stress.
- TR20 Mount Screw Compatibility: Standardized fastening across eight compatible Hanwha camera models eliminates mounting adapter confusion and speeds commissioning when rotating between model variants.
- Spacious Interior for Cable Routing: Accommodates standard RJ-45 connectors, power leads, and future maintenance access without force-fitting cables or risking strain on connectors — critical for PoE installations where tight geometry can cause intermittent failures.
- White Finish: Blends into light-colored facades and reduces visual profile on building exteriors compared to black alternatives, though it may show weathering stains in high-pollution zones.
Integration & Compatibility
The SBO-140WW is compatible with eight Hanwha camera models: QNO-C8083R, QNO-C9083R, ANO-L6012R, ANO-L6022R, ANO-L6082R, ANO-L7012R, ANO-L7022R, and ANO-L7082R. This ecosystem approach allows integrators to standardize on a single back box design across mixed dome, PTZ, and specialized camera deployments, reducing spare parts inventory and accelerating replacement cycles. For Hanwha IP cameras in outdoor surveillance networks, the SBO-140WW serves as a foundational mounting platform, whether you're building a warehouse perimeter network or a campus security deployment.
Back boxes are often overlooked in surveillance architecture planning, yet they directly impact system uptime. An unhoused camera mounted directly to masonry or metal will experience condensation buildup inside the lens housing during temperature swings, fogging the optics and degrading image quality. The SBO-140WW eliminates this by creating a sealed, ventilated air gap that allows moisture to equalize without pooling on optical surfaces. For integrators deploying outdoor IP cameras, this distinction separates field-proven designs from trial-and-error installations.
Deployment Considerations
The aluminum construction and white finish make the SBO-140WW ideal for wall-mounted and facade applications where professional appearance matters alongside weather protection. The 870g weight ensures it won't overload lightweight wall anchors, but verify mounting surface load ratings on older or low-density masonry. Interior space is generous enough for both power and network cabling, though if your installation requires additional strain relief or custom cable glands, you may need to source those separately—the box itself provides the envelope, not the full accessory kit.
For integrators building retention budgets, the SBO-140WW's aluminum durability translates to predictable multi-year lifecycles without premature corrosion replacement, keeping total cost of ownership lower than plastic alternatives in hostile environments.
Frequently Asked Questions
Q: Will the SBO-140WW fit my Hanwha camera model?
A: The SBO-140WW is compatible with eight specific Hanwha models: QNO-C8083R, QNO-C9083R, ANO-L6012R, ANO-L6022R, ANO-L6082R, ANO-L7012R, ANO-L7022R, and ANO-L7082R. Verify your camera model against this list before ordering. If your camera model is not listed, contact your integrator or the manufacturer for compatible alternatives.
Q: Is IP66 sufficient for my outdoor installation?
A: IP66 protects against dust and high-pressure water jets, making it suitable for rain, snow, and spray environments. However, IP66 does not cover full submersion. If your installation risk includes water pooling or submersion, upgrade to an IP67-rated enclosure.
Q: What mounting standard does the SBO-140WW use?
A: The back box uses TR20 mount screws for camera attachment, a standard fastening pattern across the eight compatible Hanwha models. Ensure your mounting surface (wall, pole, bracket) can support the combined weight of the back box plus the mounted camera.
Q: Can I paint the SBO-140WW to match my building color?
A: The white finish is anodized aluminum. Standard exterior paint will adhere, but test a small area first to confirm compatibility with the anodized surface. Avoid paint that traps moisture under the coating, which can accelerate corrosion at scratches or fastener holes.
Q: How does the interior space affect cable management?
A: The spacious interior accommodates standard RJ-45 connectors and power leads without crimping or strain. This reduces the risk of intermittent connection failures caused by tight geometry and simplifies future maintenance or camera swaps.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
Back boxes are invisible until they fail—and then they fail visibly. The SBO-140WW solves a problem that field installers encounter constantly: unhoused outdoor cameras develop internal condensation within weeks of deployment, fogging optics and rendering image quality worthless. The aluminum construction and IP66 sealing of the SBO-140WW eliminate this failure mode by creating a controlled microenvironment that allows moisture to equalize without pooling on optical surfaces.
Technical Highlights:
- IP66 Environmental Sealing: Dust ingress and high-pressure water jets won't compromise electrical connections or internal wiring—but this is a rain-and-spray product, not a submersion product. If your camera sits where water pools, IP67 becomes mandatory.
- Aluminum vs. Plastic: The 870g aluminum frame resists corrosion in salt air, industrial emissions, and high-humidity zones where plastic enclosures yellow, crack, and leach UV-absorbing dyes after 2–3 years. Aluminum buys you 7–10 years of predictable performance with minimal intervention.
- TR20 Mount Standardization: Compatibility with eight Hanwha models means one back box design across your entire mixed-camera deployment. No adapter hunting, no field modifications, no 2 AM on-site troubleshooting when a model variant doesn't fit as expected.
Deployment Considerations:
- The white finish blends into light-colored facades but will show weathering stains in high-pollution urban environments—accept this as a maintenance trade-off for aesthetic integration.
- The spacious interior is a genuine advantage for cable management, but verify your mounting surface can handle the combined weight of box plus camera plus vibration loads from wind or nearby traffic.
For integrators standardizing on Hanwha outdoor surveillance across warehouse perimeters, campus networks, or retail facades, the SBO-140WW is a foundational component that prevents the condensation nightmare altogether. It's not sexy, but it works—and that's the only standard that matters in outdoor surveillance infrastructure.
