Hanwha SBV-140WW Back Box Mounting Accessory
Overview

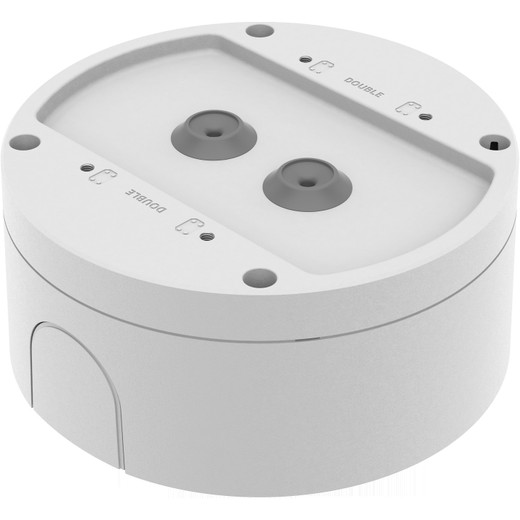

The Hanwha SBV-140WW is a precision back box mounting accessory engineered to protect cable connections and anchor outdoor IP dome cameras during installation. Built from aluminum with IP66 and NEMA4X environmental ratings, the SBV-140WW (often searched as SBV 140WW) delivers sealed protection against rain, dust, and corrosive weather without adding bulk or weight to your mounting structure.
Key Features
- IP66 and NEMA4X Environmental Sealing: Direct rain and dust won't penetrate the enclosure — critical for rooftop, perimeter, and coastal installations where moisture ingress would damage connectors and create field service callbacks. Skip this if you need full submersion protection (IP67 or higher).
- Aluminum Construction with RAL9003 White Powder Coat: Aluminum resists corrosion in salt spray and UV environments better than steel, while the white finish blends into modern building facades and reduces thermal loading compared to dark finishes. Weight stays manageable at 835g (1.84 lb) for single-technician overhead installation.
- TR20 Mount Screw Interface: Industry-standard threaded mount matches Hanwha dome camera base plates — no adapter rings or workarounds. Ensures rigid connection without play or rattle during wind or vibration.
- M25 Conduit Entry (19.1mm): Accepts standard M25 knockout or cable glands for RJ-45, power, and alarm circuits. Pre-sized entry point saves on-site drilling and reduces installation time.
- 2kg Load Capacity: Supports compact and mid-size dome cameras typical in the outdoor IP camera segment. Not suitable for heavy PTZ or fisheye multi-sensor heads — check camera weight against this limit.
- Compact Footprint (ø144.2 x 64.5mm): Minimal profile reduces wind load and visual clutter on architectural surfaces. Fits tight wall-mounted and soffit installations where larger back boxes would be intrusive.
Integration & Compatibility
The SBV-140WW is compatible with Hanwha QNV-C8083R and QNV-C9083R dome cameras. Verify camera model and TR20 base compatibility before ordering. The M25 conduit hole accepts standard cable glands (not included) — budget for appropriate knockout or threaded adapter depending on your cable routing.
When to Choose a Different Model
If you need full submersion protection (IP67) or higher impact resistance (IK ratings), evaluate heavier-duty back box variants in the Hanwha accessory line. For outdoor surveillance installations requiring integrated heating or active dehumidification, consider enclosure kits with climate control features.
Typical Deployment Scenarios
Common applications include retail storefront corners, industrial perimeter walls, municipal traffic monitoring sites, and educational campus exteriors. Any outdoor location where 24/7 operation and sealed cable protection are mandatory. The compact size suits building-integrated installs where aesthetics matter alongside function.
Frequently Asked Questions
Q: What is the weight limit for cameras mounted on the SBV-140WW?
A: Maximum load capacity is 2kg. Check your camera's shipping weight and verify it stays under this limit to avoid structural stress or mount failure.
Q: Can I use the SBV-140WW in a coastal salt-spray environment?
A: Yes. The aluminum construction and powder-coat finish resist corrosion better than steel, making it suitable for coastal deployments. For extreme salt-spray locations (Class C5 per ISO 12944), consider supplemental protective coatings or stainless hardware upgrades.
Q: Does the SBV-140WW come with cable glands or conduit adapters?
A: No. The back box includes the M25 knockout port but not the cable gland or adapter. You will need to source appropriate M25 glands (threaded or snap-in) separately based on your cable type and termination preference.
Q: Is the SBV-140WW suitable for ceiling-mounted cameras?
A: Yes. The back box can be mounted overhead as long as the camera weight remains under 2kg and cable routing and strain relief are properly managed. Overhead conduit entry may require a right-angle or stepped gland to prevent water pooling.
Q: What certifications does the SBV-140WW hold?
A: The back box is rated IP66 and NEMA4X for environmental protection. These ratings ensure protection against high-pressure water jets and dust ingress but do not imply mechanical impact resistance (IK rating). Consult the datasheet for full certification details.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The SBV-140WW is a straightforward, no-nonsense back box that does one thing well: keep water and dust away from cable terminations on outdoor dome installs. At 835g and ø144.2mm, it's light and compact enough to mount overhead without needing structural reinforcement, yet the aluminum body and IP66/NEMA4X sealing mean you won't be back on a ladder in six months replacing corroded connectors.
Technical Highlights:
- IP66/NEMA4X Rating: Withstands direct rain jets and full dust exclusion — industry-standard for outdoor cable protection. Saves expensive field callbacks if you're managing dozens of cameras across rooftops or perimeter walls.
- Aluminum + RAL9003 Powder Coat: Resists salt spray and UV better than painted steel. The white finish keeps thermal loading lower than dark colors — matters on sun-baked south-facing walls.
- TR20 Interface + M25 Conduit: Eliminates custom fabrication or adapter hunting. Cable entry is pre-sized for standard M25 glands, cutting installation time by 10–15 minutes per camera.
- 2kg Load Capacity: Fits most mid-size dome cameras (QNV-C8083R/C9083R confirmed compatible). Not for heavy PTZ rigs — know your camera weight before ordering.
Deployment Considerations:
- Cable Gland Sourcing: Back box ships without glands. Budget 5–10 USD per unit for M25 snap-in or threaded glands, and factor in lead time if you're ordering in volume.
- Overhead Mounting Drainage: When mounting on ceilings or soffits, route the M25 conduit downward or install a drip loop to prevent standing water at the cable entry — IP66 is not submersion-proof.
- Wind Load on Tall Masts: The compact footprint is an asset for wall-mounted cameras but offers minimal aerodynamic stabilization. On pole-mounted or mast-mounted installations, ensure base structure can handle sway.
Best suited to retail, warehouse, and municipal outdoor installs where compact, sealed cable protection is standard practice and you're managing dozens of identical camera models. Not a substitute for full climate-control enclosures in harsh industrial or corrosive environments.
