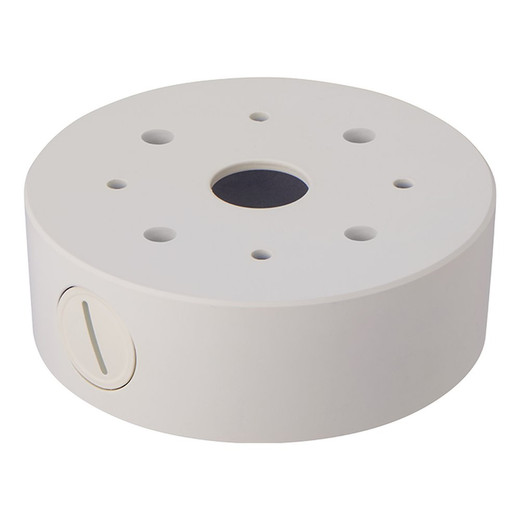

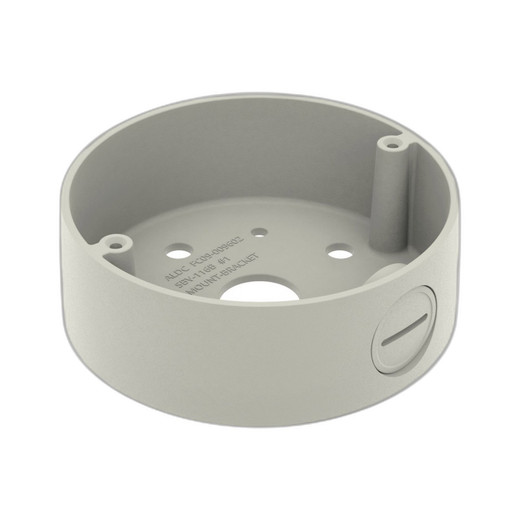

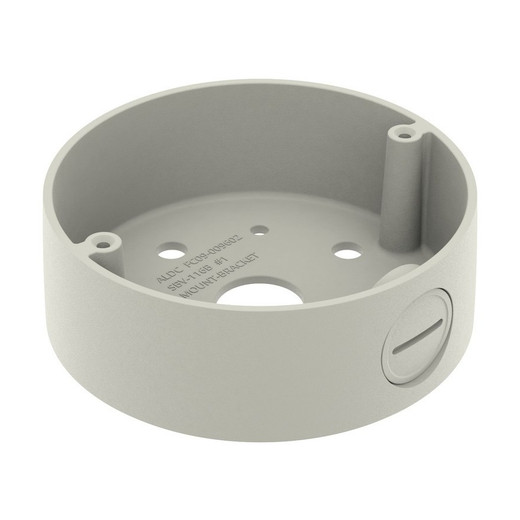

Hanwha SBV-116B Dome Back Box
Overview
The Hanwha SBV-116B is a mounting enclosure purpose-built to support dome camera installation on ceiling or wall substrates. This is a mechanical accessory — not a camera — but it's essential infrastructure for any Hanwha dome camera deployment. Think of it as the structural foundation that holds your camera secure, protects cable routing, and ensures your installation meets building codes.
The SBV-116B is specifically engineered for the Hanwha IP camera line, with mechanical compatibility for the XNV-6011 and SNV-6013 dome models. If you're mounting either of those cameras to drywall, plaster, or concrete ceiling, this back box bridges the gap between the substrate and the camera's mounting interface, preventing torque stress on the camera body itself.
Key Features
- Dome Form Factor: Contoured housing follows the dome profile — eliminates unsightly gaps between camera and ceiling, improves aesthetics in office, retail, and public-facing spaces where the camera is visible.
- Flexible Knockout Ports: Pre-drilled knockout openings let you route power, network (PoE), and auxiliary cabling without drilling additional holes or damaging the enclosure. Reduces installation time and avoids weak points in the housing.
- Durable Construction: High-quality material resists corrosion, vibration, and minor impact — matters in high-traffic areas or facilities with vibration (near HVAC, warehouse conveyors). Outlasts cheaper stamped alternatives.
- Precision Mounting Interface: Engineered tolerances ensure your camera sits level and secure — no play, no settling. Critical for consistent field-of-view and to prevent slow-motion sag that degrades image over months.
- Professional Cable Management: Knockouts are sized to accommodate standard PoE cables and connectors without pinching or strain relief issues — your cables stay organized and protected inside the enclosure.
- Installation Flexibility: Works in indoor and protected outdoor spaces (covered soffits, overhangs). Not rated for full weather exposure — if you need rain/freeze rated, you'll need an outdoor pendant housing instead.
Integration & Compatibility
The SBV-116B mounts directly to ceiling or wall substrate and accepts the XNV-6011 and SNV-6013 dome camera bodies without adapter rings or shims. Verify your camera model before ordering — this back box is not universal. If you're deploying a different dome camera series from another vendor or an older Hanwha line, the mounting footprint may not align.
Cable management inside the back box supports standard PoE runs (Cat5e/Cat6) and allows you to coil slack without kinking. This simplifies future re-aiming or camera replacement.
When to Choose This Model
Select the SBV-116B if you're installing XNV-6011 or SNV-6013 cameras in indoor corporate offices, retail environments, building lobbies, or reception areas where visible cable routing and a flush, professional finish matter. The dome form factor and precision interface deliver a finished appearance.
Skip this if: (a) your camera model is not on the compatibility list — forcing a mismatched mount risks mounting failure, (b) you need outdoor rated enclosures rated for direct rain/freeze — choose a pendant housing with IP66/IP67 instead, or (c) you're installing to a pre-drilled, reinforced structural frame (some integrators use their own bracket systems).
What's in the Box
- 1x Hanwha SBV-116B Dome Back Box
Frequently Asked Questions
Q: Can I use the SBV-116B with dome cameras from other manufacturers?
A: No. The SBV-116B is engineered specifically for Hanwha XNV-6011 and SNV-6013 models. Other brands' dome cameras have different mounting footprints and will not align correctly. Forcing a mismatch creates stability and safety risks.
Q: Is the SBV-116B rated for outdoor installation?
A: The SBV-116B is designed for indoor and protected outdoor installations (covered areas, soffits, overhangs). It is not rated for direct rain exposure or freeze cycles. For full outdoor deployments, select a weatherproofed pendant or junction box rated IP66 or higher.
Q: What cable types can I route through the knockouts?
A: Standard PoE cables (Cat5e, Cat6), power connectors, and auxiliary sensor lines fit through the knockout ports. Avoid pinching cables — coil slack inside the enclosure and route connectors cleanly to prevent strain on the camera interface.
Q: Do I need any additional mounting hardware?
A: The SBV-116B includes the enclosure only. Consult your installation manual for the required fasteners (anchors, screws) specific to your ceiling or wall substrate (drywall, plaster, concrete). Different substrates require different anchoring methods.
Q: Will the SBV-116B fit flush to a textured or suspended ceiling?
A: The back box is engineered for smooth, flat ceilings and walls. Textured or uneven surfaces may leave gaps. Test fit before final installation, or use gasket material to seal gaps and prevent dust accumulation around the camera.
Q: What's the maximum cable slack I can store inside the enclosure?
A: Coil excess cable loosely — the enclosure is designed for PoE run lengths typical in indoor deployments (100m Cat6 runs). Very short runs with excess cable should be managed externally to avoid compression on the camera or heat buildup.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I see the SBV-116B mainly as a professional finish decision. If you're installing an XNV-6011 or SNV-6013 in a visible ceiling space — corporate office, retail, hospitality — this back box eliminates the gap between camera and substrate and keeps your cable routing out of sight. That matters for aesthetics and for passing inspections in spaces where the surveillance infrastructure has to blend in. Without it, you're left with a camera dangling from a PoE cable or sitting loose on drywall, which looks amateur and invites cable strain.
Technical Highlights:
- Precision Mounting Interface: Engineered tolerances lock your camera body in place without play or settling — prevents the slow droop that degrades framing over time and causes field-of-view drift.
- Knockout Port Design: Pre-drilled openings sized for standard PoE connectors and Cat5e/Cat6 cables mean you don't drill random holes and weaken the enclosure. Cleaner cable path, lower risk of pinch damage.
- Material Durability: High-quality construction resists corrosion and vibration stress — especially important in facilities near HVAC ducts, warehouse areas, or anywhere ambient moisture or vibration is present.
Deployment Considerations:
- Indoor-Only: This enclosure is not weatherproofed. If your camera installation faces direct rain, snow, or freeze-thaw cycles, you'll need a pendant housing with IP66/IP67 and low-temperature materials instead. Don't try to adapt this back box for outdoor exposure.
- Substrate Prep Matters: Flat ceilings and walls. If your installation target is textured, popcorn, or suspended tile, the back box won't sit flush and you'll spend extra time shimming or sealing gaps. Plan for that in your labor estimate.
- Model-Specific: Only XNV-6011 and SNV-6013. If you swap camera models mid-project, this back box won't fit. Verify part numbers before procurement.
The SBV-116B is the right choice for indoor retail, corporate, hospitality, or mixed-use facilities where a finished, professional appearance is non-negotiable and cable management must be hidden. For warehouse, outdoor, or cost-sensitive deployments where aesthetics are secondary, you may skip the back box and mount the camera directly — but you'll sacrifice finish and cable protection.
