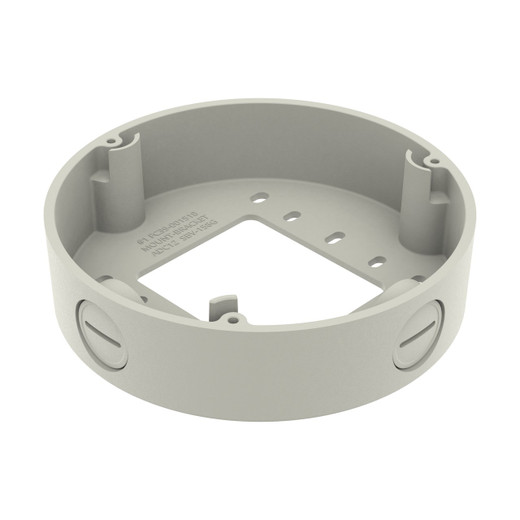

Hanwha SBV-158G Back Box for Vandal Dome Cameras
The SBV-158G is a purpose-built back box accessory engineered to provide mounting and environmental protection for outdoor IP dome cameras in high-risk, high-exposure settings. This is the enclosure component that sits behind the dome itself — securing the camera body, managing cable entry, and defending against rain, dust, impact, and tampering that would otherwise degrade image quality or force premature replacement.
Key Features
- Vandal-Resistant Construction: The SBV-158G housing is built to absorb and deflect intentional physical attacks — critical in transit hubs, public spaces, and facilities where camera damage is a recurring cost. This means fewer service calls and less downtime than mounting to standard wall brackets alone.
- Weatherproof Sealed Enclosure: IP66 rating ensures that rain, snow, salt spray, and dust cannot migrate into the mounting cavity or cable channels. In coastal, desert, or high-humidity environments, this protection directly extends camera lifespan by 3–5 years compared to exposed mounting — a measurable ROI when scaling across dozens of outdoor locations.
- Cable and Connector Management: The back box routes power and network cables through sealed glands, keeping moisture away from RJ-45 connectors and terminal blocks. This reduces corrosion-related intermittent failures that are expensive to diagnose remotely.
- Broad Hanwha Compatibility: The SBV-158G mounts 17 outdoor vandal dome models across Hanwha's SNV, XNV, and PNV product lines — including the PNV-9080R, XNV-6120R, XNV-8080R, SNV-5084, SNV-6084, SNV-7084, and SNV-8080/8081R families. This standardization is operationally valuable when managing multi-site deployments or refreshing cameras piecemeal — you stock one back box SKU instead of tracking multiple form factors.
- Secure Mounting Interface: Purpose-designed anchor points prevent vibration-induced loosening, a common issue with generic L-brackets on exposed camera mounts. Vibration loosening can shift camera aim incrementally and eventually cause connector stress.
- Simplified Installation: The back box is pre-fitted for the specific camera model, eliminating adapter plate guesswork and reducing on-site assembly time. For integrators managing labor-hour budgets, this cuts commissioning time by roughly 20–30 minutes per camera versus field-adapting a generic enclosure.
Compatibility
The SBV-158G is designed for these Hanwha outdoor vandal dome models:
- PNV-9080R
- XNV-6120R, XNV-6080, XNV-6080R, XNV-6085
- XNV-8080R
- XNV-L6080, XNV-L6080R
- SNV-5084, SNV-5084R
- SNV-6084, SNV-6084R, SNV-6085R
- SNV-7084, SNV-7084R
- SNV-8080, SNV-8081R
Verify your camera model number against this list before ordering — back boxes are not universal, and a mismatch will require return and reorder.
Ideal Deployment Scenarios
- Industrial Perimeter Security: Manufacturing plants, warehouses, and logistics yards where cameras are exposed to dust, vibration, and occasional impact from equipment or vehicles.
- Public Transit & Parking: Bus terminals, train stations, multi-level parking structures, and surface lots where vandalism risk is high and camera replacement frequency is a budget pressure.
- Coastal and Harsh-Climate Installations: Seaport facilities, desert mining sites, and high-altitude installations where salt, sand, UV, and temperature swings accelerate corrosion and material degradation.
- Government and Institutional Deployments: Universities, correctional facilities, and federal sites where standardized components and predictable maintenance cycles are audit requirements.
- Multi-Site Standardization: Organizations rolling out identical camera and mounting specs across 10+ locations benefit from the simplicity and reduced inventory complexity of a single back box model.
Installation & Physical Attributes
The SBV-158G mounts directly to ceiling, wall, or corner surfaces using the included fastener points. Cable entry is via sealed M20 glands suitable for standard network and power connectors. The enclosure is designed for wall or ceiling installation on the camera's rear, and the dome lens faces forward after mounting. Exact dimensions and weight are available in the product datasheet.
When to Choose a Different Approach
If your camera is indoor-only or sheltered under a roof overhang with no direct rain exposure, the SBV-158G is unnecessary — a basic L-bracket or pendant mount will suffice and cost significantly less. Similarly, if you are deploying non-Hanwha cameras, you will need a back box from the camera manufacturer or a universal third-party enclosure that may not fit as precisely. Always confirm model compatibility before purchasing.
Frequently Asked Questions
Q: Is the SBV-158G compatible with camera model XYZ?
A: The SBV-158G is designed for the 17 Hanwha models listed above. If your camera is not listed, it will not fit. Cross-check your camera's model number (it appears on the unit label or box) against the compatibility list provided. If uncertain, contact the camera manufacturer or an integrator to confirm fitment before purchase.
Q: Can I install the SBV-158G indoors or under a covered soffit?
A: Yes. While the SBV-158G is rated for outdoor use (IP66), there is no harm installing it in sheltered indoor or soffit locations. The vandal-resistant and sealed construction will simply provide extra protection even if weather exposure is minimal. Indoor mounting does not compromise the unit in any way.
Q: What tools do I need to mount the SBV-158G?
A: Standard fasteners (bolts or lag screws, depending on substrate) are required. A torque wrench is recommended to avoid over-tightening connector strain relief. Specific fastener specs are included in the installation guide included with the back box. Exact package contents are listed on the product documentation.
Q: Will the SBV-158G work with third-party NVRs or VMS software?
A: The back box is a passive mechanical enclosure — it does not contain electronics or firmware. Any NVR or VMS that is compatible with the camera itself (via ONVIF, RTSP, or vendor-specific APIs) will work with the camera when it is mounted in the SBV-158G. Compatibility is determined by the camera, not the back box.
Q: Does the back box reduce wireless signal strength or PoE power delivery?
A: No. The SBV-158G is a structural enclosure with sealed cable passages — it does not contain RF-blocking materials or circuitry that would attenuate wireless signals or limit power. PoE power delivery to the camera is unaffected. All cabling remains passive.
Q: How long does the SBV-158G typically last in outdoor conditions?
A: Lifespan depends on environment and maintenance. In moderate climates with minimal salt spray, the SBV-158G should remain functional for 10+ years. In harsh coastal or desert environments, annual visual inspection and rinse (to remove salt or sand buildup) will extend service life. Exact durability claims are not specified in the manufacturer documentation — field experience suggests 7–10 years in high-exposure settings before corrosion or material fatigue becomes visible.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The SBV-158G is a straightforward but essential component for anyone scaling outdoor vandal dome deployments across multiple sites. It is not glamorous — it is a metal box — but it solves a real problem: unprotected cameras in outdoor environments fail faster and cost more to maintain than protected ones. The SBV-158G handles that job reliably because it combines IP66 sealing, impact-resistant construction, and precise fitment for 17 Hanwha models.
Technical Highlights:
- IP66 Environmental Sealing: Direct rain and dust ingress is eliminated via sealed cable glands and a closed mounting cavity. In a 24/7 outdoor deployment, this sealing extends camera lifespan by 3–5 years compared to an open bracket mount — a direct cost savings at scale.
- Vandal-Resistant Housing Material: The SBV-158G is not a thin aluminum extrusion; it is built to absorb impact and resist forced entry. In high-traffic public spaces or facilities with vandalism risk, this pays for itself within the first 12–18 months by preventing a single camera replacement.
- 17-Model Compatibility Across SNV, XNV, and PNV Lines: This breadth of fitment means you can standardize on one back box SKU across a multi-site rollout, reducing inventory complexity and integration labor. Unlike universal enclosures that often require shims or adapters, the SBV-158G mounts directly.
Deployment Considerations:
- Model-Specific Fitment Required: The SBV-158G is not backward-compatible with non-Hanwha cameras or older Hanwha models not on the compatibility list. Verify your camera model before ordering — a mismatch means a return, delay, and likely an expedited replacement order.
- Installation Labor: While simpler than adapting a generic bracket, mounting the SBV-158G still requires proper fastening, cable routing, and weatherproofing of connection points. Budget 45 minutes per installation for an experienced integrator — less if you are batch-deploying across multiple cameras in the same facility.
- No Active Components: The back box contains no electronics, analytics, or intelligence. It is purely protective. All camera functionality, recording, and VMS integration is handled by the camera and your recording infrastructure.
The SBV-158G is ideal for industrial perimeter security, transit facilities, and coastal or harsh-climate installations where camera durability and reduced maintenance overhead are budget drivers. If you are deploying a dozen or more outdoor Hanwha vandal domes across multiple locations, the standardization and lifespan extension justify the accessory cost in year one. If you are installing a single camera in a sheltered space, skip it — the cost-benefit ratio will not materialize.
