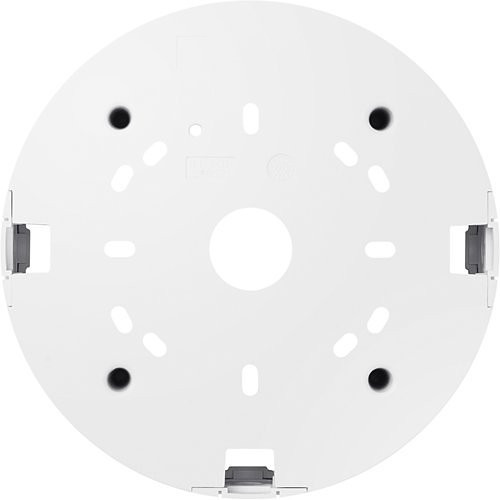

Hanwha SBV-160BW Dome Back Box
The SBV-160BW is a professional aluminum dome back box purpose-built to mount Hanwha IP dome cameras on walls or ceilings in indoor and outdoor environments. Constructed from aluminum alloy with an IP66 environmental rating, this accessory handles the mechanical and weather-sealing demands that come with integrating surveillance into challenging sites—without adding bulk or weight to your installation workflow.
Key Features
- IP66 Environmental Rating: Dust-tight and high-pressure water-jet resistant design means rain, spray, and particulate won't compromise the camera mount or internal connections. Suitable for outdoor walls, building eaves, and covered loading docks where moisture exposure is predictable but not submersion-level.
- Aluminum Alloy Construction: Lightweight yet rigid frame resists corrosion and handles thermal stress. At 0.5 kg, installation on drywall or concrete requires minimal hardware, reducing labor time on multi-camera deployments.
- Wide Operating Temperature Range: Functions reliably from -40°C to 60°C (-40°F to 140°F), critical for outdoor perimeter monitoring, parking structures, and climate-variable storage areas where camera performance consistency matters across seasons.
- Dual Mount Orientation: Supports both wall and ceiling installation, giving integrators flexibility to position cameras flush against corners, overhangs, or parallel surfaces without requiring multiple bracket SKUs.
- Compact Footprint: 160 mm × 120 mm × 40 mm form factor (approximately 6.3 × 4.7 × 1.6 inches) fits recessed ceiling cavities and tight wall spaces where bulk would create visibility or aesthetic issues.
- White Finish: Neutral appearance blends into modern office, retail, and institutional environments where black housings create visual contrast with light-colored surfaces.
Integration & Compatibility
The SBV-160BW integrates with Hanwha's X Series, Q Series, P Series, and Wisenet IP dome camera lines. Before ordering, cross-reference your camera model against the compatibility list to confirm the back box dimensions match your dome camera's mounting interface. Hanwha dome cameras ship with standard mounting holes that align with this back box's bracket pattern.
Pair this mount with network video recorders (NVRs) or PoE switches to complete your deployment. The back box does not supply or regulate power—power delivery flows from your switch or injector through the camera to the dome assembly.
When to Choose a Different Model
If you need IP67 protection (brief submersion tolerance) for underwater or jetty applications, consult Hanwha's IP67-rated back box variants. For bullet or turret cameras, a dome-specific back box is not required; those form factors use different mounting plates. If your site operates below -40°C regularly, verify with the camera manufacturer that your chosen dome's internal electronics are similarly rated, as the back box alone does not extend a camera's cold-weather capability.
Installation Notes
Wall and ceiling mounting hardware (anchors, screws) are site-specific and not typically included with the back box; use corrosion-resistant fasteners rated for your substrate (concrete, wood, metal studs). Ensure drainage holes in the back box remain unobstructed to prevent water pooling. Cable entry is routed through the dome camera's RJ-45 connector or other factory ports; the back box provides the structural envelope, not the cable gland.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The SBV-160BW is your back-of-house answer when a dome camera needs to sit flush against a wall or soffit without looking like an afterthought. The IP66 rating and -40 to 60°C operating range are the real wins here—they tell you this isn't just a cosmetic trim ring; it's a functional weather envelope that keeps moisture and thermal stress away from cable connections.
Technical Highlights:
- IP66 Rating: Direct rain and salt spray won't penetrate the enclosure. If your site is coastal or high-moisture (car wash perimeter, greenhouse), this matters. Skip this if you're mounting indoors under a completely dry ceiling.
- Operating Temperature -40°C to 60°C: Your camera itself must match this range, but the back box won't become a heat sink in summer or crack in freeze-thaw cycles. Critical for outdoor parking structures and unheated warehouse bays where thermal swing is 60°C or more between seasons.
- Aluminum Construction at 0.5 kg: No need for supplemental brackets or reinforcement anchors on standard drywall. One installer can position and secure it without a second person spotting. Weight savings matter on multi-camera jobs where you're doing 20+ mounts in a day.
Deployment Considerations:
- Verify camera model compatibility before procurement—Hanwha makes multiple dome lines, and not all mating surfaces are identical. Confirm the mounting hole pattern matches your dome's base plate.
- Plan your cable entry carefully. The back box provides the weather envelope, but ingress/egress routes must be managed at the camera's connector or grommet level. Sloppy cable routing defeats the IP66 rating.
- Drainage is passive—no sump or weep holes. Ensure the mounting angle sheds water downward and outward. Level or recessed ceiling mounts can trap condensation inside the box if the ambient environment cycles temperature rapidly (e.g., unheated loading dock with daytime sun).
Deploy the SBV-160BW when you're integrating Hanwha dome cameras into outdoor perimeter or high-moisture retail environments and need a single, field-proven mounting solution that doesn't add weight or complexity. It's not a stand-alone accessory—it's a structural partner to a specific camera family.
Frequently Asked Questions
Q: Can I use the SBV-160BW indoors?
A: Yes. IP66 is overkill for dry indoor ceilings, but the back box functions equally well indoors. The white finish often blends better with office or retail ceilings than black alternatives.
Q: Does the SBV-160BW include mounting hardware?
A: No. The back box is the structural enclosure only. Wall anchors and fasteners depend on your substrate (drywall, concrete, metal) and are not included. Budget for site-specific hardware.
Q: Is the SBV-160BW compatible with all Hanwha dome cameras?
A: It integrates with Hanwha X Series, Q Series, P Series, and Wisenet IP dome cameras. Cross-reference the specific camera model against compatibility documentation to confirm mounting hole patterns align. Not all Hanwha cameras are domes—verify your model before ordering.
Q: What is the weight limit for cameras mounted in the SBV-160BW?
A: The back box itself weighs 0.5 kg and is rated for standard Hanwha dome cameras. Most Hanwha dome units weigh under 1 kg. If your dome camera or lens assembly exceeds 1.5 kg, verify mounting stress ratings with Hanwha; aluminum is rigid but not load-bearing for suspended cameras.
Q: Can I mount the SBV-160BW outdoors year-round?
A: Yes, the IP66 rating and -40°C to 60°C temperature range support permanent outdoor installation. Ensure drainage holes remain unobstructed and use corrosion-resistant fasteners. In freeze-prone climates, monitor for condensation buildup inside the enclosure during rapid temperature cycles.
Q: Does the SBV-160BW require maintenance?
A: Periodic inspection of drainage paths and cable entry points is recommended in high-dust or salt-spray environments. Rinse with fresh water if deployed in coastal areas. No internal moving parts require servicing.
