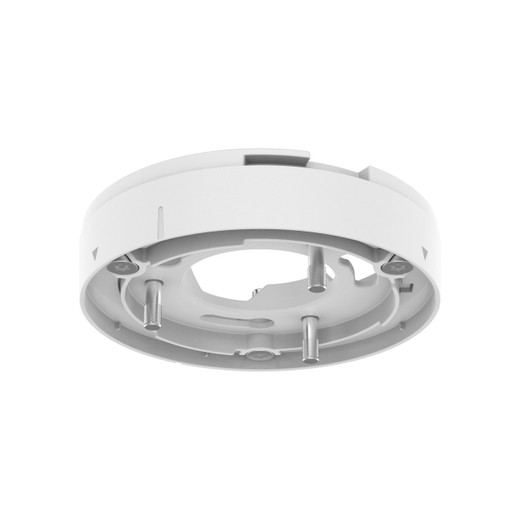

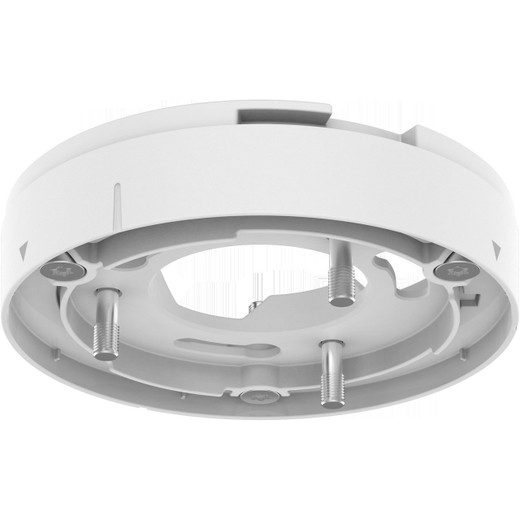

Hanwha SBP-115PA Wall and Pole Mount Adapter Pack of 3
The SBP-115PA is a three-pack of standardized shaft adapters engineered to bridge PTZ cameras to Hanwha's wall and pole mounting systems. This accessory solves a specific integration problem: when your chosen Hanwha PTZ model requires an intermediate adapter to interface cleanly with wall-mounted or pole-mounted hardware, the SBP-115PA provides a consistent, repeatable solution across multiple installation points without sourcing individual adapters.
Key Features
- Pack of 3 adapters: Covers three camera locations in a single order, reducing procurement overhead and ensuring identical hardware across all deployments. Useful for phased rollouts where installations happen at different times but standardization is required.
- Polycarbonate and aluminum construction: The combination resists UV degradation and corrosion in outdoor environments while keeping weight down. Aluminum reinforcement at stress points prevents flexing under vibration, critical when adapters are mounted on pole clamps where wind load and micro-movements can cause wear. Per unit weight is 242 grams (0.53 lbs), so three adapters add negligible load to existing bracket infrastructure.
- TR30 Torx fastening: Standardized Torx screw size (size 30) ensures positive engagement with the mounting hardware and eliminates cross-threading risk compared to Phillips or slotted fasteners. Torx design distributes load more evenly, reducing the chance of stripping under field installation pressure.
- Compact form factor (ø125 × 27.7 mm): The shallow profile means minimal protrusion from pole clamps or wall brackets. This reduces visible hardware in site surveys and architectural photography, and more importantly, lowers wind load on pole-mounted systems—a factor when compliance with wind-speed ratings is required.
- White finish (RAL 9003): Neutral color blends with typical building exteriors, camera housings, and mounting brackets, avoiding visual clutter or the need for field painting at installation.
- Engineered for specific PTZ models: The SBP-115PA is designed for Hanwha PTZ cameras including XNP-C7310R, XNP-C9310R, XNP-C6403, XNP-C8253, XNP-C9253, XNP-6400, XNP-8250, and XNP-9250. Mechanical fit is model-specific—it will not adapt non-Hanwha PTZ units or incompatible Hanwha models.
Integration & Compatibility
The SBP-115PA interfaces with two Hanwha mounting systems: the SBP-250WMW wall-mount bracket and the SBP-400WMW pole-mount clamp. Wall mounting works for building facades, interior corridor perimeter coverage, and areas where a fixed structural surface is available. Pole mounting suits outdoor deployments—parking lots, open yards, loading docks, and areas where a central pole can service multiple camera angles without multiple structural penetrations. Before ordering, cross-reference your camera model against the compatibility list; the adapter is Hanwha-ecosystem-specific and won't retrofit third-party PTZ architectures or mounts.
Deployment Context
Security integrators and facility managers typically deploy the SBP-115PA when standardizing PTZ placement across a perimeter, warehouse, or multi-building campus. The three-pack format streamlines purchasing—you avoid single-unit orders for each camera, reducing SKU sprawl in inventory and simplifying procurement paperwork. If you're managing five camera locations, two packs cover the base requirement; additional adapters can be sourced separately as needed.
Frequently Asked Questions
Q: Can I use the SBP-115PA with non-Hanwha PTZ cameras?
A: No. The adapter is mechanically specific to the listed Hanwha PTZ models. It will not fit other manufacturers' PTZ housings or mount interfaces.
Q: Do I need one adapter per camera?
A: Yes. One camera requires one adapter. The three-pack is for convenience; if you have five cameras, order at least two packs or source additional adapters separately.
Q: What fastening tool do I need?
A: A TR30 (size 30) Torx wrench or screwdriver. Standard hex or Phillips tools will not fit.
Q: Is the SBP-115PA weather-sealed?
A: The polycarbonate and aluminum materials resist moisture and UV exposure, making them suitable for outdoor pole and wall environments. However, the adapter itself is not a sealed enclosure—it is a passive structural interface and does not contain electronics or moving seals.
Q: Will the SBP-115PA add significant weight to my mount?
A: No. At 242 grams per unit, the load is negligible. Three adapters total less than 2 pounds—a non-factor for standard wall anchors or pole brackets rated for camera equipment.
Q: Can I mix SBP-115PA with other Hanwha adapters on the same mount?
A: Only if the other adapters are designed for the same mounting system (SBP-250WMW wall mount or SBP-400WMW pole mount). Verify model numbers before combining hardware on a single fixture.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The SBP-115PA is a straightforward but essential part of any mid-to-large Hanwha PTZ deployment. At 242 grams per unit with a minimal ø125 × 27.7 mm footprint, these adapters are purpose-built to sit between PTZ camera bodies and Hanwha's standardized wall and pole mounts without introducing structural weakness or visual clutter.
Technical Highlights:
- Polycarbonate + aluminum hybrid: UV-resistant polycarbonate body paired with aluminum reinforcement at stress points ensures the adapter won't degrade under continuous outdoor exposure or flex under pole-mounted wind loads. Real-world benefit: you won't see plastic brittleness or micro-cracks at fastening points after two years in harsh sun.
- TR30 Torx fastening: Size 30 Torx engagement distributes clamping force more evenly than Phillips or slot-head fasteners, reducing installation torque requirements and cross-threading risk during field work. Matters when integrators are working in the field with handheld tools and can't apply perfect perpendicular pressure.
- Sub-0.6 lb weight per unit: Three adapters total less than 2 pounds—negligible load on existing wall anchors or pole brackets. Critical when retrofitting older structures where structural load capacity documentation is missing or uncertain.
Deployment Considerations:
- Verify your PTZ camera model against the compatibility list (XNP-C7310R, XNP-C9310R, XNP-C6403, XNP-C8253, XNP-C9253, XNP-6400, XNP-8250, XNP-9250 only). Mechanical fit is precise—non-compatible models will not interface. Ordering the wrong pack wastes time in the field.
- This is a passive mechanical interface with no sealing or electrical function. It does not waterproof the connection between camera and mount; protect the PTZ-to-adapter junction with silicone sealant in high-rain or spray environments.
- The three-pack format is useful for bulk inventory management, but if you have more than three deployments, plan to order multiple packs upfront rather than backorder mid-project.
Best fit: large-scale warehouse, perimeter, or multi-building campus deployments where you need standardized, repeatable PTZ mounting across 5+ locations. If you're installing one or two PTZ cameras, a single unit adapter may be available separately—contact your systems integrator for sourcing options. For smaller installations, the overhead of a three-pack may not justify the cost unless you have expansion plans in the roadmap.
