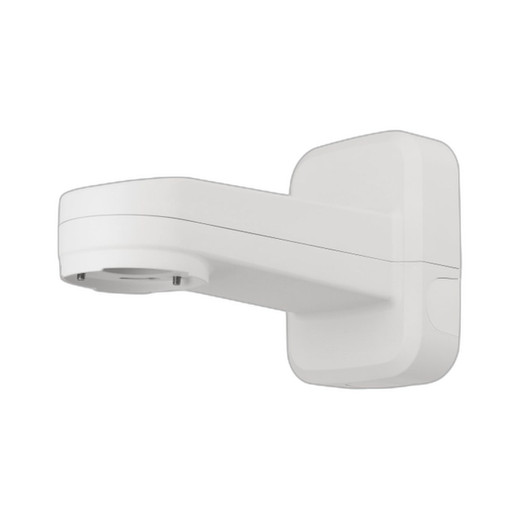

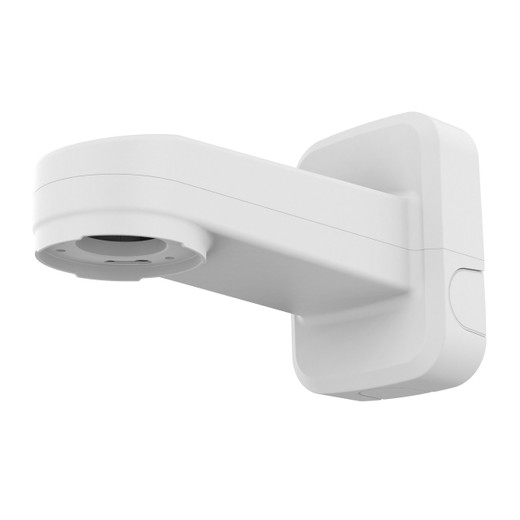

Hanwha SBP-156WMW Wall and Pole Mount
The SBP-156WMW is a dual-configuration mounting bracket engineered for Hanwha Wisenet PTZ Plus and standard IP surveillance cameras. This accessory solves a specific problem: securing a camera to either a wall surface or a round pole without sourcing two different brackets. The aluminum construction with white powder-coated finish resists corrosion in outdoor environments while maintaining a clean appearance alongside white camera housings or light-colored facility infrastructure.
Key Features
- Dual mounting configuration: Works on both flat walls and round poles, eliminating the need for separate brackets in mixed deployment scenarios. This flexibility cuts SKU inventory and simplifies logistics for integrators managing multiple job sites.
- Aluminum construction: Delivers structural rigidity without excessive weight — critical when mounting heavier PTZ units at height. Aluminum also resists rust better than steel in outdoor or high-humidity environments, extending service life before bracket replacement becomes necessary.
- White powder-coated finish: UV-resistant coating protects the metal substrate and provides aesthetic consistency with white housings and domes. Powder coat adhesion is superior to paint on aluminum, reducing the risk of flaking in thermal cycling conditions (freeze-thaw cycles).
- Compatible with Hanwha Wisenet PTZ Plus and IP cameras: Designed to work across the camera mount ecosystem of Hanwha surveillance cameras, reducing the need to cross-reference multiple product lines when standardizing on a single vendor platform.
- Integrated cable management system: Built-in pathways and clips keep network and power cables organized and protected from environmental exposure and tampering. Cable clipping also reduces installation labor — no need to improvise conduit or cable ties during commissioning.
- Works with SBP-156KMW Adapter Plate: Compatible with Hanwha's optional adapter plate for enhanced mechanical security or to accommodate non-standard camera footprints, providing upgrade flexibility without bracket replacement.
Integration and Compatibility
The SBP-156WMW pairs with Hanwha IP cameras across the standard surveillance lineup. Its universal mounting interface supports both wall-mounted and pole-mounted installations, making it suitable for perimeter fencing, building corners, parking structures, and facility entry points. For installations requiring antitamper features or additional security, the accessory integrates with the optional SBP-156KMW adapter plate.
Ideal Deployment Scenarios
Choose the SBP-156WMW when deploying outdoor IP cameras across sites with mixed mounting requirements — some installations demand wall-side brackets, others need pole mounts. Outdoor perimeter surveillance, building facade monitoring, parking lot coverage, and facility access points all benefit from a single bracket type that handles both geometries. Sites standardizing on Hanwha Wisenet platforms gain faster procurement and installation cycles by reducing bracket SKU variability.
When to Consider Alternatives
If your deployment requires only wall mounting, a lighter-duty wall-only bracket may offer cost savings. If pole diameters on your site exceed typical 1.5–3 inch ranges, or if you need specialized orientation features (ball mounts, geared tilt heads), consult Hanwha's full mount accessory catalog for application-specific options. For ceiling-mounted or pendant-style installations, this bracket is not the correct choice — ceiling-specific mounts are a separate product family.
Installation and Commissioning Notes
The SBP-156WMW ships with straightforward mounting hardware. Aluminum-to-galvanized-steel fasteners are recommended in corrosive environments to avoid dissimilar-metal corrosion. The integrated cable tray simplifies pre-staging of network and power runs before camera attachment, reducing field labor time and minimizing post-installation troubleshooting. Mount height and angle should be verified against site-specific coverage maps before final fastening — standard practice for any surveillance deployment.
Frequently Asked Questions
Q: Can the SBP-156WMW mount non-Hanwha IP cameras?
A: The bracket is designed for Hanwha camera form factors. Non-Hanwha cameras may mount if their base footprint is compatible, but this is not a supported configuration. Contact the camera manufacturer or an integrator to verify mechanical fit.
Q: What is the maximum camera weight the SBP-156WMW can support?
A: Consult the product datasheet for rated load capacity. Heavier PTZ units may require structural reinforcement at the wall or pole attachment point, particularly for pole-mounted installations subject to wind loads.
Q: Is the SBP-156WMW suitable for outdoor use in coastal environments?
A: The white powder-coated aluminum resists corrosion in standard outdoor conditions. In salt-spray or high-chloride environments, periodic rinse-down and inspection are recommended to extend bracket life. Consider stainless-steel fasteners in these applications.
Q: How does the integrated cable management system work?
A: The bracket includes internal pathways and clips that route network and power cables along the mount structure, keeping them organized and protected from environmental exposure, UV degradation, and physical tampering.
Q: Does the SBP-156WMW require special tools for installation?
A: Installation uses standard fasteners and basic hand tools. Cable management setup is straightforward and requires minimal technical skill beyond typical mounting procedures.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The SBP-156WMW is one of those brackets that solves a real logistics headache on mixed-geometry sites. You're specifying cameras for a facility with both wall-facing and pole-mounted positions — and suddenly you're managing two separate SKUs and two different installation templates. This bracket collapses that friction. Aluminum construction keeps weight down (critical for pole mounts at height), and the powder coat will outlast cheaper painted finishes in thermal cycling or salt environments.
Technical Highlights:
- Dual wall-and-pole configuration: Eliminates dual-SKU inventory for integrators. One bracket type handles both flat and round surfaces, reducing stockkeeping and procurement complexity on repeat jobs.
- Aluminum with white powder coat: Resists corrosion better than painted steel in outdoor conditions, especially in freeze-thaw and salt-spray zones. Powder adhesion is superior to paint, reducing flaking risk in thermal stress.
- Integrated cable management: Built-in routing and clips keep network and power cables organized and protected from environmental exposure and tamper access — reduces field labor and post-install troubleshooting time.
Deployment Considerations:
- Pole diameter range matters: confirm your site poles fit the designed range (typically 1.5–3 inch diameters). Out-of-spec poles require shims or a different bracket family.
- Load rating is critical for PTZ units: heavier cameras at height require robust wall anchoring or pole-base engineering. Always verify wall substrate and pole structural adequacy before final installation.
- Fastener selection: aluminum-to-steel contact in coastal or high-humidity environments can trigger galvanic corrosion. Stainless fasteners cost more upfront but eliminate replacement cycles on sensitive sites.
Use the SBP-156WMW on perimeter surveillance jobs, parking structures, and facility entry points where wall and pole mounting coexist. It's not a specialized PTZ head — it's a field-proven utility bracket that cuts logistics friction and integrates seamlessly with standard Hanwha Wisenet deployments.
