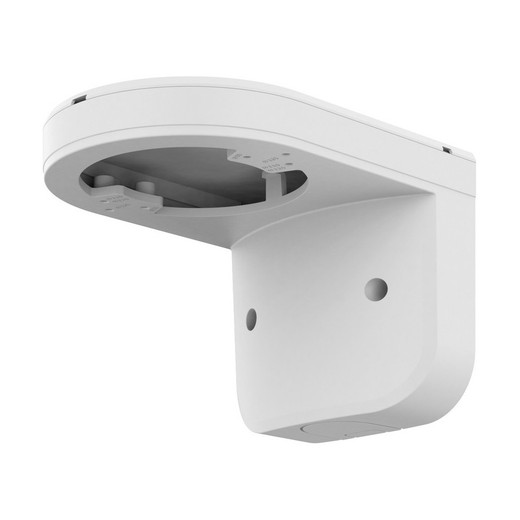

Hanwha SBP-125WMW1 Wall/Pole Mount for Dome Cameras
Overview
The Hanwha SBP-125WMW1 is a dual-purpose mounting bracket designed to install dome and turret cameras on either wall or pole surfaces. Built from aluminum and polycarbonate, it delivers the corrosion resistance needed for both indoor facilities and outdoor perimeter deployments without adding significant weight to your installation labor. At 505g (1.1 lbs), the SBP-125WMW1 remains light enough to handle single-handed, yet rigid enough to maintain camera alignment and dampen vibration from HVAC systems or vehicle traffic nearby.
Key Features
- Dual mounting capability (wall or pole): A single bracket eliminates the need for separate hardware SKUs in your parts inventory. Whether you're installing at a warehouse receiving dock (pole-mounted on structural steel) or inside a retail corridor (drywall-mounted), the SBP-125WMW1 adapts to both without modification or field fabrication.
- Aluminum body with polycarbonate cover: Aluminum resists rust and oxidation in humid or salt-spray environments—meaningful if your deployment includes coastal facilities or outdoor equipment rooms. The polycarbonate cover shields fasteners and wiring from direct UV exposure, extending bracket life and reducing maintenance cycles.
- Adjustable positioning: Angle adjustment lets you aim the camera without tilting the entire pole or requiring Pan-Tilt-Zoom (PTZ) mechanics. This is particularly useful for eliminating ceiling glare or sun-wash at dawn/dusk when a fixed viewing angle won't work.
- Compact footprint (174.4 × 128.5 × 118.3 mm): The small profile fits tight ceiling cavities and doesn't protrude so far that it becomes a snag hazard in narrow aisles. This matters in warehouse automation layouts where conveyor heights or racking clearances are already constrained.
- Wide camera compatibility: Supports multiple Hanwha IP camera models across the QNV and QND turret and dome families (QNV-C8011R, QNV-C8012, QNV-C9011R, QND-6011, QND-6021, QND-8011, QND-8021, QND-6012R, QND-22R). Verify your specific camera model in the compatibility list before ordering; not all Hanwha surveillance cameras work with this bracket.
- White finish: The neutral color blends into most ceiling and wall environments, reducing visual clutter compared to black or brushed metal mounts.
Integration & Compatibility
The SBP-125WMW1 is designed to work with Hanwha dome and turret models in the QNV-C and QND series. If you're integrating with a network video recorder (NVR) or video management system (VMS), confirm that your camera model has an ONVIF Profile S or G interface—the bracket itself is agnostic to software, but your NVR needs to support the camera's codec and frame rate output.
For installations requiring cable management, route PoE or coaxial cables through the pole or wall cavity behind the bracket rather than along the surface; this protects cables from UV degradation and physical damage. If your facility uses cable trays or conduit, plan the routing before final bracket torque to avoid pinching or strain relief issues.
Deployment Context
This mount excels in retail, office, warehouse, and perimeter surveillance where standard ceiling or wall geometry dominates. It is not suitable for PTZ cameras (which require dedicated pan-tilt mounts) or for heavy 2MP+ varifocal turrets that exceed the bracket's load rating—verify camera weight and lens mass before commissioning. For outdoor use, pair this bracket with cameras that carry at least an IP66 environmental rating to handle direct rain and dust ingress.
Frequently Asked Questions
Q: Is the SBP-125WMW1 compatible with all Hanwha dome cameras?
A: No. The SBP-125WMW1 supports specific QNV and QND models listed in the compatibility table (QNV-C8011R, QNV-C8012, QNV-C9011R, QND-6011, QND-6021, QND-8011, QND-8021, QND-6012R, QND-22R). Check your camera model against this list before ordering. Newer or higher-resolution Hanwha models may require a different mount.
Q: Can I use the SBP-125WMW1 outdoors?
A: Yes, the aluminum body and polycarbonate cover provide corrosion and UV resistance. However, the bracket itself does not carry an IP rating. Ensure your camera is rated at least IP66 for outdoor exposure, and consider the overall enclosure design (conduit, drip loops) to protect wiring connections.
Q: What is the maximum camera weight the SBP-125WMW1 can support?
A: The evidence does not specify a weight limit. Contact the manufacturer or your integrator to confirm load capacity before mounting heavy turret or varifocal models.
Q: Do I need additional brackets for both wall and pole mounting?
A: No. The SBP-125WMW1 is engineered for dual mounting—wall or pole—with a single bracket. You do not need separate SKUs for different installation types.
Q: What tools or fasteners are included?
A: The product documentation does not detail a package contents list. Consult the manufacturer datasheet or contact your supplier to confirm what hardware is provided versus what must be sourced separately (wall anchors, pole clamps, fasteners).
Q: Will the SBP-125WMW1 work with PoE-powered cameras?
A: Yes. The bracket is passive—it does not interfere with power delivery or data transmission. PoE cameras will function normally when mounted via the SBP-125WMW1.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The SBP-125WMW1 is a straightforward accessory, and that's precisely why it matters in high-volume deployments. At 505g with a compact 174.4 × 128.5 × 118.3 mm envelope, it won't strain your installation crew or bloat the bill of materials. The real win is the dual mount design—you carry one SKU to the job site and use it for wall installs in office corridors, then pivot to pole mounting at warehouse bay doors without a parts swap. Aluminum construction holds up in humid or salt-adjacent environments, which eliminates callback risk if your client is anywhere near a coastal facility or outdoor equipment yard.
Technical Highlights:
- Dual wall/pole mounting: Reduces SKU fragmentation and field decision overhead. A single bracket covers both installation geometries, lowering provisioning time and spare parts complexity.
- 505g weight with aluminum body: Light enough for one-person installation in ceiling cavities, yet rigid enough to resist vibration sag over months of operation. Polycarbonate cover shields fasteners from UV, extending service intervals.
- Compact profile (174.4 × 128.5 × 118.3 mm): Fits tight ceiling and wall cavities without protrusion into pedestrian or equipment zones—critical in narrow warehouse aisles or retail environments where aesthetics and safety matter.
Deployment Considerations:
- Compatibility is finite: The SBP-125WMW1 works with QNV and QND dome/turret families only. Newer Hanwha models or third-party cameras require a different mount. Always cross-reference the camera model before order placement.
- No load rating in published specs: The datasheet does not state a maximum camera weight. Heavy varifocal turrets or dual-sensor modules may exceed the bracket's moment limit. Field-verify with your supplier or Hanwha engineering before commissioning above-average payloads.
- Bracket mounting is passive—plan cable management separately: The SBP-125WMW1 does not route or protect PoE or coax cables. You must plan conduit, cable trays, or in-wall routing to avoid UV degradation and physical snagging, especially in outdoor installs paired with IP66 cameras.
Deploy the SBP-125WMW1 in mixed-geometry retail, office, and warehouse surveillance where your camera fleet is locked into the Hanwha QNV and QND ecosystem and your installation budget favors a single, lightweight, corrosion-resistant bracket over specialized mounts for each location type. If you're standardizing on a different camera vendor or need PTZ capability, choose their native mount instead.
