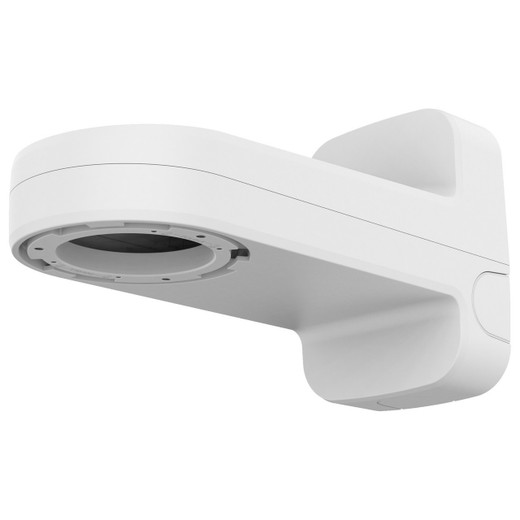

Hanwha SBP-250WMW Wall and Pole Mount Bracket
The Hanwha SBP-250WMW is a dual-configuration mounting bracket engineered for fixed-camera deployments on walls or poles in commercial and light industrial surveillance environments. A single bracket handles both wall-flush and pole-mounted installations, which eliminates the need to stock separate hardware for different site geometries — a practical advantage when standardizing across multiple locations.
Key Features
- Dual mounting capability (wall and pole): Supports both wall-flush and pole-mounted configurations without requiring adapter plates or secondary hardware. Reduces SKU complexity and simplifies procurement if you're deploying across mixed mounting environments—retail corridors, warehouse perimeters, and exterior hallways all use the same part number.
- 20 kg (44 lb) load capacity: Accommodates full-size bullet, turret, and compact box-camera form factors common in Hanwha IP camera lineups. Verify your specific camera weight before ordering; oversized PTZ heads or multi-sensor modules may exceed this limit and require alternative mounts.
- Polycarbonate and aluminum construction: Polycarbonate housing resists UV degradation and absorbs impact without cracking; aluminum internal frame delivers structural rigidity without excessive weight. This combination suits outdoor perimeter exposure but is not rated for full submersion or high-pressure wash environments—pair with an IP66-rated camera if rain and dust protection are critical.
- TR30 mount screw compatibility: Uses standardized Hanwha Vision camera base threads. Confirm your camera model uses TR30; legacy models or third-party cameras may require adapter plates, which adds cost and assembly time.
- Three M25 (3/4-inch) conduit openings: Each opening accepts standard electrical conduit, enabling organized routing of power, network, and coax bundles. Three openings provide flexibility for multiple cable runs without imposing tight bending radius strain that could damage insulation or connectors.
- RAL 9003 white finish: Neutral matte white blends into interior and exterior architectural contexts and reduces glare reflection in high-visibility surveillance zones. Not available in black or gray variants from this model line.
- Compact footprint (315.8 mm × 137 mm × 183 mm / 12.4" × 5.4" × 7.2"): Minimal visual obstruction on walls and aerodynamically neutral when pole-mounted. Total bracket weight of 1,940 grams (4.3 lbs) keeps installation labor manageable and does not require heavy-duty wall anchors in standard drywall or concrete.
Compatibility and Integration
The SBP-250WMW is compatible with Hanwha Vision models including SBP-115PFA, SBP-115PA, xND-C6083RV, xNV-6083R, and QNV-C6083R. For cameras outside this list, confirm TR30 base compatibility before procurement. Optional wall and pole adaptors are available from Hanwha for specialized offset positioning or reinforced standoff mounting on challenging surfaces (heavy concrete, composite panels). This accessory integrates seamlessly with standard commercial camera mounting infrastructure and does not require custom fabrication or site-specific engineering.
Deployment Scenarios
Deploy this bracket in retail corridors, warehouse monitoring zones, educational facility hallways, and general commercial surveillance spaces where fixed-position camera stability is required and no active aiming adjustment is needed post-installation. Outdoor perimeter installations are feasible given the weather-resistant polycarbonate and aluminum materials, but pair this mount with a camera carrying IP66 or higher environmental ratings for rain and dust immunity. For applications requiring active pan/tilt or field-adjustable aiming after installation, consider a mount with ball-joint or micro-adjustment capabilities instead.
Frequently Asked Questions
Q: Can I use the SBP-250WMW for cameras heavier than 20 kg?
A: No. The 20 kg load rating is a structural limit. Exceeding it creates sagging risk and potential failure under vibration or wind load. If your camera exceeds this weight, consult Hanwha's accessory catalog for higher-capacity pole mounts or wall-mount frames.
Q: Is the SBP-250WMW suitable for outdoor installation?
A: Yes. Polycarbonate and aluminum construction resist UV exposure and weather. However, the mount itself is not rated for full submersion or high-pressure wash. Pair it with a camera rated IP66 or higher for complete rain and dust protection.
Q: What is the TR30 mount screw?
A: TR30 is a standardized threaded base interface used by Hanwha Vision cameras. Before ordering, confirm your camera uses TR30; adapters are available for non-compliant models but add cost and complexity.
Q: Can I use this bracket for pole-mounted installations?
A: Yes. The SBP-250WMW is designed for both wall-flush and pole mounting without additional adapters. Pole diameter compatibility depends on the pole adapter variant—verify your pole size with the product documentation.
Q: How many cables can pass through the conduit openings?
A: Three M25 (3/4-inch) conduit openings are provided. Each opening typically accommodates one standard conduit run (power, network, or coax). Bundle management depends on your specific cable gauges and run lengths—test-fit before site deployment.
Q: What finish options are available?
A: The SBP-250WMW is available in RAL 9003 white only. No black or gray variants are offered under this model number.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The SBP-250WMW delivers practical value for standardized deployments where you're running mixed wall and pole configurations and want to reduce part inventory. The 20 kg load capacity is the critical constraint—it's generous enough for most commercial IP bullet and turret cameras but tight for larger box models or any PTZ variant. The polycarbonate/aluminum construction is field-proven in outdoor light-duty scenarios, though it's not a submersible unit.
Technical Highlights:
- Dual wall/pole mounting without adapters: Eliminates the need to stock two separate brackets. When you're managing 50+ sites with mixed geometry, this single-SKU approach cuts procurement overhead and reduces installation confusion in the field.
- 20 kg capacity with compact footprint: The bracket weighs only 4.3 lbs yet handles cameras up to 44 lbs. This favorable strength-to-weight ratio means standard wall anchors work fine, and pole-mounted installations don't require oversized standoff hardware.
- Three M25 conduit openings for organized cabling: Three separate pathways prevent cable bundling strain and allow independent power, network, and coax runs without cross-interference. Bending radius constraints become less of a headache on larger installations.
Deployment Considerations:
- Weight verification is non-negotiable: Before speccing SBP-250WMW across a large buy, test your target camera model. PTZ domes and dual-sensor boxes often exceed 20 kg and require a different mount entirely.
- TR30 base compatibility is site-specific: Legacy Hanwha models and third-party cameras may use different threaded interfaces. Confirming thread type early prevents field delays and adapter cost creep.
- Outdoor use requires paired IP rating: The bracket itself handles rain exposure, but a full-weather solution demands an IP66+ camera. Don't assume the mount alone provides weatherproofing.
The SBP-250WMW is well-suited for mid-scale retail, education, and warehouse installations where you're deploying 10–100+ fixed cameras across multiple buildings and want to minimize mounting-hardware SKU count. It's a no-frills, proven performer—not flashy, but it does the job quietly and lowers your total cost of standardization.
