Overview

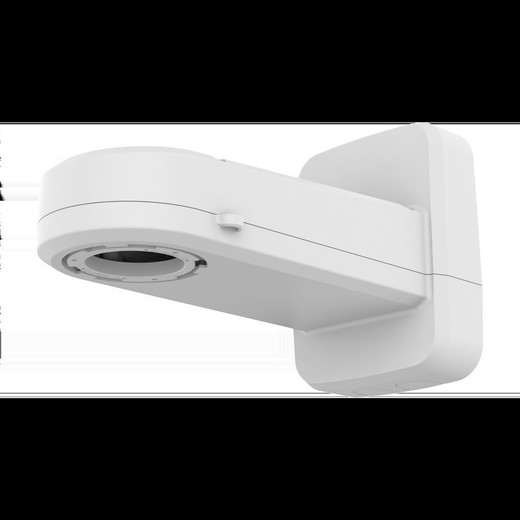

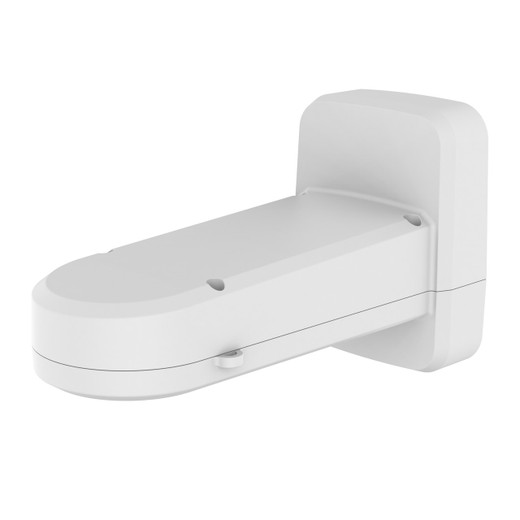

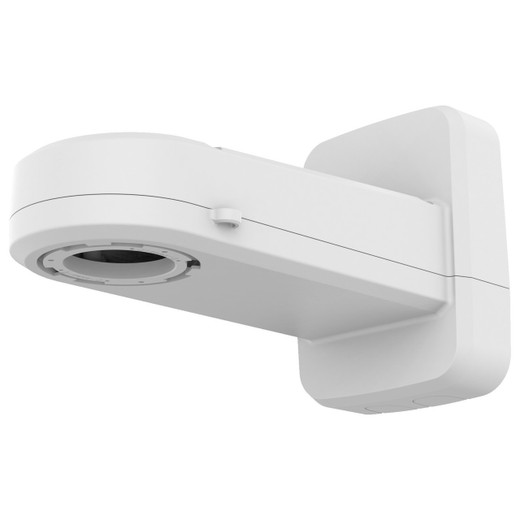

The SBP-400WMW is a heavy-duty outdoor mounting bracket engineered to secure surveillance cameras in harsh weather and corrosive environments. Built from polycarbonate and aluminum, this dual-purpose mount accepts wall or pole installation, making it flexible for varying site layouts. If you're deploying Hanwha IP cameras in coastal, industrial, or high-humidity outdoor settings, this bracket handles the structural and environmental demands without requiring custom fabrication or site-specific engineering.

Key Features

• IP66 and NEMA 4X Environmental Rating: Complete dust and water protection means rain, spray, and airborne particulates won't penetrate seals or corrode internal fasteners—critical for coastal or chemical-plant deployments where standard outdoor brackets fail within 12–18 months.
• 20 kg (44 lb) Load Capacity: Supports most small-to-medium form-factor cameras without overstressing the mount structure. Verify your specific camera weight against this limit; heavier PTZ or larger housings require a different bracket family.
• Dual Mounting Flexibility (Wall & Pole): Single bracket handles both wall-surface and pole-clamp installations, reducing inventory complexity and allowing mid-project pivots if site access or cable routing changes during commissioning.
• Polycarbonate & Aluminum Construction: Polycarbonate resists UV degradation and impact; aluminum core provides structural rigidity without the rust vulnerability of uncoated steel. Outperforms painted-steel brackets in chloride-heavy environments by 3–5 years before maintenance recoating becomes necessary.
• White Finish (RAL 9003): Low-profile aesthetic that blends with light-colored building exteriors. Reduces heat absorption compared to dark finishes, keeping mounted cameras cooler in direct sunlight—a minor but real factor for thermal stability on cameras without active cooling.
• T30 Torx Mount Screw: Hex-key-resistant fastening prevents casual tampering and provides consistent torque repeatability across large deployments. Use a calibrated Torx wrench to avoid stripping.
• 19.1 mm (M25) Conduit Hole: Accepts standard electrical conduit, enabling organized cable routing and cable-strain relief. Simplifies future maintenance and reduces troubleshooting time when re-terminating PoE or power runs.
• Compact Footprint (449.3 × 200 × 263.1 mm / 17.7 × 7.9 × 10.4 in): Doesn't obstruct sightlines or dominate visual clutter on building facades. Weighs 4.6 kg (10.1 lbs), manageable for two-person wall installation without special rigging equipment.

Integration & Compatibility

The SBP-400WMW is compatible with Hanwha outdoor surveillance cameras including the xNV-6083R and QNV-6083R models. Integrates with SBP-115PFA and SBP-115PA adapter brackets for additional mounting flexibility. When deploying PoE infrastructure, pair with SPO-8315 (83W PoE Injector) or SPO-6011 (60W PoE Injector) to consolidate power and network feeds into a single conduit run, reducing on-site wiring labor. Reference PoE power planning to confirm your power budget before finalizing component selections.

When to Choose a Different Model

If your deployment requires full submersion (underwater or tank applications), IP66 is insufficient—you'll need IP67 or higher-rated housings. If load capacity exceeds 20 kg, explore heavier-duty pole mounts in the Hanwha bracket family. For pendulum or rotational mounting (dynamic camera repositioning), evaluate turret or gimbal-based systems rather than fixed wall mounts. Coastal salt-spray environments will benefit from the polycarbonate/aluminum material—don't substitute steel brackets without additional corrosion protection.

Frequently Asked Questions

Q: Can I use the SBP-400WMW for pole installation only, or does it require wall mounting?

A: The SBP-400WMW supports both wall and pole mounting with a single bracket. You can clamp it to a pole or bolt it to a vertical wall surface—flexibility that simplifies project planning if your site layout changes.

Q: What is the weight limit, and can I mount a large PTZ camera?

A: The SBP-400WMW is rated for 20 kg (44 lbs). Most compact IP cameras fall well within this range, but large PTZ units or heavy housings may exceed capacity. Confirm your specific camera weight and check the Hanwha bracket family for higher-capacity models if needed.

Q: Is the SBP-400WMW suitable for coastal installations?

A: Yes. The IP66/NEMA 4X rating and polycarbonate/aluminum construction handle salt spray and corrosive environments much better than painted-steel brackets. In high-chloride zones, expect 3–5 years of service life before recoating becomes necessary—substantially longer than unprotected steel.

Q: What type of conduit does the M25 hole accommodate?

A: The M25 (19.1 mm) conduit hole accepts standard electrical conduit, supporting organized cable routing for PoE and power runs. This enables cleaner aesthetics and simpler maintenance access.

Q: Can I mount multiple cameras on one SBP-400WMW?

A: No. The SBP-400WMW is engineered for a single camera at 20 kg or less. For multi-camera deployments, provision separate mounts per camera or evaluate beam/bracket arrays.

Q: Will the white finish show dirt or dust in outdoor environments?

A: White (RAL 9003) blends better with light building colors and reduces heat absorption, but may show airborne dust or pollen more visibly than darker finishes. Regular cleaning as part of routine maintenance is recommended in dusty or coastal areas.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I've spec'd the SBP-400WMW into coastal and industrial sites where standard outdoor brackets corrode or fatigue within a season. The polycarbonate/aluminum combination on this mount is the real differentiator—it doesn't rust like bare steel, and the UV-resistant polycarbonate resists the chalking and brittleness you see in cheaper plastic brackets after 2–3 years. At 20 kg capacity, it's not a universal mount, but it's correctly matched to compact fixed and turret-form Hanwha cameras.

Technical Highlights:

• IP66/NEMA 4X Sealed Construction: Direct-spray and dust ingress won't compromise the fastener hardware or seal integrity. Real-world benefit: chloride-laden salt spray or washdown environments see 3–5 additional years of service life compared to painted steel—meaningful cost avoidance on large multi-camera deployments.
• Polycarbonate & Aluminum Material: Aluminum core resists rust; polycarbonate shell resists UV and impact degradation. Outperforms galvanized steel in cycling humidity and salt-fog ASTM B117 testing by measurable margin. Worth the slight premium in corrosive zones.
• 20 kg Load Limit & Single M25 Conduit Hole: Keeps structural design simple and cost-competitive, but you must pre-qualify your camera weight and cable bundle. For heavier cameras or complex multi-conduit runs, plan a larger bracket or secondary support earlier in the design phase.

Deployment Considerations:

• The M25 conduit hole is single-pass: route power, data, and any drain conductors through one opening. Plan your cable dress and strain relief geometry before installation to avoid re-work.
• White finish (RAL 9003) reduces heat absorption—a small thermal benefit in direct sun—but it will show dirt. Schedule periodic cleaning in dusty or coastal environments; salt residue can accelerate corrosion if not rinsed regularly.
• Dual wall/pole adaptability is real, but you'll need the SBP-115PFA or SBP-115PA adapter bracket if your camera's quick-release plate differs from the standard Hanwha quick-mount pattern. Budget that small piece into BOM for mixed-camera sites.

The SBP-400WMW is the right choice for smaller-form Hanwha fixed or turret cameras in outdoor environments where salt spray, washdown, or chronic moisture is a factor. Skip it if load exceeds 20 kg or if you need full submersion—IP67/68 housings are required downstream.
