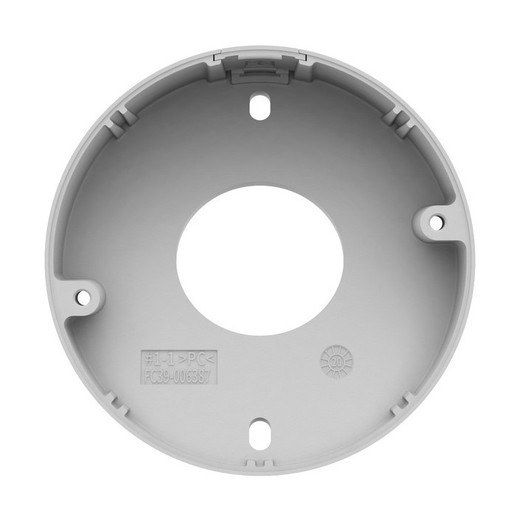

Hanwha SBP-099TMW Tilted Wall Mount White
The Hanwha SBP-099TMW is a precision tilted wall mount engineered specifically for fisheye camera deployments where vertical angle adjustment is critical to coverage. The fixed 20-degree tilt geometry solves a real installation problem: standard horizontal wall mounts waste fisheye coverage by pointing the ultra-wide lens straight ahead, leaving the lower portion of the field of view pointing at the floor or ceiling instead of the target surveillance area.
Key Features
- 20-degree tilt angle: Redirects the fisheye lens downward without requiring a separate gimbal or adjustment bracket, meaning faster installation and fewer points of failure in the field.
- Polycarbonate construction (RAL9003 white): Material resists UV degradation and minor weather exposure, suitable for both indoor and covered outdoor mounts where temperatures vary but full submersion is not a concern.
- Compact footprint (Ø99 × 48.15mm): Minimal projection from the wall—critical in retail and office lobbies where aesthetics and sightline clearance matter, and installers need to avoid obstructing adjacent fixtures or wayfinding.
- 100-gram weight: Light enough that standard wall anchors (not provided) will handle installation without reinforcement, reducing labor time on site.
- Engineered for QNF-8010 and QNF-9010 fisheye cameras: Direct mechanical compatibility with Hanwha IP cameras in the QNF fisheye line—no adapter plates or custom fabrication needed.
- Mounting hardware included: Basic fasteners supplied; installation is straightforward—no hunting for parts mid-job.
When to Choose This Mount
Deploy the SBP-099TMW when you're mounting a QNF fisheye camera on a wall and want to angle the field of view downward to capture activity at head and mid-level rather than wasting pixels on ceiling. Retail stockroom walls, parking facility entry points, and office perimeter corners are common fits. The tilt is fixed—you cannot adjust it on-site—so verify your coverage angle during pre-installation planning. If you need variable angle adjustment, consider a pan-tilt-zoom mount or a different mounting approach.
Integration & Compatibility
The SBP-099TMW mounts directly to standard drywall or concrete using M4 or M5 fasteners (anchors selected based on your wall material—not supplied). It integrates with the Hanwha surveillance line without firmware or configuration steps; it is purely mechanical. Pair this with a PoE switch to power the camera and your installation is complete from a physical standpoint.
What's in the Box
- 1× SBP-099TMW Tilted Wall Mount
- Mounting hardware
- Installation guide
Frequently Asked Questions
Q: Can I adjust the tilt angle after installation?
A: No. The 20-degree tilt is fixed. Plan your angle before mounting.
Q: Will the SBP-099TMW work with other camera brands?
A: No. It is designed for Hanwha QNF-8010 and QNF-9010 fisheye cameras only.
Q: Is this mount suitable for outdoor use?
A: The polycarbonate material handles covered exterior environments and UV exposure. Not rated for full rain or direct moisture—mount under an eave or covered area.
Q: What wall anchor type should I use?
A: Standard M4 or M5 fasteners into drywall (plastic anchors) or concrete (set anchors). Consult your wall material and load rating.
Q: Does the mount include wall anchors?
A: No. Only the bracket and basic fasteners are included. Select anchors based on your wall type.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The SBP-099TMW solves a specific problem that installers face when deploying Hanwha QNF fisheye cameras on walls: a horizontal mount wastes vertical coverage on the ceiling or floor instead of the surveillance target. The 20-degree downward tilt redirects that field of view efficiently, and at 100 grams with a compact 99mm diameter, it doesn't interfere with sightlines or create mounting challenges on office or retail walls.
Technical Highlights:
- 20-degree fixed tilt angle: Eliminates the need for a pan-tilt-zoom mount when you know exactly where the coverage angle needs to point—saves cost and reduces moving parts that require maintenance.
- Polycarbonate (RAL9003 white) construction: Durable enough for covered outdoor walls exposed to UV; material does not corrode like metal mounts, and integrates visually with Hanwha camera housings in white installations.
- Compact Ø99 × 48.15mm form factor: Projects only 48mm from the wall—critical in high-traffic areas where wall clutter is a liability, and where architects want minimal visual intrusion.
Deployment Considerations:
- Tilt is permanent: Unlike adjustable mounts, you cannot fine-tune angle in the field. Verify your coverage polygon during pre-site survey and confirm the 20-degree downward tilt meets the requirement before ordering.
- Camera-specific compatibility: Works only with QNF-8010 and QNF-9010. If you are deploying a different Hanwha fisheye model, verify mechanical fit before procurement.
The SBP-099TMW is the right choice for retail loss-prevention and warehouse entry-point monitoring where you need reliable downward-angled fisheye coverage and a small, maintenance-free bracket that won't draw attention or interfere with adjacent wall-mounted signage or fixtures.
