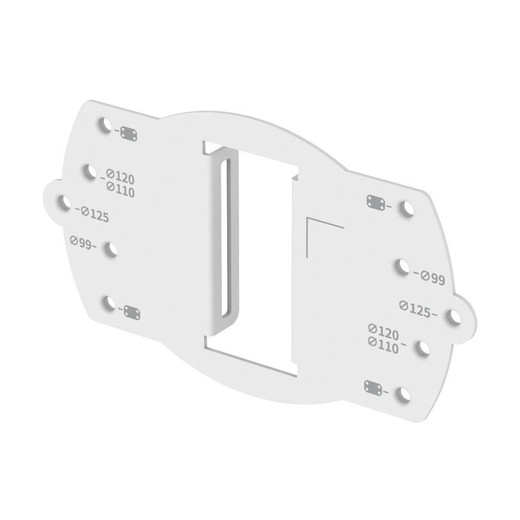

Hanwha SBD-140PMB White Pole Mount Base
The Hanwha SBD-140PMB is a stainless steel pole mount accessory engineered to secure Hanwha IP cameras on poles, masts, and similar vertical structures in outdoor surveillance deployments. Built from SUS304 stainless steel with a white powder-coated finish (RAL9003), this mount delivers long-term durability in salt spray, moisture-heavy, and temperature-cycling environments where standard steel or aluminum would corrode or degrade.
Key Features
- SUS304 Stainless Steel Construction: Resists rust and corrosion in coastal, industrial, and high-humidity environments. SUS304 is the gold standard for outdoor security hardware — if your site is near salt water or chemical facilities, this material choice matters. It will outlast painted steel by years and won't require maintenance repainting.
- Compact Footprint (121 x 70 mm / 4.76 x 2.76 inches): Minimizes visual footprint on pole-mounted installations. Small enough to keep sight lines unobstructed while maintaining rigid mechanical support for cameras up to a few kilograms.
- TR20 Mount Screw Interface: Standardized Torx T20 attachment point ensures compatibility with a broad range of Hanwha camera models, including QNV, QND, QNF, QNE, LND, and ANE series. This eliminates adapter complexity when mixing cameras or replacing units.
- White Powder-Coated Finish (RAL9003): Matches professional surveillance aesthetics and reflects solar heat, which can reduce thermal stress on mounted equipment during extended outdoor exposure. Also blends into common architectural surfaces — useful for less intrusive deployments.
- Lightweight at 56g (0.12 lb): Easy to handle during installation and commissioning. No special rigging or lifting equipment required — a single technician can position and secure the mount without risk of hand or wrist fatigue.
- Rigid Pole Attachment: Engineered for stable, vibration-damping installation on round or square poles. The mechanical design prevents camera sway in wind and reduces motion blur or jitter in video feed, which is critical for facial recognition, vehicle plate capture, and other detail-dependent analytics.
Integration & Compatibility
The SBD-140PMB (often searched as SBD 140PMB) integrates with Hanwha camera families that use TR20 standardized mount points. Verify your specific camera model supports TR20 attachment before ordering. Compatible series include QNV (Wisenet V turret), QND (outdoor box), QNF (outdoor dome), QNE (outdoor turret), LND (thermal), and ANE (AI multi-sensor) lines. If deploying across multiple Hanwha camera models, this single mount type simplifies spare parts inventory and technician training.
For camera selection guidance and mount compatibility confirmation, consult the specific camera's datasheet or contact the manufacturer directly.
Deployment Context
Ideal for perimeter fencing, parking structure columns, traffic monitoring poles, and public-space surveillance where pole-mounted camera placement is required. The stainless steel construction makes it a natural fit for outdoor facilities exposed to weather, salt spray, or chemical exhaust. Indoor pole applications (warehouse, retail mezzanines) can use this mount, but standard aluminum or steel alternatives may offer sufficient durability at lower cost.
Frequently Asked Questions
Q: Does the SBD-140PMB work with all Hanwha cameras?
A: No. It is compatible only with Hanwha cameras that feature a TR20 mount interface. This includes QNV, QND, QNF, QNE, LND, and ANE series. Verify your camera model in the product documentation before purchase. If your camera uses a different mount standard, you will need a different base.
Q: Can I use the SBD-140PMB indoors?
A: Yes. While designed for outdoor use, the SUS304 stainless steel construction and compact form factor work equally well indoors. If mounting cameras on indoor poles in warehouses, retail spaces, or facilities management areas, this mount is suitable. The white finish also matches typical interior ceilings and structural elements.
Q: What is the maximum camera weight this mount can support?
A: The datasheet does not specify a maximum load rating. For precise weight limits, contact the manufacturer directly or consult the camera-specific installation guidance. In general, most compact to mid-range Hanwha IP cameras (under 500g) are well-suited to pole mounting via this base.
Q: Is the SBD-140PMB corrosion-resistant in saltwater environments?
A: Yes. SUS304 stainless steel resists saltwater corrosion far better than painted steel or aluminum. However, in extreme coastal environments with direct salt spray, periodic rinsing of the mount with fresh water is recommended to extend service life indefinitely. Even SUS304 can develop surface spotting if salt deposits accumulate uncleaned.
Q: How do I attach the camera to the mount?
A: The SBD-140PMB uses a TR20 (Torx T20) screw interface. Your Hanwha camera will have a TR20 mounting boss on its underside. Align the camera above the mount and secure using the appropriate T20 torque wrench. Refer to your camera's installation guide for exact torque specifications.
Ted PerryPerspective based on aggregated and affiliated engineering team experience.
The SBD-140PMB is a straightforward but essential component for pole-mounted outdoor camera deployments. The choice of SUS304 stainless steel is deliberate: it eliminates the corrosion maintenance burden that haunts standard steel mounts in humid or salt-air environments. Over a 5–10 year deployment cycle, this material choice avoids costly replacement and downtime.
Technical Highlights:
- SUS304 Stainless Steel: Withstands salt spray, industrial exhaust, and moisture cycling without rust bloom or structural degradation. Significantly longer service life than painted steel or powder-coated aluminum in harsh climates.
- Compact 121 x 70 mm Footprint: Reduces visual clutter on pole installations and minimizes wind load. Tight geometry also makes it easier to hide behind standard pole diameters in aesthetically sensitive deployments.
- 56g Weight: Low mass reduces installation labor and eliminates need for special rigging. A single technician can commission the mount during routine camera installation or swap-out work.
Deployment Considerations:
- Verify TR20 compatibility before purchase. Not all Hanwha cameras use this interface — mixing mount types across a large perimeter deployment can create inventory and training friction.
- In coastal or industrial chemical environments, periodic freshwater rinse of the mount extends SUS304 service life. Salt deposits left uncleaned will accelerate surface spotting, though structural integrity remains intact.
- The mount itself does not specify a maximum load rating. Most compact Hanwha cameras under 500g deploy without issue, but heavier fixed-box models may require load confirmation from the manufacturer before installation.
Deploy the SBD-140PMB for perimeter pole installations, parking structure columns, and traffic monitoring where weather exposure and long service life justify the material cost over painted steel. In mild indoor environments (warehouse poles, retail mezzanines), a lower-cost aluminum mount is a valid alternative if corrosion is not a concern.
