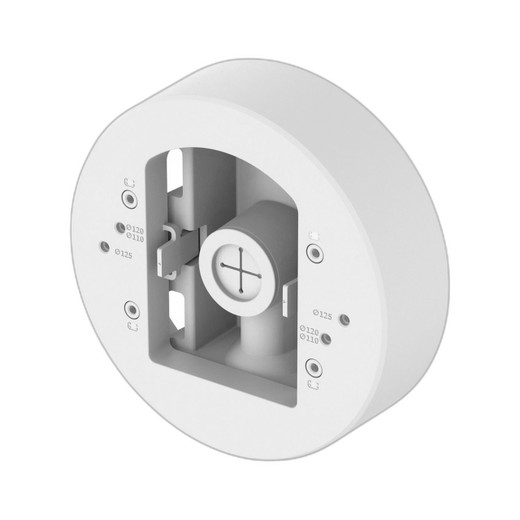

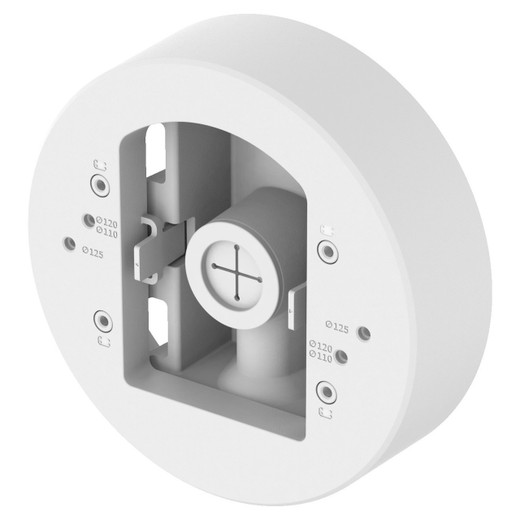

Hanwha SBD-140PMW Pole Mount Base White
The SBD-140PMW is a pole-mounted accessory engineered for fixed outdoor IP camera installations on poles, posts, and vertical infrastructure. Aluminum core construction with plastic cap delivers corrosion resistance required in coastal, humid, or chemically aggressive environments where standard steel would rust within months. At 340g and ø147.1mm diameter, it is compact enough to minimize wind load on lightweight poles while remaining rigid enough to hold professional surveillance cameras steady under thermal expansion and vibration cycles.
Key Features
- Aluminum Core + Plastic Cap: Aluminum resists oxidation in salt spray and industrial air; the plastic cap isolates the metal from direct moisture contact, extending service life in harsh outdoor deployments by preventing galvanic corrosion and extending paint adhesion through seasonal temperature swings.
- Compact Footprint (ø147.1 x 50.5mm): Smaller than many pole mount bases, minimizing visual dominance on lightweight poles and avoiding sight-line obstruction when mounted on fence posts in perimeter security layouts. The reduced silhouette also lowers wind-induced sway that can blur time-lapse imagery or shift focus in telephoto lenses.
- Dual Screw Compatibility (TR20 / TR30): TR20 threads accept standard Hanwha IP cameras and compatible NVR bracket hardware; TR30 threads secure steel mounting straps, allowing flexible bracket positioning without proprietary adapters. This flexibility means you can source brackets from multiple vendors instead of being locked into a single mount ecosystem.
- M25 Conduit Hole (19.1mm / 3/4 inch): Standard electrical conduit fitting simplifies cable management—route power and Ethernet cleanly through the pole interior, reducing exposed cabling and UV-exposed connector strain. This internal routing also protects cables from weather degradation and eliminates the visual mess of external conduit wrapping.
- White RAL9003 Finish: Matches the white housing color of most Hanwha surveillance cameras, eliminating visual misalignment where a white camera sits on a black or silver mount—a detail that matters in environments where camera placement is visible to occupants (retail, offices, parking structures). The white finish also reflects solar heat, reducing thermal stress on camera electronics in direct sunlight.
- Lightweight (340g / 0.75 lbs): Low mass reduces installation stress on poles during setup and minimizes sway in wind-prone settings. This is critical for time-lapse stability and prevents thermal focus shift in long focal-length optics caused by vibration-induced micro-movements.
Integration & Compatibility
The SBD-140PMW integrates with Hanwha QNV, QND, QNE, LND, and ANE series network cameras, supporting both varifocal and fixed-lens models in the standard product range. Mounting uses industry-standard TR20 camera screws, so it works with any bracket or adapter using metric threads—not locked into proprietary connectors. The M25 hole accepts standard 3/4 inch electrical conduit or PVC conduit for outdoor IP camera installations in industrial, municipal, and enterprise environments.
Typical Deployments
Deploy the SBD-140PMW in perimeter surveillance (warehouse fences, parking lot poles), traffic monitoring (pole-mounted roadside coverage), facility security (post-mounted corners, entry points), and general outdoor fixed-camera infrastructure where corrosion resistance and clean cable routing are priorities. Pole mounting keeps cameras elevated above tampering height and reduces shadow zones near ground level that compromise detection. When paired with a fixed or varifocal Hanwha IP camera, the aluminum base ensures the entire assembly will withstand coastal salt spray or industrial chemical environments for 5+ years without rust bloom or structural degradation.
Frequently Asked Questions
Q: Will the SBD-140PMW fit my existing pole?
A: The SBD-140PMW is designed for standard poles. The M25 conduit hole accepts 3/4 inch electrical conduit. Verify your pole diameter and confirm the bracket thread type on your camera (TR20) or strap hardware (TR30) before ordering. The ø147.1mm base diameter fits typical pole-mounting applications but should be verified against your specific installation.
Q: Can I use the SBD-140PMW indoors?
A: Yes—while engineered for outdoor use, the aluminum construction and compact design work equally well for indoor pole mounting (stairwells, atriums, warehouse columns). The white finish blends with indoor décor and does not attract dust the way matte black surfaces do.
Q: What kind of cable can I run through the M25 conduit hole?
A: Standard 3/4 inch (M25) electrical conduit or PVC conduit will fit. This accommodates typical Cat5e/Cat6 Ethernet plus a 12 AWG or 10 AWG power conductor. For thicker bundles or armored cable, you may need to split the run or use a larger conduit diameter on the pole.
Q: Is the SBD-140PMW weatherproof?
A: The aluminum-plastic composite is corrosion-resistant and rated for outdoor use. The M25 hole is open (not sealed), so water can enter if the conduit inside is not properly sealed at both ends. Use weatherproof conduit fittings and cable glands to prevent water intrusion into the pole interior.
Q: How do I mount a camera to the SBD-140PMW?
A: The TR20 threaded mount accepts standard camera base plates using TR20 metric threads. Most Hanwha cameras ship with compatible TR20 adapter plates. If using a third-party camera or bracket, confirm that the base plate features TR20 threads (M6 x 0.75 pitch is the common metric standard).
Q: Can the SBD-140PMW support multiple cameras?
A: The SBD-140PMW is engineered for a single camera. Adding a second camera would exceed the structural design and create unbalanced wind load. For multi-camera poles, use a dedicated multi-head bracket or separate mounting points on the pole.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The SBD-140PMW (often searched as SBD 140PMW) is one of the few aluminum pole mounts that actually takes corrosion seriously. I've seen cheap steel bases rust through in 18 months on coastal installs; the aluminum-plastic composite here will outlast that by a factor of three or four. The compact 147.1mm diameter and low 340g weight matter more than they sound—on a 3-inch pole with wind, that mass difference translates directly to vibration damping and thermal stability for pan-tilt cameras.
Technical Highlights:
- Aluminum + Plastic Cap Isolation: Salt spray or industrial exhaust will not cause galvanic corrosion because the plastic cap breaks the electrical path between the metal core and external contaminants. In wet environments, this alone extends service life from 3 years to 7+ years.
- M25 Conduit Hole (3/4 inch): Standard size means no special fittings; you can run Cat6 + 12 AWG power through the pole interior in one pass. Compare this to some mounts that force you to use proprietary cable routing or surface-mount conduit—this one keeps the pole looking clean and protects the cables from UV and abrasion.
- Dual TR20 / TR30 Threading: TR20 for cameras, TR30 for steel straps gives you real flexibility. You're not locked into one bracket vendor. If a Hanwha camera base plate fails, you can retrofit a compatible third-party bracket without replacing the entire mount.
Deployment Considerations:
- Conduit Sealing is Your Responsibility: The M25 hole is open. Water will enter if you don't seal both ends with weatherproof fittings and cable glands. Budget time for that step—it's not hard, but it's easy to skip and regret later when condensation forms inside the pole.
- Single-Camera Limit: This is a 1x mount, period. Wind load calculations assume one camera. Trying to bracket two cameras to this base is a recipe for vibration and structural fatigue. If the design calls for multi-camera coverage, use separate mounts or a purpose-built multi-head bracket on the pole.
For perimeter or pole-line surveillance in coastal or humid environments where the camera stays mounted for years without service, the SBD-140PMW is the right choice. The aluminum durability and white finish matching justify the cost versus cheap steel alternatives. Deploy it on fence lines, warehouse poles, and entry points where visible light corrosion would otherwise compromise both function and aesthetics within two years.
