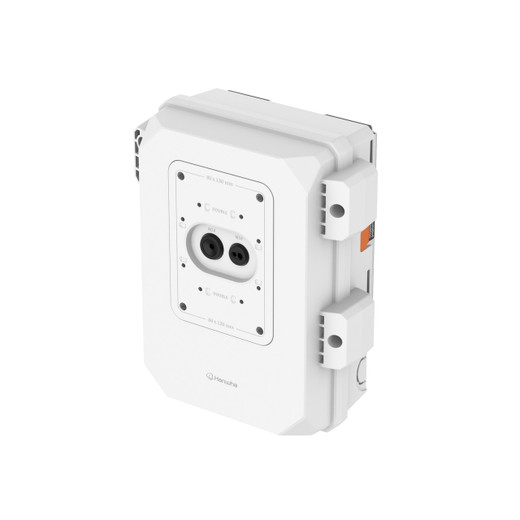

Hanwha SBP-050NBW Installation Cabinet
The Hanwha SBP-050NBW is a compact, weather-resistant installation cabinet engineered for outdoor and indoor IP surveillance deployments. This sealed enclosure provides safe, organized housing for camera installations, terminal blocks, junction connections, and auxiliary surveillance components across the Hanwha Vision product ecosystem. Built with polycarbonate and aluminum construction, it combines lightweight durability with corrosion resistance for long-term field performance.
Key Features
- IP66 and IK10 rated — dust-tight, high-pressure water jet resistant, and vandal impact resistant
- Compact cylindrical form factor: ø240 × 290 × 123.1mm (9.45 × 11.42 × 4.85 inches)
- Lightweight polycarbonate and aluminum construction — weighs only 2.5kg (5.5 lbs)
- 5kg (11.02 lb) maximum load capacity for secure component mounting
- One M20 (1/2-inch) and four M25 (3/4-inch) conduit holes for flexible cable entry and power routing
- TR20 and T30 mounting screw compatibility for flush wall and ceiling installation
- Compatible with 40+ Hanwha camera models — QNV, XND, XNV, PND, and PNV series
- Supports SBP-156WMW and SBP-250WMW accessory modules for expanded functionality
Environmental Performance
- Operating temperature: -40°C to +65°C (-40°F to +149°F)
- Storage temperature: -50°C to +65°C (-58°F to +149°F)
- Operating humidity: 0 to 100% RH with air vent humidity control
- IP66 protection ensures performance in harsh outdoor conditions
- IK10 vandalism resistance rated for high-impact environments
Applications
Ideal for integrator field deployment, OEM system builds, and mixed-use surveillance environments. The SBP-050NBW excels in retail, industrial, municipal, and perimeter security installations where weather protection and cable management are critical. Its compact design and universal mounting compatibility make it suitable for both new builds and retrofit projects.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The SBP-050NBW represents a practical solution for integrators managing cable complexity in outdoor Hanwha deployments. The IP66/IK10 dual rating addresses real-world requirements in wet, exposed, and high-vandalism zones. Its cylindrical profile minimizes visual footprint compared to rectangular boxes, making it suitable for aesthetic-sensitive applications.
The 5kg load capacity and wide accessory compatibility (SBP-156WMW, SBP-250WMW modules) enable scalable junction and terminal solutions without requiring separate housing. Wide temperature and humidity ranges ensure reliable performance across climate zones. For system integrators, the standardized TR20/T30 mounting interface reduces installation time and supports faster field deployment cycles.
