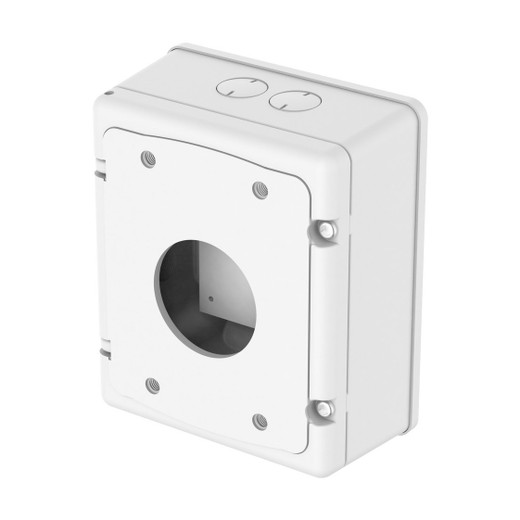

Hanwha SBP-300NBW IP66 Installation Box, White
The SBP-300NBW is a weatherproof installation enclosure designed to house and protect compatible Hanwha network cameras in outdoor and high-exposure environments. Unlike a bare camera mount, this sealed box shields sensitive electronics from rain, dust, and salt spray — reducing warranty claims and extending operational life in harsh deployments. Built from steel, aluminum, and silicone gaskets, it delivers IP66-rated protection without requiring a separate environmental shroud or heater.
Key Features
- IP66 Environmental Sealing: Protects against direct water jets and complete dust ingress. This rating is sufficient for most outdoor commercial installations — rooftop, perimeter, and coastal sites included — but falls short of full submersion, so avoid mounting directly in water features or below permanent water lines.
- Steel and Aluminum Construction: Combines rigidity with corrosion resistance. Steel provides structural strength; aluminum reduces overall weight. The silicone gaskets maintain the seal across thermal cycling (a real concern in regions with large day/night temperature swings).
- Compact Footprint (185 × 221 × 94.3 mm): Fits tight mounting spaces on pole brackets, wall faces, and junction boxes without creating a visible eyesore. The tight envelope is especially useful when integrating into architectural soffits or cable trays where space is constrained.
- Lightweight at 3.4 kg: A single technician can install this without a second person or mechanical lift. Reduces installation labor on elevated structures and simplifies bracket selection — you won't need over-engineered mounts designed for heavy PTZ housings.
- Factory-Finished White Powder Coat: Maintains visual consistency in modern facilities and reduces solar heat absorption compared to unpainted steel. The finish also resists UV degradation over 5+ years of sun exposure, a practical detail for outdoor longevity.
- Camera-Specific Design: Engineered for Hanwha models SBP-300WMW, SBP-300WMW1, SBP-300KMW, and SBP-300PMW. This ensures proper internal clearances, cable routing, and mounting threadsafe placement — do not substitute this box for generic camera housings, as thread alignment and internal geometry will not match.
Integration and Compatibility
This enclosure is compatible exclusively with the specified Hanwha camera models listed above. Mounting is straightforward for integrators familiar with Hanwha's installation ecosystem: the box accepts standard mounting brackets and integrates with existing cable and power runs. When selecting a network video recorder for these protected cameras, confirm that your NVR supports the camera models you are housing — the IP66 box itself is transparent to network and video stream configuration.
Typical Deployments
Common use cases include warehouse perimeter surveillance (where loading dock sprayers and high-pressure cleaning occur), outdoor retail and parking lot monitoring, industrial sites with salt-air or chemical exposure, and residential security installations in regions with heavy seasonal rain or snow load. The compact form factor also suits retrofit projects where ducting or cabling paths are already congested.
When to Consider an Alternative
If your site requires full submersion protection (e.g., cameras mounted in parking structure floors or above water features), specify an IP67-rated enclosure instead. For extremely harsh chemical or corrosive environments (steel mills, swimming pool facilities), consult Hanwha's stainless-steel or specialized coatings catalog. If you need integrated heater/blower capability for high-humidity or sub-freezing climates, request an SBP model with climate control (check the complete Hanwha product range for such variants).
Frequently Asked Questions
Q: Can the SBP-300NBW be mounted horizontally on a surface instead of vertically on a bracket?
A: Yes. The box is orientation-agnostic as long as drainage is managed. Ensure that any internal cable or power connector openings face downward or are sealed with weatherproof bulkhead fittings to prevent water pooling at low points.
Q: Is this box suitable for coastal salt-spray environments?
A: The aluminum and stainless hardware provide good corrosion resistance, but in severe salt-air zones, plan for periodic rinse maintenance (annual freshwater flush recommended). The silicone seals can degrade faster in extreme UV + salt conditions — inspect every 2–3 years and replace seals if hardening or cracking appears.
Q: What is the maximum operating temperature range for the SBP-300NBW?
A: Standard industrial temperature range is –40°C to 60°C (–40°F to 140°F). Confirm your camera's operating specs match this range, as some Hanwha camera modules have narrower limits and will be the constraint.
Q: Do I need separate mounting hardware, or is it included with the enclosure?
A: The evidence does not detail included fasteners or a mounting template. Consult the product datasheet or your distributor for a full bill of materials and any required bracket adapters for your specific mounting surface (pole, wall, conduit).
Q: How do I route power and network cabling into the SBP-300NBW?
A: Use weatherproof bulkhead connectors (M20 or equivalent) drilled through the enclosure. The box itself does not include pre-drilled holes or cable glands — plan for on-site modification or source a pre-configured variant from your integrator.
Q: Can the box be painted or modified to match site aesthetics?
A: The factory white finish is durable and UV-resistant. Repainting is possible with proper surface prep and outdoor polyurethane or epoxy topcoat, but this adds labor and may void any finish warranty — discuss with Hanwha support before modifying.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The SBP-300NBW is a straightforward, well-engineered accessory that solves a real problem: protecting mid-range Hanwha network cameras from weather and environmental stress. At 3.4 kg and IP66 rated, it's lightweight enough for roof and wall mounts yet robust enough for coastal and industrial sites where spray, dust, and thermal cycling are routine. The steel-and-aluminum hybrid frame resists corrosion better than all-steel alternatives, and the silicone gaskets handle temperature swings from –40°C to 60°C without premature cracking — a practical advantage in regions with large diurnal or seasonal swings.
Technical Highlights:
- IP66 Sealed Enclosure: Withstands direct water jets and prevents dust ingress. This is sufficient for rooftop, perimeter, and loading-dock surveillance where rain and washdown are the primary threats. Not rated for submersion or permanent wetness.
- Compact Dimensions (185 × 221 × 94.3 mm): Fits congested installation spaces — cable trays, soffits, and pole brackets — without the bulk of larger PTZ housings. Keeps visual impact low on modern building facades.
- Material Composition (Steel + Aluminum + Silicone): Steel provides rigidity; aluminum sheds weight and improves corrosion resistance relative to bare steel; silicone gaskets maintain the seal across thermal extremes better than cheaper rubber. This triple-material approach is why this box outlasts cheaper all-plastic alternatives in harsh outdoor duty.
Deployment Considerations:
- Camera Model Lock-In: This enclosure is designed for exactly four Hanwha models (SBP-300WMW, SBP-300WMW1, SBP-300KMW, SBP-300PMW). Do not attempt to retrofit other brands or even other Hanwha models — thread locations and internal cable paths will not align. Confirm camera model before ordering.
- Cable Ingress Requires Custom Drilling: The box does not ship with pre-drilled holes or cable glands. Plan to drill M20 conduit ports and install weatherproof bulkhead connectors on-site. This is a labor-cost factor integrators often miss during estimation.
- Salt-Air Maintenance Cycle: In coastal zones (salt spray), the silicone seals degrade faster due to UV + ionic stress. Inspect and replace gaskets every 2–3 years. Annual freshwater rinse extends seal life significantly.
Deploy the SBP-300NBW when you need reliable weather protection for Hanwha mid-range cameras without the complexity (and cost) of heater/blower climate control. Ideal for warehouse perimeter, retail outdoor, and light industrial sites where dust and rain are the primary environmental hazards, not extreme cold or high humidity. If your environment demands sub-zero dehumidification or sealed cable management, plan for a higher-spec enclosure with integrated climate control.
