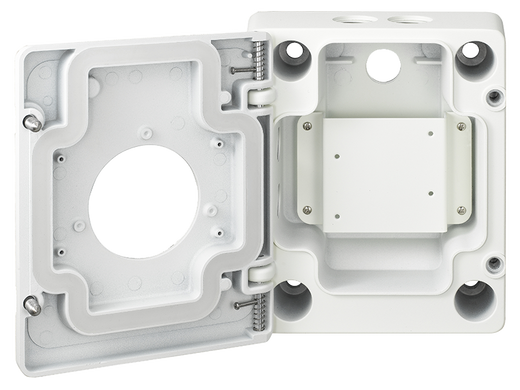

Hanwha SBP-300NB Installation Box IP66 Weatherproof Enclosure
The Hanwha SBP-300NB is a purpose-built installation enclosure designed to integrate with Hanwha's modular camera platforms in outdoor and challenging indoor environments. This is not a generic junction box — it's engineered specifically for the SBP-300 series architecture, meaning integration points and internal geometry match the mounting and wiring requirements of compatible camera modules without custom fabrication or adapter work.
Key Features
- IP66 weatherproof rating: Blocks dust completely and withstands high-pressure water jets (12.5 MPa from 2.5 to 3 meters distance). Suitable for perimeter installations, parking structures, and industrial yards where rain, spray, or dust ingress would compromise camera function — but not full submersion (that requires IP67 or higher).
- Hybrid steel, aluminum, and silicon construction: Steel provides structural rigidity against impact or wind load; aluminum reduces overall weight to 3.4 kg (7.5 lbs) so single-person mounting is feasible; silicon gaskets seal penetrations and resist UV degradation over multi-year deployments.
- Compact footprint: 185 × 221 × 94.3 mm (7.3" × 8.7" × 3.7"): Fits tight wall-mounted or soffit installations where larger enclosures create sight lines or architectural conflicts. The shallow depth minimizes standoff distance from surface-mounted conduit.
- Ivory finish: Blends into standard building soffits and soffit trim without the visual signature of black or stainless steel boxes — reduces theft attraction and meets aesthetic requirements on retail or campus deployments.
- Modular camera compatibility: Designed for Hanwha SBP-300WM, SBP-300WM1, SBP-300KM, and SBP-300PM camera modules. Pre-engineered for their connection and cabling patterns eliminates guesswork on internal layout or rework.
- Lightweight handling: At 3.4 kg unloaded, single technicians can mount and position without a second person or lift equipment, reducing labor time on retrofit installations or temporary deployments.
Integration and Deployment Context
The SBP-300NB is an accessory enclosure, not a standalone product. It serves as environmental protection for modular Hanwha IP cameras that require outdoor hardening or protection from dust, moisture, or physical damage. When paired with compatible camera modules, the enclosure provides the weatherproof barrier; the camera module inside delivers the imaging intelligence. This separation of concerns — enclosure handling environmental sealing, camera handling imaging and analytics — simplifies replacement or upgrade cycles if either component requires service.
Typical integrations include: perimeter fence-line installations where cameras mount on poles or gate frames; warehouse or distribution center exterior corners where dock doors or loading ramps introduce water spray or debris; industrial facility equipment monitoring where dust or coolant mist would corrode exposed electronics. In these scenarios, the IP66 rating prevents water damage that would otherwise require replacement within 12–24 months in wet climates.
For planning purposes, review your NVR or video management system compatibility with the camera modules you intend to house — the SBP-300NB itself does not process video or connect to network infrastructure; it is purely a protective container.
When to Choose a Different Enclosure
If your camera modules require submersion protection (e.g., underwater or constant high-pressure wash-down), evaluate IP67 or IP69K-rated alternatives in the Hanwha product line. If you need integrated cable management for large-scale conduit systems, larger industrial junction boxes with knock-out provisions may be more flexible. If you are not using SBP-300 series modular cameras, verify internal dimensions and mounting provisions with the manufacturer before committing — the SBP-300NB is purpose-optimized for one specific camera architecture and may not accommodate non-Hanwha modules without modification.
Frequently Asked Questions
Q: Can the SBP-300NB be mounted indoors?
A: Yes. While IP66 is designed for outdoor use, the enclosure works indoors to protect cameras from dust, accidental splash, or mechanical damage in food processing, manufacturing, or warehouse environments where airborne contamination or moisture is present.
Q: What tools are required to mount the SBP-300NB?
A: Evidence does not specify fastening method or required hardware. Consult the installation guide in the product datasheet or contact the manufacturer for mounting bracket compatibility and torque specifications.
Q: Is the SBP-300NB suitable for coastal or salt-spray environments?
A: IP66 protection prevents water ingress, but the product datasheet does not specify corrosion resistance for marine environments. If salt-spray exposure is expected, confirm material certifications (e.g., stainless steel fasteners, anodized aluminum) with the manufacturer before deployment.
Q: Can multiple SBP-300NB enclosures be stacked or ganged together?
A: The compact form factor and modular design suggest individual mounting. Stacking or gang installation is not addressed in the available evidence; consult the datasheet or installer notes for multi-unit configurations.
Q: What is the operating temperature range for the SBP-300NB?
A: Operating temperature range is not specified in the available product documentation. Contact the manufacturer or request the complete datasheet for thermal specifications in cold-climate or high-heat environments.
Q: Does the SBP-300NB include cable glands or conduit adapters?
A: The available evidence does not list cable glands or adapters in the package contents. Refer to the product datasheet or installation guide for a complete accessory list and ordering information.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Hanwha SBP-300NB is a straightforward piece of kit: a weather-tight box for a modular camera. Its IP66 rating is the main spec that matters, and it's the right choice if you need solid outdoor protection without overengineering. The 185 × 221 × 94.3 mm footprint is deliberately shallow — that minimizes how far the enclosure sticks out from a wall or soffit, which matters on tight facade or soffit-mounted installations where you don't want a box that looks like an afterthought.
Technical Highlights:
- IP66 weatherproof seal: Stops direct rain and high-pressure wash-down. Not submersion-rated (that's IP67 or IP69K), so don't use this in wet-bench or tank-adjacent environments. But for typical perimeter, parking structure, or dock-area mounting, IP66 is sufficient and proven in field deployments.
- Hybrid steel/aluminum/silicon construction: Steel core resists denting from impacts or vibration; aluminum skin shaves weight (3.4 kg is light for a weatherproof enclosure); silicon gaskets age better than rubber under UV and temperature cycling. Over a 5+ year outdoor lifespan, that matters.
- Ivory finish: Not cosmetic fluff — reduces visual contrast against building trim and discourages casual theft or vandalism compared to black or stainless boxes. On retail or campus perimeter sites, that translates to fewer service calls for damage or missing hardware.
Deployment Considerations:
- This is an accessory enclosure. The SBP-300NB alone does no imaging or analytics — it houses and protects a modular camera module. Verify that the specific SBP-300WM, SBP-300WM1, SBP-300KM, or SBP-300PM module you intend to deploy is compatible with your VMS and meets your resolution or frame-rate requirements. The enclosure is just the environmental layer.
- The datasheet and available evidence do not specify cable gland type, conduit adapter provisions, or internal grounding points. Before ordering, confirm with the manufacturer or installer guide how you will route power and network cabling into the box without compromising the IP66 seal. This is a real gotcha on tight first-installations.
The SBP-300NB is the right call for integrators standardizing on Hanwha modular camera platforms in mixed indoor/outdoor environments. It's not a universal junction box — it's purpose-optimized for one camera family — but that optimization means no rework, no adapter fittings, and predictable installation time on high-volume rollouts.
