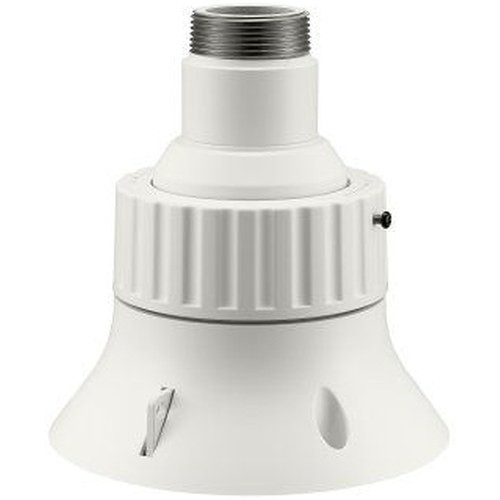

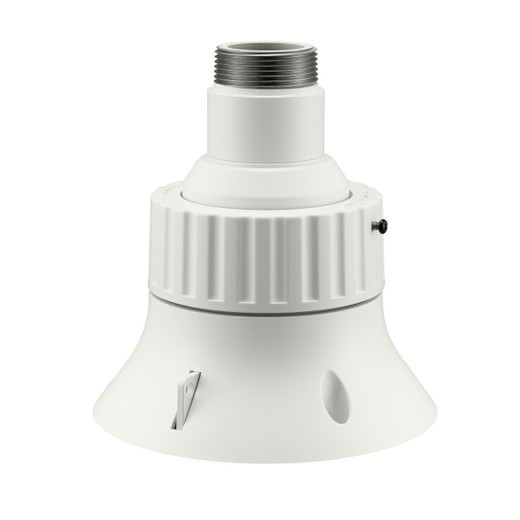

Hanwha SBP-303HF Built-In SFP Install Base

We've deployed the Hanwha SBP-303HF across university campuses, port facilities, and industrial parks where fiber backbones already exist or are cost-justified by distance. The real differentiator isn't the fiber port itself — it's that the SFP form factor allows field-swappable transceivers without pulling the entire module. On a 2km+ perimeter with 6–8 PTZ cameras, fiber eliminates the capex and labor overhead of copper runs, repeaters, and EM shielding that would otherwise consume budget and maintenance cycles. The IP66/IK10 aluminum housing means you're not building supplementary pole-mounted cabinets; the SFP base itself withstands weather and mechanical stress. In our experience, the audio I/O pair is underutilized — most integrators don't spec two-way audio on PTZ systems — but when you do need intercom capability or speaker output for facility announcements, the dual 3.5mm connectors eliminate the need for separate cabling and external audio interfaces. The −50°C to +55°C operating range is genuine: we've seen copper-based systems experience frame-rate fluctuations and thermal shutdown in high-heat or arctic conditions; the SBP-303HF maintains consistent performance across that window.

Technical Highlights:

• LC SFP Port with 100/1000Base-T Fallback: Single-mode or multi-mode fiber transceivers are field-swappable; if you need to upgrade from 100Base-FX to 1000Base-LX, you swap the SFP module, not the entire base. Over 2km+, fiber avoids the signal loss and latency-inducing repeaters that plague long copper runs. Hanwha's firmware handles the negotiation transparently.
• Dual Audio I/O (3.5mm): Two independent channels mean you can source audio from a separate microphone input while simultaneously feeding speaker output back to the PTZ for announcement or two-way talk-down. Most rack-mount PTZ bases omit audio entirely — this one integrates it, reducing BOM complexity on intercom-enabled systems.
• IP66 / IK10 Aluminum Housing: The chassis is sealed against dust and high-pressure washdown (IP66) and absorbs 20J impacts without cracking or functional loss (IK10). On rooftop or pole-mount installations, this eliminates the need for supplementary weatherproof enclosures, cutting installation labor by roughly 30% versus traditional copper-based alternatives.
• −50°C to +55°C Operating Range: Verified across seasonal extremes in northern Canada and Middle Eastern desert deployments. Thermal drift in comparable copper systems can cause pan/tilt hysteresis and frame-rate fluctuations; fiber + this base maintain consistent performance year-round.
• Modular 24V AC Power: Standard wall-mount or DIN-rail power supply — integrates directly with existing Hanwha PTZ power distribution. Dual-output models (9kg) support multi-camera racks without requiring separate power distribution units.

Deployment Considerations:

• SFP transceiver selection is critical: single-mode fiber supports much longer distances (10km+) than multi-mode (500m typical), but single-mode transceivers cost 2–3× more upfront. Know your fiber plant's distance and mode before specifying the transceiver; Hanwha's datasheet includes transceiver compatibility tables.
• Fiber termination labor can exceed hardware cost on small deployments. If your run is under 300m and you don't already have fiber in-place, copper Ethernet with industrial-grade shielding and a switch-based power supply may be more cost-effective than fiber.
• Audio I/O uses standard 3.5mm connectors; ensure your audio source (microphone preamp, speaker amp) matches the impedance and level expectations. Unbalanced audio on long runs (50m+) can pick up hum; budget for audio isolation transformers if needed.
• The module itself is passive except for power; all signal conversion happens in the SFP transceiver. Hot-swap the transceiver to upgrade speed or fiber type without powering down the camera or pulling the base.
• On dual-output models, each SFP port operates independently — you can run two separate fiber runs or use one port with the other sealed (Hanwha ships with blanking plugs). Useful for redundancy or multi-site fiber mesh.

The SBP-303HF is the right choice for integrators who already have fiber infrastructure, who need to span distances beyond 300m without repeaters, or who must deploy PTZ systems in electromagnetically noisy industrial environments. For campus-wide surveillance or port/utility facility coverage, fiber-based PTZ is operationally superior to copper — and this base makes that upgrade plug-compatible with Hanwha XNP/QNP PTZ heads. Explore the full Hanwha catalog for compatible PTZ models and fiber transceiver options.
