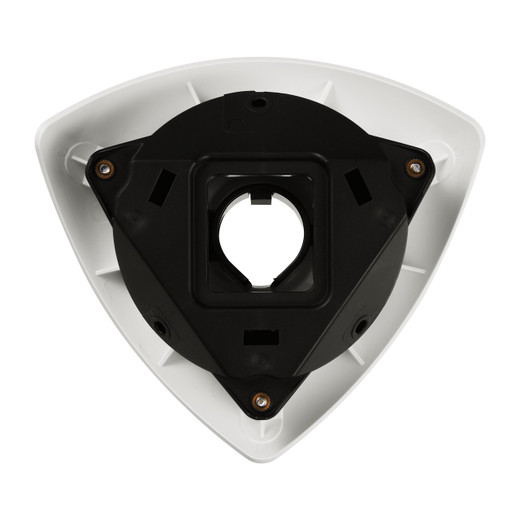

Hanwha SBL-101C Remote Head Camera Corner Mount

Hanwha SBL-101C Remote Head Camera Corner Mount

Overview

The SBL-101C is a corner-mounted housing for Hanwha remote camera head units. It solves the placement problem when you need to tuck a camera lens into a corner—ceiling or wall—without taking up pendant or wall-bracket depth. The white polycarbonate enclosure is 4.89" W × 4.53" D × 2.2" H, designed to sit flush in a 90-degree corner and keep the optical path clean while protecting the mechanical head from dust and minor impact.

Compatibility

The SBL-101C works with Hanwha SLA-series remote camera heads: SLA-T2480, SLA-T2480A, SLA-T4680, and SLA-T4680A. These are motorized pan-tilt-zoom heads typically paired with fixed server-grade encoder units in 19" rack environments. Verify your head model against the SLA series before ordering; this mount is not compatible with fixed box cameras, domes, or bullet form factors.

Installation Notes

The SBL-101C is rated for indoor deployment: operating temperature −10°C to +45°C (−40°F to +113°F), humidity below 95% RH. Storage rating is −50°C to +60°C (−58°F to +140°F). Polycarbonate construction is chemical-resistant to typical facility cleaners but not rated for outdoor UV exposure or high-pressure washdown. Mount using the provided screws into drywall, plaster, or bracket studs. No special tools or torque specification in the datasheet—standard installation fasteners are sufficient.

What's in the Box

• SBL-101C Remote Head Corner Mount
• Screws (quantity and size per standard OEM pack)
