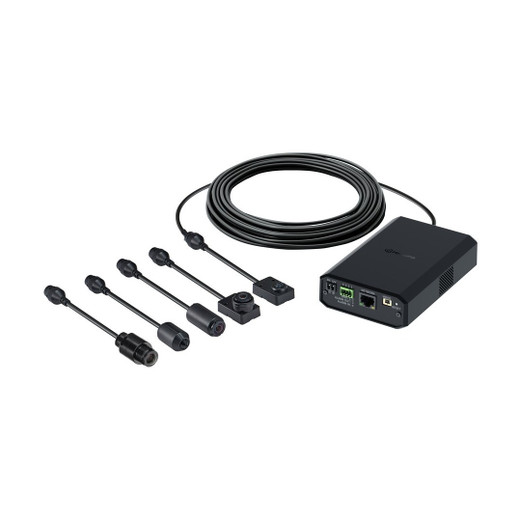

Hanwha XNB-6002 2MP Modular Remote Head IP Camera

Hanwha XNB-6002 2MP Modular Remote Head IP Camera

The Hanwha XNB-6002 is a compact, modular 2MP remote head IP camera designed for surveillance deployments where discrete positioning and lens flexibility are essential. This camera delivers full HD 1920×1080 resolution at up to 60 fps with H.265, H.264, and MJPEG codec support—H.265 cuts your storage footprint roughly in half compared to H.264 on 24/7 multi-camera systems. The modular architecture accepts interchangeable lens modules (SLA-T1080FA, SLA-T2480A, SLA-T4680A, and varifocal variants), eliminating the need to stock multiple complete camera SKUs and allowing you to tailor focal length from 10.8 mm to 46.8 mm per deployment site.

Key Features

• 2MP Full HD (1920×1080) at 60 fps: Captures sufficient facial and object detail for retail queue management and perimeter monitoring without overloading network bandwidth on modest ISP uplinks.
• extremeWDR (120 dB) with HLC, BLC, and SSDR: Handles high-contrast scenes (bright storefront windows paired with dark interior aisles, or backlit outdoor perimeters) without washing out detail—rivals many fixed-dome competitors in dynamic range.
• Advanced defog and digital image stabilization: Defog clears moisture-laden or dusty outdoor environments; DIS compensates for vibration on elevated or moving mounts, critical for transportation hubs or cable-suspended installations.
• Interchangeable modular lens design: Single camera body accepts four lens options, reducing SKU complexity and allowing on-site lens swaps without inventory duplication.
• Hallway View (90°/270° rotation) and Lens Distortion Correction: Rotates the image in firmware to fill tall, narrow spaces (elevator lobbies, corridors) and eliminates barrel distortion from wide-angle lenses.
• Comprehensive on-camera AI analytics: Motion detection across 8 polygonal zones, face detection, tampering, defocus, and fog detection all process locally—reduces false alarms and NVR CPU overhead on busier systems.
• Virtual intelligence (loitering, intrusion, crossing, heatmap): Identifies behavioral anomalies without relying on external GPU processing; heatmap generation supports facility utilization studies for retail or warehouse optimization.
• Dual audio channels (mic or line-in selectable) with sound classification: Detects glass-break, shouting, or machinery failure; enables two-way communication for intercom or emergency dispatch scenarios.
• Edge storage via microSD/SDHC/SDXC (up to 1 TB): Buffers recordings locally during network outages and supports event-triggered clips, reducing reliance on constant WAN connectivity.
• PoE (IEEE 802.3af) and 12 VDC redundancy options: Draws under 13 W on standard PoE, so does not strain your switch's power budget; dual power inputs allow failover to 12 VDC if PoE fails.

Integration and Codec Intelligence

The XNB-6002 includes 2 GB RAM and 512 MB flash for robust on-device processing. WiseStream II smart codec applies manual area-based compression across 5 configurable regions, meaning high-motion zones (queues, doorways) retain bitrate while static backgrounds compress aggressively—typical savings range 20–40% versus uniform bitrate on the same scene. Supports up to 20 unicast users with multicast streaming and 10 simultaneous video profiles, so multiple VMS instances or mobile clients can pull different streams (resolution, frame rate, compression) without re-encoding.

Full ONVIF Profile S/G/T compatibility ensures plug-and-play integration with network video recorders and third-party VMS platforms. SUNAPI HTTP integration and Wisenet open platform support streamline deployment in mixed-vendor environments. Motion detection spans 8 polygonal zones with 32 privacy masking regions (4-point quadrangle or mosaic blocks), enabling granular monitoring while maintaining compliance in sensitive areas. Alarm triggers include network disconnection, scheduled times, and external inputs—responses span email/FTP image upload, NAS recording, PTZ handover (if controlling a pan-tilt unit downstream), and HTTP/HTTPS webhook dispatch to custom integrations.

Optical and Exposure Control

Extensive white balance modes (ATW, narrow ATW, AWC, manual, indoor, outdoor) adapt to tungsten, fluorescent, daylight, and mixed lighting. Electronic shutter speeds range from 2 sec to 1/12,000 sec, ensuring optimal exposure from dimly lit warehouses to bright outdoor noon sun. The compact form factor (131.1 × 33.5 × 86 mm) and lightweight modular design suit confined spaces, elevated mounts, and specialized surveillance angles where traditional turret or fixed-dome cameras cannot fit.

Support for 16 interface languages and full IPv4/IPv6 with 802.1X authentication makes global deployment straightforward, particularly for multi-national retail chains or transportation operators. This camera is well-suited for IP camera deployments in retail queue management, perimeter intrusion detection, facility heatmap analysis, and transportation hub monitoring.

Frequently Asked Questions

Q: What is the XNB-6002 power consumption, and will it work on standard PoE?

A: The XNB-6002 draws under 13 W maximum, well within IEEE 802.3af limits (15.4 W). No separate power injector is required—standard PoE switches support this camera without strain. Dual power inputs also allow 12 VDC failover if PoE is interrupted.

Q: Can I change lenses on the XNB-6002 after installation?

A: Yes. The modular lens design allows field swaps between the SLA-T1080FA (10.8 mm), SLA-T2480A (2.8–8 mm varifocal), SLA-T4680A (4.6–68 mm varifocal), and other approved lens modules. No camera reset is required.

Q: Does the XNB-6002 support ONVIF?

A: Yes. Full ONVIF Profile S, G, and T compliance ensures compatibility with industry-standard VMS platforms including Milestone, Genetec, Hanwha SmartVMS, and others.

Q: How much storage does the XNB-6002 support on microSD?

A: Up to 1 TB via microSD/SDHC/SDXC. Edge storage buffers events and network outage recordings, reducing dependency on constant WAN or NVR availability.

Q: What analytics does the XNB-6002 run locally?

A: Motion detection (8 polygonal zones), face detection, tampering, defocus, fog detection, loitering, intrusion, line-crossing, and heatmap generation all process on-device. Reduces NVR CPU load and enables faster local alarm response.

Q: Is the XNB-6002 suitable for outdoor use?

A: The camera itself is rated for indoor/covered outdoor environments. Verify environmental ratings in the full datasheet; if direct rain or extreme temperature exposure is required, consult mounting recommendations and potential enclosure options.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The XNB-6002 addresses a specific and underserved segment: organizations requiring compact, lens-agnostic remote heads within tight budgets and installation constraints. Its modular architecture eliminates the need to stock multiple complete camera SKUs—a single body accommodates focal lengths from 10.8 mm to 46.8 mm via interchangeable lens modules. The 120 dB extremeWDR performance rivals many fixed-dome competitors, while defog and digital image stabilization fill critical gaps in outdoor and handheld deployment scenarios.

Technical Highlights:

• H.265 with WiseStream II 5-region smart codec: Delivers 40–60% storage reduction versus H.264 on mixed motion/static scenes—meaningful on 24/7 multi-camera systems where bandwidth or NAS capacity is constrained.
• 120 dB extremeWDR + defog + DIS: Handles backlit outdoor perimeters, moisture-laden loading docks, and vibration-prone conveyor-line mounts without image degradation—three pain points that cheaper fixed models cannot address.
• Local AI analytics (8-zone motion, face detection, loitering, intrusion, heatmap): Processes all detection on-device, cutting NVR CPU overhead and enabling sub-second alarm response. Heatmap generation supports facility analytics without licensed VMS plugins.
• Modular lens + Hallway View rotation: Single XNB-6002 body plus four lens SKUs replaces what would otherwise be 8–12 complete camera models. Hallway View eliminates black bars in tall, narrow spaces (elevator shafts, stairwells).
• Dual PoE and 12 VDC power inputs: Under 13 W on 802.3af—no strain on entry-level switches. Redundant 12 VDC option allows graceful fallback if PoE fails, improving uptime on mission-critical retail or warehouse feeds.

Deployment Considerations:

• Modular lenses are field-swappable, but inventory planning must account for the four approved lens modules. Verify focal length requirements before final camera purchase.
• On-board storage caps at 1 TB microSD; for continuous 30-day retention across many cameras, pair with a networked NVR or cloud archive. The camera's edge recording is a buffer, not a replacement for centralized retention.
• 60 fps at 2MP is well-suited for retail queue or perimeter monitoring, but if you need higher resolution (4MP+) or extended IR range (50 m+), step up to a larger fixed-dome or PTZ in the Hanwha lineup.

The XNB-6002 shines in retail queue analytics, warehouse perimeter intrusion detection, and transportation hub heatmap studies where compact form factor, modular optics, and local analytics reduce operational overhead. It is not the right choice if you require outdoor IP67 weatherproofing, 4K resolution, or 24/7 IR coverage beyond 30 m—those scenarios demand purpose-built outdoor turrets or PTZ units.
