Hanwha XNB-6002/KEX 2MP Covert Modular Camera Body

Hanwha XNB-6002/KEX 2MP Covert Modular Camera Body

The Hanwha XNB-6002/KEX is a professional-grade modular camera body powered by Wisenet 7, engineered for integrators designing discreet surveillance systems. Its compact remote-head form factor and interchangeable lens architecture deliver exceptional flexibility for covert deployments where aesthetics and adaptability are critical. The RJ12 lens module connection enables optical configuration changes without replacing the entire camera system, streamlining installation timelines and reducing total cost of ownership.

Key Features

• 2MP (1920×1080) full HD resolution at up to 60 fps for detailed image capture
• Triple codec support: H.265, H.264, and MJPEG with WiseStream II bandwidth optimization
• 120dB Wide Dynamic Range (WDR) for superior performance in mixed lighting environments
• PoE (802.3af) and 12VDC dual power options for flexible deployment scenarios
• Modular lens design with RJ12 connection—lens modules sold separately
• microSD/SDHC/SDXC local edge storage for continuous recording independence
• Day/night capability with advanced video analytics including hallway view, HLC, defog detection, and digital image stabilization (DIS)
• Business analytics and sound classification for intelligent threat detection
• ONVIF compliance for vendor-agnostic system integration

Technical Specifications

• Resolution: 2MP (1920×1080)
• Video Compression: H.265, H.264, MJPEG
• Form Factor: Modular remote-head body
• Connectivity: Ethernet, Wi-Fi, USB
• Power: PoE (802.3af) Class 3 or 12VDC
• Security: TPM 2.0 (FIPS 140-2 Level 2) for firmware integrity and secure boot
• Storage: microSD/SDHC/SDXC slot
• Operating Temperature: +14°F to +131°F (-10°C to +55°C)
• Weight: 0.7 lbs
• Encryption: HTTPS support for secure communication

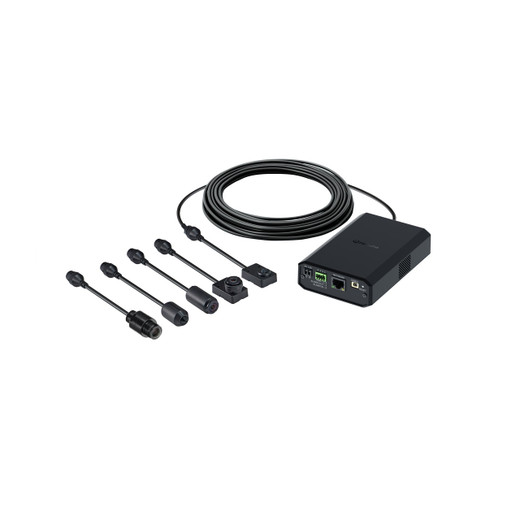

Compatible Lens Modules

The XNB-6002/KEX accepts the complete Hanwha lens module portfolio, including fixed and varifocal options:

• SLA-T2480A (2.4mm fixed, 138° horizontal FOV, 0.45 lux)
• SLA-T2480AV (2.4mm fixed varifocal variant)
• SLA-T4680A (4.6–8mm varifocal)
• SLA-T4680AV (4.6–8mm varifocal variant)
• SLA-T1080FA (1.0–8.0mm varifocal)

Ideal Applications

• Covert retail and banking surveillance
• Discreet perimeter and facility monitoring
• Multi-location deployments requiring standardized hardware with flexible optics
• Integration into custom enclosures or discrete mount platforms
• Systems demanding FIPS 140-2 security compliance and edge storage

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The XNB-6002/KEX represents Hanwha's commitment to modular surveillance design. Its separation of lens and body simplifies field deployments—integrators can stock one camera body and multiple lens modules, reducing inventory complexity while maintaining optical flexibility. The H.265 codec and WiseStream II deliver measurable bandwidth savings critical for remote or bandwidth-constrained installations.

TPM 2.0 FIPS 140-2 Level 2 certification addresses enterprise security mandates. The combination of PoE and 12VDC power options, dual codec support, and ONVIF interoperability makes this body ideal for integrators standardizing on Wisenet 7 platforms across mixed environments. Edge storage via microSD ensures continuity during network interruptions, while business analytics and sound classification extend detection beyond traditional motion.
