Plan Your Deployment

Door count and expansion requirements
Reader type (card, keypad, biometric) and credential format
Fail-safe vs fail-secure hardware design
Power, cabling, and network connectivity planning
Multi-site governance and consistent standards

Sub categories

Showing Results for Access Control

Compare

Add to Cart The item has been added
Honeywell

SKU: VISTA-50P

Honeywell VISTA-50P Wired Intrusion Control Panel

Hardwired intrusion panel for multi-tenant buildings without RF interference
- Wired zone architecture eliminates wireless signal loss in RF-congested environments
- 16.5VAC 40VA transformer powers typical sensors without external conditioning modules
- Central station compatible with Contact ID signaling for monitored protection
In stock · Ships same business day

$941.99 $474.99 Save $467.00

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Honeywell

SKU: WAVE2

Honeywell WAVE2 Two-Tone Indoor Alarm Siren

106 dB two-tone indoor siren for hardwired alarm systems
- 106 dB two-tone output (warble and steady) reaches large spaces
- 6–12 VDC operation with 500 mA max draw, no soldering required
- Hinged case allows terminal access without unmounting the unit
In stock · Ships same business day

$36.99 $17.99 Save $19.00

Add to Cart
The item has been added
Compare

Out of stock
i-PRO

SKU: MC-T2MK7F8QMC

i-PRO MC-T2MK7F8QMC 8-Door Access Control Power Kit

Complete 8-door access control kit with integrated power and offline operation
- Includes control panel, power board, reader interfaces, and pre-tested cabling
- Local credential storage maintains door access during network outages
- Wall-mounted 18"H × 14.5"W housing with regulated power for locks and readers
Special Order · Ships in 2-3 weeks

$1,638.48 $1,320.99 Save $317.49

Add to Cart
The item has been added
Compare

Out of stock
Inovonics

SKU: ACC672LR

Inovonics ACC672LR Long Range Lens for EN1260 915-928 MHz

Long-range lens for EN1260 915-928 MHz wireless systems
- Corner-mount optical extension increases detection range for EN1260 sensors
- Single-zone capacity design integrates without adding system nodes
- Operates -4° to 140°F for indoor and outdoor deployments
Special Order · Ships in 2-3 weeks

$11.00 $5.99 Save $5.01

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Inovonics

SKU: EN1210

Inovonics EN1210 EchoStream Single Input Universal Transmitter

Universal single-input transmitter for 902–928 MHz wireless monitoring
- Accepts analog and digital sensor inputs; one SKU covers multiple sensor types
- License-free 902–928 MHz ISM band eliminates FCC licensing delays and costs
- EchoStream protocol works with Inovonics receivers; operates –4°F to 140°F
In stock · Ships same business day

$138.00 $89.99 Save $48.01

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Inovonics

SKU: EN1210EOL

Inovonics EN1210EOL EchoStream Wireless Transmitter 902-928 MHz

902–928 MHz wireless transmitter with EOL supervision for distributed sensor networks
- 902–928 MHz ISM band penetrates walls and structural materials without FCC licensing
- End-of-line supervision monitors transmitter presence continuously at control panel
- Flush or surface-mount installation; operates –4°F to 140°F in retrofit applications
In stock · Ships same business day

$144.00 $90.99 Save $53.01

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Inovonics

SKU: EN1210W

Inovonics EN1210W Wireless Door/Window Transmitter 902-928 MHz

Wireless door/window transmitter, 902-928 MHz ISM band, -4°F to 140°F
- 902-928 MHz unlicensed ISM operation with EchoStream protocol, no FCC coordination required
- Magnetic reed switch contact monitoring for doors, windows, and hinged entry points
- Operating range -4°F to 140°F supports unheated indoor/outdoor mounting locations
In stock · Ships same business day

$161.00 $99.99 Save $61.01

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Inovonics

SKU: EN1212

Inovonics EN1212 Dual Input Universal Transmitter

Dual-input wireless transmitter, 902-928 MHz, no FCC licensing needed
- Two simultaneous inputs for contact closures, analog sensors, or alarm signals
- Unlicensed 902-928 MHz ISM band operation eliminates frequency coordination
- Compact design rated -4°F to 140°F for indoor and outdoor deployments
In stock · Ships same business day

$148.00 $83.99 Save $64.01

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Inovonics

SKU: EN1215EOL

Inovonics EN1215EOL EchoStream Universal Transmitter 902-928 MHz

Universal wireless transmitter, 902–928 MHz ISM, multi-sensor compatible
- Accepts input from multiple sensor manufacturers; consolidate on one platform
- 902–928 MHz unlicensed ISM band eliminates FCC licensing and coordination
- EchoStream protocol with redundant transmission paths for reliable RF coverage
In stock · Ships same business day

$165.00 $105.99 Save $59.01

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Inovonics

SKU: EN1215WEOL

Inovonics EN1215WEOL Wireless Transmitter with Wall Tamper & Reed Switch

Dual-function wireless transmitter with wall tamper & reed switch
- Wall tamper detection alerts immediately if device is removed or displaced
- Reed switch contact sensor detects door/window open-close in single unit
- 902-928 MHz ISM band operation compatible with Inovonics systems
In stock · Ships same business day

$175.00 $112.99 Save $62.01

Add to Cart
The item has been added
Compare

Out of stock
Inovonics

SKU: EN1216

Inovonics EN1216 EchoStream Magnetic Contact Transmitter

Wireless magnetic contact transmitter for door/window monitoring
- 902-928 MHz ISM band transmission integrates with EchoStream systems
- Battery-powered operation eliminates wiring for flexible installation
- Operates -4°F to 140°F for indoor and outdoor deployments
Special Order · Ships in 2-3 weeks

$161.00 $85.99 Save $75.01

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Inovonics

SKU: EN1233D

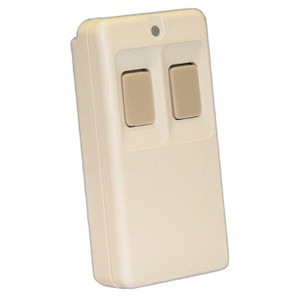

Inovonics EN1233D Double-Button Necklace Pendant 902-928 MHz

Dual-button wireless panic pendant for indoor emergency alerting
- Two independent buttons for distinct alert types or confirmation logic
- 902–928 MHz unlicensed ISM band for facility-wide indoor coverage
- Wearable design eliminates need for fixed panic buttons at workstations
In stock · Ships same business day

$179.00 $104.99 Save $74.01

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Inovonics

SKU: EN1233S

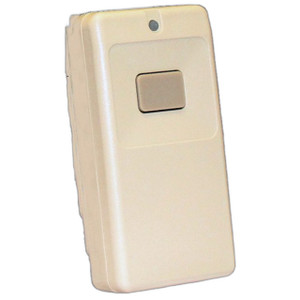

Inovonics EN1233S Single-Button Necklace Pendant 902-928 MHz

Wearable wireless panic pendant, 902-928 MHz, single-button activation
- One-button design triggers emergency alerts from anywhere within range
- 902-928 MHz wireless transmission eliminates hardwiring across facility
- Necklace pendant form factor keeps panic access on personnel at all times
In stock · Ships same business day

$179.00 $119.99 Save $59.01

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Inovonics

SKU: EN1235D

Inovonics EN1235D Wireless Panic Button Transmitter 902-928 MHz

Dual-button wireless panic transmitter for mobile security on 902-928 MHz
- Two independent programmable buttons trigger different alert levels from a single device
- 902-928 MHz unlicensed ISM band operates without FCC licensing requirements
- Belt clip form factor keeps hands free during patrols and outdoor deployments
In stock · Ships same business day

$189.99

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Inovonics

SKU: EN1235DF

Inovonics EN1235DF Dual-Button Wireless Panic Button

Dual-button wireless panic for fixed wall mount, 902–928 MHz unlicensed band
- Two independent buttons trigger separate alert types—silent panic or priority code
- Battery-powered 902–928 MHz ISM band operation, no FCC licensing required
- Tamper-resistant wall-mount design for reception desks and security stations
In stock · Ships same business day

$203.00 $132.99 Save $70.01

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Inovonics

SKU: EN1235S

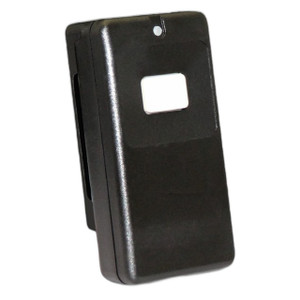

Inovonics EN1235S Single-Button Belt Clip Pendant 902-928 MHz

Single-button wireless panic pendant for mobile staff alerting
- One-touch activation sends distress signal on 902-928 MHz band
- Belt clip design keeps device accessible during routine facility work
- Lightweight pendant (0.12 lbs) operates without hardwired infrastructure
In stock · Ships same business day

$189.99

Add to Cart
The item has been added

What to Look For When Buying

The six decisions that matter most before you spec.

Fail-Safe vs Fail-Secure

Fail-safe locks (power-to-lock) unlock on power loss — required for egress routes by most fire codes. Fail-secure (power-to-unlock) stays locked on power loss — used on office and storage doors where security trumps egress. Life-safety code interpretation varies by jurisdiction; consult your AHJ before specifying. See our fail-safe vs fail-secure guide.

OSDP vs Wiegand

Wiegand is the legacy reader-to-controller protocol (unencrypted, one-way, limited to 26-bit formats). OSDP (Open Supervised Device Protocol) is the modern replacement — bidirectional, encrypted, supervised, and future-proof for Seos/mobile credentials. New deployments should be OSDP; plan a Wiegand-to-OSDP migration path in legacy systems before adding mobile credential support.

Credential Technology

125 kHz proximity (HID Prox, EM) is the legacy standard — cheap, cloneable, no security. 13.56 MHz smart cards (iCLASS SE, MIFARE DESFire EV3, Seos) use AES encryption and are the commercial standard. Mobile credentials via NFC/BLE increasingly replace physical cards — but only on OSDP-capable readers. Specify multi-technology readers for migration flexibility.

Cloud vs On-Prem Management

Traditional server-based access platforms (Lenel, Genetec, C-Cure) require IT infrastructure and maintenance contracts. Cloud-native platforms (Brivo, Openpath/Avigilon Alta, Genea) eliminate servers but add per-door monthly fees. Mid-size deployments increasingly choose cloud; enterprise + critical infrastructure still favor on-prem. Hardware choice determines which platforms you can run.

Power Supply Sizing

Every lock + reader + controller has an inrush current and a holding current — and they differ. Maglocks hold at 300-500 mA but pull 800 mA on release. UL 294 power supplies rated for total simultaneous holding + 25% headroom, with battery backup sized to code-required runtime. Undersized power supplies are the #1 cause of access-control nuisance failures.

Code Compliance (Egress)

IBC, NFPA 101, and ADA all mandate unimpeded egress. A magnetically-locked door requires a fire-alarm tie-in, a bond-sensor, and a request-to-exit device — omit any and the door is a code violation. Delayed-egress maglocks require 15-second delay + sounder per NFPA. Always confirm lock spec with the AHJ before ordering.

Technology Stack

The specs and acronyms that actually affect outdoor performance.

OSDP v2 + Secure Channel

Open Supervised Device Protocol v2 with Secure Channel Protocol (SCP) delivers AES-128 encryption between reader and controller over RS-485. Replaces unencrypted Wiegand. Required for new federal deployments and FIPS 140-2 applications. All modern HID, ASSA ABLOY, and STid readers support OSDP + SCP.

Seos + iCLASS SE Credentials

HID Seos is the current-generation credential platform: AES-128 encrypted, multi-application, supports mobile wallets, backward-compatible with iCLASS SE. Seos credentials work on Seos readers + older iCLASS SE readers — iCLASS SE credentials do not work on legacy iCLASS (non-SE) readers. Plan migrations carefully.

FIPS 201 / PIV + PIV-I

Federal Identity Verification standard — the credential format used for federal employee and contractor badges. PIV-I (Interoperable) is the commercial variant for hospitals, utilities, and critical-infrastructure contractors. Specify PIV/PIV-I-capable readers (HID pivCLASS, multiCLASS SE) for any facility that hosts government visitors.

UL 294 Listing

Underwriters Laboratories listing for access control system units — power supplies, controllers, and locks. UL 294 6th edition covers security, durability, and overcurrent/overvoltage protection. Insurance and code requirements increasingly specify UL 294 listing. Altronix access-control power supplies are UL 294 listed across the catalog.

Wiegand Protocol

Legacy reader-to-controller protocol — one-way, unencrypted, variable bit-length format. Easily cloned with <$50 hardware. Still widespread because of low cost and universal compatibility. Acceptable for low-security interior doors; should be replaced with OSDP on any external or sensitive-area door.

Request-to-Exit (REX)

Motion- or push-button-activated device that signals the access controller to unlock the door from the secure side without generating an alarm. Required for maglock-equipped egress doors per code. PIR REX sensors must be properly aimed — nuisance alarms and held-door violations trace back to bad REX placement more than any other cause.

Typical Deployment Scenarios

Multi-Tenant Office Building

Lobby turnstiles with multi-tech readers, tenant suite doors with HID Signo + Seos, parking garage with long-range readers, elevator control for floor-by-floor access. Cloud platform (Brivo, Openpath) with mobile credentials replaces physical card issuance. Integration with SIP video intercoms for visitor management.

K-12 School Secure Vestibule

Front entry vestibule with fail-secure electric strike, interior Aiphone video intercom for visitor buzz-in, badge readers for staff, lockdown button integrated with mass notification. Back-of-house doors fail-safe per code. Full VMS integration for event overlay.

Hospital & Healthcare

Unit doors with HID multiCLASS SE + PIV-I compatibility, medication rooms with dual-authentication (card + biometric), ER ambulance bays with ruggedized readers, delayed-egress on behavioral health wards. Lenel or Genetec server-based platform with HIPAA-compliant audit logging. High-cycle-count electric strikes required.

Data Center & Critical Infrastructure

Biometric readers at server-room entries, mantrap doors with anti-tailgating sensors, cage-level access with OSDP + SCP, 7x24 audit logging. FIPS 201 / PIV-I credentials. Integration with IP cameras for tailgating review and infrastructure monitoring for physical-layer security.

Frequently Asked Questions

What's the difference between fail-safe and fail-secure locks?

Fail-safe locks (also called "power-to-lock") unlock on power loss — required for egress routes by most fire and life-safety codes. Fail-secure locks ("power-to-unlock") stay locked on power loss — typically used on office, storage, and supply doors where security trumps egress. Always confirm lock selection with the local AHJ; see our fail-safe vs fail-secure guide.

Is OSDP required for new access control installations?

Not legally required in most jurisdictions — but strongly recommended and effectively mandatory for federal deployments. OSDP with Secure Channel provides AES-128 encryption between reader and controller, bidirectional supervision, and future-proof support for mobile credentials. Legacy Wiegand is unencrypted and easily cloned. New deployments should be OSDP-capable from day one; legacy systems should plan a migration path.

Are HID card readers NDAA compliant?

Yes. HID Global is headquartered in Austin, TX, manufactures in multiple allied countries, and is fully NDAA Section 889 compliant. HID Signo, multiCLASS SE, iCLASS SE, and pivCLASS reader families are all eligible for federal, state government, and critical-infrastructure procurement. Credential cards are manufactured to the same compliance standard.

How do I size an access control power supply?

Add up holding current for all locks + reader standby current + controller standby current, then add 25% headroom for inrush and aging. Battery backup should provide code-required standby runtime (typically 4 hours for fire-alarm tie-ins; 15 min for access-only). Altronix UL 294 power supplies post clear spec sheets for total and per-output current — match to your actual load, don't guess.

Can mobile credentials replace physical access cards?

In most modern deployments, yes — but the reader has to support it. Readers need NFC and/or BLE (Bluetooth Low Energy) plus a partnership with the mobile credential platform (HID Mobile Access, Openpath, Kastle, etc.). Older proximity-only readers cannot read mobile credentials. Mobile adoption is usually mixed with physical cards during a multi-year transition — plan for both.

What's the difference between iCLASS SE and Seos credentials?

iCLASS SE was HID's previous-generation secure credential (AES-128, 2013-era). Seos is the current generation (2016+) — same AES-128 security, but multi-application, mobile-wallet capable, and future-proof. Seos credentials work on Seos-capable readers and on older iCLASS SE readers. iCLASS SE credentials do not work on legacy (pre-SE) iCLASS readers. See our HID Global catalog for current Seos SKUs.

Access Control

Plan Your Deployment

Sub categories

Showing Results for Access Control

Honeywell VISTA-50P Wired Intrusion Control Panel

Honeywell WAVE2 Two-Tone Indoor Alarm Siren

i-PRO MC-T2MK7F8QMC 8-Door Access Control Power Kit

Inovonics ACC672LR Long Range Lens for EN1260 915-928 MHz

Inovonics EN1210 EchoStream Single Input Universal Transmitter

Inovonics EN1210EOL EchoStream Wireless Transmitter 902-928 MHz

Inovonics EN1210W Wireless Door/Window Transmitter 902-928 MHz

Inovonics EN1212 Dual Input Universal Transmitter

Inovonics EN1215EOL EchoStream Universal Transmitter 902-928 MHz

Inovonics EN1215WEOL Wireless Transmitter with Wall Tamper & Reed Switch

Inovonics EN1216 EchoStream Magnetic Contact Transmitter

Inovonics EN1233D Double-Button Necklace Pendant 902-928 MHz

Inovonics EN1233S Single-Button Necklace Pendant 902-928 MHz

Inovonics EN1235D Wireless Panic Button Transmitter 902-928 MHz

Inovonics EN1235DF Dual-Button Wireless Panic Button

Inovonics EN1235S Single-Button Belt Clip Pendant 902-928 MHz

Browse by Product Family

What to Look For When Buying

Technology Stack

Typical Deployment Scenarios

Top Brands for Outdoor Deployments

Frequently Asked Questions

Related Categories

Engineering Reading
