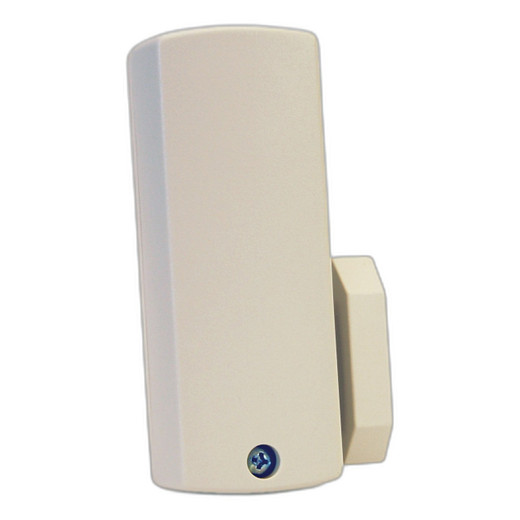

Inovonics EN1215WEOL Wireless Transmitter with Wall Tamper & Reed Switch
Overview
The Inovonics EN1215WEOL is a dual-function wireless transmitter designed to monitor both device tampering and entry-point status in a single unit. It combines a wall tamper detection switch with a reed contact sensor, operating in the 902-928 MHz ISM band—a frequency allocation widely used in distributed security systems. This approach eliminates the need to deploy separate transmitters at each monitored location, cutting installation complexity and reducing the number of wireless devices competing for bandwidth on your network. Typical deployments include perimeter protection, secured equipment enclosures, and access control point monitoring where both physical tampering alerts and door/window state must be reported to a central system.
Key Features
- 902-928 MHz Wireless Operation: Operates in a frequency band commonly allocated for security systems, reducing interference with other wireless devices and ensuring reliable coexistence with existing Inovonics networks or compatible third-party platforms.
- Integrated Wall Tamper Detection: Built-in tamper switch immediately alerts the system if the EN1215WEOL is removed, displaced, or physically tampered with—adding a layer of system integrity assurance that prevents an attacker from silently disabling the sensor.
- Reed Switch Contact Sensor: Detects door or window opening with a simple magnetic reed contact, a proven technology that requires no power consumption from the reed element itself and delivers reliable on/off reporting.
- Dual-Sensor Consolidation: Combining wall tamper and reed switch into one transmitter eliminates the need for two separate devices at single monitoring points—reducing deployment cost, installation labor, and system configuration overhead.
- Extended Temperature Range (32°F to 140°F / -0°C to 60°C): Operates reliably in climate-controlled indoor environments and temperature-variable spaces, suitable for warehouses, retail locations, and secured facilities where ambient temperature may fluctuate within this range.
- Wireless Integration with Inovonics and Compatible Platforms: Integrates into wireless security networks that support the 902-928 MHz ISM band, enabling centralized monitoring and reporting across distributed entry points and equipment enclosures.
Integration & Compatibility
The EN1215WEOL transmitter is designed for deployment in Inovonics-based security systems and compatible wireless monitoring platforms that recognize this frequency band. The dual-sensor architecture—wall tamper combined with reed switch—means you can monitor both unauthorized device tampering and actual entry-point compromise from a single location, simplifying system planning and reducing wiring runs. When integrating the EN1215WEOL into your wider security architecture, consider the range requirements for your facility and the density of other wireless devices already operating on the 902-928 MHz band to avoid congestion and packet loss.
Mounting & Physical Deployment
The EN1215WEOL mounts to a wall or enclosure surface via its integrated wall tamper switch, which detects removal or displacement. The reed switch component pairs with a magnet (typically placed on a door or window) to detect opening events. This dual-mounting approach—one surface mount for the transmitter, one magnet for the reed—is straightforward for warehouse, retail, and perimeter applications where both device-level integrity and entry-point status must be monitored.
When to Choose a Different Model
If your deployment requires outdoor or extreme-temperature operation beyond 32°F to 140°F, or if you need higher frequency bands (such as 2.4 GHz for better range in metal-heavy environments), consider a different transmitter model within the Inovonics family. If your system does not support the 902-928 MHz band or requires wired integration rather than wireless transmission, the EN1215WEOL is not the right fit.
Frequently Asked Questions
Q: Does the Inovonics EN1215WEOL work with non-Inovonics systems?
A: The EN1215WEOL is designed for Inovonics security networks and compatible third-party platforms that support the 902-928 MHz ISM band. Verify compatibility with your specific central monitoring system or VMS before deployment.
Q: What is the wireless range of the EN1215WEOL?
A: Range depends on facility layout, building materials, and interference from other wireless devices. Manufacturer documentation provides line-of-sight range specifications; conduct a site survey to confirm coverage in your target deployment area.
Q: Can I use the EN1215WEOL for outdoor monitoring?
A: The EN1215WEOL is rated for indoor and temperature-controlled environments (32°F to 140°F). It is not specified for outdoor exposure, high humidity, or weather conditions. For outdoor perimeter monitoring, consider a weather-rated transmitter variant.
Q: How is the reed switch magnet mounted?
A: The reed switch detects a magnet placed on the opening door or window. Mount the magnet on the moving element (door/window) and position the EN1215WEOL on the fixed frame or wall surface so the magnet and reed are aligned when the door/window is closed.
Q: Does the wall tamper detection trigger an alarm when the device is installed?
A: The wall tamper switch detects removal or displacement after installation. During initial setup, the system learns the baseline state. Any subsequent tampering (removal or physical displacement) triggers an alert to the monitoring system.
Q: What battery type does the EN1215WEOL use?
A: Refer to the manufacturer datasheet for battery type, capacity, and expected service life specifications for your deployment profile.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've specified the Inovonics EN1215WEOL in several distributed security deployments where both device-level tamper protection and entry-point monitoring are required. The dual-sensor configuration—wall tamper combined with reed switch—eliminates the need for separate transmitters at single locations, which simplifies deployment planning and reduces cost per monitored point. In a typical warehouse or retail environment with dozens of secured doors and equipment enclosures, consolidating two functions into one wireless device significantly lowers the wireless device density and associated infrastructure cost.
Technical Highlights:
- 902-928 MHz Operation: Operates in a frequency band commonly allocated for security systems, reducing interference concerns and supporting coexistence with other wireless security devices on the same network. If your facility already runs Inovonics wireless sensors, the EN1215WEOL integrates seamlessly without additional frequency coordination overhead.
- Wall Tamper Detection: Alerts the system immediately if the EN1215WEOL is removed, displaced, or tampered with, adding a layer of system integrity assurance. This prevents silent bypass attacks where an attacker simply removes the sensor and disables monitoring at that location.
- Reed Switch Contact Sensing: Provides reliable detection of door or window opening with zero power draw from the reed element itself—meaning your battery life remains predictable and long even in high-cycle environments like warehouse receiving areas where doors open and close frequently throughout the day.
Deployment Considerations:
- Indoor and temperature-controlled environments only (32°F to 140°F). If your deployment includes unheated loading docks, outdoor kiosks, or climate-extreme locations, the EN1215WEOL will not perform reliably—plan for alternate transmitter models in those zones.
- Reed switch alignment is critical. The magnet must maintain consistent proximity to the reed during normal door/window movement. If hinges are misaligned or the door sags, the contact may become unreliable; test alignment during commissioning and verify after any facility maintenance.
- Wireless range varies with building materials. Metal-frame doors, chain-link fencing, and racking systems can attenuate 902-928 MHz signals. Conduct a site survey with your central receiver in place to confirm coverage before full deployment.
The EN1215WEOL is particularly well-suited for warehouse and retail perimeter protection—places where you need simultaneous tampering alerts and entry-point status across a large distributed footprint without the installation labor and cost of hardwired sensors. It reduces your wireless device count and simplifies system architecture for facilities already committed to Inovonics infrastructure.
