Zebra DS4608-SR vs Datalogic 931061335: Specification Comparison
Both the Zebra DS4608-SR and the Datalogic Matrix 220 (931061335) are corded 2D imagers capable of reading 1D and 2D barcodes, placing them in the same broad barcode scanner class. However, the DS4608-SR is a handheld general-purpose scanner designed for retail and light-industrial point-of-sale or receiving environments, while the Matrix 220 is a fixed-mount stationary industrial scanner built for factory automation and industrial integration via PROFINET/IO and EtherNet/IP. A buyer cross-shopping these would be weighing mobile handheld flexibility against fixed-mount industrial automation capability.
In This Guide
- What are each scanner's decode capabilities and imaging performance?
- How do the two scanners compare in environmental protection and physical durability?
- What host interfaces and system integration options does each scanner support?
- Which should you choose: the DS4608-SR or the 931061335?
- Side-by-Side Specs
- FAQ
What are each scanner's decode capabilities and imaging performance?

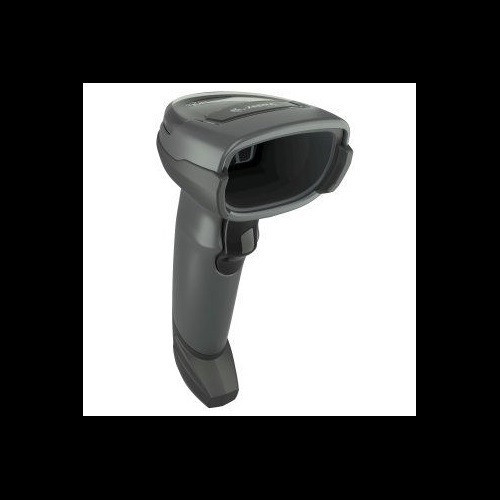

The Zebra DS4608-SR uses a 1280×800 pixel CMOS imager with a specified scan engine tuned for handheld use, supporting 1D symbologies (Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32), 2D codes, DotCode, Dotted DataMatrix, and OCR (OCR-A, OCR-B, MICR, US Currency). It supports image capture in Bitmap, JPEG, and TIFF formats. Pitch and skew tolerance are each ±60°, and roll tolerance spans 0°–360°, indicating strong omni-directional read performance in handheld use.
The Datalogic Matrix 220 uses a 1.2 MP 2D CMOS imager with a multicore image processing platform, rated at 800 scans per second. Its stated symbology coverage includes 1D/2D barcodes, Data Matrix, QR Code, and direct part marking (DPM). A specific pixel resolution figure is not provided in the supplied specs. No OCR capability is listed for the Matrix 220. The 800 scans/sec throughput spec is unique to the Matrix 220; no equivalent scan rate is specified for the DS4608-SR.
How do the two scanners compare in environmental protection and physical durability?
The Zebra DS4608-SR carries an IP52 environmental sealing rating, meaning it is protected against dust ingress (limited) and dripping water. It is drop-rated to 6.0 ft. (1.8 m) onto concrete and survives 2,000 tumbles in a 1.5 ft. (0.5 m) tumbler. ESD immunity is rated at ±15 kV Air, ±8 kV Direct, and ±8 kV Indirect. Its operating temperature range is 0°C to 50°C, and storage extends from -40°C to 70°C.
The Datalogic Matrix 220 carries an IP65/IP67 rating, which is substantially more robust — fully dust-tight and protected against both water jets (IP65) and temporary immersion (IP67). This makes it suited to wet, dusty, or wash-down factory environments. Its operating temperature range is -10°C to 50°C, offering a 10°C cold-side advantage over the DS4608-SR. No drop or tumble specification is provided for the Matrix 220, consistent with its fixed-mount design. No ESD immunity figure is listed for the Matrix 220.
What host interfaces and system integration options does each scanner support?
The Zebra DS4608-SR supports USB, RS232, and TGCS (IBM) 46xx over RS485. This breadth of legacy and modern interfaces suits point-of-sale, retail, and general-purpose enterprise deployments. No Ethernet, PoE, or industrial fieldbus connectivity is listed.
The Datalogic Matrix 220 connects via Ethernet with Power over Ethernet (PoE), PROFINET/IO, and EtherNet/IP. These are standard industrial automation protocols used in manufacturing execution systems (MES), programmable logic controllers (PLCs), and factory network infrastructure. PoE eliminates the need for a separate power supply. USB and RS232 interfaces are not listed for the Matrix 220. It also includes a 16×2 character onboard display, which is not present on the DS4608-SR. The Matrix 220 does not list RS232 or USB support; the DS4608-SR does not list Ethernet or industrial fieldbus support.
Which should you choose: the DS4608-SR or the 931061335?
Our take: The DS4608-SR is the stronger choice when mobility, broad legacy interface support, and OCR or DotCode capability are required in a retail, warehouse receiving, or general enterprise environment. The Matrix 220 is the stronger choice for fixed-mount factory automation where industrial network integration is mandatory. Key spec deltas: the Matrix 220's IP65/IP67 rating far exceeds the DS4608-SR's IP52, making the Datalogic unit the clear winner in harsh or wet industrial settings; the Matrix 220 operates to -10°C vs. 0°C for the DS4608-SR, adding cold-environment headroom; and the DS4608-SR adds OCR (OCR-A, OCR-B, MICR, US Currency) and DotCode support not listed for the Matrix 220. Platform qualifier: buyers on PROFINET or EtherNet/IP factory networks must choose the Matrix 220; buyers needing USB/RS232 POS or receiving-dock integration should choose the DS4608-SR.
Side-by-Side Comparison
Spec-for-spec, from manufacturer data.
| Specification | Zebra DS4608-SR | Datalogic 931061335 |
|---|---|---|
| Scanner Type | Corded Handheld Imager | Stationary Industrial Imager |
| Image Sensor Resolution | 1280 × 800 pixels | 1.2 MP (exact pixel array not specified) |
| Scan Rate | — | 800 scans/sec |
| Symbologies — 1D | Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 | 1D barcodes (specific list not provided) |
| Symbologies — 2D | 2D, DotCode, Dotted DataMatrix | Data Matrix, QR Code, DPM |
| OCR Support | OCR-A, OCR-B, MICR, US Currency | — |
| Environmental Sealing (IP) | IP52 | IP65/IP67 |
| Operating Temperature | 0°C to 50°C | -10°C to 50°C |
| Storage Temperature | -40°C to 70°C | — |
| Drop Specification | 6.0 ft. (1.8 m) to concrete | — |
| Tumble Specification | 2,000 tumbles at 0.5 m | — |
| Host Interface | USB, RS232, TGCS (IBM) 46xx over RS485 | Ethernet (PoE), PROFINET/IO, EtherNet/IP |
| Power Input | 4.5–5.5 VDC, 340 mA typical | PoE (voltage/current not specified) |
| Weight | 5.7 oz. / 161.9 g | 300 g |
| Dimensions (H × W × D) | 6.5 in. × 2.6 in. × 3.9 in. | 48 × 46 × 64 mm |
| Warranty | Five Years | 2-Year Limited |
Frequently Asked Questions
Which should you choose: the DS4608-SR or the 931061335?
The DS4608-SR is the stronger choice when mobility, broad legacy interface support, and OCR or DotCode capability are required in a retail, warehouse receiving, or general enterprise environment. The Matrix 220 is the stronger choice for fixed-mount factory automation where industrial network integration is mandatory. Key spec deltas: the Matrix 220's IP65/IP67 rating far exceeds the DS4608-SR's IP52, making the Datalogic unit the clear winner in harsh or wet industrial settings; the Matrix 220 operates to -10°C vs. 0°C for the DS4608-SR, adding cold-environment headroom; and the DS4608-SR adds OCR (OCR-A, OCR-B, MICR, US Currency) and DotCode support not listed for the Matrix 220. Platform qualifier: buyers on PROFINET or EtherNet/IP factory networks must choose the Matrix 220; buyers needing USB/RS232 POS or receiving-dock integration should choose the DS4608-SR.
Can the Zebra DS4608-SR or the Datalogic Matrix 220 read direct part marks (DPM) on metal parts?
The Datalogic Matrix 220 explicitly lists direct part marking (DPM) as a supported read capability. The Zebra DS4608-SR's supplied specs do not list DPM as a supported capability. For DPM applications, the Matrix 220 is the specified option based on the provided specs.
Which scanner is better suited to a wet or dusty factory floor?
The Datalogic Matrix 220 carries an IP65/IP67 rating, providing full dust-tight protection and resistance to water jets and temporary immersion. The Zebra DS4608-SR is rated IP52, which covers only limited dust ingress and dripping water. For harsh factory, wet, or wash-down environments, the Matrix 220's sealing is substantially more appropriate.
Does either scanner support Power over Ethernet (PoE) to simplify cabling?
Yes — the Datalogic Matrix 220 supports Power over Ethernet (PoE), meaning it can receive both data connectivity and power over a single Ethernet cable. The Zebra DS4608-SR does not list PoE support; it operates over USB or RS232/RS485 and draws power at 4.5–5.5 VDC via its host interface.
