Datalogic 957022201-00053 vs Datalogic 931061345: Specification Comparison
Both the Datalogic Magellan 9550i (957022201-00053) and the Datalogic Matrix 220 (931061345) are fixed-mount 2D barcode scanners from the same manufacturer, but they target fundamentally different deployment environments. The 9550i is a large-format bi-optic unit designed for retail point-of-sale checkout counters, while the Matrix 220 is a compact, sealed industrial imager built for factory automation and production-line integration. A buyer choosing between them is selecting an environment and integration architecture, not simply comparing scanner models.
In This Guide
- Which scanner offers the right imaging capability and symbology support for your application?
- Which unit is built for your physical installation environment and space constraints?
- Which scanner integrates into your existing infrastructure — retail POS or industrial automation?
- Which should you choose: the 957022201-00053 or the 931061345?
- Side-by-Side Specs
- FAQ
Which scanner offers the right imaging capability and symbology support for your application?
The Magellan 9550i uses a digital imaging bi-optic architecture with GS1 2D Digital Link support, reading both 1D and 2D symbologies including QR Code, Data Matrix, PDF417, Code 128, Code 39, UPC, and EAN. Its bi-optic scan pattern — projecting beams from both a horizontal platter and a vertical window — is engineered for high-throughput retail checkout where items pass through at varied angles without precise positioning.
The Matrix 220 uses a 1.2 MP 2D CMOS area imager capable of reading the same core 1D/2D symbology set, and additionally specifies Direct Part Mark (DPM) capability with integrated flexible illumination. DPM reading is critical for industrial traceability applications where codes are laser-etched or dot-peened directly onto metal or plastic parts rather than printed on labels. No scan rate is specified for the 9550i; the Matrix 220 is rated at 800 scans/second. DPM capability is not listed for the 9550i.
Which unit is built for your physical installation environment and space constraints?

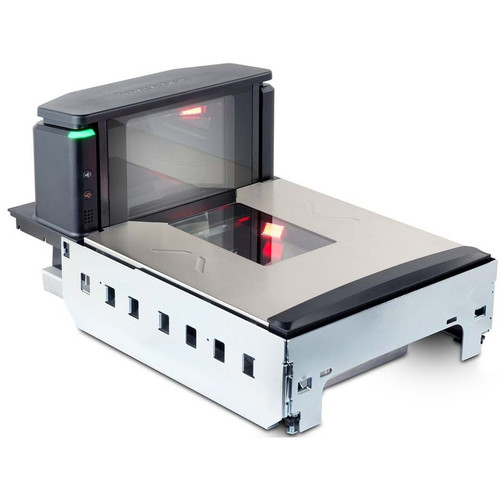

The Magellan 9550i is a large countertop unit at 305 × 216 × 406 mm (12.0 × 8.5 × 16.0 in) and 6.4 kg (14.1 lb), designed to be recessed into or mounted on a checkout counter platter. It is described as drop-tested and resistant to thermal shock and electrical surge — appropriate durability for a retail floor environment. No IP ingress protection rating is specified for the 9550i.
The Matrix 220 is a compact fixed-mount enclosure at 48 × 46 × 64 mm (1.89 × 1.81 × 2.52 in) and 300 g (0.66 lb) — roughly one-fiftieth the weight of the 9550i. It carries an IP65/IP67 rating, meaning it is fully dust-tight and protected against both low-pressure water jets and temporary immersion. Its operating temperature range is specified as -10°C to 50°C (14°F to 122°F). No operating temperature range is provided for the 9550i. The Matrix 220's sealed, compact form factor is purpose-built for mounting in tight production-line spaces, robotic cells, or wash-down areas.
Which scanner integrates into your existing infrastructure — retail POS or industrial automation?
The Magellan 9550i connects via USB, RS-232, and Ethernet (RJ45, 10-position connector specified). These are the standard interfaces for retail POS systems — USB and RS-232 are universally supported by point-of-sale terminals and legacy checkout software stacks. The Ethernet port extends integration options for networked POS environments.
The Matrix 220 connects via Ethernet with PoE (Power over Ethernet), PROFINET/IO, and EtherNet/IP — the two dominant industrial Ethernet fieldbus protocols used in PLC-based factory automation (Siemens and Rockwell/Allen-Bradley ecosystems respectively). It also lists RS-232. PoE eliminates a separate power supply run to the mounting location. The Matrix 220 also specifies a 16 × 2 character embedded display, which is not listed for the 9550i. The 9550i's warranty is specified as 1-year limited with factory support; the Matrix 220 carries a 2-year limited warranty.
Which should you choose: the 957022201-00053 or the 931061345?
Our take: The 957022201-00053 (Magellan 9550i) is the stronger choice when the deployment is a retail checkout counter requiring high-throughput bi-optic scanning of consumer packaged goods with GS1 Digital Link support, USB/RS-232/Ethernet POS integration, and surge-resistant countertop durability. The 931061345 (Matrix 220) is the stronger choice for industrial automation: it is sealed to IP65/IP67 vs. no IP rating on the 9550i, weighs 300 g vs. 6.4 kg, and supports PROFINET/IO and EtherNet/IP for PLC integration — interfaces entirely absent on the 9550i. The Matrix 220 also adds DPM capability and a 2-year warranty vs. 1-year on the 9550i. These are not cross-shop alternatives; the deciding factor is environment — retail POS versus factory floor.
Side-by-Side Comparison
Spec-for-spec, from manufacturer data.
| Specification | Datalogic 957022201-00053 | Datalogic 931061345 |
|---|---|---|
| Series / Family | Magellan 9550i | Matrix 220 |
| Product Type | Bi-Optic Fixed Retail Scanner | Stationary Industrial Scanner |
| Scan Engine | 2D Digital Imaging Bi-Optic | 1.2 MP 2D CMOS Imager |
| Scan Pattern | Bi-optic | 2D Area Imager |
| DPM Capability | — | Yes, with flexible illumination |
| Scan Rate | — | 800 scans/sec |
| Symbologies 1D | Code 128; Code 39; UPC; EAN | Code 128; Code 39; UPC; EAN |
| Symbologies 2D | QR Code; Data Matrix; PDF417 | QR Code; Data Matrix; PDF417; DPM |
| Connectivity | USB; RS-232; Ethernet | Ethernet (PoE); PROFINET/IO; EtherNet/IP; RS-232 |
| IP Rating | — | IP65/IP67 |
| Dimensions (mm) | 305 × 216 × 406 | 48 × 46 × 64 |
| Weight | 6.4 kg (14.0 lb) | 300 g (0.66 lb) |
| Operating Temperature | — | -10°C to 50°C (14°F to 122°F) |
| Warranty | 1-Year Limited | 2-Year Limited |
| Embedded Display | — | 16 × 2 characters |
| Power | — | PoE (30 W) |
Frequently Asked Questions
Which should you choose: the 957022201-00053 or the 931061345?
The 957022201-00053 (Magellan 9550i) is the stronger choice when the deployment is a retail checkout counter requiring high-throughput bi-optic scanning of consumer packaged goods with GS1 Digital Link support, USB/RS-232/Ethernet POS integration, and surge-resistant countertop durability. The 931061345 (Matrix 220) is the stronger choice for industrial automation: it is sealed to IP65/IP67 vs. no IP rating on the 9550i, weighs 300 g vs. 6.4 kg, and supports PROFINET/IO and EtherNet/IP for PLC integration — interfaces entirely absent on the 9550i. The Matrix 220 also adds DPM capability and a 2-year warranty vs. 1-year on the 9550i. These are not cross-shop alternatives; the deciding factor is environment — retail POS versus factory floor.
Is the Magellan 9550i or the Matrix 220 better for a grocery or big-box retail checkout lane?
The Magellan 9550i (957022201-00053) is designed specifically for retail POS. Its bi-optic form factor with horizontal platter and vertical window reads items passed through at varied orientations, and it connects via USB and RS-232 — the standard interfaces for checkout terminals. The Matrix 220 lacks bi-optic scanning and uses industrial fieldbus protocols (PROFINET/IO, EtherNet/IP) that are not compatible with retail POS software.
Can either scanner handle wash-down or outdoor industrial environments?
Only the Matrix 220 (931061345) carries a documented IP rating — IP65/IP67 — confirming full dust ingress protection and resistance to water jets and temporary immersion. The Magellan 9550i (957022201-00053) specifies drop resistance, thermal shock resistance, and surge resistance, but no IP rating is listed in its specs, making it unsuitable for wash-down or high-moisture industrial settings.
Which scanner supports Direct Part Mark (DPM) codes used in industrial traceability?
The Matrix 220 (931061345) explicitly lists Direct Part Mark (DPM) capability with integrated flexible illumination, which is required to read codes laser-etched or dot-peened onto metal and plastic parts. DPM capability is not listed in the Magellan 9550i (957022201-00053) specifications. For aerospace, automotive, or electronics traceability applications requiring DPM, the Matrix 220 is the appropriate choice.
