Socket Mobile CX3534-2136 vs Socket Mobile CX4489-3691: Specification Comparison

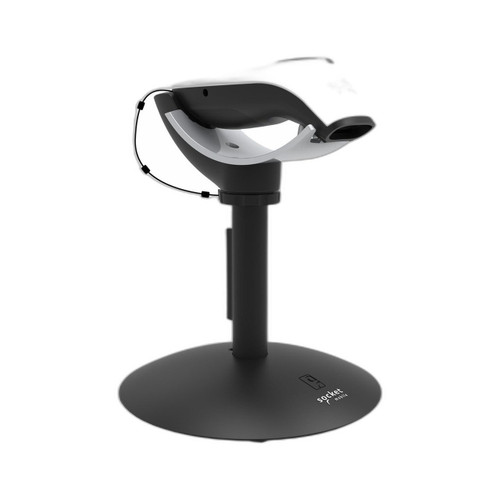

Both the Socket Mobile CX3534-2136 (SocketScan S740) and the CX4489-3691 (XScan XS962 Pro MR) are handheld Bluetooth barcode scanners targeting mobile and point-of-sale workflows. Buyers evaluating these units will weigh scan engine breadth, ruggedness, connectivity protocol, and battery endurance. The S740 positions as a 1D-primary scanner with broad symbology support, while the XS962 Pro MR adds IP67 sealing and Bluetooth LE with 1D/2D capability. This comparison draws strictly from provided specifications.
In This Guide
Which scanner covers the barcode symbologies your operation actually uses?
The CX3534-2136 explicitly lists six symbologies across two dimensions: 1D (Code 128, Code 39, UPC, EAN) and 2D (QR Code, Data Matrix). This breadth is confirmed in both the structured specs and the narrative fields, making it straightforward to validate compatibility with common retail, healthcare, and logistics label formats.
The CX4489-3691 spec data lists only UPC under both the general Symbologies and Symbologies 1D fields, with the narrative describing '1D/2D symbologies including UPC' without naming additional codes. The spec sheet does not enumerate which 2D formats are supported. Buyers relying on Data Matrix, QR Code, Code 128, or Code 39 cannot confirm compatibility from the provided data alone and would need to request a full symbology table from the vendor.
Which unit is better built for harsh or mobile environments?
The CX4489-3691 carries a documented IP67 rating, meaning it is certified dust-tight and can withstand immersion in up to 1 meter of water for 30 minutes. This makes it the clear choice for warehouse floors, loading docks, or food-service environments where spills, dust, and drops are routine. IP67 is a defined IEC standard—not a marketing claim.
The CX3534-2136 provides no IP ingress protection rating in the supplied specifications. Its operating temperature range is documented at 0° to 45°C (32° to 113°F), which covers standard indoor environments. Without an IP rating, this unit should be treated as a general-purpose indoor device unsuited for wet or dusty conditions without additional protective housing.
How do these scanners connect, and how long will they last on a shift?
The CX3534-2136 uses standard Bluetooth and is explicitly confirmed compatible with iOS and Android. Battery capacity is stated at 2000mAh, with the narrative estimating 8–10 hours of continuous scanning per charge—a figure drawn from the product's own documentation, not independent testing. USB connectivity is not listed.
The CX4489-3691 specifies Bluetooth LE (low-energy) and adds USB as a wired interface option, providing dual connectivity that the S740 lacks. Bluetooth LE typically delivers longer radio standby times and easier pairing on modern HID-profile hosts. However, no battery capacity (mAh) or runtime figure is provided in the supplied specs—the Battery Life field reads only 'Information,' which is non-informative. Platform compatibility beyond 'mobile computers and stationary POS systems' is not specified. HID keyboard emulation is noted in the narrative, eliminating driver requirements on most WMS and POS hosts.
Which should you choose: the CX3534-2136 or the CX4489-3691?
Our take: The CX3534-2136 is the stronger choice when verified multi-symbology support and known battery runtime are the top priorities. It explicitly lists six symbologies (Code 128, Code 39, UPC, EAN, QR Code, Data Matrix) versus the CX4489-3691's confirmed UPC only, and its 2000mAh battery is documented against an 8–10 hour runtime estimate. The CX4489-3691 holds a decisive advantage in ruggedness: its IP67 rating is a hard spec the S740 cannot match, and its dual Bluetooth LE plus USB connectivity offers more host flexibility. Battery life for the CX4489-3691 cannot be compared—the spec field is absent. For clean indoor retail or clinical environments using iOS/Android hosts, the CX3534-2136's documented symbology breadth is a practical advantage. For warehouse, logistics, or any wet/dusty environment, the CX4489-3691's IP67 sealing is the overriding factor regardless of other spec gaps.
Side-by-Side Comparison
Spec-for-spec, from manufacturer data.
| Specification | Socket Mobile CX3534-2136 | Socket Mobile CX4489-3691 |
|---|---|---|
| Product Name | SocketScan S740 | XScan XS962 Pro MR |
| SKU | CX3534-2136 | CX4489-3691 |
| Form Factor | Handheld | Handheld |
| Scan Engine | 1D linear + 2D | 1D/2D |
| Symbologies — 1D | Code 128, Code 39, UPC, EAN | UPC (only named) |
| Symbologies — 2D | QR Code, Data Matrix | Not specified in provided data |
| Connectivity | Bluetooth | Bluetooth LE; USB |
| Bluetooth Protocol | Bluetooth (standard) | Bluetooth LE |
| IP Rating | — | IP67 |
| Battery Capacity | 2000mAh | — |
| Battery Runtime (est.) | 8–10 hours (per product narrative) | — |
| Operating Temperature | 0° to 45°C (32° to 113°F) | — |
| Platform Compatibility | iOS and Android | Not specified |
| HID Keyboard Emulation | — | Yes (per narrative) |
| RoHS Compliance | — | EN 50581 |
| Warranty | 1-year | 1-year |
Frequently Asked Questions
Which should you choose: the CX3534-2136 or the CX4489-3691?
The CX3534-2136 is the stronger choice when verified multi-symbology support and known battery runtime are the top priorities. It explicitly lists six symbologies (Code 128, Code 39, UPC, EAN, QR Code, Data Matrix) versus the CX4489-3691's confirmed UPC only, and its 2000mAh battery is documented against an 8–10 hour runtime estimate. The CX4489-3691 holds a decisive advantage in ruggedness: its IP67 rating is a hard spec the S740 cannot match, and its dual Bluetooth LE plus USB connectivity offers more host flexibility. Battery life for the CX4489-3691 cannot be compared—the spec field is absent. For clean indoor retail or clinical environments using iOS/Android hosts, the CX3534-2136's documented symbology breadth is a practical advantage. For warehouse, logistics, or any wet/dusty environment, the CX4489-3691's IP67 sealing is the overriding factor regardless of other spec gaps.
Is the CX3534-2136 or CX4489-3691 better for reading QR codes and Data Matrix labels?
Based on the provided specs, the CX3534-2136 is the confirmed choice—it explicitly lists QR Code and Data Matrix among its supported 2D symbologies. The CX4489-3691's spec sheet lists only UPC as a named symbology; while its narrative references '1D/2D symbologies,' no specific 2D formats are enumerated. Buyers who depend on QR or Data Matrix should verify the XS962 Pro MR's full symbology table directly with Socket Mobile before purchase.
Can either scanner survive a warehouse environment with dust and occasional liquid exposure?
Only the CX4489-3691 carries a documented IP67 rating, certifying it as dust-tight and resistant to temporary water immersion. The CX3534-2136 has no IP rating in its provided specifications and should be treated as an indoor-only device. For warehouse, food-service, or outdoor-adjacent deployments, the CX4489-3691 is the appropriate unit based on available data.
Which scanner works better with existing iOS and Android mobile devices?
The CX3534-2136 explicitly confirms compatibility with iOS and Android in its specifications. The CX4489-3691's provided specs do not name iOS or Android compatibility—they reference 'mobile computers and stationary POS systems' generically. The CX4489-3691's Bluetooth LE and HID keyboard emulation are broadly compatible protocols, but OS-level compatibility is not confirmed in the supplied data. If iOS or Android pairing is a firm requirement, the CX3534-2136 is the only unit with documented platform confirmation.
