Data Center Security Camera Systems
Compliance-driven surveillance engineered for colocation facilities, enterprise data centers, edge computing sites, hyperscale campuses, and federal or DoD-eligible environments. Perimeter thermal-plus-radar detection, mantrap and biometric-paired cameras with single-person-transit verification, data-hall aisle coverage, cabinet and cage cameras for colocation customer-specific evidence, critical-infrastructure coverage (UPS, battery, generator, chiller, fuel), and loading-dock chain-of-custody for incoming and decommissioned equipment. Specified around NDAA-compliant equipment, VMS platforms aligned to SOC 2, ISO 27001, HIPAA, PCI-DSS, FedRAMP, StateRAMP, and DoD IL2-IL5 control requirements, and retention that meets the longest applicable compliance window across the camera portfolio.
In This Guide
Why Data Center Surveillance Is Different
Data center security is purpose-built to support compliance frameworks (SOC 2, ISO 27001, PCI-DSS, HIPAA, FedRAMP, StateRAMP, DoD IL2-IL5) that treat physical security as a foundation of overall information security. Every camera, access control event, and audit log has to support the evidence trail auditors examine. The surveillance architecture is tightly integrated with access control, environmental monitoring, and information security systems in ways that other verticals rarely match.
Mantrap (airlock) entries are standard at most colocation and enterprise data center facilities. Two interlocked doors prevent tailgating: the inner door cannot open until the outer door closes and identity is verified. Cameras cover both sides of each door plus the interior of the mantrap itself. This architecture is required for SOC 2 and most compliance frameworks, and the camera coverage is often examined during the audit.
Cabinet-level surveillance is growing in colocation facilities where customers occupy specific cabinets or cages. Cameras at the end of each aisle, cameras integrated with cabinet doors, or cameras at cage entry points provide customer-specific evidence for incident investigation. Some colocation providers offer cabinet-level video as a premium service tier with customer-accessible clips.
Environmental and infrastructure protection layer on top of physical security. Cameras at environmental sensors (leak detection, temperature, humidity), generator pads, chiller plants, and utility connections support both operational monitoring and security. The distinction between security and operations cameras blurs in a well-integrated data center; many cameras serve both functions simultaneously.
Compliance and Regulatory Considerations
SOC 2 (Trust Services Criteria CC6 Physical Access) evaluates physical access controls including surveillance. Auditors examine camera coverage of entry points, mantraps, data halls, and critical infrastructure. Retention aligned to the SOC 2 reporting period (typically 12 months minimum) is standard. Evidence of camera placement, access to recordings, and audit trails are documented during every SOC 2 engagement.
ISO 27001 Annex A.11 (Physical and Environmental Security) controls A.11.1.2 (Physical entry controls) and A.11.1.4 (Protecting against external and environmental threats) both reference video surveillance as an acceptable control. A.12.4 (Logging and monitoring) applies to access to the surveillance system itself. Document surveillance as part of the ISMS (Information Security Management System).
PCI-DSS requirement 9.1.1 applies to any data center that stores, processes, or transmits cardholder data. 3-month retention of camera footage covering sensitive areas is mandatory. 9.1.1 further requires that access to video be controlled and reviewed periodically. Colocation providers that host customer PCI environments must ensure their physical security supports customer PCI compliance.
HIPAA Security Rule 164.310 (Physical safeguards) applies to data centers hosting PHI. Surveillance, access controls, and audit logs all contribute to HIPAA-aligned physical security. Business Associate Agreements with data center providers typically require specific physical security controls including video surveillance.
FedRAMP (Federal Risk and Authorization Management Program) for cloud service providers serving federal agencies has explicit physical security requirements based on NIST SP 800-53 PE family (Physical and Environmental Protection). PE-6 (Monitoring Physical Access) requires video surveillance with retention aligned to the authorization boundary. StateRAMP has equivalent requirements for state and local agency cloud services. DoD IL2-IL5 environments have progressively stricter physical security requirements including continuous surveillance, retention periods, and access review procedures.
Data Center-Specific Equipment Comparison
Data center camera selection is driven by compliance framework requirements more than by any single camera spec. The practical decision points are: NDAA-compliant cameras across every zone (assume federal workloads even in commercial facilities), mantrap cameras covering both sides plus interior of every airlock, cabinet-aisle or cage-level cameras for colocation customer-specific evidence, thermal-plus-radar for outdoor perimeter detection with minimal false alarms, and VMS platforms with SOC 2, ISO 27001, HIPAA, PCI, and FedRAMP-aligned configurations. The comparison below is the decision framework for an enterprise data center, colocation facility, or hyperscale campus.
A typical 50,000 sq ft mid-size colocation facility deploys roughly 30% NDAA-compliant indoor dome (data hall aisles, admin offices, corridors), 20% mantrap and biometric-paired cameras, 15% cabinet-aisle or cage-level cameras for colocation customers, 10% outdoor bullet (perimeter, loading dock), 10% thermal and radar perimeter detection, 10% critical infrastructure (UPS, generator, chiller, fuel tank), and 5% LPR and specialty. Hyperscale facilities scale the same ratios across multi-building campuses.
Compliance reporting changes the TCO math. A 12-month SOC 2 retention on 300 cameras at 4MP H.265+ runs into multi-petabyte storage that ages off on a strict schedule. Incident holds and compliance-case preservation can extend specific clips for years. Specify a VMS with automated retention enforcement plus legal-hold support; manual retention management at data-center scale is unmaintainable and becomes an audit finding.
| Camera / Platform | Best Data-Center Use | Compliance Role | Typical Cost | Browse |
|---|---|---|---|---|
| NDAA-Compliant 4MP Dome | Data hall aisles, lobbies, corridors | SOC 2 / ISO 27001 core coverage | $350 to $800 | Indoor IP Cameras |
| Mantrap / Biometric-Paired Dome | Airlock doors, both sides + interior | Single-person-transit evidence | $400 to $900 | Indoor IP Cameras |
| Cabinet-Aisle / Cage Camera | Colocation customer cages, aisles | Customer-specific evidence | $400 to $1,200 | Indoor IP Cameras |
| 12MP Multi-Sensor | Data hall corners, wide aisle coverage | Reduces camera count in large halls | $1,800 to $3,800 | Multi-Sensor IP Cameras |
| Thermal + Radar Perimeter | Outdoor fence, unmanned perimeter | Detection with minimal false alarms | $2,500 to $8,000+ | Thermal IP Cameras |
| Dedicated LPR | Vehicle gate, fuel delivery | Chain-of-custody for vehicles | $1,500 to $4,500 | LPR Cameras |
| Compliance-Capable VMS | Enterprise / hyperscale platforms | SOC 2/ISO/HIPAA/FedRAMP aligned | Platform-dependent | Video Management Software |
Typical Deployment Zones
Each zone has distinct resolution, field-of-view, and environmental requirements. Match camera type to zone function, not the other way around.
Perimeter and Site Approach
The site perimeter carries the first layer of surveillance. Outdoor IP cameras at fence lines, vehicle entry gates, and pedestrian approaches. Thermal cameras at secure perimeters reduce false alarms from wildlife and weather. LPR at vehicle gates captures every vehicle. For hardened sites (government, defense), additional physical protections (barriers, bollards) are paired with camera coverage.
Main Entrance and Reception
Building main entrance, visitor reception, and security desk. 4MP dome cameras covering the entrance approach, reception desk, and visitor management kiosk. Multi-camera coverage of the lobby with overlapping fields of view so no position is out of frame. Integration with visitor management (Envoy, Proxyclick, iLobby, Traction Guest) for check-in event bookmarking.
Mantrap and Access Points
Every mantrap door has dedicated cameras covering both sides plus the interior. 4MP dome cameras with narrow field of view at badge readers and biometric stations. For enhanced facilities, a camera at each person during the mantrap transit ensures that the person inside matches the credentials used. Integration with access control for event-triggered clip generation.

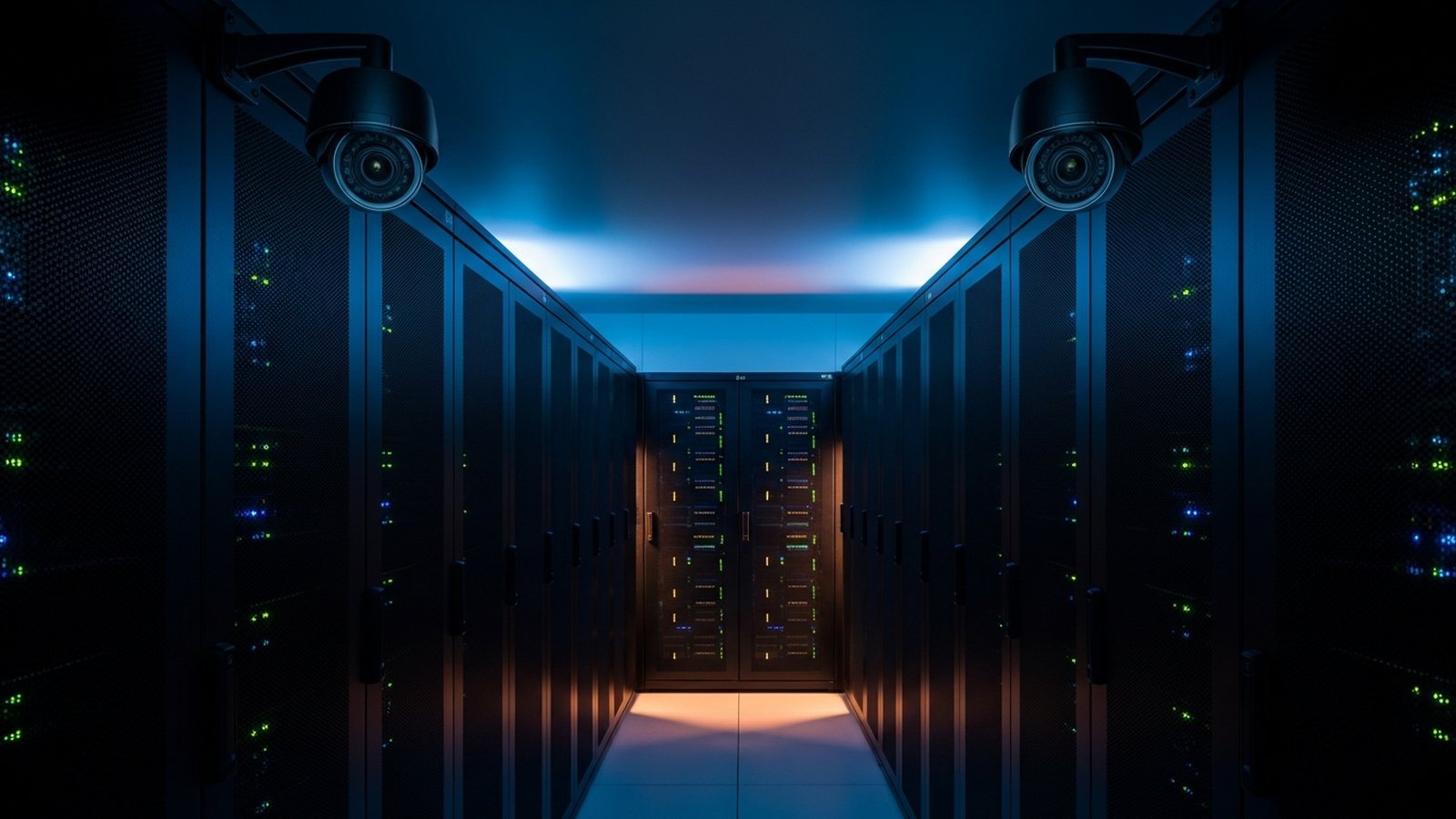

Data Hall and Cabinet Aisles
Data hall entry cameras, aisle-end cameras looking down hot and cold aisles, and in some deployments cabinet-level cameras. Multi-sensor 12MP cameras at hall corners provide wide overlapping coverage with de-warped virtual views. For colocation, aisle cameras provide customer-specific evidence for incident review.
Critical Infrastructure
UPS rooms, battery rooms, generator pads, chiller plants, electrical switchgear, and fuel tanks need dedicated coverage. Generator pad cameras document fuel truck deliveries. Switchgear and UPS rooms have access control paired with camera coverage. Fuel tanks require outdoor cameras with IR for after-hours monitoring.
Loading Dock and Equipment Staging
Equipment receiving, staging, and disposal areas. Hardware coming in, failed equipment going out, and decommissioned equipment awaiting secure destruction all need coverage. Camera at the dock door, at the staging area, and at the loading area for disposal trucks. Integration with chain-of-custody procedures for decommissioned equipment.
Recommended Camera and Equipment Types
Use this as a starting point for spec conversations with integrators. Final selection depends on distances, lighting, budget, and integration requirements.
NDAA-Compliant Camera Families
Most data centers serving government, defense, or federal contractor workloads require NDAA-compliant equipment. Commercial data centers serving enterprise customers increasingly adopt NDAA-compliant standards as a baseline. Verify specific camera model and firmware compliance, not just brand.
Indoor Dome and Turret Cameras
Data hall interior, lobby, mantrap, and office areas. 4MP resolution, true WDR for entry positions, IR for darker data hall areas (hot aisles sometimes run in reduced-lighting mode). Vandal-resistant for any position where maintenance or installation personnel have access. Tamper detection features support audit-trail integrity.
Outdoor Cameras for Perimeter
IP67 and IK10 for all outdoor positions. Heater-equipped for cold climates. Motorized varifocal lenses for installer flexibility. For fenceline detection, pair with thermal cameras or radar systems that trigger camera PTZ or event recording.
Mantrap and Biometric-Paired Cameras
Specific camera positions covering each biometric reader, badge reader, and mantrap door. 4MP dome cameras with narrow fields of view optimized to capture the person at the reader and the reader's screen. Event-triggered recording linked to the access control system captures each transit with context.
Multi-Sensor Cameras for Data Halls
12MP multi-sensor cameras at data hall corners provide wide coverage with de-warped virtual views for each aisle or zone. A single multi-sensor replaces 4 directional cameras at higher initial cost but with lower channel count. Confirm VMS support for the specific multi-sensor variant.
CJIS/Compliance-Capable VMS
VMS platforms with SOC 2, ISO 27001, HIPAA, and FedRAMP-aligned configurations. Genetec Security Center, Milestone XProtect, Avigilon ACC, and Hanwha Wisenet WAVE all have deployment guides for compliance-aligned configurations. Work with your compliance team on specific platform requirements. Integration with access control (Lenel, Avigilon Access, Genetec Synergis, Honeywell Pro-Watch) is typically native.
Budget Planning
A small colocation facility or enterprise data center (single data hall, 10,000 to 25,000 sq ft) typically deploys 60 to 150 cameras covering perimeter, entrance, mantraps, data hall, infrastructure rooms, and loading dock. Equipment budget is $75,000 to $200,000.
Mid-size colocation facilities (multiple data halls, 50,000 to 150,000 sq ft) commonly deploy 200 to 500+ cameras. Large hyperscale and campus facilities can exceed 1,000 cameras across multiple buildings and data halls. Equipment budgets scale accordingly: $300,000 to $1.5M+ for mid-size, $1M to $10M+ for hyperscale.
Data center surveillance also carries substantial ongoing costs: compliance audit support, integration maintenance with access control and environmental systems, firmware patching on tight security cycles (often monthly for critical CVEs), and 24/7 security operations center staffing. Budget 15 to 25% of initial capital cost annually for sustainment and compliance operations.
| Facility Scale | Camera Count | Equipment Budget | Storage (12-Month Retention) |
|---|---|---|---|
| Enterprise Data Center | 60 to 150 cameras | $75,000 to $200,000 | 200 TB to 500 TB |
| Mid-Size Colocation | 200 to 500 cameras | $300,000 to $1M+ | 500 TB to 2 PB |
| Hyperscale Campus | 1,000 to 5,000+ cameras | $1M to $10M+ | Multi-PB |
Frequently Asked Questions
Common questions from facility managers, integrators, and IT teams planning data center surveillance deployments.
What cameras are typical at mantrap entries?
Each mantrap door has dedicated cameras covering both sides plus the interior of the mantrap vestibule. The outer side captures the person approaching, the badge or biometric reader activity, and the visitor if applicable. The interior camera verifies single-person transit. The inner side captures the person exiting the mantrap into the secure zone. Typical mantrap has 3 to 5 cameras depending on configuration and compliance requirements.
How long should data center cameras retain footage?
SOC 2 reports typically require 12 months of evidence, so 12-month retention is common. PCI-DSS requires 3 months minimum for cameras covering cardholder data environments. FedRAMP and defense frameworks may require 90 days to 1+ year. For hyperscale environments, retention often reaches 2+ years for specific critical-infrastructure cameras. Align retention to the longest applicable compliance requirement for each camera zone.
Do we need cameras at every cabinet or cage?
Not typically. Most data centers cover aisle ends, hall entries, and mantraps rather than individual cabinets. Cabinet-level cameras are growing in colocation facilities as a premium service tier for customers who require customer-specific surveillance evidence. Cage-level cameras at physically separated customer cages are standard when cages are offered. Discuss with your compliance framework requirements and customer SLAs.
How do cameras integrate with access control and biometrics?
Modern VMS platforms natively integrate with access control (Lenel, Avigilon Access, Genetec Synergis, Honeywell Pro-Watch) so every badge, card, or biometric event links to the corresponding camera footage. For data centers with dual-factor authentication, the reader-camera pairing ensures the person credentialing at the reader matches the expected identity. Event-triggered clips accelerate incident investigation and audit support.
What about customer video access in colocation?
Some colocation providers offer customer-accessible video as a premium service, typically with strict authentication and audit logs on access. The scope is limited to camera positions covering the customer's specific cage or cabinets. Implementation requires a VMS that supports fine-grained role-based access and customer-tenant separation. Most operators require customer incident-specific video requests to go through the provider's security team rather than direct customer VMS access.
Do we need NDAA-compliant cameras in a commercial data center?
Federal workloads and federal-contractor workloads require NDAA-compliant equipment. Commercial data centers increasingly adopt NDAA-compliant standards as a baseline even without federal requirements because it simplifies procurement and supports customers who may have federal data requirements. Most enterprise colocation providers now specify NDAA-compliant as the default.
How do cameras support compliance audits?
Auditors examine camera placement, retention, access controls, audit logs on video access, and integration with access control events. Typical audit evidence includes camera layout diagrams showing coverage of entry points and critical zones, sample clips demonstrating mantrap coverage and tailgating detection, access logs showing who viewed what footage when, and integration evidence showing linkage between access events and camera clips. Well-prepared data centers maintain an audit evidence package that can be updated periodically between audits.
What about environmental and operational monitoring cameras?
Cameras at environmental sensors (leak detection, temperature, humidity), generator pads, UPS rooms, and chiller plants support both operations and security. Integrated VMS + DCIM (Data Center Infrastructure Management) systems bookmark camera clips at environmental events. For fuel deliveries to generator pads, camera coverage supports chain-of-custody documentation that is often required by SOC 2 and SOC 1 audits.
How should we segment the camera network from the production IT network?
Full network segmentation is standard and usually required by compliance frameworks. The camera VLAN must not have routable access to production infrastructure networks (DCIM SCADA, BMS, core network control plane), customer VLANs, or the corporate IT network. Camera traffic is isolated to the security VLAN with ACLs controlling which management stations can reach it. VMS recording and retention systems live on a dedicated management network. This segmentation is examined during SOC 2 and FedRAMP audits; unsegmented camera networks are typically flagged as deficiencies. Pair the segmentation with firmware patching discipline (monthly for critical CVEs) and SIEM integration for anomaly detection on the camera VLAN itself.
What is the right retention and legal-hold strategy?
Baseline retention is the longest applicable compliance window: 12 months for SOC 2, 3 months for PCI-DSS cameras, 1 to 3 years for some FedRAMP environments. Critical-infrastructure cameras (fuel delivery, generator maintenance, loading-dock decommissioning) often extend to 3+ years because chain-of-custody cases surface long after the event. Layer on legal-hold capability: when a compliance investigation or customer incident opens, specific clips must be preserved beyond normal aging regardless of baseline retention. Specify a VMS with automated retention enforcement plus manual hold flags; manual retention at data-center scale is an audit finding in progress.
Plan Your Data Center Security System
Share your facility layout, coverage requirements, and compliance constraints. Our team will recommend camera placement, resolution, storage sizing, and any integration points for your data center deployment.
