IP Camera Accessories | Mounts, Enclosures, Lenses, IR & Power

Deployment Considerations

Environmental protection and weather resistance
Mounting stability and load support
Power and voltage compatibility
Cable management and termination quality
Compliance with local safety standards

Sub categories

Showing Results for Accessories

Compare

Add to Cart The item has been added
Hanwha

SKU: SHD-1350FPW

Hanwha SHD-1350FPW Ceiling Flush Mount

Ceiling flush mount for Hanwha X, Q, P series cameras with white aluminum finish
- Recesses into ceiling plane for clean, integrated appearance in retail and office spaces
- Aluminum alloy construction rated -40°C to 50°C for indoor temperature stability
- Compact 185.7 × 58.4 mm profile weighs 0.5 kg with white finish for standard ceilings
In stock · Ships same business day

$135.00 $101.99 Save $33.01

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hanwha

SKU: SHD-1370FPW

Hanwha SHD-1370FPW Plenum In-Ceiling Housing

Plenum-rated in-ceiling housing for Hanwha IP cameras in air-handling spaces
- Flame-retardant aluminum (RAL9003 white) meets building codes for plenum installation
- Flush mount fits 10–70mm ceiling tiles with ø181mm hole for standard drop-ceiling grids
- Supports M20 and M25 conduit entries; holds cameras up to 3kg load
In stock · Ships same business day

$125.00 $93.99 Save $31.01

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hanwha

SKU: SHD-1400FPW

Hanwha SHD-1400FPW Plenum Flush Mount White

Plenum flush mount for Hanwha dome cameras in drop ceilings
- Aluminum construction with RAL9003 white finish, plenum-rated for HVAC spaces
- Compact ø202.3mm profile fits standard ceiling holes, minimal visual footprint
- Supports up to 2kg camera load on tile ceilings 10–70mm thick
In stock · Ships same business day

$135.00 $101.99 Save $33.01

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hanwha

SKU: SHD-1400FW

Hanwha SHD-1400FW Flush Mount Ceiling Bracket

Flush ceiling bracket for discrete dome camera install in drop-tile spaces
- Mounts flush with ceiling surface—no visible hardware or cable protrusion below tile
- Supports up to 2kg load; fits 10–70mm tile thickness with ø185mm cutout
- Polycarbonate construction in white (RAL9003) for retail, corporate, and healthcare
In stock · Ships same business day

$79.00 $59.99 Save $19.01

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hanwha

SKU: SHD-1600FPW

Hanwha SHD-1600FPW Plenum In-Ceiling Housing

Plenum-rated drop-ceiling housing for Hanwha IP cameras
- Flush-mount aluminum enclosure fits 5–70mm tile thickness without gaps
- Dual M25 (3/4") and M20 (1/2") conduit ports for flexible cable routing
- White polycarbonate cover, 1200g lightweight design holds camera weight
In stock · Ships same business day

$189.00 $141.99 Save $47.01

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hanwha

SKU: SHD-1600FW

Hanwha SHD-1600FW In-Ceiling Mount for Fixed Dome Cameras

Flush in-ceiling mount for Hanwha fixed domes, 232mm aluminum design
- Aluminum construction with white finish blends into drop ceilings
- Compact 232mm diameter footprint sits level with ceiling plane
- Lightweight 560g form factor simplifies installation on ceiling grid
In stock · Ships same business day

$65.00 $43.99 Save $21.01

Add to Cart
The item has been added
Compare

Out of stock
Hanwha

SKU: SHD-2000FPW

Hanwha SHD-2000FPW Flush Mount White

Plenum-rated flush-mount for discreet in-ceiling camera installation
- Aluminum enclosure with polycarbonate cover fits 10–70mm ceiling tiles
- Supports 3.5kg camera load; rated for 6.5kg ceiling board capacity
- Compatible with Hanwha PNM-C16013RVQ; white finish (RAL9003)
Special Order · Ships in 2-3 weeks

$170.99

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hanwha

SKU: SHD-2500FPW

Hanwha SHD-2500FPW Plenum Flush Mount White

Plenum flush mount for drop-ceiling camera installations, white aluminum
- Fits standard ceiling tiles 10–70mm thick without modification to existing infrastructure
- Supports up to 5kg camera load with aluminum body and polycarbonate trim ring
- TR20 threaded screw attachment for secure, tamper-resistant mounting
In stock · Ships same business day

$250.00 $187.99 Save $62.01

Add to Cart
The item has been added
Compare

Out of stock
Hanwha

SKU: SHD-2501FPW

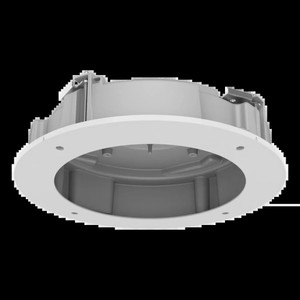

Hanwha SHD-2501FPW Plenum In-ceiling Mount

Plenum-rated in-ceiling mount for PNM-C19183RVTP cameras
- Fits drop ceilings 10–70mm thick with ø352mm footprint
- Dual M25/M20 conduit holes for flexible network and power routing
- Supports up to 5kg camera load; polycarbonate/aluminum construction
Special Order · Ships in 2-3 weeks

$250.99

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hanwha

SKU: SHD-2510FPW

Hanwha SHD-2510FPW In-Ceiling Flush Mount

In-ceiling flush mount for Hanwha cameras, IP66-rated for indoor/outdoor
- Aluminum alloy construction rated IP66 for weather and moisture protection
- Compatible with Hanwha X, Q, P, and Wisenet series IP cameras
- Operates -40°C to 60°C; white finish blends into standard ceilings
In stock · Ships same business day

$250.00 $187.99 Save $62.01

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hanwha

SKU: SHD-3000F4

Hanwha SHD-3000F4 In-Ceiling Flush Mount

In-ceiling flush mount for discreet Hanwha camera integration
- Polycarbonate housing resists UV and temperature warping in drop ceilings
- Neutral white finish blends with standard 12-inch ceiling tile grids
- Fits 4 Hanwha models; 5.29 lbs for single-person ceiling installation
In stock · Ships same business day

$79.00 $59.99 Save $19.01

Add to Cart
The item has been added
Compare

Out of stock
Hanwha

SKU: SHD-3000F5

Hanwha SHD-3000F5 In-Ceiling Plenum Flush Mount

Plenum-rated in-ceiling flush mount for PNM-9000VQ surveillance
- Plenum-rated polycarbonate construction meets air-handling space codes
- Flush-mount design minimizes ceiling intrusion with white finish
- Compact 11.81" × 11.81" footprint fits standard drop-ceiling grids
Special Order · Ships in 2-3 weeks

$250.99

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hanwha

SKU: SHD-315F

Hanwha SHD-315F 2x2 Drop Ceiling Tile Flush Mount

2x2 drop ceiling flush mount for discreet Hanwha camera integration
- Sits flush with ceiling plane—no brackets or protrusions to distract
- Fits standard commercial ceiling grids; no drilling or structural mods
- Compatible with PNM-9084RQZ and PNM-9085RQZ compact cameras
In stock · Ships same business day

$325.00 $243.99 Save $81.01

Add to Cart
The item has been added
Compare

Out of stock
Hanwha

SKU: SHD-400F

Hanwha SHD-400F In-Ceiling Flush Mount for SNV-6013

Flush-mount ceiling bracket for Hanwha SNV-6013 camera
- In-ceiling flush design minimizes visual profile in office and retail spaces
- Aluminum construction at 2.20 lbs fits standard ceiling cavities without protrusion
- Engineered specifically for SNV-6013 compatibility and straightforward installation
Special Order · Ships in 2-3 weeks

$119.00 $77.99 Save $41.01

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hanwha

SKU: SHD-46VDB

Hanwha SHD-46VDB Flush Mount Door Mullion Housing

Flush-mount door mullion housing for XNB-6001 + motorized lens
- Sits nearly flush in door frames and jambs for discreet surveillance
- Purpose-built fit with XNB-6001 camera and SLA-T4680V motorized lens
- Matte black finish blends into architectural trim in retail and banking
In stock · Ships same business day

$150.00 $112.99 Save $37.01

Add to Cart
The item has been added
Compare

Out of stock
Hanwha

SKU: SHF-1500F

Hanwha SHF-1500F In-Ceiling Flush Mount

In-ceiling flush mount for Hanwha XNF-8010 and PNF-9010 domes
- Flush mount design minimizes visual impact in retail, office, and hospitality
- Compatible with six Hanwha dome models across XNF-8010 and PNF-9010 lines
- Neutral color finish and polycarbonate construction blend into standard ceilings
Special Order · Ships in 2-3 weeks

$79.00 $59.99 Save $19.01

Add to Cart
The item has been added

What to Look For When Buying

The six decisions that matter most before you spec.

Match Bracket to Camera + Surface

A dome camera mounted on a textured wall needs a wall-mount adapter with a gasket; mounted on a pole it needs a pole-mount arm; mounted on an eave it may need a pendant. Third-party brackets exist but brand-specific brackets include proper camera cable routing and weather gasketing. Buying a $40 generic bracket to save on a $80 Axis bracket usually costs more in installation time.

Enclosure NEMA Rating

NEMA 3R = light rain; NEMA 4 = splash + driving rain; NEMA 4X = above + corrosion resistance (coastal, industrial); NEMA 6 = temporary submersion. For weather-exposed camera enclosures, NEMA 4X is the commercial standard. For mission-critical outdoor gear, pair NEMA 4X enclosure + IP67 camera + IK10 vandal rating.

C/CS-Mount Lens Selection

Box cameras use interchangeable C-mount (17.526mm flange) or CS-mount (12.5mm flange). Lens focal length + sensor size determines field of view: a 4mm lens on a 1/3" sensor gives ~60° horizontal FOV. Our DORI guide covers lens selection by scene distance. F-stop matters for low-light; P-iris for auto-exposure.

IR Illuminator Wavelength

850nm IR is more efficient but produces a faint visible red glow (deterrent or accidental giveaway, depending on use case). 940nm is truly covert but requires ~2x the power for the same effective range, and many cameras have lower sensitivity at 940nm. Match illuminator wavelength to camera IR-cut filter spec, or image washout results.

Power Supply Sizing & Distance

12VDC cameras at 100ft from a power supply drop significant voltage over 18-gauge wire — a camera rated for 12V may see 10.5V at the camera end under load, triggering brownout resets. For long runs, use a higher-voltage power supply (24VAC or 48VDC) and step down at the camera. UL-listed surveillance power supplies (Altronix) publish voltage-drop tables.

Cable Jacket Rating

Indoor Cat6 is rated CM (communications); plenum-rated CMP is required for above-drop-ceiling runs per NFPA 70. Outdoor/direct-burial Ethernet is a different product (CMX, direct-burial gel-filled). Mixing jacket ratings causes code violations and fire inspector rejections. Always spec by run environment, not lowest-cost SKU.

Technology Stack

The specs and acronyms that actually affect outdoor performance.

NEMA vs IP Rating Systems

NEMA is the US enclosure standard (NEMA 1-13); IP is the international standard (IP00-IP68). Rough crosswalk: NEMA 4 ≈ IP66, NEMA 4X ≈ IP66 + corrosion, NEMA 6 ≈ IP67. Some spec sheets list both; when only one is given, the crosswalk is approximate. For coastal, industrial, and food-processing environments, specify NEMA 4X or IP66 + stainless steel.

C-Mount vs CS-Mount Lenses

C-mount: 17.526mm flange focal distance. CS-mount: 12.5mm flange. CS cameras accept both lens types (C lenses need a 5mm adapter ring); C cameras accept only C lenses. Most modern box cameras are CS-mount for lens flexibility. Lens thread is 1-inch × 32 TPI on both.

F-Stop / Iris

F-stop = focal length ÷ aperture diameter. Lower F-stop (wider aperture) means more light, better low-light performance, shallower depth of field. F1.4 is very low-light capable; F1.8 is common commercial spec. P-iris (precise iris) lenses auto-adjust aperture based on scene lighting — reduces over-exposure during day, improves low-light at night.

850nm vs 940nm IR

IR illuminators at 850nm are more energy-efficient and the sensitivity of most camera IR-cut filters peaks here — but 850nm produces a faint visible red glow from the LEDs. 940nm is invisible to human eye but requires ~2x the power or shorter effective range. Many covert-deployment cameras are re-tuned for 940nm sensitivity.

UL-Listed Power Supplies

Underwriters Laboratories listed power supplies meet safety standards for overcurrent, overvoltage, and enclosure isolation. UL 294 specifies additional requirements for access control; UL 603 for security burglary; UL 1310 for Class 2 power. Insurance and code requirements increasingly specify UL-listed supplies — particularly in commercial and institutional installations.

Plenum vs Riser vs PVC Cable

Plenum-rated (CMP) cable uses low-smoke FEP jacket for use above suspended ceilings where smoke spreads through return-air plenums. Riser (CMR) is for vertical shaft runs between floors. PVC (CM) is for open office runs only. Using CM in plenum spaces violates NFPA 70 — costly inspector rejection if caught.

Typical Deployment Scenarios

New Construction Retrofit

Cat6A plenum cable pulled to camera locations with proper service loops, 2-gang electrical boxes at each dome location with weatherproof backbox, Cat6A patch panel at the IDF, UL-listed power supplies for any 12V/24V camera, labeled and tested before cameras are mounted.

Coastal / Corrosive Environment

NEMA 4X stainless-steel enclosures for outdoor cameras, 316-grade stainless brackets, silicone dielectric grease on every connector, hot-dipped galvanized or powder-coated steel poles. Budget 15-25% more on accessories vs. standard outdoor — and plan for 3-5 year inspection cycles rather than 10.

Box-Camera LPR Application

Box camera with 50-150mm telephoto lens, dedicated 850nm IR illuminator at same height as camera, pole-mount bracket with junction box, UL power supply for camera + illuminator. LPR-specific enclosures with anti-reflective glass to avoid nighttime IR bloom. Typical deployment: dedicated lane camera, not general-purpose surveillance.

Parking Garage Retrofit

Existing analog coax cable replaced via NVT Phybridge or similar PoE-over-coax, vandal-resistant dome enclosures at ground level, low-profile bullet cameras on ceiling, LED-plus-IR-compatible illuminators to handle harsh fluorescent lighting. Enclosures rated for vehicle-exhaust environment.

Frequently Asked Questions

Do I need the OEM bracket for my camera, or will a generic bracket work?

For most commercial installations, specify the OEM bracket. Brand-specific brackets include proper cable routing, gasketed weather seals, and mounting-hole patterns matched to the camera — which matters more than the cost savings of a generic bracket. Generic brackets are acceptable for indoor standard-dome cameras on flat surfaces; for outdoor, vandal-rated, or pendant applications, use OEM.

What NEMA rating do I need for outdoor camera enclosures?

NEMA 4 for most weather-exposed deployments (driving rain, snow). NEMA 4X for coastal, industrial, or food-processing environments (adds corrosion resistance — typically stainless steel or fiberglass construction). NEMA 6 for temporary submersion or flood-prone areas. The IP-rating equivalent is IP66 for NEMA 4, IP66 + corrosion for NEMA 4X, IP67 for NEMA 6.

How do I choose the right lens focal length for a box camera?

Work backward from the scene. Identify the farthest point you need identification-grade coverage, use our DORI guide to calculate required pixels-per-foot at that distance, and match lens focal length + sensor size to deliver that PPF. A 4mm lens on a 1/3" sensor covers ~60° horizontal FOV; a 12mm lens on the same sensor covers ~20°. Wide FOV = shorter identification distance.

What's the difference between 850nm and 940nm IR illuminators?

850nm is more energy-efficient — you get more effective range per watt — but produces a faint visible red glow from the LEDs. 940nm is truly invisible to the human eye but requires about 2x the power for equivalent range, and many cameras have lower sensor sensitivity at 940nm. For deterrent visibility or cost-efficient long-range, 850nm; for covert applications, 940nm.

Can I power an IP camera with a generic 12V wall-wart?

Not for a commercial deployment. Generic wall-warts are unregulated, not UL-listed for security applications, and typically don't include surge protection. Use a UL-listed surveillance power supply (Altronix AL series, UL 294 or UL 603) with battery backup where required. PoE is preferred when possible — single cable, centralized power management, UPS-backed.

What cable jacket rating do I need for in-ceiling runs?

Plenum-rated (CMP) cable is required for any run through a return-air plenum space above suspended ceilings (most commercial buildings). Riser (CMR) for vertical shafts between floors. PVC (CM) for open office spaces only. Using non-plenum cable in a plenum space is a fire-code violation under NFPA 70 and will be rejected by inspectors. Budget plenum cable for any building where you're not 100% sure of the return-air path.

Accessories

Deployment Considerations

Sub categories

Showing Results for Accessories

Hanwha SHD-1350FPW Ceiling Flush Mount

Hanwha SHD-1370FPW Plenum In-Ceiling Housing

Hanwha SHD-1400FPW Plenum Flush Mount White

Hanwha SHD-1400FW Flush Mount Ceiling Bracket

Hanwha SHD-1600FPW Plenum In-Ceiling Housing

Hanwha SHD-1600FW In-Ceiling Mount for Fixed Dome Cameras

Hanwha SHD-2000FPW Flush Mount White

Hanwha SHD-2500FPW Plenum Flush Mount White

Hanwha SHD-2501FPW Plenum In-ceiling Mount

Hanwha SHD-2510FPW In-Ceiling Flush Mount

Hanwha SHD-3000F4 In-Ceiling Flush Mount

Hanwha SHD-3000F5 In-Ceiling Plenum Flush Mount

Hanwha SHD-315F 2x2 Drop Ceiling Tile Flush Mount

Hanwha SHD-400F In-Ceiling Flush Mount for SNV-6013

Hanwha SHD-46VDB Flush Mount Door Mullion Housing

Hanwha SHF-1500F In-Ceiling Flush Mount

Browse by Product Family

What to Look For When Buying

Technology Stack

Typical Deployment Scenarios

Top Brands for Outdoor Deployments

Frequently Asked Questions

Related Categories

Engineering Reading
