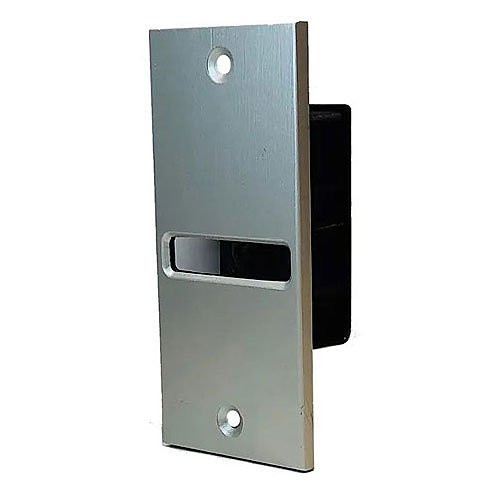

Hanwha SHD-46VDB Flush Mount Door Mullion Housing
Overview
The SHD-46VDB is a specialized flush-mount housing engineered for covert surveillance installations where architectural discretion is non-negotiable. Purpose-built to integrate the Hanwha XNB-6001 camera and SLA-T4680V motorized lens into door mullions and jambs, this housing delivers professional-grade concealment without sacrificing equipment protection or accessibility. If you're deploying perimeter surveillance in retail corridors, banking facilities, or office entry points where visible cameras invite tampering or clash with design aesthetics, the SHD-46VDB solves that problem.
Key Features
- Flush Mount Configuration: Sits nearly flush within architectural frames — door mullions and jambs — meaning passersby won't immediately spot the camera housings. This matters in high-traffic retail or banking environments where reducing target visibility decreases the likelihood of masking, blocking, or deliberate tampering.
- Purpose-Built Compatibility: Designed exclusively for the XNB-6001 and SLA-T4680V lens pairing. This tight mechanical fit ensures no wasted space, simpler installation, and reliable optical alignment. No guesswork or adaptation brackets needed — the housing integrates directly with these components without adaptation hardware that would compromise the flush profile.
- Black Finish: Matte black housing blends seamlessly into frame work and architectural trim, reinforcing the discreet profile. Color consistency with typical door hardware also minimizes visual incongruity in professional settings, reducing the likelihood that cleaning or maintenance staff will notice the installation.
- Protective Enclosure: Shields the camera and lens from dust, moisture, and direct contact — critical in areas with high foot traffic or where cleaning staff might brush against equipment. Environmental protection extends operational lifespan and reduces warranty claims from accidental physical damage, a real concern in retail and banking facilities where staff density is high.
- Simplified Maintenance Access: Housing design permits straightforward lens cleaning, focus adjustment, and component inspection without complete disassembly. In field deployments, this cuts service time and minimizes camera downtime when you need to refocus or clean optics after months of use in a dusty corridor.
- Lightweight Installation: Compact form factor means standard mounting hardware and minimal structural reinforcement. You won't need to hire a structural engineer to verify doorframe integrity before installation — the SHD-46VDB integrates directly into existing architectural elements without load concerns.
Integration and Compatibility
The SHD-46VDB works exclusively with Hanwha's XNB-6001 network camera and the SLA-T4680V motorized lens. This combination is your only supported pairing; do not attempt to retrofit other camera models into this housing. The housing itself contains no power, network, or processing components — it is purely a mechanical and environmental enclosure. Power and network connectivity flow directly through the camera mount to the XNB-6001, which then connects via standard RJ-45 to your network video recorder or IP backbone.
For camera selection context, the XNB-6001 supports ONVIF and integrates with major VMS platforms including Milestone XProtect, Hanwha SmartVMS, and third-party systems via ONVIF Profile S. The SHD-46VDB itself adds no network intelligence or analytics — it is purely mechanical protection and concealment.
Typical Deployment Scenarios
Retail store entrances benefit most from this approach. A flush-mounted SHD-46VDB in the entry door mullion captures shopper ingress/egress with minimal visibility. Banking vestibules, office suite thresholds, and secure access points all exploit the same advantage: surveillance coverage where the camera is nearly invisible until you're very close, reducing social engineering or evasion tactics.
Warehouses and industrial facilities rarely use mullion mounts because frame geometry is typically inconsistent and sightlines follow different patterns. However, office buildings with controlled entry points — executive suites, secure document areas, IT rooms — are ideal. The IP camera inside the housing will capture entry/exit activity without drawing attention from occupants or visitors.
Installation Considerations
Field mounting to door frames and mullions requires careful alignment. The motorized lens in the SLA-T4680V allows remote focus and zoom adjustment, but initial positioning and optical axis alignment should be verified during commissioning. Access to power and network cables behind or within the doorframe is required — verify that your facility's door construction permits this.
This housing is rated for interior protected spaces only. Do not expose to rain, direct sunlight for extended periods, or outdoor temperature extremes. If outdoor entry surveillance is required, consider alternative outdoor-rated camera housings instead.
FAQ Section
Frequently Asked Questions
Q: Can I use a different Hanwha camera model with the SHD-46VDB?
A: No. The SHD-46VDB is engineered exclusively for the XNB-6001 and SLA-T4680V lens pairing. Other camera models will not fit mechanically and may not align optically. Do not attempt retrofit.
Q: Does the housing include power or network connectivity?
A: No. The SHD-46VDB is a passive mechanical enclosure only. Power and network cables connect directly through the housing to the XNB-6001 camera, which then connects via RJ-45 to your recorder or IP backbone.
Q: Is the SHD-46VDB suitable for outdoor entry doors?
A: No. This housing is rated for interior protected spaces only. Outdoor doors or covered exterior areas require outdoor-rated camera housings with IP67 or higher environmental ratings.
Q: What do I need to do to clean or maintain the lens inside the SHD-46VDB?
A: The housing design permits straightforward access to the lens and camera components without full disassembly. Standard lens cleaning procedures and motorized focus adjustment via the XNB-6001 interface are supported. Consult the XNB-6001 documentation for specific adjustment procedures.
Q: Will the flush-mount profile completely hide the camera from view?
A: The housing sits nearly flush within door mullions and jambs, making it less immediately obvious than a protruding camera. However, close inspection or direct view along the doorframe may reveal the lens. The intent is to discourage casual observation and reduce target visibility in high-traffic areas, not to provide perfect concealment.
Q: What network protocols does the XNB-6001 inside the SHD-46VDB support?
A: The XNB-6001 supports ONVIF Profile S and integrates with Milestone XProtect, Hanwha SmartVMS, and other ONVIF-compatible VMS platforms. The housing adds no additional protocol intelligence.
Ted PerryPerspective based on aggregated and affiliated engineering team experience.
The SHD-46VDB solves a real problem in retail and banking: visible cameras either get masked with tape or invite social engineering reconnaissance. This flush-mount housing, paired exclusively with the XNB-6001 and SLA-T4680V motorized lens, keeps the camera lens nearly invisible within the doorframe profile while maintaining the optical alignment the motorized lens needs to function correctly.
Technical Highlights:
- Exclusive XNB-6001/SLA-T4680V Integration: Purpose-built mechanical fit eliminates adaptation hardware that would break the flush profile. The motorized lens can focus and zoom remotely without disturbing the housing geometry — critical for entry corridors where refocusing is often needed weeks into deployment.
- Black Matte Finish: Blends with door hardware and trim, reducing visual target appeal. In my experience, less obvious = less likely to become a vandalism target or social engineering probe in retail environments.
- Protective Environmental Enclosure: Shields optics and sensor from dust and incidental contact in high-traffic areas. In retail corridors where cleaning staff move carts and customers brush past doors regularly, dust accumulation is a real issue — this housing extends optics lifespan significantly compared to an exposed camera.
- Simplified Maintenance Access: You can service the lens without full disassembly. In a retail environment where you may need to refocus or clean after 3–6 months, field access matters for uptime.
Deployment Considerations:
- Interior-Only Rating: The SHD-46VDB is strictly for protected interior spaces. If your entry door is covered but exposed to significant temperature swings or humidity (loading dock vestibule, garage entry), confirm your environment falls within the interior protected rating before committing.
- Optical Positioning is Permanent: The motorized lens handles zoom and focus, but initial positioning of the camera within the housing is largely fixed during installation. Verify sight lines and entry/exit zones during commissioning — field repositioning of the housing itself requires mounting bracket rework.
- Exclusive Pairing Constraint: This is not a universal housing. You cannot retrofit other Hanwha models or third-party cameras into the SHD-46VDB. If future upgrades to a higher-resolution or panoramic camera are in scope, this housing limits flexibility.
The SHD-46VDB makes sense for retail and banking entry surveillance where discretion matters and you're committed to the XNB-6001 line. It's not a universal solution, but for a retail chain deploying dozens of store entrances where visible cameras invite theft deterrence questions or political friction, the covert profile and protective enclosure justify the housing-specific investment.
