Hanwha SHD-46VDE Flush Mount Door Mullion Lens Housing

Overview

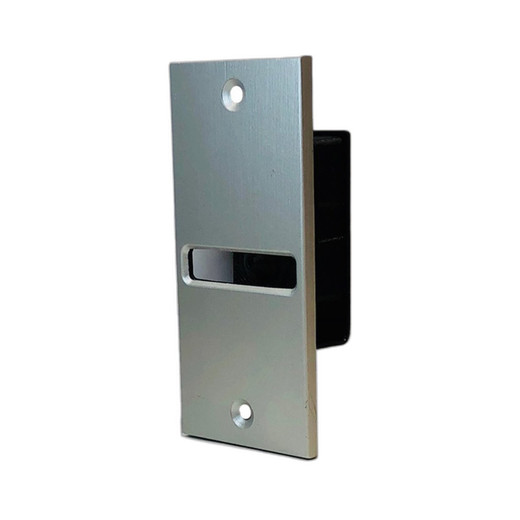

The Hanwha SHD-46VDE is a specialized flush mount lens housing engineered for door mullion and jamb installations where architectural discretion and space constraints are decisive factors. This accessory is purpose-built to protect and integrate the XNB-6001 camera paired with the SLA-T4680V lens—a combination commonly deployed at access control points, entry/exit thresholds, and indoor perimeter security zones where a low-profile footprint is non-negotiable.

The SHD-46VDE (often searched as SHD 46VDE) addresses a specific installation gap: standard camera housings and mounting brackets are too deep or visually prominent for door frame applications. This flush mount design sits nearly plane with the door mullion or jamb surface, making the optics virtually unobtrusive from the corridor or lobby perspective—a real advantage when aesthetic integration with the architecture is part of the security brief.

Key Features

• Flush Mount Design: Installs recessed into or nearly flush with the door mullion or jamb surface, eliminating the visual bulk of a protruding bracket. This keeps the security presence subtle in retail, corporate, and institutional environments where visible surveillance can impact customer or tenant perception.
• Silver Finish: Satin silver powder-coat matches typical door frame hardware and trim finishes, reducing visual contrast and blending the lens housing into the architectural profile.
• Tailored Compatibility: Engineered specifically for the XNB-6001 camera body and SLA-T4680V lens optics. This tight fit simplifies alignment, reduces shimming and adjustment time, and ensures repeatable positioning across multiple door frame installations on the same project.
• Environmental Protection: Shields the lens barrel and front element from dust, fingerprints, and incidental contact—important in high-traffic areas where people move quickly through doorways. Reduces maintenance cycles compared to exposed optics.
• Installation Simplification: Eliminates the need for custom brackets or field-fabricated metal mounting solutions. Pre-engineered for XNB-6001 / SLA-T4680V pairing reduces procurement variability and on-site troubleshooting.
• Repeatable Positioning: When deploying multiple door frame cameras across a building, the SHD-46VDE's standardized form and mounting pattern accelerate installation and ensure consistent optical angles and coverage.

Integration & Compatibility

The SHD-46VDE is a direct accessory for Hanwha's Hanwha IP cameras XNB-6001 narrow body and the SLA-T4680V varifocal lens. Before specifying this housing, confirm that your door mullion or jamb depth can accommodate a recessed or near-flush installation without interfering with door operation, weatherstripping, or existing hardware. The housing does not alter or extend the camera's electrical footprint—power and network cabling route as normal from the camera backplate.

For multi-camera door frame security, pair this accessory with a network video recorder (NVR) capable of handling multiple IP camera streams, and plan adequate PoE power switching to avoid exceeding branch circuit limits in tight door frame ceiling cavities.

Deployment Context

The SHD-46VDE excels in environments where discrete optics and architectural fit are regulatory or design requirements: bank and financial institution entrances, retail fitting room portals, corporate executive floor lobbies, healthcare patient areas with privacy sensitivity, and institutional facilities where visible surveillance hardware is discouraged. It is not suitable for outdoor mullion installations or where IP-rated environmental protection beyond indoor dust protection is required—in those cases, consider a dedicated outdoor mounting bracket in the broader camera housing category.

Frequently Asked Questions

Q: Is the SHD-46VDE suitable for outdoor door frame installations?

A: No. The SHD-46VDE is rated for indoor use only. It does not carry an IP66 or IP67 environmental rating and will not protect optics from rain, snow, or extended moisture exposure. Outdoor mullion or jamb installations require a weatherproof housing rated for the specific environmental exposure (IP66 minimum).

Q: Can I use the SHD-46VDE with a different Hanwha camera or lens model?

A: The SHD-46VDE is engineered specifically for the XNB-6001 camera body and SLA-T4680V lens. Using it with other camera models or lens focal lengths risks misalignment, vignetting, or a loose mechanical fit. Confirm compatibility with the manufacturer or your integrator before ordering.

Q: What is the installation depth required for flush mounting the SHD-46VDE into a door mullion?

A: Refer to the product datasheet for exact mounting cavity dimensions. Field-verify your door mullion or jamb depth, wall cavity accessibility, and any internal structural members (studs, reinforcing) before site planning. Door frame depth varies widely by manufacturer and construction type.

Q: Does the housing include any adjustment or leveling features?

A: The SHD-46VDE provides mounting slots or guides designed for the XNB-6001 body. Fine optical aiming is typically achieved via the camera's internal tilt/pan adjustments or the lens barrel focus ring. Confirm adjustment range in the XNB-6001 datasheet to ensure the housing does not obstruct these controls.

Q: What tools or fasteners are required to install the SHD-46VDE?

A: Refer to the product documentation for a complete fastening and template list. Typical mullion installations require masonry anchors, wall plugs, or wood screws depending on substrate. Verify structural adequacy before drilling or fastening into door frames, especially in fire-rated assemblies.

Q: Can the SHD-46VDE be used with third-party lens adapters or extension tubes?

A: Not recommended. The housing is designed for direct XNB-6001 + SLA-T4680V integration. Interposing adapters or extension tubes will change the optical working distance, likely cause vignetting, and may exceed the housing's mechanical envelope. Stick to the validated pairing.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The SHD-46VDE solves a real problem: mounting a narrow-body IP camera flush to a door mullion without a custom fabricated bracket or a visually jarring protrusion. In retail and corporate settings where the security posture needs to be transparent but not obvious, this flush mount housing for the XNB-6001 and SLA-T4680V lens cuts the difference between completely visible and invisible—it lets you mount discreetly while maintaining standard optics and power/network routing.

Technical Highlights:

• Silver Finish / Architectural Match: The satin silver coating is designed to blend with standard aluminum door frame trim and hardware finishes. This reduces visual contrast compared to a black or stainless steel bracket, lowering the psychological impact of surveillance while keeping optics protected.
• XNB-6001 + SLA-T4680V Pairing: The housing is engineered for tight mechanical fit with this specific camera and lens combination. Eliminates shimming and field adjustment variability. Optical alignment is repeatable across multiple installations.
• Reduced Maintenance Profile: The housing shields the lens barrel and front element from dust, fingerprints, and accidental contact in high-traffic areas. In busy office or retail doorways, this translates to fewer manual lens cleanings and less downtime due to image degradation.

Deployment Considerations:

• Mullion Depth is Critical: Before you commit to this housing, physically verify that your door mullion or jamb can accommodate a recessed or near-flush mounting depth. Hollow metal frames, aluminum storefronts, and wood door frames vary widely. A site visit to measure cavity depth and check for internal reinforcing is non-negotiable.
• Indoor Only: The SHD-46VDE is not weather-rated. Do not attempt outdoor mullion installations; the housing lacks IP66 or IP67 protection and will fail in rain or freeze-thaw cycles. If your door mullion faces a covered exterior or a fully conditioned corridor, you're fine. If it faces weather, order a dedicated outdoor housing instead.
• Camera Adjustment Access: Confirm that mounting the SHD-46VDE does not block access to the XNB-6001's internal pan/tilt mechanism or the SLA-T4680V focus ring. If the housing constrains these controls, you lose the ability to fine-tune aim and focus on site.

Deploy the SHD-46VDE when discretion and architectural fit are as important as functionality—financial institutions, corporate headquarters, healthcare facilities, and upscale retail environments where visible surveillance hardware is actively discouraged. For high-security or outdoor applications, or where you need multiple mounting options, step back and evaluate a broader modular camera housing family. For a single-door-frame access control point in a climate-controlled space, this accessory is purpose-built and worth the investment.
