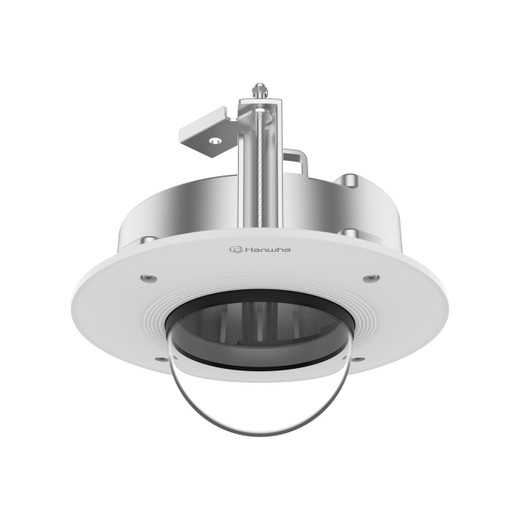

Hanwha SHD-1350FPW Ceiling Flush Mount
Overview
The Hanwha SHD-1350FPW is a ceiling flush mount accessory designed to integrate Hanwha IP cameras into finished ceiling spaces while maintaining a clean, integrated appearance. This mount addresses a real deployment constraint: when visible camera housings conflict with interior design standards or when you need cameras to blend into the architectural finish rather than announce themselves as security hardware. The SHD-1350FPW recesses the camera mounting interface into the ceiling plane, leaving only a minimal frame visible — a critical detail in retail, hospitality, museum, and corporate office environments where sightlines matter.
Key Features
- Flush ceiling mount design: Recesses the camera mounting point into the ceiling plane, eliminating the visual protrusion of a traditional pendant or dome mount. This reduces the visual footprint that can distract from product displays or disrupt a clean interior aesthetic in customer-facing spaces.
- Aluminum alloy construction: Lightweight yet rigid — aluminum resists corrosion and won't fatigue under camera weight over extended service life. Provides reliable mechanical support without the brittleness of plastic-only designs, ensuring the mount won't degrade under temperature cycling or seasonal expansion.
- White finish: Matches standard ceiling finishes in most commercial interiors (drop ceiling, drywall, acoustic panel). Avoids the visual contrast of black or stainless mounts in neutral-tone spaces, helping the mount blend rather than stand out.
- Compact footprint (185.7 mm × 58.4 mm): Fits into standard ceiling grids and does not require oversized cut-outs or structural modification. This reduces material waste and installation complexity — a real time-saver during retrofit projects where ceiling infrastructure is already in place.
- Low weight (0.5 kg / 1.1 lbs): Minimal load on ceiling infrastructure. Does not require reinforcement plates or additional hanging hardware in most drop-ceiling applications, keeping installation cost and timeline low. A typical drop-ceiling tile can handle this load without concern.
- Wide operating temperature range (-40°C to 50°C / -40°F to 122°F): Handles both climate-controlled interiors and unheated warehouse or transitional spaces (loading docks, vestibules, uninsulated stairwells). Aluminum's thermal stability prevents warping or binding across seasonal temperature swings, so the mount won't seize or lose mechanical tension over time.
Integration & Compatibility
The SHD-1350FPW is engineered for Hanwha Techwin's IP camera line, including X series, Q series, P series, and Wisenet cameras. Verify the specific camera model before ordering — not all Hanwha models have identical mounting interfaces. If you're deploying multiple camera types within the same installation, confirm that each uses the same mounting pattern or plan additional adapter hardware. Consult the camera's installation manual to confirm compatibility with the SHD-1350FPW before purchase.
Deployment Context
This mount is most valuable in environments where aesthetics matter as much as coverage. Boutique retail, museums, corporate offices, and upscale hospitality venues benefit from discreet camera placement that doesn't announce surveillance. The flush design also works well in spaces with low ceiling clearance where a traditional pendant mount might create a snag hazard or visual obstruction. Conversely, if your deployment prioritizes rapid adjustment, wide articulation range, or requires frequent repositioning, a universal swivel or articulating mount may offer more flexibility than a ceiling-flush design. The SHD-1350FPW is optimized for fixed-position installation — plan camera angles carefully during design phase.
Frequently Asked Questions
Q: Does the SHD-1350FPW work with all Hanwha camera models?
A: The mount is designed for Hanwha X, Q, P series, and Wisenet cameras. Always verify the specific camera model's mounting interface before purchase — some specialty, compact, or older models may use different attachment points or require adapter plates.
Q: Can I use this mount in an outdoor or unheated ceiling environment?
A: The mount itself operates from -40°C to 50°C, so temperature range is not a constraint. However, verify that your camera is rated for outdoor conditions and that the ceiling structure itself is weatherproof. The SHD-1350FPW is designed for ceiling installation; ensure the ceiling won't collect standing water or freeze/thaw, which could damage the mounting point over time.
Q: What ceiling grid or structure is required?
A: The compact footprint (185.7 mm × 58.4 mm) fits into standard suspended ceiling grids and drywall ceiling cut-outs. For drywall or plaster ceilings, ensure the mounting surface can support 0.5 kg with adequate fastening. Drop-ceiling applications typically require no additional reinforcement.
Q: Does the SHD-1350FPW include mounting hardware or fasteners?
A: Verify the package contents and camera manual for required fasteners. Installation requirements may vary based on ceiling type (drop-tile, drywall, or specialty substrate) and specific camera model.
Q: Is the SHD-1350FPW suitable for high-vibration environments?
A: The aluminum construction provides rigidity, but high-vibration environments (loading docks with active machinery, conveyor systems) may benefit from an articulating or vibration-damping mount instead. Evaluate vibration levels during site survey.
Q: Can I paint or modify the white finish?
A: Consult Hanwha documentation before applying paint or coatings. Standard spray paints or finishes may affect thermal properties or mechanical tolerances. Test any finish change on a non-critical mounting surface first.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The SHD-1350FPW is a straightforward accessory that solves one specific problem well: hiding the camera mounting hardware behind a finished ceiling. If your project requires discreet placement in a customer-facing space, this mount delivers that. The aluminum construction is appropriate for the weight load — 0.5 kg is light enough that you won't face ceiling reinforcement costs, but heavy enough to support most compact to mid-size Hanwha dome and turret cameras without deflection.
Technical Highlights:
- Aluminum alloy with white finish: Corrosion resistance and thermal stability across the -40°C to 50°C range means this mount won't oxidize, warp, or lose mechanical tension over seasonal temperature swings. Critical in spaces that experience unheated winter conditions or high humidity.
- Compact footprint (185.7 mm × 58.4 mm): Fits standard T-bar and grid drop-ceiling systems without modification. Reduces material waste and labor during retrofit — a real cost factor when you're retrofitting dozens of ceiling locations.
- Low load (0.5 kg / 1.1 lbs): Drop-ceiling tiles and drywall hangers can support this without reinforcement plates, which eliminates a step in installation and keeps timeline predictable.
Deployment Considerations:
- This mount is fixed-position only — no pan/tilt, no swivel range. Finalize camera angles during design phase. Field repositioning requires ceiling modification.
- Compatibility is Hanwha X, Q, P, and Wisenet only. If you're mixing camera brands or deploying legacy Hanwha models, verify the mounting interface before ordering. Adapter plates may be required.
- The white finish matches drywall and light-colored drop-ceilings, but will stand out against dark or heavily textured surfaces. Consider finish color if deploying in unusual ceiling environments.
The SHD-1350FPW is the right choice for fixed-installation retail, hospitality, or office deployments where ceiling-integrated appearance is a requirement and camera repositioning is unlikely. It's not suitable for high-vibration industrial environments, mobile mounting scenarios, or deployments that require articulation or rapid angle adjustment.
