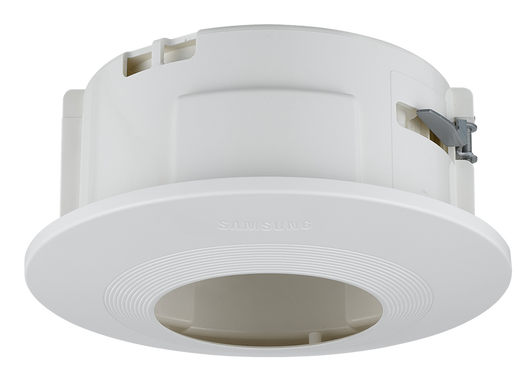

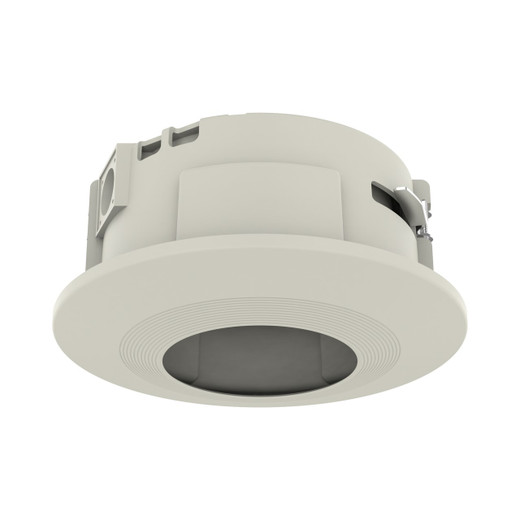

Hanwha SHD-3000F4 In-Ceiling Flush Mount
The Hanwha SHD-3000F4 is a polycarbonate in-ceiling flush mount designed to integrate select Hanwha IP cameras into drop-ceiling installations with minimal visual profile. This accessory bridges the gap between camera placement and aesthetic ceiling integration — critical in retail, office, and hospitality environments where a visible dome or visible hardware draws unwanted attention or degrades interior appearance.
Key Features
- Polycarbonate construction: Rigid yet lightweight material resists warping in temperature swings and resists UV degradation better than low-cost ABS — matters in spaces with direct sunlight or HVAC pressure variations that can degrade cheaper housings over time.
- Neutral white finish: Blends seamlessly with standard ceiling tiles and paint — eliminates the contrast that draws the eye to camera hardware, a real advantage when you need covert rather than obvious coverage.
- 11.81 x 11.81 x 4.17 inches overall dimensions: Designed to fit within or flush against standard 12-inch drop-ceiling tile grids. The 4.17-inch depth allows the SHD-3000F4 (often searched as SHD 3000F4) to sit flat without protruding into the plenum, protecting the camera lens from dust and thermal shock while keeping wiring concealed.
- 5.29 lbs weight: Light enough for one person to install into a ceiling with basic hand tools and a stepladder — no special rigging or additional mounting frame required.
- Pre-engineered camera compatibility: Specifically designed for the PND-9080R, XND-6080RV, XND-6080V, and XND-8080RV camera models. Pre-drilled or indexed mounting points mean no field fabrication — mount, wire, and commission in minutes rather than hours of custom bracket work.
- Low visual footprint: When properly installed, the SHD-3000F4 presents as ceiling trim rather than a surveillance device — particularly important in spaces where visible cameras could affect customer perception or employee morale.
Integration & Compatibility
The SHD-3000F4 is verified for use with Hanwha PND-9080R, XND-6080RV, XND-6080V, and XND-8080RV models. Before ordering, confirm your camera model against this list — mounting interfaces are not backward-compatible, and attempting to force an incompatible camera into this bracket risks damaging lens threads or connection ports. If your camera is not listed, contact the manufacturer or check for an alternate camera mount SKU designed for your specific model.
Deployment Context
The SHD-3000F4 excels in environments where discretion or aesthetic consistency is a hard requirement: corporate conference rooms, retail checkout areas, educational facility classrooms, and hospitality lobbies. It is not suitable for outdoor installations — the polycarbonate is rated for indoor temperature and humidity only. Similarly, do not use this mount in environments with direct water spray or high-pressure wash-down (manufacturing facilities, animal care facilities); IP-rated outdoor brackets would be required instead.
When planning a ceiling installation, verify that your network video recorder or VMS has capacity for the number of cameras you plan to deploy, and ensure your PoE switch or injectors provide sufficient power and port count. The camera's power draw will depend on the specific model mounted — consult the camera datasheet for wattage.
Frequently Asked Questions
Q: Is the SHD-3000F4 compatible with all Hanwha network cameras?
A: No. The SHD-3000F4 is designed for the PND-9080R, XND-6080RV, XND-6080V, and XND-8080RV models only. Using it with other cameras risks damage to the lens threads or connection interfaces. Verify your camera model before purchasing.
Q: Can the SHD-3000F4 be used in outdoor ceilings or covered patios?
A: No. The polycarbonate construction and finish are rated for indoor use only. Prolonged exposure to direct sunlight, rain, or humidity will degrade the material. Use a weather-sealed outdoor mount for exterior installations.
Q: What tools are needed to install the SHD-3000F4?
A: Standard hand tools — a Phillips head screwdriver, a drill for any pilot holes if required, and a stepladder. The mount comes ready-drilled for the compatible camera models.
Q: Does the SHD-3000F4 include mounting hardware for the camera?
A: The mount is the hardware. Any fasteners or adapters specific to your camera model should be included with the camera itself or listed in the camera's documentation.
Q: Will the SHD-3000F4 fit into a standard 2x2 ft drop-ceiling grid?
A: The 11.81-inch width and length fit within standard 12-inch drop-ceiling grids. Verify your specific ceiling grid spacing before installation.
Q: What is the operating temperature range for the SHD-3000F4?
A: The mount is rated for indoor environments. Consult the camera's datasheet for the camera's specific operating temperature limits, as the mount does not include active heating or cooling.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The SHD-3000F4 solves a specific integration problem: you need a camera ceiling-mounted in a drop-grid environment, but a visible dome or surface-mounted bracket contradicts the aesthetic or operational intent of the space. At 11.81 x 11.81 x 4.17 inches and 5.29 lbs, the SHD-3000F4 is purpose-built to sit flush within standard ceiling infrastructure — the polycarbonate resists UV and temperature swings that degrade cheaper plastics, and the neutral white finish eliminates the contrast that draws attention to the hardware itself.
Deployment Reality:
- Ceiling-grid compatibility: The 11.81-inch square footprint sits comfortably in a 12-inch drop-ceiling grid. Install the SHD-3000F4 first, then mount the camera (PND-9080R, XND-6080RV, XND-6080V, or XND-8080RV only) into the pre-drilled interface — no field customization required, which cuts installation labor and avoids costly rework if tolerances are wrong.
- Material durability: Polycarbonate won't yellow or warp in HVAC-heavy commercial ceilings where temperature swings and humidity fluctuate. Cheap ABS or PVC mounts will degrade visibly within 2–3 years in those conditions.
- Strict model lock: The SHD-3000F4 will not fit Hanwha cameras outside the four listed models. If your project includes mixed camera models or you're retrofitting a mixed Hanwha/third-party fleet, this becomes a friction point — you'll need separate mounting hardware for each camera family.
Watch-Out: Do not attempt outdoor or high-humidity installations (manufacturing, data centers with water-cooling, car washes). This is an indoor ceiling trim product. Water ingress, sustained UV, or temperature extremes will compromise the polycarbonate and the camera's lifespan.
Deploy the SHD-3000F4 when discretion or aesthetic consistency is non-negotiable: corporate offices with customer-facing ceilings, educational facilities where visible surveillance can affect student perception, or retail spaces where conspicuous cameras damage brand presentation. In industrial or outdoor settings, choose a weather-sealed mount family instead.
