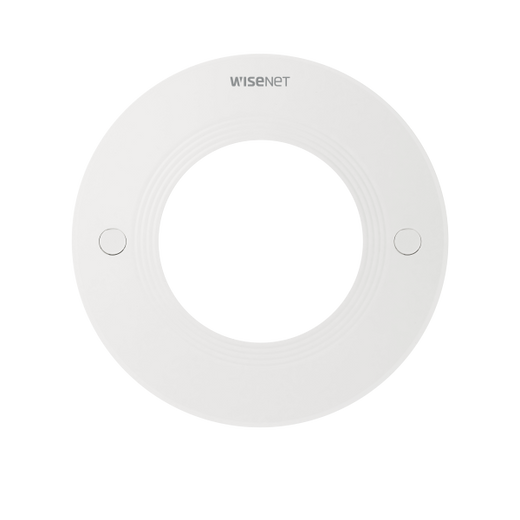

Hanwha SHD-1128FPW Ceiling Flush Mount
Overview
The Hanwha SHD-1128FPW is a professional-grade ceiling flush mount engineered for discrete in-ceiling surveillance in drop-tile environments. This accessory delivers a clean, recessed installation profile that integrates seamlessly with modern office, retail, and hospitality interiors—eliminating the visual footprint of traditional pendant or dome mounts while maintaining secure camera positioning and organized cable management.
The SHD-1128FPW accepts a range of Hanwha IP cameras from the QND and XND families, making it a straightforward choice for mid-scale deployments where ceiling aesthetics matter as much as coverage.
Key Features & Specifications
- Compact form factor (Ø160 × 145.5mm): Flush-mount profile minimizes visual intrusion in drop-ceiling grids. The 160mm diameter fits standard T-bar ceiling geometry without requiring structural modification or exposed brackets.
- Aluminum enclosure with polycarbonate top cover: Provides both durability and concealment. The aluminum body dissipates heat from powered cameras, while the polycarbonate lens protects internal wiring and camera rear components from dust accumulation—important in retail and office HVAC environments where dust buildup can degrade image quality over time.
- Tile thickness support 5–70mm: Accommodates standard drop-ceiling tiles and thinner suspended panels. The wide range means you're not locked into a specific tile supplier or thickness standard, reducing logistics friction during installation.
- Dual conduit connections (M25 3/4" and M20 1/2"): Offers flexibility for cable entry depending on your facility conduit system. M25 handles standard electrical runs; M20 suits tighter routing in congested ceiling plenums. This dual-entry design means you don't need separate adapters or custom fittings.
- RAL9003 white finish: Standard office-grade white integrates with drop-ceiling trim and tile. Reduces the visual contrast that draws attention to surveillance infrastructure.
- Low weight (692g / 1.53 lbs): Light enough to install without reinforcing the tile grid, reducing labor complexity and ceiling structural concerns.
Integration & Compatibility
The SHD-1128FPW is engineered for Hanwha QND and XND camera families, including QND-8021, QND-8011, QND-6021, QND-6011, XND-8040R, XND-8030R, XND-8020R, XND-6020R, and XND-6010. Verify your specific camera model against the compatible list before purchase—mechanical fit and cable routing differ slightly between dome and turret variants.
This mount is a passive accessory and does not require power, firmware, or network configuration. It is compatible with any NVR or video management software that supports the cameras installed within it.
Typical Deployments
Most frequently deployed in retail point-of-sale ceilings, corporate office drop-tile environments, hospitality front-of-house areas, and educational facilities where visual discretion is a design requirement. The compact footprint also suits warehouses and logistics facilities with low ceiling clearance constraints.
Frequently Asked Questions
Q: Will the SHD-1128FPW fit my existing drop ceiling?
A: The mount accommodates tile thicknesses from 5–70mm. Standard office drop ceilings typically use 2x2' or 2x4' tiles in the 15–25mm range, which fall well within this tolerance. Measure your tile thickness before ordering; unusual modular or suspended systems may fall outside this range.
Q: What camera models work with this mount?
A: The SHD-1128FPW is designed for Hanwha QND and XND series cameras. Specific compatible models include QND-8021, QND-8011, QND-6021, QND-6011, XND-8040R, XND-8030R, XND-8020R, XND-6020R, and XND-6010. Contact your systems integrator to confirm fit for your chosen camera model.
Q: Can I run both power and network cable through the same conduit hole?
A: Yes. The M25 and M20 conduit openings are sized to accept both PoE Ethernet and power feeds (if using non-PoE cameras). Bundle them using standard cable management techniques; the polycarbonate cover provides space for organized routing.
Q: Is installation reversible if I need to relocate the camera later?
A: Yes. The mount uses standard mechanical fasteners and requires no adhesive or permanent tile modification. You can remove and reinstall the SHD-1128FPW without damaging the ceiling, though you may need to re-seal the tile cutout if you abandon the location.
Q: What tools do I need to install the SHD-1128FPW?
A: A drywall saw or ceiling tile cutter (for the Ø160mm opening), a screwdriver, and a tape measure are typically sufficient. The mount itself ships with mounting brackets; verify inclusion before beginning installation.
Q: Does the aluminum enclosure dissipate heat effectively for long-running cameras?
A: Aluminum provides passive heat dissipation, which is adequate for continuous-duty cameras drawing under 15W. If your camera exceeds this power envelope, verify thermal performance with the camera manufacturer—the enclosed plenum space above a drop ceiling may retain heat in very warm climates or poorly ventilated spaces.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The SHD-1128FPW (often searched as SHD 1128FPW) is a straightforward accessory that solves one specific problem well: hiding surveillance in a standard drop-ceiling environment without fabricating custom solutions. The 160mm diameter fits T-bar grids without modification, and the polycarbonate cover actually serves a real function—dust management in retail and office environments where HVAC recirculation can degrade image quality over 6–12 months. That's not an afterthought; that's engineering.
Technical Highlights:
- Tile thickness tolerance (5–70mm): Broad enough to handle standard drop ceilings, suspended panels, and thin modular systems without requiring custom brackets or adapters. You're not locked into a single tile supplier.
- Dual conduit (M25/M20): Two entry points eliminate the need for external 90° elbows or reducers. If your ceiling conduit is M20, you use M20. If it's M25, you use M25. Simple mechanical flexibility that saves labor and reduces cost-of-entry.
- Aluminum + polycarbonate construction: The aluminum acts as a passive heat sink for the mounted camera; the polycarbonate top keeps debris out of the cable cavity. In retail environments running 24/7 with HVAC dust, this combination extends the service interval compared to open-back mounts.
Deployment Considerations:
- Verify camera model compatibility before order. The SHD-1128FPW is designed for Hanwha QND/XND families; other brands' domes will not fit mechanically.
- Installation requires cutting a Ø160mm hole in the tile. If your ceiling is load-bearing or contains structural elements, confirm clearance with facilities before cutting. Standard drop ceilings are fine; modular systems may have internal framing.
- Thermal performance assumes reasonable plenum ventilation. In attic-mounted or non-ventilated spaces above the ceiling in warm climates, passive dissipation may be insufficient for high-power cameras. Test before full deployment.
Best deployed in retail point-of-sale areas, corporate offices, and hospitality environments where interior design and discrete surveillance go hand-in-hand. Skip this if your ceiling is exposed (no drop-tile), or if you need a quick surface-mounted solution—use a wall or pendant bracket instead.
