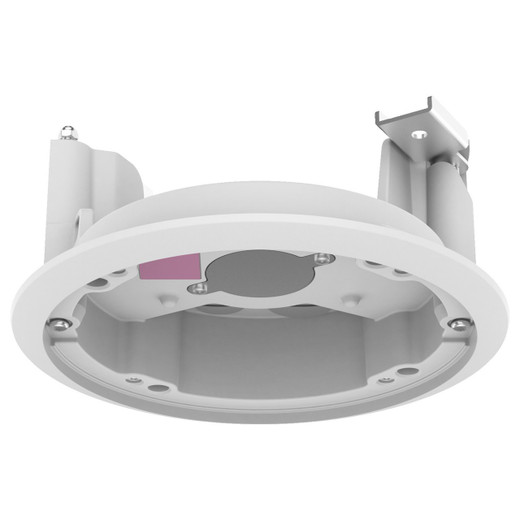

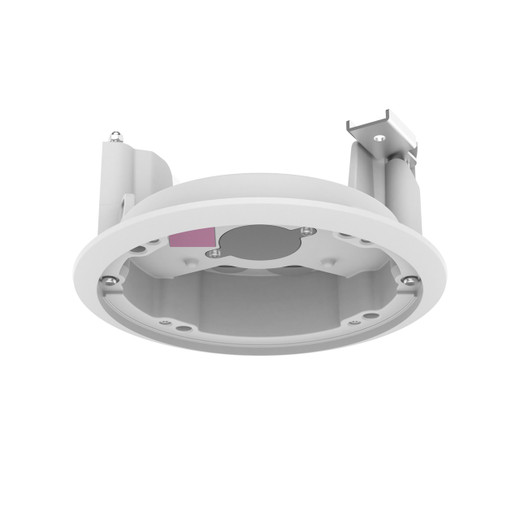

Hanwha SHD-1370FPW Plenum In-Ceiling Housing
Overview
The SHD-1370FPW is a plenum-rated in-ceiling housing designed to integrate Hanwha IP cameras into commercial air-handling spaces while maintaining strict code compliance. Plenum spaces — the areas between a dropped ceiling and the structural floor above — carry heated and cooled air throughout buildings, which means any equipment installed there must be non-combustible or fire-retardant to prevent toxic smoke if a fire occurs. This housing bridges that gap: it's constructed from aluminum with flame-retardant materials, so you can deploy surveillance without triggering code violations or expensive rework during building inspection.
Key Features
- Plenum-rated construction: Flame-retardant aluminum body (RAL9003 white finish) meets building codes for air-handling spaces — no workarounds, no inspector delays.
- Flush-mount design: ø205×103mm form factor sits flush with standard ceiling tile grids. The ø181mm ceiling hole integrates with typical drop-ceiling layouts, so installation blends into the existing infrastructure rather than standing out.
- Tile thickness flexibility: Supports 10–70mm ceiling tiles, which covers the vast majority of commercial suspended ceiling systems. Thinner tiles (10–25mm) are common in offices; thicker tiles (50–70mm) appear in retail and warehouses — this range eliminates the need for custom adapters.
- Durable aluminum housing: Aluminum resists corrosion and environmental stress better than plastic, important in humid HVAC plenums where condensation can form. Weight is only 770g (1.70 lb), so installation doesn't require reinforcement of ceiling structure.
- 3kg (6.61 lb) maximum load capacity: This weight limit matches the typical mass of compact Hanwha dome and turret cameras. Heavier PTZ or large-format cameras will require alternate mounting solutions — check camera weight against this spec before ordering.
- Flexible conduit routing: M20 (1/2") and M25 (3/4") conduit holes support both standard PoE cabling and larger wire bundles if needed for audio or analog backup feeds. Two conduit options mean you can choose the bundle size that fits your wiring plan without field modification.
- Wide camera compatibility: Supports Hanwha XNV and PNV series models including XNV-6083R, XNV-8083R, XNV-8093R, XNV-9083R, XNV-6083Z, XNV-8083Z, XNV-6083RZ, XNV-8083RZ, XNV-9083RZ, XNV-6123R, PNV-A6081R, PNV-A9081R, XNV-8082R, and XNV-9082R. Verify your specific camera model against this list before purchase to confirm fit.
- TR20 mount screw: Standard Torx fastening reduces tool variety on-site and prevents over-tightening damage to the aluminum threading.
Integration & Compatibility
The SHD-1370FPW (often searched as SHD 1370FPW) is designed solely for the camera models listed above. It is not a universal housing — compatibility is manufacturer-specific and model-specific. Before deploying this housing at scale, test fit one unit with your camera model. If you are upgrading an existing installation or mixing camera brands, confirm that any legacy or non-Hanwha cameras will not be mounted in these housings; using incompatible cameras can result in unsecured or damaged equipment.
Installation Considerations
Plenum space installation carries specific electrical codes (NFPA 90A and local building standards) that vary by jurisdiction. Work with your integrator or building systems engineer to confirm that your PoE cabling, switch power budget, and cable tray routing comply with local fire and building codes. The housing itself is compliant, but the overall system installation is not — that responsibility rests with the installer and the building owner.
Frequently Asked Questions
Q: Is the SHD-1370FPW suitable for non-plenum ceiling spaces?
A: Yes, but it is designed specifically for plenum compliance. If you are installing in a standard drop ceiling (not a plenum return air space), a standard non-plenum housing may be more economical. However, the SHD-1370FPW will work in standard spaces — the plenum rating is not a liability, just unnecessary cost in non-code-restricted areas.
Q: Can I mount the SHD-1370FPW on a wall instead of a ceiling?
A: No. This housing is designed for in-ceiling flush mounting only. Wall, pendant, and corner mounting require different housings from the Hanwha accessory line.
Q: What happens if my ceiling tiles are thicker than 70mm?
A: The housing will not mount securely. Contact your integrator about custom spacers or alternate mounting solutions. Attempting to force the housing onto oversized tiles will damage the threading or the tile.
Q: Does the SHD-1370FPW include the camera mounting bracket inside?
A: No. This housing is the ceiling interface only. The camera arrives with its own mounting bracket or dome ring. Confirm camera compatibility before ordering to avoid assembly delays.
Q: Can I run both PoE and audio through the conduit holes?
A: Yes. The M20 and M25 conduit options allow flexibility. Standard PoE plus an audio RJ-45 or 3.5mm jack can both fit through the larger M25 hole. Verify cable bundle diameter with your integrator to prevent pinching or crushing during installation.
Q: Is the SHD-1370FPW available in colors other than white?
A: The housing is specified in RAL9003 white only. No alternate colors are available from Hanwha for this model. If color matching is critical, consult your integrator about painting compatibility or alternate housing models.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The SHD-1370FPW is a straightforward plenum housing that solves a real problem: code compliance in HVAC return air spaces. If you are building out surveillance in a commercial office, hospital, or retail environment with a suspended ceiling, this housing ensures you avoid expensive retrofit work or failed inspections. The aluminum construction and flame-retardant rating are non-negotiable in plenum spaces — don't cut corners with standard housings.
Technical Highlights:
- Tile thickness range (10–70mm): Covers nearly all commercial drop-ceiling systems. Standard office tiles are typically 25mm; retail and warehouse tiles run 50–70mm. One housing type, broad deployment range.
- 3kg load capacity: Matches compact Hanwha domes and turrets. Verify your camera weight before order — anything over 3kg requires a different mounting solution.
- M20 and M25 conduit options: Dual conduit sizes eliminate the need for adapters. M20 handles standard PoE bundles; M25 supports PoE plus auxiliary cabling (audio, analog backup) in one hole.
- ø181mm ceiling hole: Sized for standard ceiling grids without over-cutting or reinforcement. Precise fit reduces installation time and minimizes cosmetic patching.
Deployment Considerations:
- Code compliance responsibility: The housing is compliant, but the overall plenum installation — cabling type, cable trays, fire separation, PoE switch power — falls under NFPA 90A and local building codes. Work with your systems integrator and building engineer to validate the full electrical design, not just the housing.
- Camera model specificity: The SHD-1370FPW works only with XNV and PNV Hanwha models listed in the compatibility section. Test fit one unit before deploying dozens. Mixing camera brands or legacy models will fail silently during installation.
- No camera bracket included: The housing is the ceiling interface only. Cameras arrive with their own mounting rings. Do not assume the housing includes internal fasteners for the camera itself.
Deploy the SHD-1370FPW in code-restricted plenum spaces where a fire-rated, aluminum housing is mandatory. In standard drop-ceiling areas, it still works but may represent unnecessary cost. For offices, hospitals, and large retail sites with multiple plenum returns, this housing streamlines compliance and installation consistency across the deployment.
